Shijiazhuangshouyingtech Co., Ltd.
China Manufacturer with main products: RS485 Data Acquisition Module, Converter, Data Acquisition Card |

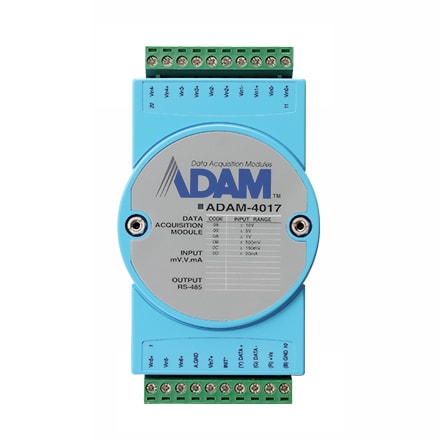

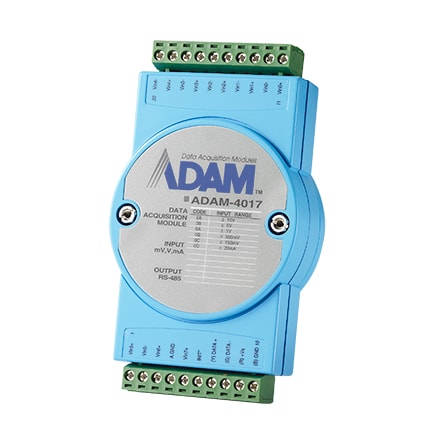

ADAM-4017/4017+ 8Analog Input Module
| FOB Price: | 109.00 - 135.00 USD/Piece |
|---|---|
| Supply Ability: | 100 Piece(s) per Day |
| Payment Terms: | D/P |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Taiwan |
Quick Details
- Contact Load: Low Power
- Protect Feature: Epoxy
- Size: 52*27*112
- Theory: data acquisition module
- Brand Name: advantech
- AI channel number: 8 differential
- Input type: mV, V and mA
- Output speed (bps) Maximum distance: RS-485 (2-wire) 1200, 2400, 4800, 9600, 19.2K, 38.4K, 57.6K, 115.2K 4000 ft. (1200 m)
- Isolation voltage: 3000 VDC
- Resolution: 16-bit
- Sampling rate: 10 samples/second (total)
- Power requirements: +10 to +30 VDC (non-regulated)
- Power consumption: 1.2 W @ 24 VDC
Specifications
the ADAM-4017 is a 16-bit, 8-channel analog input module that provides programmable input ranges on all channels. this module is an extremely cost-effective solution for industrial measurement and monitoring applications. Its opto-isolated inputs
Provide 3000 VDC of isolation between the analog input and the module, and protect
the module and peripherals from damage due to high input-line voltages.
the ADAM-4017 offers signal conditioning, A/D conversion, ranging and RS-485 digital communication functions. the module protects your equipment from power
Surges at the ground terminal by providing opto-isolation of A/D input and up to 3000
VDC transformer based isolation.
the ADAM-4017 uses a 24-bit microprocessor-controlled sigma-delta A/D converter
To convert sensor voltage or current into digital data. the digital data are then translated into engineering units. When prompted by the host computer, the module sends
The data to the host through a standard RS-485 interface.

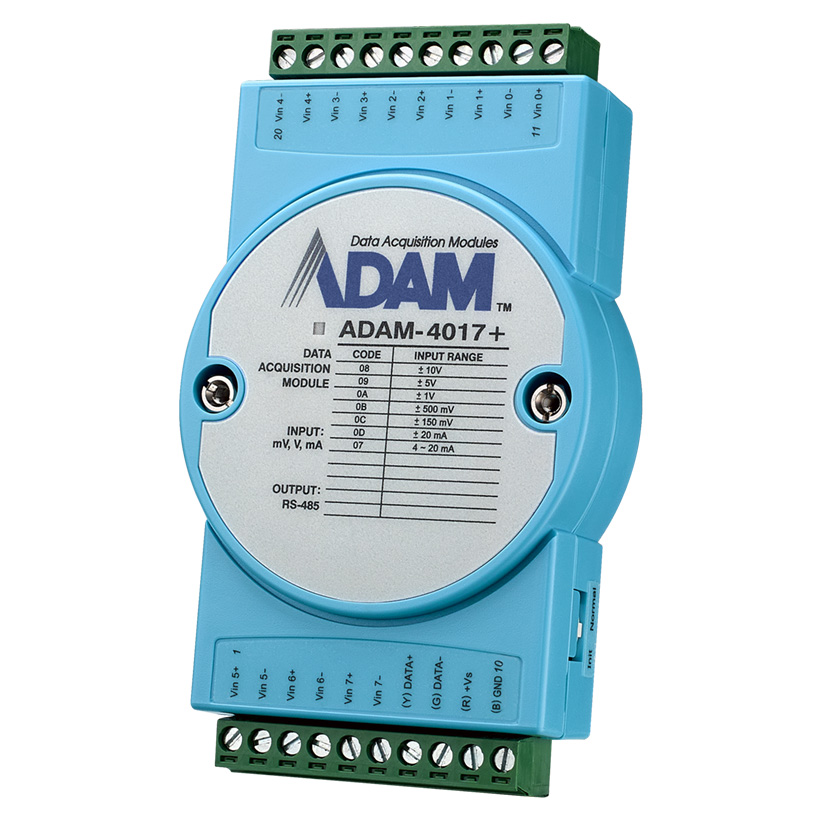

Similar to its counterpart, ADAM-4017+ enables eight differential channels with multiple input ranges. this multi-channel/multi-range structure allows channels with different input ranges at the same time. It provides a solution to the demand for more
Analog input channels.
for example, channel 1 can have the range ±5 V meanwhile the others are ±10 V
And ±20 mA.
