GWFG-850 Corrugated Paper Lock Bottom Folder Gluer Crash Lock Bottom Folder Gluer

Specifications

GWFG-850 Corrugated Paper Lock Bottom Folder Gluer Crash Lock Bottom Folder Gluer

Specification & Box Size

Main features

Humanized design,a hexagonal wrench can adjust most of the parts,debugging easy;

Touch Screen, button, remote control distance, three panels of the trinity are operating equipment. Convenient and quickly.

the machine wallboard and some complex casting using computer laser cutting, dominant board conditioning treatment after hot and cold.

Parts design, processing precision, good stability, high speed low noise, good durability.

Bearing adopts Japan NSK bearing, the main shaft adopts hard chrome steel rods, fastening bolt use 1.9 on the richer scale.

Main motor adopt Taiwan TECO brand, pressing machine adopt Taiwan SHENG BOND precision CPG brand.

Master electrical frequency converter, PLC. Schneider Brand, the higher WEINVIEW touch screen TAIWAN BRAND.

Wedge pulleys and wedge belt adopts FRENCH Hutchinson Brand.Conveyor belt by Swiss RAPPLON, Flat belt adopt Japan NITTA belt.

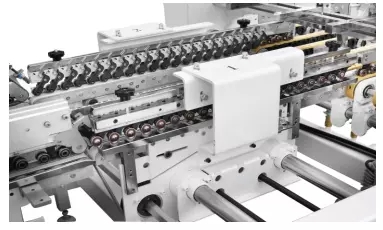

Composition

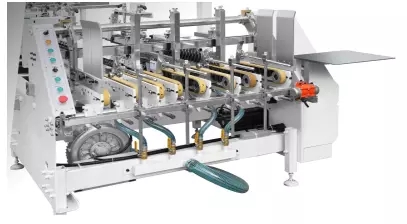

---Feeder Section

Independent servo motor drive, high speed operation Is accurate transfer paper, so as to achieve the best capacity;

Large micro adjust paper knife, lateral baffle width adjustment is convenient;

Vortex pump configuration Independent suction chamber and the valve, increase rubber belt paper friction with smooth paper;

Scalable paper stack at the back of the support for longer box.

---Paper Alignment System

 Independently adjustable side gauge, paper work on a transverse stretching device and delivery by a parallel guide Bracket, ensure paper parallel alignment;

both sides can realize alignment function from the device, the operation Is simple rapid

---Pre-folding Section

the upper left glue flap 180° pre-folding, the third line 135° pre-folding;

the First and the third line folding open the device

Lock-bottom Section

Equipped with bottom combination adjustment mechanism, ideal design and easy operation,high stiffness spring hook to ensure accurate action;

Adjustable hook device, modular design, significantly reduced the transform box type of set-up time, convenient Installation and transformation of attachment;

Configuration and high elastic hook module;

 ---Gluing Tank Module

Paste on the drum using electronic spray adhesive system, according to the model select configuration with two or three sets of cold glue guns;

Other top electronic spray adhesive system configuration can choose according to the needs of aircraft configuration;

Cylinder for each side of the paste, a large capacity design, do not jilt or leak glue during high-speed working.

---Folding Section

Accurately completing the second line, the fourth line 180 degrees combination; around 180 degrees abduction Angle Is adjustable, with a belt transmission devIC8, which can effectively ensure the parallel alignment, folding carton samp1e accurately closed;

Two sets of bracket and the bracket, the conveyor belt width is 25 mm, the conveyor belt Width & 34 mm, 25 mm kidnapper broadband 34 mm l 40 mm 1 50 mm;

Equipped with the belt tension automatic control system, easy to tear open outfit;

---Transfer Section

on two sets of bracket and the bracket, the belt width is 25 mm is equipped with the belt tension automatic control system, easy to tear open outfit;

Automatic tracking count, kicking, Insert paper automatically detect outage alarm;

According to the model and box type lock bottom box module; Continuous automatic produce box and transfer box.

---Conveyor Section

Independent motor drive; (follow) manual and automatic operation mode;

According to the different length of the box, conveyor belt pressure driven by motor, can move, configure automatic correction device; Pressure adjustment with pneumatic system, it is convenient adjustment.

Throughout the total length of 5,6 meters effectively conveying, available length 3.6 meters, to extend the time of cartons of adhesive, improve the quality of adhesive;
