Multi-Stage Lime Hydrator for Premium Hydrated Lime Powder Production
| FOB Price: | 80000.00 - 200000.00 USD/Set |
|---|---|
| Supply Ability: | 3 Set(s) per Month |
| Shipping: | FOB Qingdao,China |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | 5x40'HC FCL |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Condition: New
- Brand Name: DynNor
- Weight: 50000
- color: customized
- Model Number: GXH-10
- Water consumption: 400-500kgs/ton
- hydration temperature: 100-110C
- Water supply pressure: 3-4bar
- product fineness: 24-75um
- product moistue: 1-2%
Specifications
Depending on the capacity and stage of hydration, GXH lime hydrators are designed with 2 to 4 mixing shafts, each installed with unique profile of mixing blades and at an optimal angle to improve performance. All the blades are made of high wear resistant alloy steel to increase campaign life.
the first-stage hydrator is installed water ejection system, VFD motor to adjust rotation speed for more flexible operation. Its primary purpose is to achieve fast and effective mixing of lime with water.
the second (or third in case of 4-stage hydration) stage hydrator is for additional mixing and complete reaction of water and lime. All the hydrators installed with VFD motors.
the last stage hydrator is primary for homogenization. Depending on the layout, the dimensions of this hydrator can be quite different. for vertical stack layout, this hydrator is wider to allow additional space to install the integrated pulse bag filter.

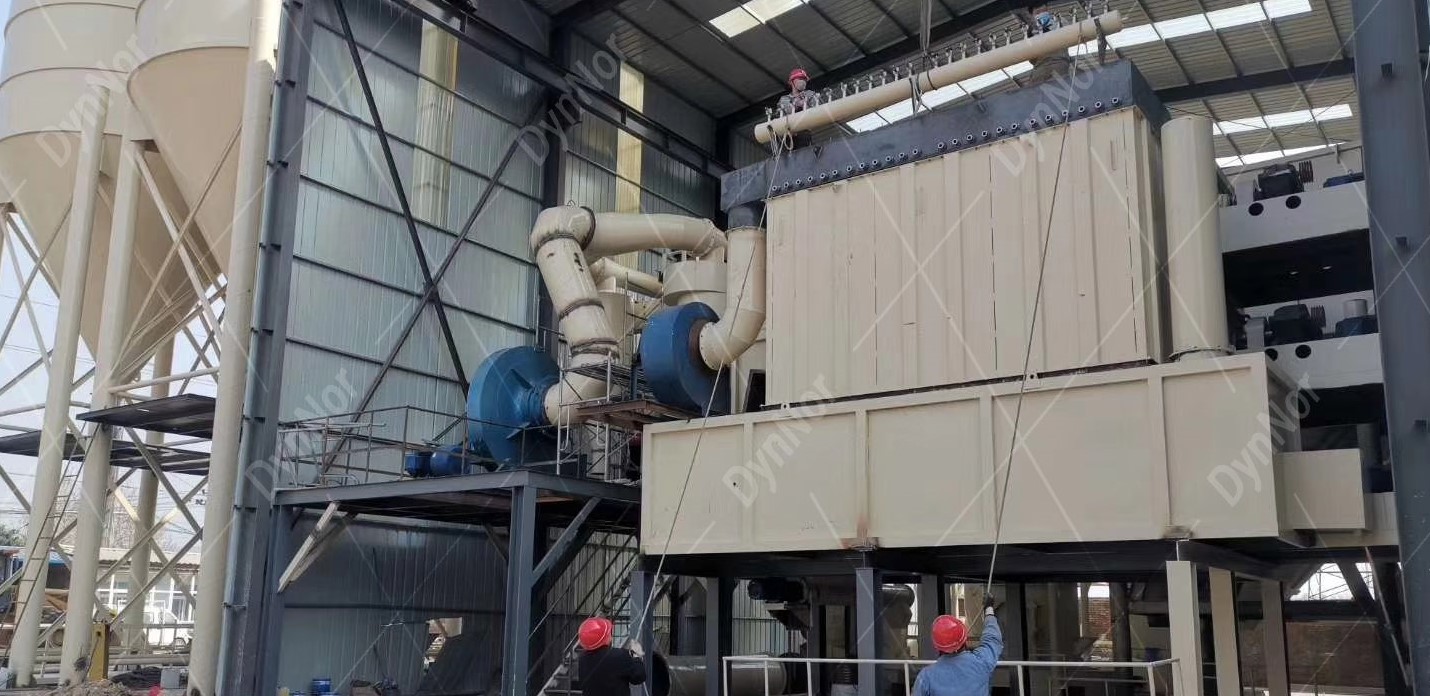

Integrated Bag Filter System: lime hydration process generates a lot of steam along with dust due to the exothermic reaction, this needs to filtered for environmental reasons. The common approach now is to install pulse jet bag filters to filter the dust steam and return the captured lime particles back to the hydrator. DynNor pulse jet bag filter system can meet the most stringent environmental regulations in EU countries.
