Home >Products Catalog > Energy Storage > 50kw Energy Solar Wind Power Storage System / Energy Storage Container

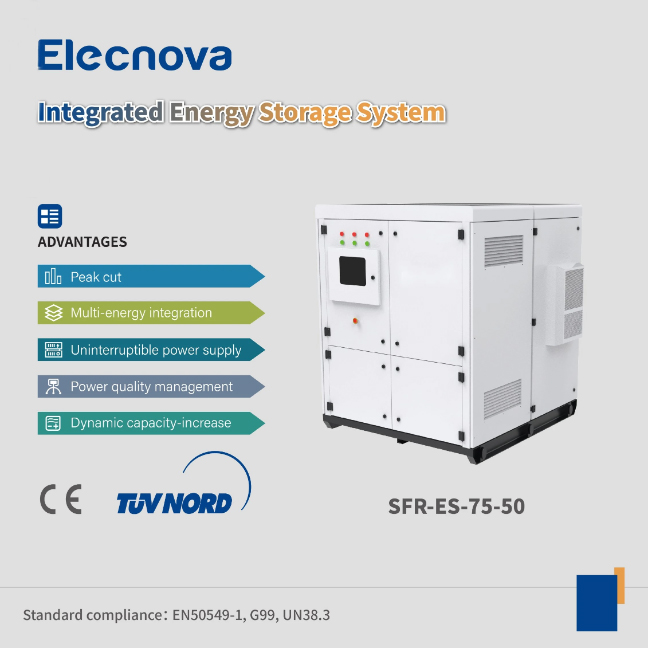

50kw Energy Solar Wind Power Storage System / Energy Storage Container

FOB Price:	33300.00 - 36300.00 USD/Piece

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Nominal Capacity: 40ah/80ah/120ah
Weight: 1395kg
Size: 1680*1500*1700
Usage: Industrial Solar Energy Systems Uninterruptible
Brand Name: Elecnova
Model Number: SFR-ES-75-50

Specifications

Basic Info.

Model NO.

SFR-ES-75-50

Weight

1395kg

Nominal Voltage

480V

Warranty

2 Years

Nominal Capacity

40ah/80ah/120ah

Cycle Life

4000 Cycles

Application

Industrial, Solar Energy Systems, Uninterruptible

Solar Panel Type

Polycrystalline Silicon

Battery Type

Lithium Ion

Controller Type

MPPT

Mounting Type

Ground Mounting

Load Power (W)

50kw, Others

Output Voltage (V)

3W+N+PE, 380

Output Frequency

50/60Hz

Work Time (H)

24/7

Components

PCS, Lithium Battery System

the Charging Ratio

the Discharge Rate

Battery

LiFePO4 Lithium Battery

Transport Package

Un Package for Lithium-Ion Battery Pack

Specification

1680*1500*1700

Trademark

ELECNOVA

Origin

China

Product Description

50kw energy Solar wind power storage system / energy storage container

the intelligent mobile energy storage system (vehicle) truly realizes the system integration of multiple application integration of "peak shaving and valley filling + power protection + emergency + standby + capacity expansion + intelligent charging and selling + mobile rescue". In addition to providing power supply guarantee for emergency repair of emergencies such as earthquakes, ice disasters, mine disasters and major political power protection activities, It can also provide emergency backup power for big data centers, hospitals, airports, communications, etc., temporarily power supply during line maintenance, eliminate melting ice for ice-covered lines, adjust power load peaks and valleys for islands, mountain areas, urban business districts and other places, and charge electric vehicles in cities.
50kw Energy Solar Wind Power Storage System Energy Storage Container

Technical Specifications

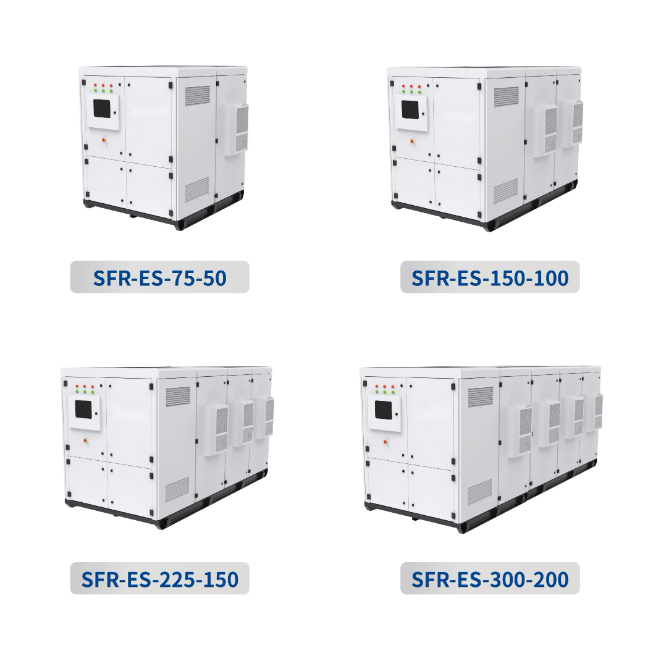

Model	SFR-ES-75-50	SFR-ES-150-100	SFR-ES-225-150	SFR-ES-300-200
AC parameters (grid connected)
Rated output power (kW)	50	100	150	200
Max output power (kW)	55	110	165	220
Rated grid voltage (V)	3W+N+PE, 380
Rated grid frequency (Hz)	50/60
Power factor	>0.99(Rated voltage)
Overload capacity	110% Long term
AC parameters (off grid)
Rated output power (kW)	50	100	150	200
Max output power (kW)	55	110	165	220
Rated grid voltage (V)	3W+N+PE, 380
Rated grid frequency (Hz)	50/60
Overload capacity	110% Long term
Basic Parameters
Working temperature	-20 ~ 55C (>45C derating)
Relative humidity	0 ~ 95% ( (no condensing)
Protection	Outdoor IP54
Certification	IEC62477-1/EN61000/IEC62619/IEC62620/UN38.3

Our Advantages
50kw Energy Solar Wind Power Storage System Energy Storage Container

Applicantion & Job Reference
50kw Energy Solar Wind Power Storage System Energy Storage Container

FAQ

Q: Are you trading company or manufacturer?

A: We are factory located in Jiangyin Jiangsu Province.

Q: Does your company provide customized manufacturing?

A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.

Q: how long is your delivery time?

A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.

Q: Do you provide samples? Is it free or extra?

A: You need to pay for the sample and cover the freight as well.

Q: What is your terms of payment?

A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
