1.64 INCH AMOLED TOUCH SCREEN 280x456 IFAN DISPLAY 1.6" OLED

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	paper box

Quick Details

Part Number	IF016ES28-45C
Brand	EDO
Diagonal Size	1.64"
Panel Type	AM-OLED, OLED
Resolution	280(RGB)x456 325PPI
Pixel Format	RGB Vertical Stripe
Aspect Ratio	3:5 (W: H)
Orientation	Portrait type
Display Area	21.84(W)x35.568(H) mm

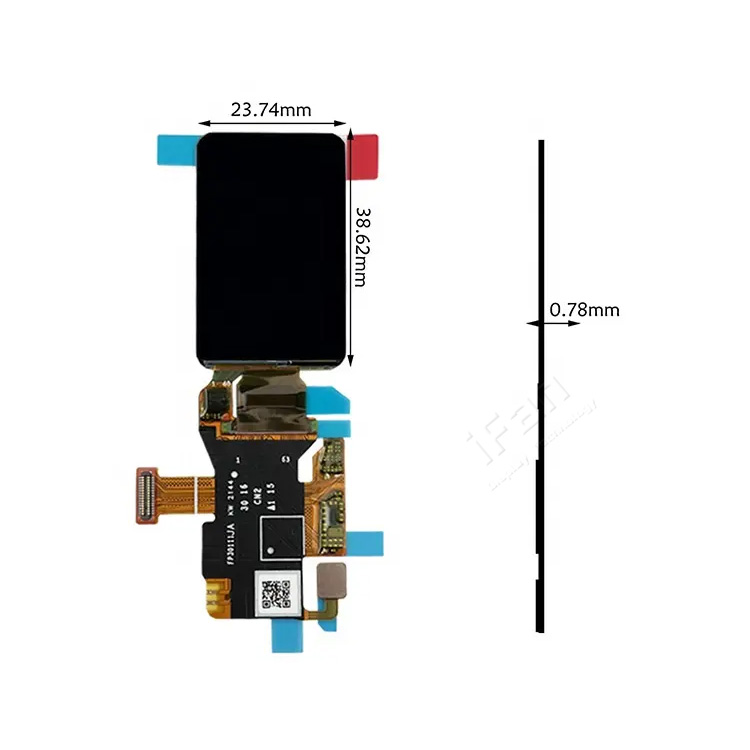

Outline Size	23.74(H)x38.62(V) mm
Luminance	500 CD/m2 (Typ.)
Backlight	self
Color Depth	16.7M 108% NTSC
Contrast Ratio	10000:1 (Typ.) (TM)

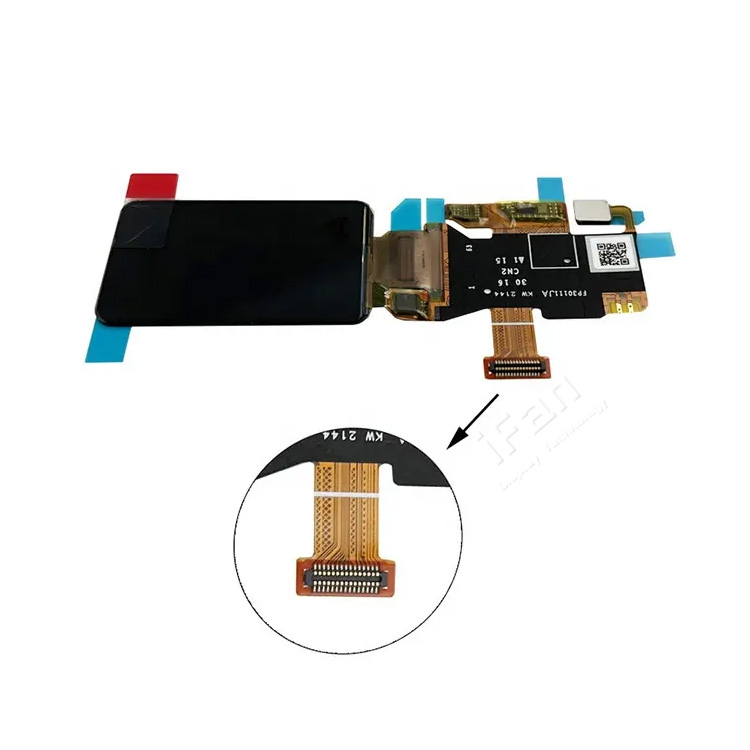

Interface	SPI, I2C, 30 pins Connector
Response	2 (Max.)(Tr+Td) ms
Touch Screen	Capacitive PCAP, I2C
Operating Temp.	-20 ~ 70
Application	Wearable, Auotomotive Display
