Wire Cloth Weaving Machine CNC Metal Wire Mesh Loom

FOB Price:	13913.00 - 26868.00 USD/Piece
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China

Quick Details

After-sales Service Provided: Overseas service center available
Brand Name: Lanying
Production Capacity: 300
Type: Dobby Weaving Machine
Condition: New

Specifications

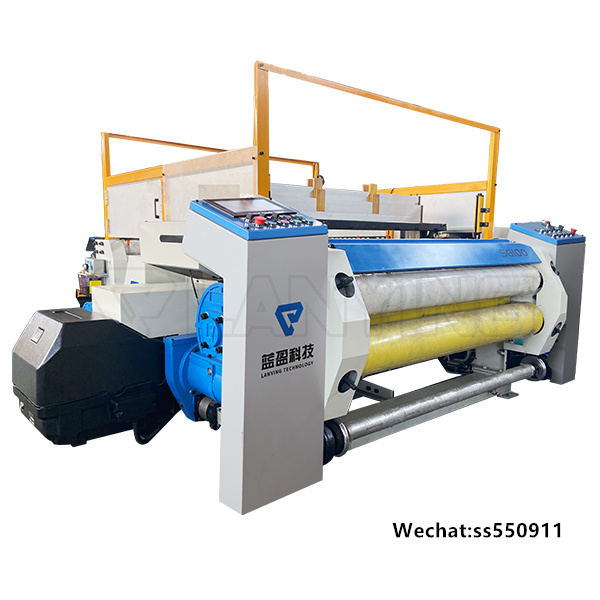

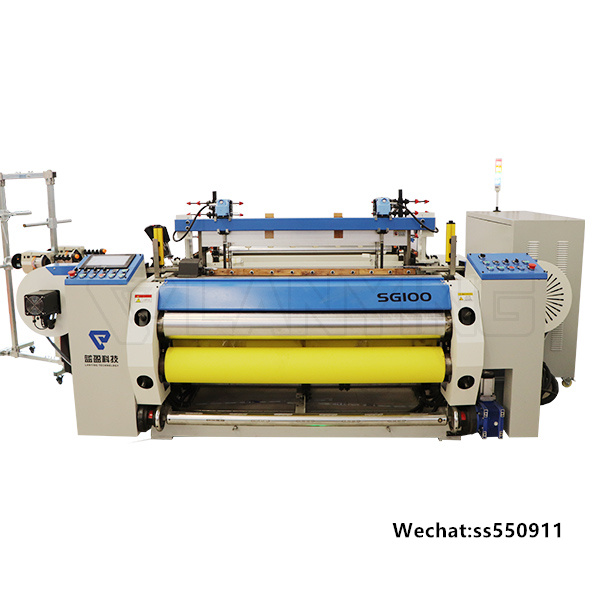

SG100 Series CNC metal wire mesh weaving machine mainly suitable for ultra fine, thin fabric weaving. It adopts large touch screen HMI, the operation is simple; specially designed precision let-off and precision tension control algorithm can display the tension in real time and automatically adjust the mesh surface tension; CNC 3-roller take-up structure can realize non-stop mesh removal at any length. the user can choose different shedding mechanism,L cam arch heald frames mechanism, electronic rotary dobby, servo dobby shedding mechanism. the weaving precision is high and noise is small, easy to operate and maintenance. According to the accuracy, it is divided into SG100L light-duty series and SG100P precision series.
Wire cloth Weaving Machine CNC Metal Wire Mesh Loom

Wire diameter	0.012-0.3mm
Weaving density	Plain weave square hole 40-400 (or 20-260)mesh/inch; twilled weave upto 600mesh/inch
Nominal width (special width on request)	1.3m	1.6m	2m
Speed(the actual speed depends on the weaving specs and width)	80-120RPM	80-100RPM	65-80RPM
Total power	7.5KW	8.5KW	8.5KW
Size (LWH) mm	2750X3300X1500	2750X3600X1500	2750X4000X1500
Weight	4200KG	4500KG	4600KG
Basic tension	15000 N/m
