Bellow-Sealed Oil-Free Dry Scroll Vacuum Pump

FOB Price:	1.00 - 3999.00 USD/Piece
Supply Ability:	100 Piece(s) per Month
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Gasoline water pump

Price:

Min. Order:30 Sets
Eclectric Fuel Pump (17040-8U002)

Price:

Min. Order:100 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Pressure: Low Pressure
Standard or Nonstandard: Standard
Power: Electric
Structure: Scroll
Brand Name: BOWAH VACUUM
Usage: Air Pump
Theory: Vacuum Pump
Model Number: VPSL

Specifications

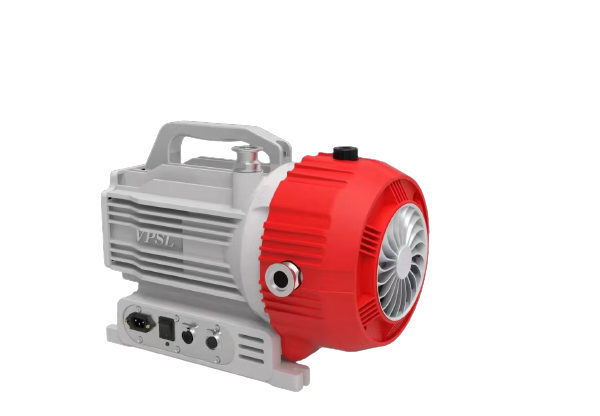

VPSL series bellows-sealed scroll-type dry scroll vacuum pump is a completely oil-free and clean vacuum pump, having a pumping speed of 12m³/h(7CFM), 16m³/h(9CFM), and 36m³/h(20CFM). It adopts the most advanced bellows isolation structure in the world to completely isolate the compression chamber and the bearing. It also uses fewer bearings to make the pump quieter and more reliable. At the same time, it can extract non-corrosive organic solvents and has a stronger water vapor processing capacity. the VPSL bellows-sealed scroll-type dry scroll vacuum pump is equipped with an independent controller, which makes the pump more intelligent, and can realize the operation of speed regulation, current limiting, and voltage stabilization of the pump according to the end user's process. Due to the scroll compression and tip seal structure, the pump is not suitable for pumping flammable, explosive, highly corrosive, and particle-containing applications.

Bellowsealed Oilfree Dry Scroll Vacuum Pump

Model		VPSL10	VPSL15	VPSL36
Displacement	M3/h	12.2	16	36
Ultimate Vacuum	mbar	0.007	0.007	0.009
Motor power	W	400	400	1200
Voltage input	V	220-240	220-240	220-240
Noise level	DB(A)	53	53	56
Inlet/Outlet flange	-	KF25/KF25	KF25/KF25	KF40/KF25
Max water vapor capacity	g/hr	136	268	270
Leak rate	Mbar?L/s	< 1x10-6	< 1x10-6	< 1x10-6
Dimension(LxWxH)	mm	438x268x300	438x268x300	517x325x358
Weight	kgs	26	27	47
Cooling	-	Air-cooling	Air-cooling	Air-cooling
Operating temperature	℃	0~40	0~40	0~40
