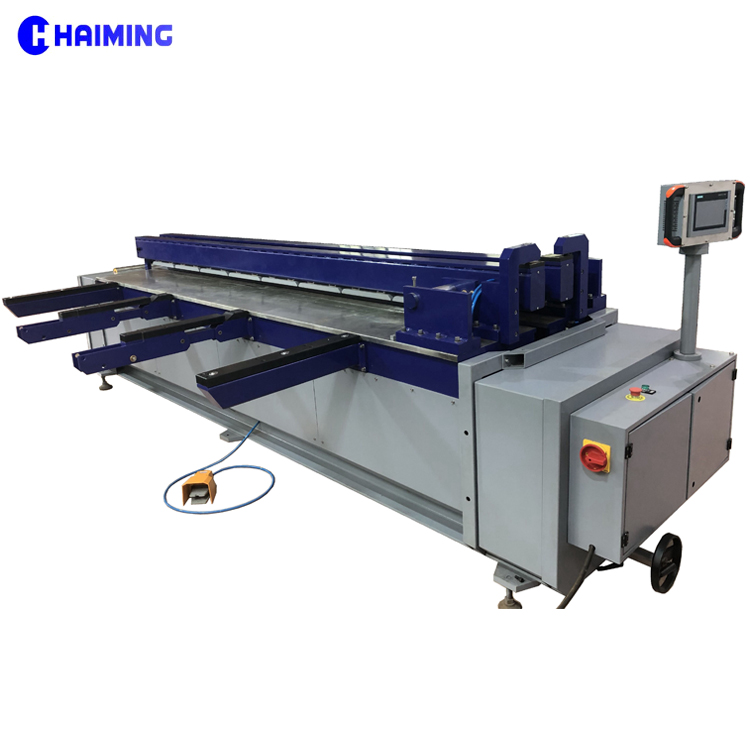

Haiming Hot Selling Top Quality S-PH3000B Butt Plastic Sheet Welding Machine
| FOB Price: | 10000.00 - 20000.00 USD/Set |
|---|---|
| Supply Ability: | 1 Piece(s) per Month |
| Shipping: | 20days |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Sea worthy Simple package or according to customer's requirment for high frequency straight. |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Usage: Plastic sheet welding
- Weight: 2800kg
- Voltage: 380v
- Brand Name: HaiMing
- Welding Area: 3-40mm
- Frequency: 50-60hz
- Power: 6kw
- Model Number: S-PH3000B
- color: blue
- WELD: PP PE PVDF...
- After Warranty Service: Field maintenance and repair service
Specifications
Features
1. S-PH3000B can be operated horizontally, circular and vertically, which allows to perform different types of weld (horizontal, circular and vertical joints). the machine is equipped with a control panel, which allows easily and safely
Setting and performance of the whole welding process.Otherwise according to the user's needs, it is also possible to input the type of material and the dimension of the thermoplastic sheet, and therefore proceed to weld. Each welding cycle is automatically memorized.
2. Welding types: horizontal, 90 degrees (on request), circular (on request),S-PH3000B is a CNC automatic butt fusion machine, suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF.
3.the new steel structure, patented mechanical synchronous drive technology, through the proportional valve, in the weld area to achieve uniform pressure.
4.Control system Siemens PLC, 7-inch color touch screen.
5. Data parameters are automatically selected according to the material a particular welding pressure, temperature and time.
6. 3mm-30mm welding capabilities, special welding thickness of up 40 to 60mm.
Range of Application
Manufacturing water tanks and containers, plastic devices, ventilation systems, water treatment systems,Scrubber, environmental technology, swimming pool, transportation and logistics.
Technical Data
| Model | S-PH3000B | S-PH4000B | S-PH6000B |
| Machine Length (mm) | 4500 | 5600 | 7800 |
| Machine Width (mm) | 2600 | 2600 | 2600 |
| Machine Height (mm) | 1450 | 1450 | 1450 |
| Total Weight approx. (kg) | 3800 | 4500 | 5800 |
| Air pressure | 8,0 bar | 8,0 bar | 8,0 bar |
| Power supply standard | 380 | 380 | 380 |
| Heating element power(KW) | 4 | 5 | 8 |
| Reel motor power(KW) | 2.2KW X 2 | 2.2KW X 4 | 2.2KWX4 |
| the heating element size (mm) | 3200 X22 X55 | 4200 X 22 X 55 | 6200 X 22 X 55 |
| Welding materials | PP PE PVDF... | PP PE PVDF... | PP PE PVDF... |
| Welding area lighting | LED | LED | LED |
| Weld thickness(mm) | 3-30 | 3-30 | 3-30 |
| Welding Length(mm) | 3025 | 3025 | 6025 |
| Minimum diameter of pipe(mm) | 360 | 500 | 800 |
| 90 °vertical weld length(mm) | 3025 | 4025 | 6025 |
| 90°vertical weld thickness | 6-30 | 6-30 | 6-40 |
Why choose us?
1.Our equipment has strong competitiveness, our equipment already ahead, our device has the following characteristics:
the only use of advanced technology from Germany
the only electrical integration automated system
the only design
the only practical new technology
2. Our factory is the first one to manufacture the automatic plastic butt welding machine in China and service this line More than decade. and our factory have many skilful peration of workers and the stability of the scale of production. and we also have many outstanding engineers,they can help you design the machines you want.
3.Genuine products with excellent quality and competitive price.
4.Cooperating with the customers all over the world and knowing the markets very well.
5.after-Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
