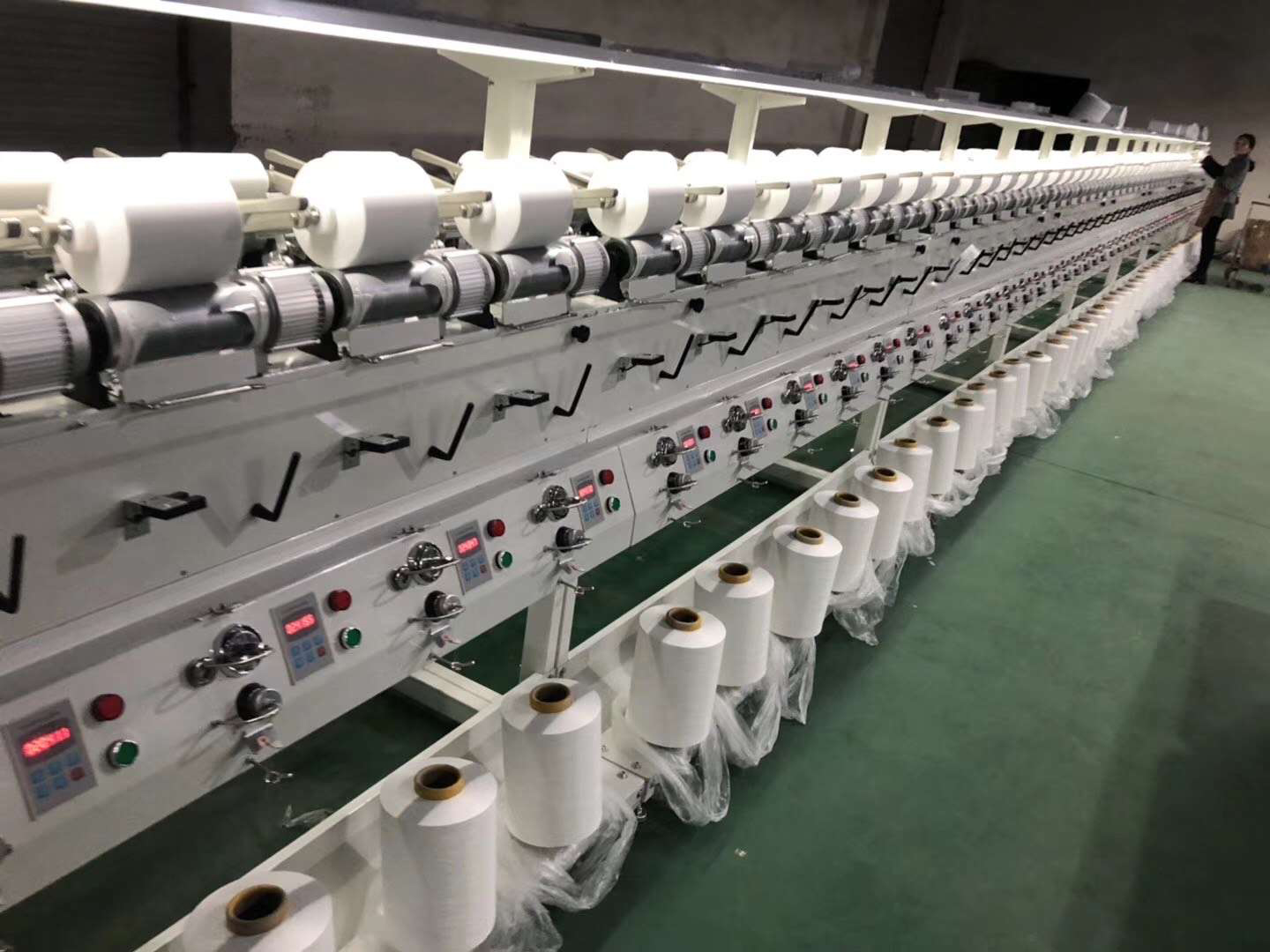

Automatic Soft Winding Machine for Packages

Specifications

the winding speed is controlled by computer, max. 1100m/min. It has easy adjusting radial anti patterning system. the
Advanced yarn clearing and tension system with photoelectric yarn detecting can avoid knotting and twisting for yarn.
Precise and sensitive speed testing system can ensure even winding length (weight). It is quite suitable for winding yarn
of cotton, flax, silk, chemical fiber.

Machine Features
1. Wearable metal mandrel support.
2. Easy opening center of cone holder is easy for collecting the finished package.
3. Yarn inlet/outlet has ceramic for protection to avoid effecting yarn's quality by friction.
4. the grooved drum has anti-dust, anti-twist system which can avoid dust accumulation and protect the operating bearing.
5. the machine is double sided with 12 spindles for each section. Many sections can be put together  (max.  108 spindles)
6. Rotating pin and counterweight yarn brake can control winding tension freely.
7. Spring holder pressure balance system will ensure even winding density during the whole winding process.
8. Electric turning waxing system to ensure uniform waxing.
9. the photoelectric electronic length measuring device ensure the exact number of winding meters of each spindle.

Technical datas
Grooved drumO/D 82mm, pitch 2.5, symmertrical 0°
Take-up package0°Cylindrical tube, or conical 3°30, 4 °20
Automatic length fixing (Length counter device)Electronic winding length setting based on finished prodcut, max. 999999m
Start/stopBy film switch, general control for single side by LCD
Yarn brake with weightsIt avoids the fluttering of the feeding yarn, provide suitable winding tension.
Knot clearing adjusterAdjusting the clearing gap
Configuration12 spindles/section
CompositionMax. 9 section/set (108 spindles)
Motorization1 coaxial 3 phased AC motor per spindle, controlled by inverter
Speed300-1100m/min
Traversestandard: 147mm
BalancerThe winding pressure can be controlled by balance of spring with optical sensor
Max. PackageH 250mm
Lighting systemLamp
Radial anti patterning systemThe anti patterning parameter is contorlled by computer
Weight and dimension for electric box45KG, L 700MM X W 300MM X H 1320MM
