Home >Products Catalog > 12V, 1A, 12W Wall Mounted AC/DC Power Adapter Regulated Switch Power Supply

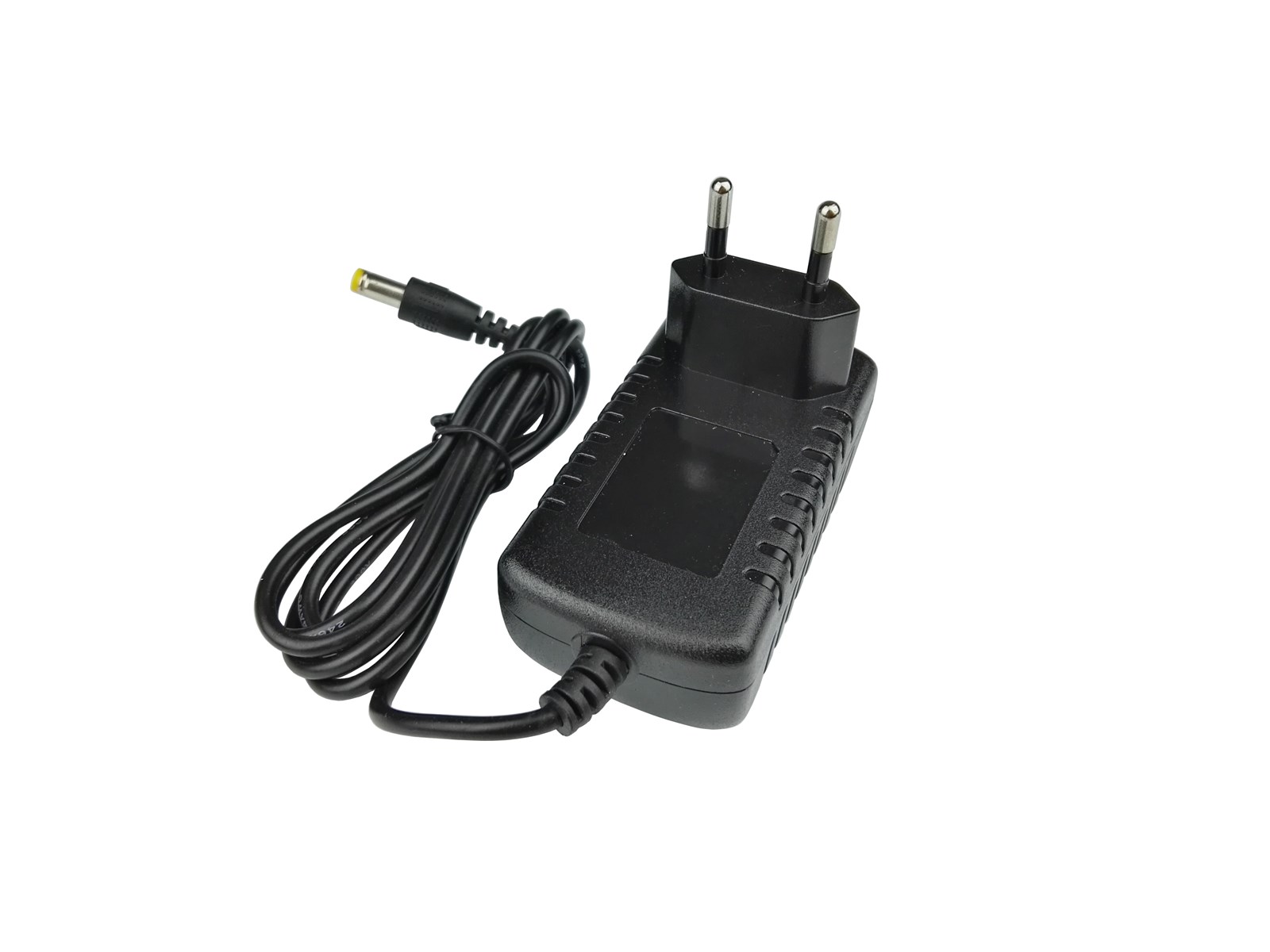

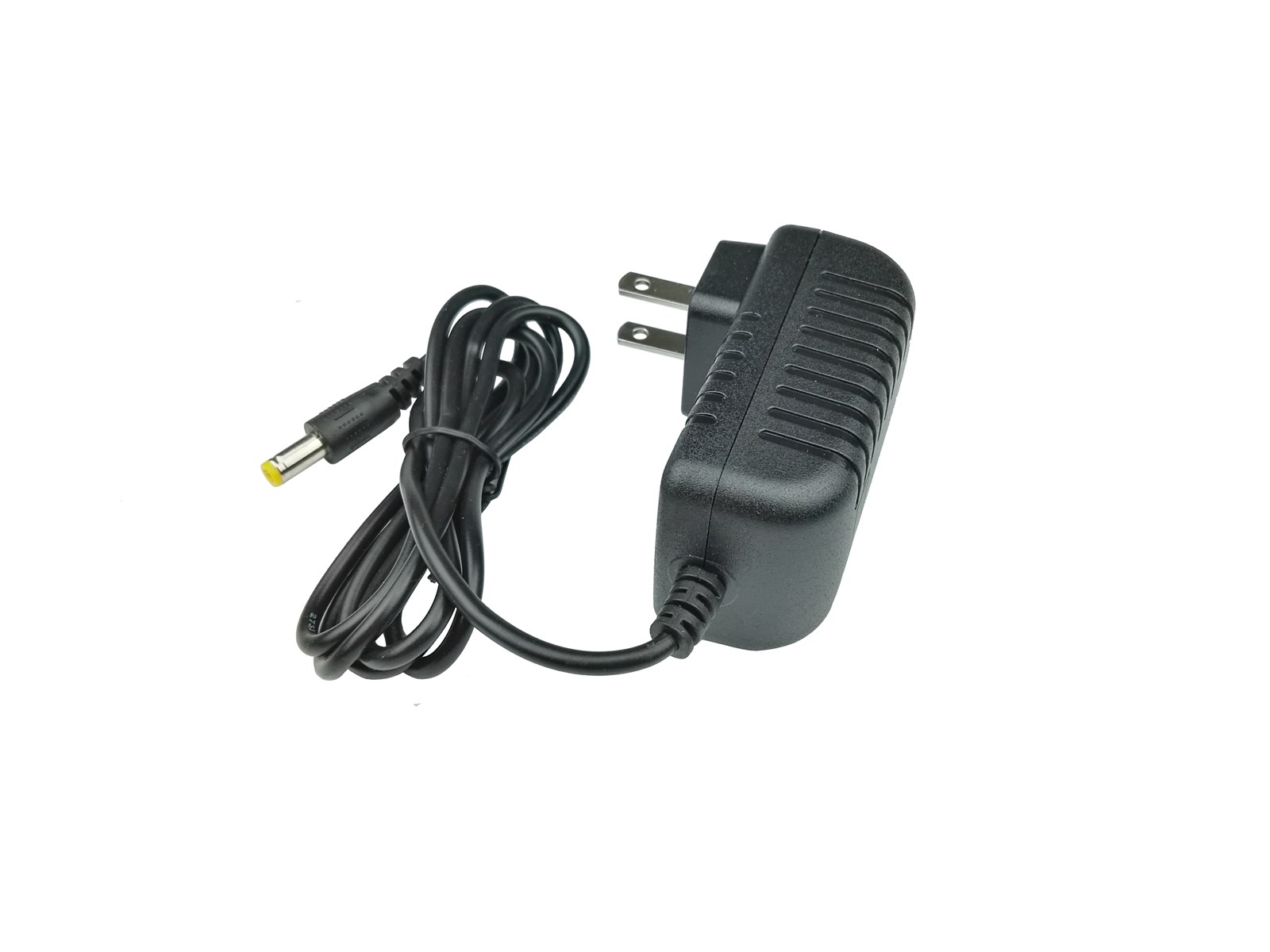

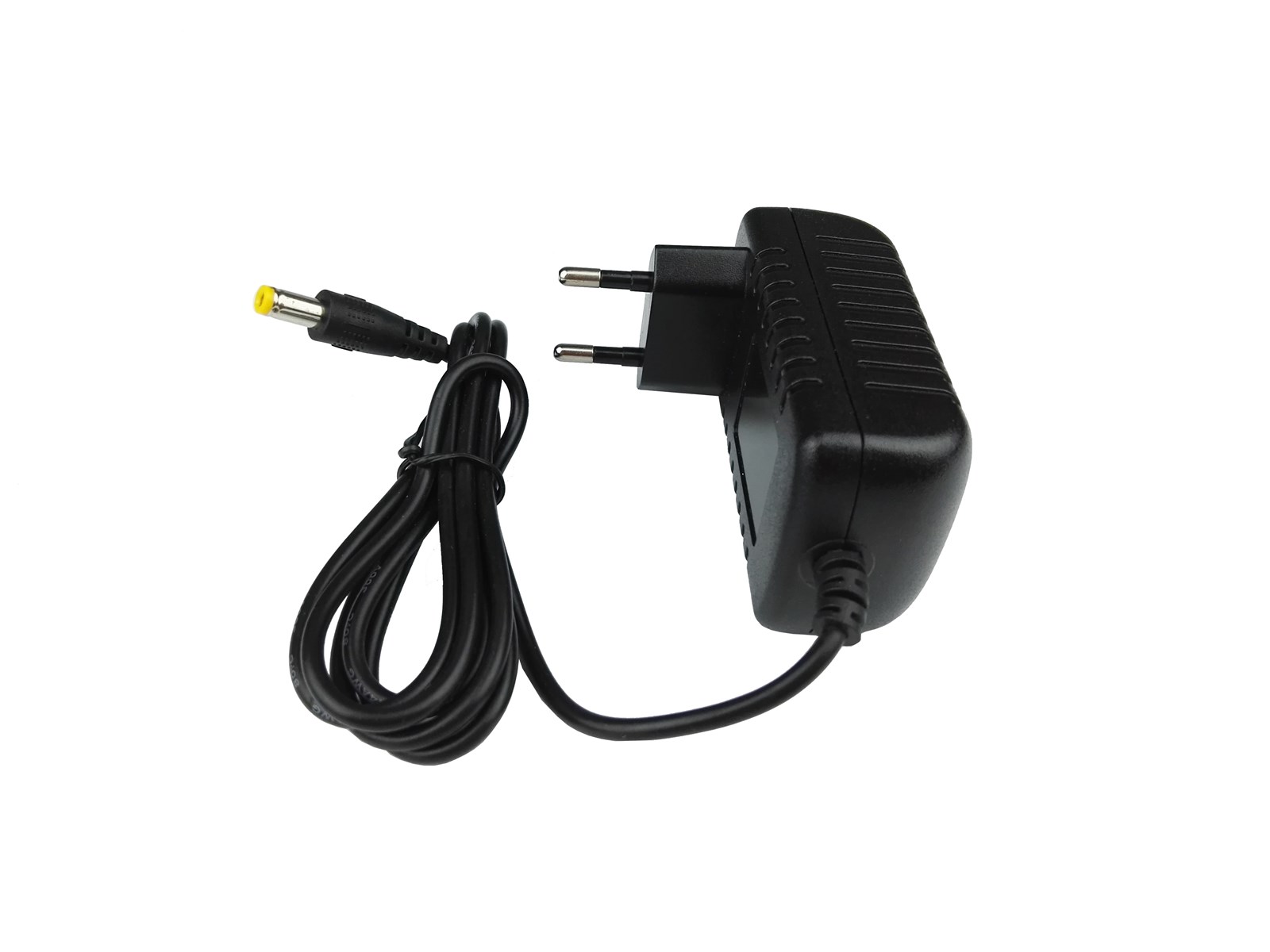

12V, 1A, 12W Wall Mounted AC/DC Power Adapter Regulated Switch Power Supply

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

12V1A12W Wall Mounted ACDC Power Adapter Regulated Switch Power Supply

Technical details:

Item	12V/12W Wall Mounted Switch Mode Power Supply AC/DC Adapter
Model	PSA1212-W
Input	AC 100-24-V, 50-60Hz
Output	DC 12V, 1000mA
Power	Rate 12W, Max. 15W
Circuit Module	IC (Integrated Circuit) solution instead of Triode Scheme, RCC(Ring Choke Converter) or other solutions
DC Plug	5.5x2.1mm (default), 5.5x2.5mm or other OEM size are available
Output Cable	1.2 meter (default), different length of customization are available
Protection	SCP (short-circuit protection); OVP (over-voltage protection); OLP (over-load protection); OCP (over-current protection); OTP (over-temperature protection)
Energy Efficiency	DoE V
Operating Environment	Operating temperature/humidity: -10℃-70℃; 20%-90% RH
Storing Environment	Storing temperature/humidity: -20℃-85℃; 10%-95% RH
Safety Approval	CE EMC/LVD, FCC, RoHS
AC Plug	US, EU, AU, UK and other types of AC plug are all available
Application	CCTV Camera, Wireless AP/Router, Power Charger/Bank, LED Light, etc.
Enclosure	PC+ABS material, size: 75x40.5x30.4mm
Package	White color gift box (implied), 100pcs/carton, carton size: 51.5x24x29.5cm
Warranty	1 year (implied), 2-5 years available based on negotiation
Note	All material for components and parts of this power supply adapters are Brand new, Environment Friendly, Quality Assured.
