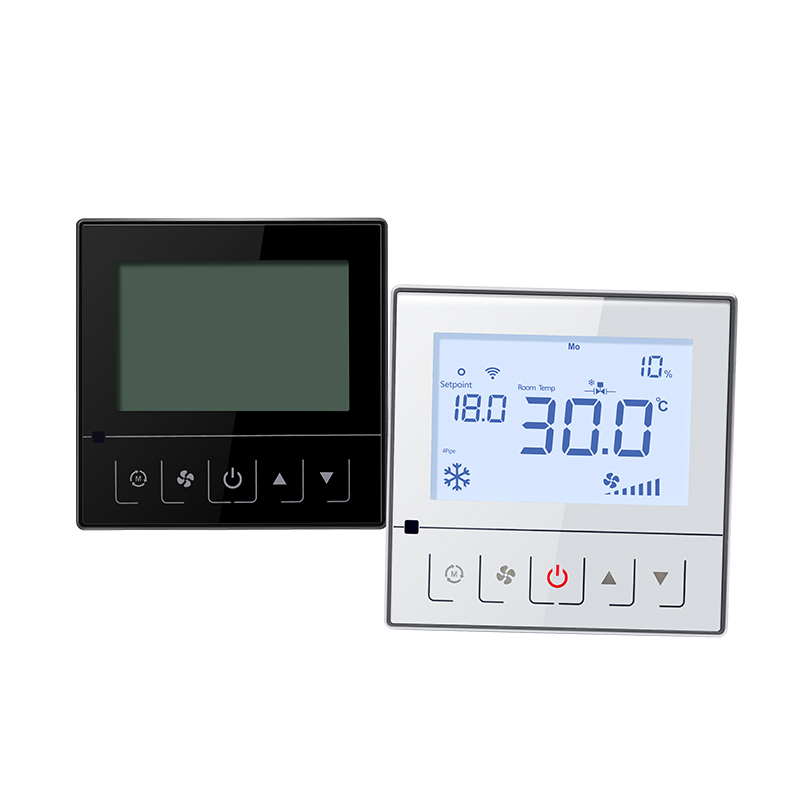

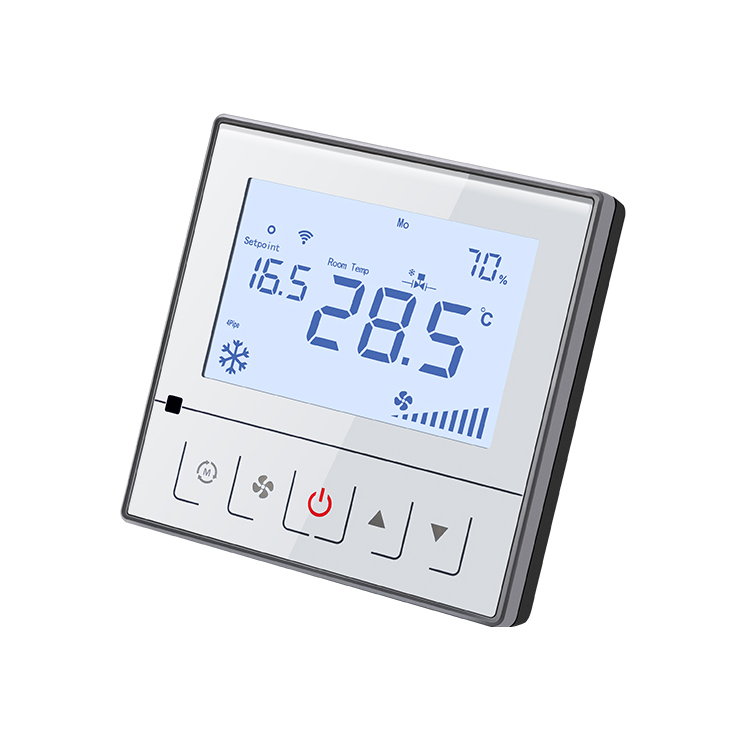

FC221W Wi-Fi Smart Touch Key Thermostat of FCU with Modbus RS485

FOB Price:	30.00 - 50.00 USD/Piece
Supply Ability:	50,000 Piece(s) per Year
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shenzhen in China

Quick Details

Type: HVAC Systems
Brand Name: China
Certification: CE, Rohs
Size: 86*86*12
color: sliver or black
Model Number: 200pcs

Specifications

It has 3 models as below:

FC221W-5DO,

FC221W-2AO3DO

FC221W-3AO2DO
FC221W WiFi smart touch key thermostat of FCU with Modbus RS485

Features:

Fashionable and good designe appearance
Detect and Display Room Temperature
Large LCD display touch screen
External sensor
Cool, heat, ventilating and auto mode
3-speed fan and auto mode control
7+4 periods programming
2-pipe or 4-pipe fan coil unit
Connect 2-wire or 3-wire valves
Key lock function to avoid mistake operation
Celsius (°C)/Fahrenheit (F°) set

Specifications:

Power Supply:

90-265Vac, 50/60Hz

Setpoint Range:

1-50°C ( Default 16-30°C)

Set Unit:

1°C/step

Display Accuracy:

±0.5°C

Display:

64x41mm LCD display, white backlight

Mode Setting:

Cool, Heat, Ventilating, Auto

Fan Speed Adjust:

Low, Medium, High, Auto

Control Performance:

on/off or 0-10V output

Temperature Sensor:

NTC 10K

Enclosure:

Fire proof-ABS, sliver moon

Loa current:

250V load max. 3A

Networking:

RS485 Modbus-RTU, baud rate 4800, 9600, 19200 or 38400, parity: non, even or odd

Ambient Condition:

-10°C~50°C, 5-95% RH (non-condensing)

Dimension:

86*86*10.5mm

Mounting:

Wall mounted with standard EU box (∮=60mm)

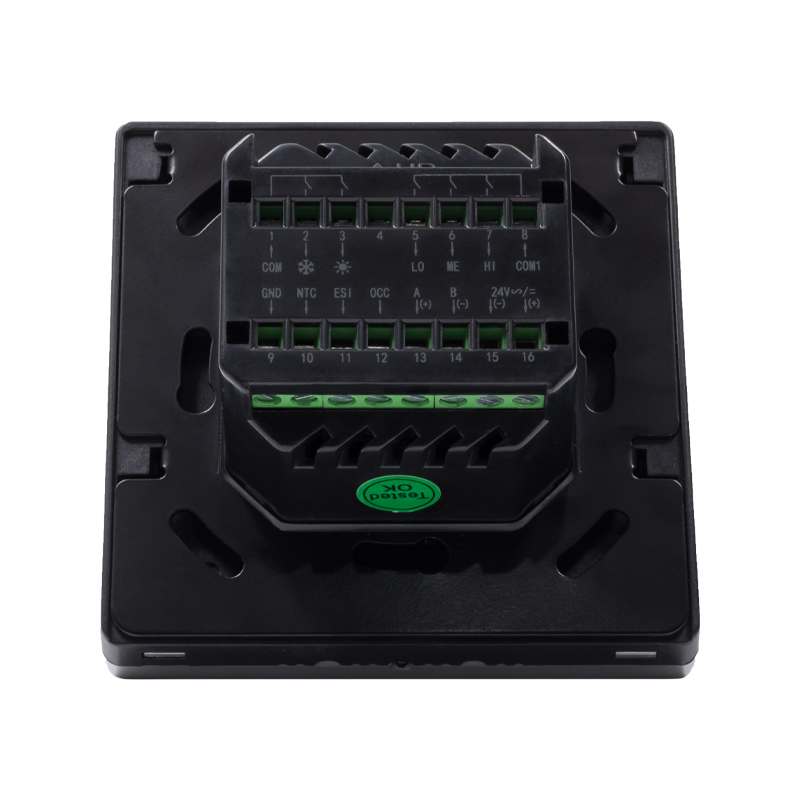

Wiring:

Terminal block max. 1.5mm2

Installation hole distance:

60mm

Protection:

IP20 according to EN60529

Weight:

170g

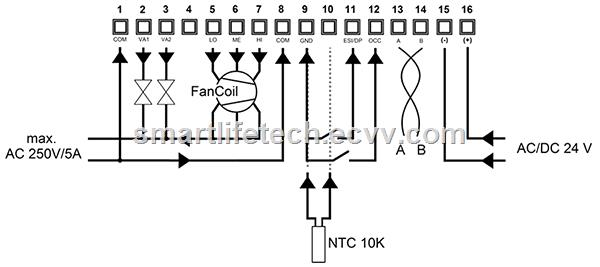

Wiring Diagram:

1. FC221W-5DO Wi-Fi and networking FCU thermostat on/off type

FC221W WiFi smart touch key thermostat of FCU with Modbus RS485
