FC221 PID Touch Key Thermostat of FCU with Modbus RS485

FOB Price:	30.00 - 40.00 USD/Piece
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Type: Air Conditioning
Brand Name: China
Certification: CE, Rohs
Size: 86*86*12
color: sliver or black

Specifications

FC221-2AO3DO, 0-10V modulating valve and 3-speed fan

FC221-3AO2DO, 0-10V modulating valve and EC motor fan

Features:

Fashionable and good designe appearance
Detect and Display Room Temperature
Large LCD display touch screen
External sensor
Cool, heat, ventilating and auto mode
3-speed fan and auto mode control
7+4 periods programming
2-pipe or 4-pipe fan coil unit
Connect 2-wire or 3-wire valves
Key lock function to avoid mistake operation
Celsius (°C)/Fahrenheit (F°) set

Specifications:

Power Supply:

24 V = (±10%) | 24 V ~ (±20%) SELV

Setpoint Range:

1-50°C ( Default 16-30°C)

Set Unit:

1°C/step

Display Accuracy:

±0.5°C

Display:

LCD display touch screen

Mode Setting:

Cool, Heat, Ventilating, Auto

Fan Speed Adjust:

Low, Medium, High, Auto

Control Performance:

on/off or 0-10V output

Temperature Sensor:

NTC 10K

Enclosure:

ABS, pure white

Loa current:

2A (resistive load), 1A (inductive load)

Networking:

RS485 Modbus, RTU, half-duplex, baud rate 4.800, 9.600, 19.200 or 38.400, parity: non (2 stopbits), even or odd (1 stopbit)

Ambient Condition:

-10°C~50°C, 5-95% RH (non-condensing)

Dimension:

86*86*10.5mm

Mounting:

Wall mounted with standard EU box (∮=60mm)

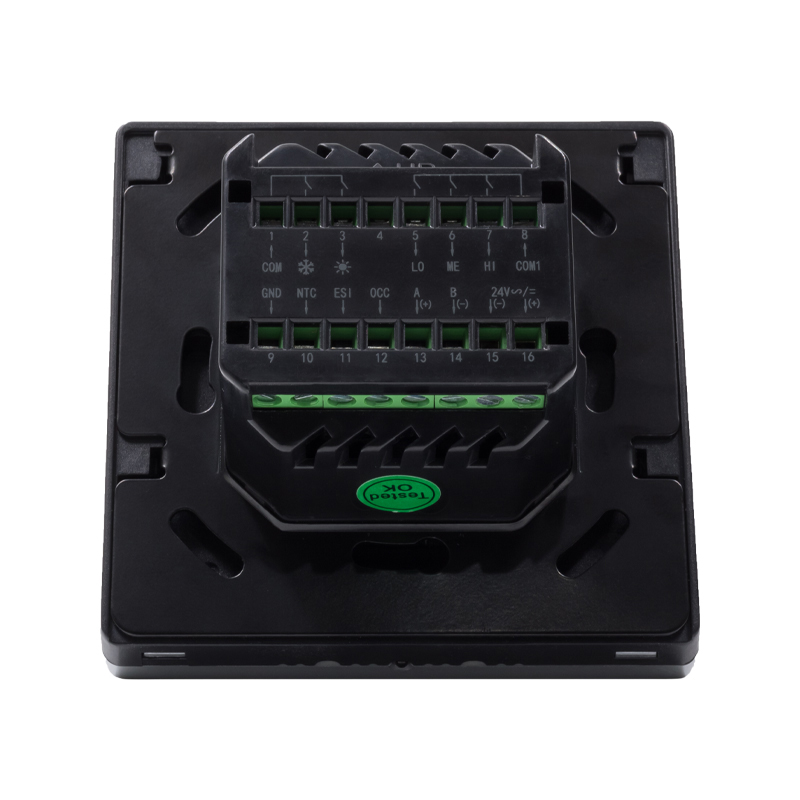

Wiring:

Terminal block max. 1.5mm2

Installation hole distance:

60mm

Protection:

IP20 according to EN60529

Weight:

160g
