Jiangsu Wantai Motor Co., Ltd.
China Manufacturer with main products: Stepper Motor, Brushless DC Motor, Step-Servo Drivers & Motors |
Wantai Stepper Motor 20BYGH202 14Kg. Cm, 0.2A
| FOB Price: | 10.00 - 20.00 USD/Carton |
|---|---|
| Supply Ability: | 1,000 Piece(s) per Month |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Quick Details
- Holding Torque: 14Kg-cm
- Step Angle(degrees): 1.8 degree
- Certification: ISO
- Type: Hybrid
- Brand Name: wantai motor
Specifications

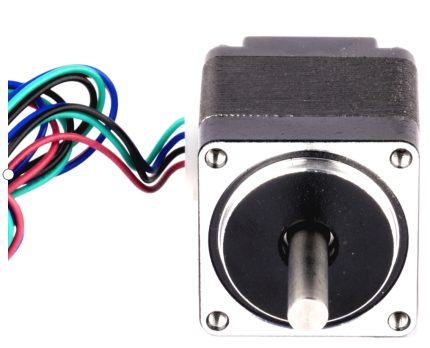

Wantai Stepper Motor 20BYGH202 ,,0.2A, CNC engraver
Part No.: 20BYGH202 Single Shaft
Frame Size: NEMA8
Step Angle: 1.8 degree
Voltage: 4.6VDC
Current: 0.2 A/phase
Resistance: 23 Ohm/phase
Inductance: 8.2 mH/phase
Holding torque: 14Kg-cm
Rotor inertia: 9 g-cm2
Detent torque: 2 kg-cm
Number of wire leads: 4
Weight: 0.05KG
Length: 28mm
Front shaft diameter: 4Mm (1/4'')
Front shaft length: 20Mm round shaft
this model is for Single shaft, with4Mm motor shaft, 20Mm front shaft length, round shaft!
More Order Quantites, more discount!
