Quick Details
- Brand Name: leadins
- Warranty: 1
- Material: pp/aluminium
- Product: Water Level Meter
- Standard: gb
- Model Number: +8613691563772
Specifications

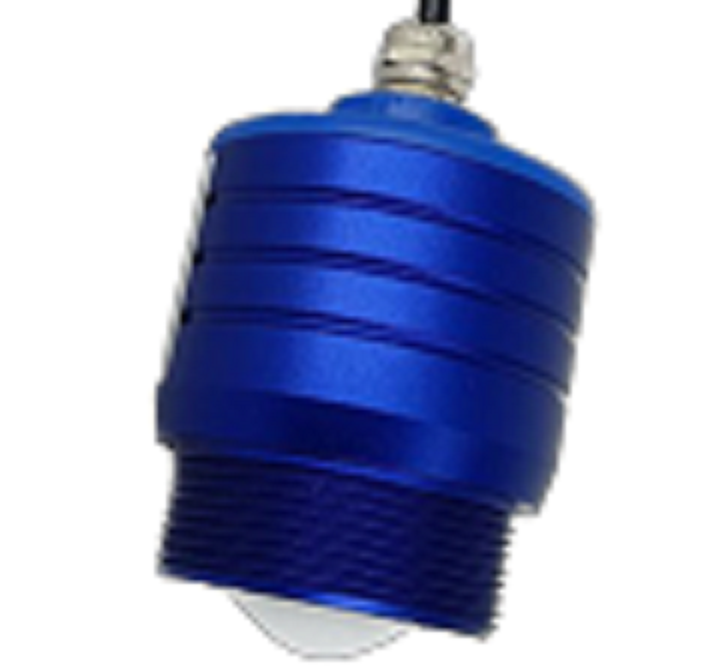

the radar water level meter series are
Frequency-modulated continuous wave (FMCW) radar products operating at 76-81
GHZ with higher operating frequency, larger bandwidth and higher measurement
Accuracy. the maximum amount of products can reach 15m, and the blind area is
10cm. the products use brackets and do not need on-site wiring, making the
Installation convenient and simple.
Main Advantages:
(1) Millimeter wave RF chip contributes to more Compact RF architecture, higher signal-to-noise ratio and smaller blind area.
(2) the 5GHz working bandwidth enables the product to have higher measurement resolution and accuracy.
(3) the narrowest antenna beam Angle is 8°, so the Interference in the installation environment has a smaller impact on the Instrument, making installation more convenient.
(4) Integrated lens design, compact size.
(5) Low-power operation with a life expectancy of More than 3 years.
(6) Support mobile phone Bluetooth debugging, facilitating On-site personnel maintenance work.
Specifications | |
Transmitting frequency |
76GHz~81GHz |
Measuring range |
0.1 m ~15m |
Measurement accuracy |
±1mm |
Beam Angle |
8° |
Power supply range |
18-28 VDC |
Signal Output |
4-20mA |
Working temperature |
-40~85℃ |
Shell material |
PP/ Aluminium alloy |
Antenna type |
Lens antenna |
Recommended cable |
0.5mm2 |
Class of protection |
IP67 |
Installation mode |
|
