Reactor for Air-Conditoner, Choke, Inductor

Specifications

Reactor, Inductor,Choke

1,Introduction

Reactors, also known as inductors, generate a magnetic field within a certain range of space occupied by a conductor when energized, so all electrical conductors that can carry current have a general sense of inductance. however, the inductance of a long and straight conductor is relatively small, and the magnetic field generated is not strong. Therefore, the actual reactor is a wire wound in the form of a solenoid, known as a hollow reactor; Sometimes, in order to make this solenoid have a greater inductance, an iron core is inserted into the solenoid, called an iron core reactor. Reactance is divided into inductive reactance and capacitive reactance, which are scientifically classified as inductors (inductors) and capacitors (capacitors) collectively referred to as reactors. however, due to the existence of inductors in the past and being referred to as reactors, what people now refer to as capacitors is capacitive reactance, and reactors specifically refer to inductors.

2,Main functions

1. Capacitance effect on lightly unloaded or lightly loaded lines to reduce power frequency transient overvoltage;

2. Improving voltage distribution on long transmission lines;

3. to balance the reactive power in the line as much as possible on site during light loads, to prevent unreasonable flow of reactive power and also reduce power loss on the line;

4. When the large unit is in parallel with the system, reduce the power frequency steady-state voltage on the high-voltage bus to facilitate synchronous parallel connection of the generator;

5. Prevent self excitation resonance phenomenon that may occur when the generator is equipped with long lines;

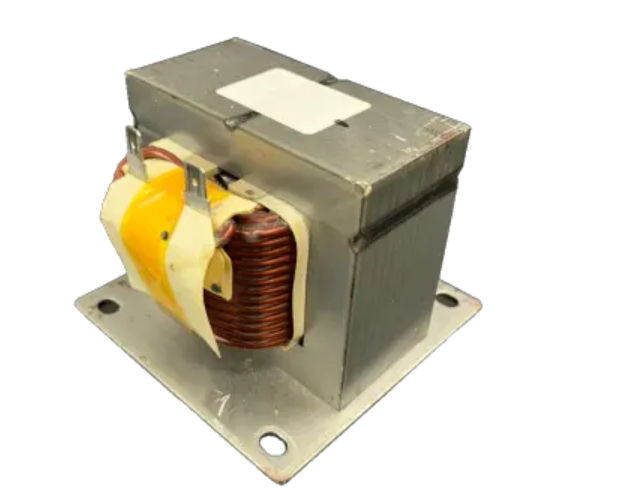

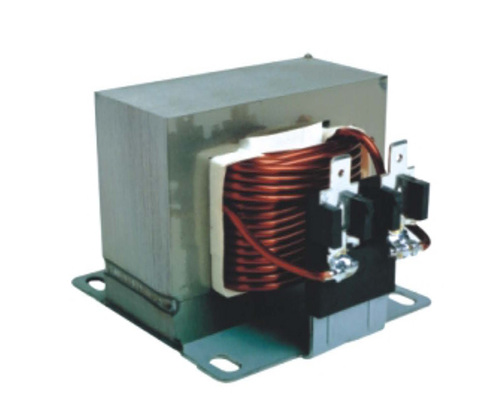

the iron core of the air conditioning reactor adopts non oriented EI silicon steel sheets, which are easy to process and have high cost-effectiveness. the overall structure is square, compact, beautiful in appearance, low in noise, and the plug-in structure is easy for customers to install and use. Mainly used as a filtering inductor in the air conditioning PFC circuit to improve power factor.

Working voltage: 100~400V

Insulation level: H

Reference standard: GB19212.21 "Special Requirements for Small Reactors"

Electrical performance parameters: Various voltage and reactance rate parameters can be customized according to customer needs

Working frequency: 50/60Hz

Cooling method: natural cooling

Other: Low noise design, black paint appearance, copper aluminum welding using special processes, reliable connection
