Home >Products Catalog > Roll former design > Square & Rectangular Filter Frame Roll Forming Machine

Square & Rectangular Filter Frame Roll Forming Machine

FOB Price:	50000.00 - 68600.00 USD/Set
Supply Ability:	10 Set(s) per Year
Shipping:	by sea
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	40GP Container

Quick Details

Type: Steel Frame & Purlin Machine
After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE
Brand Name: Superda
Condition: New
Type: YX
Warranty: 1 year
Weight: 4.5T
Dimension(L*W*H): 28*1.9*1.8m
Power(W): 22kw
Voltage: 380V/3PH
Model Number: 6
Production Capacity: 10set/year
Work Pressure: 0.8mpa
Machine colour: Blue

Specifications

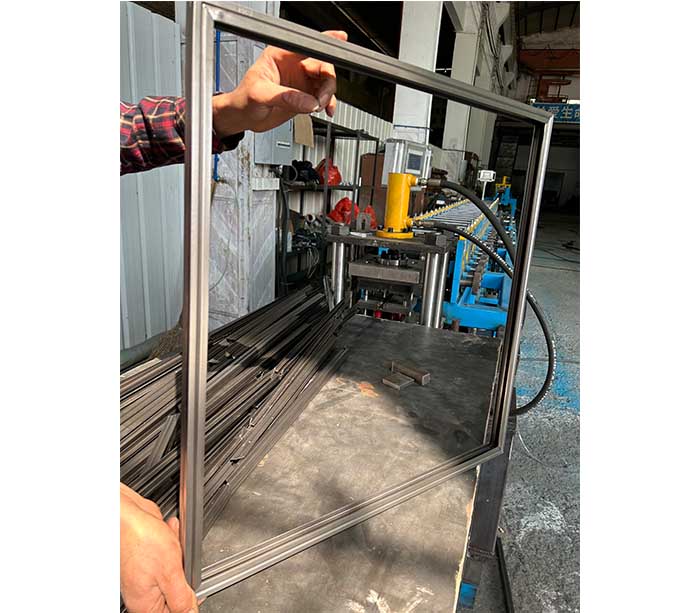

Customized installation frame for filter packs air filter, pocket filter holding frame machine; Square and rectangular bending filter pad holding frames forming machine and bending machine manufacturer(Shenzhen Superda Machine Co., Ltd)

Metal Filter Packs Frame Process

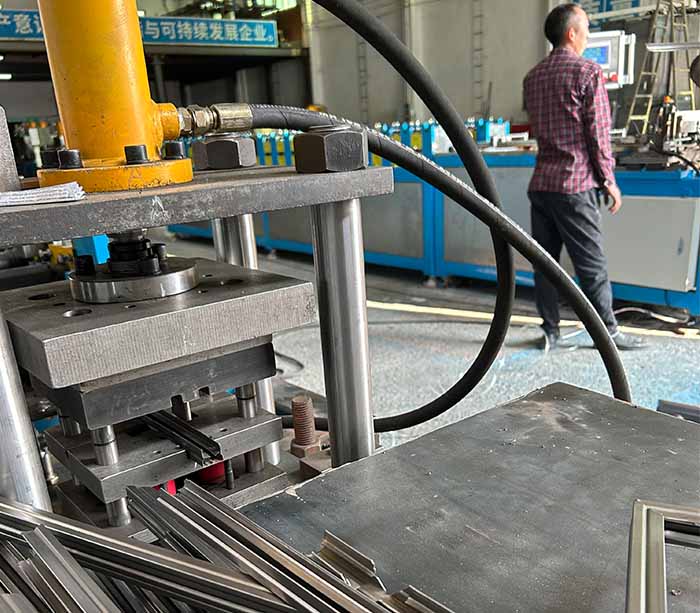

Uncoiler →Servo feeder→ Guide device → Hydraulic Punch → roll forming machine →shear device (including knife)→ finished product rack
Square Rectangular Filter Frame Roll Forming Machine

list

Uncoiler

1, Type: Manual Expansion

2, Parameter

1)Passive discharge

2) Coil weight: < 2T

3)Coil inner D.: φ450mm-φ530mm

4)Max. Width.200mm

5) Thickness.0.4-0.6mm

6) Power.1.5kw

Servo Feeder
3.1 Max. Feeding width:200mm
3.2 Feeding thickess: 0.4-1.6mm

3.3 Motor, 0.85(Yaskawa)

Guide device

Filter pad holding frame forming system data

5.1 Forming Roller: 20 stations, and add Rub-roll, to make sure the surface profile no scratches.

5.2 Side Panel: T.18mm,A3 steel Heavy duty.

5.3 Rolling speeding: 5-8 m/min.

5.4 Roller material: #45, overall quenching, hardness HRC56-62 ℃.
5.5 Motor power: 11KW.
5.6 Main Roller: 65mm, 45 #.
5.7 Equipment base: 45 # H type using welded steel plate.
5.8 Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
