Smart + Automatic System Hanging LED Screen

FOB Price:	2000.00 - 5000.00 USD/Set
Payment Terms:	T/T

In Stock

Inquiry Now

Quick Details

Size: /
Material: /
Brand Name: /
Advertising Type: /
Color: /

Specifications

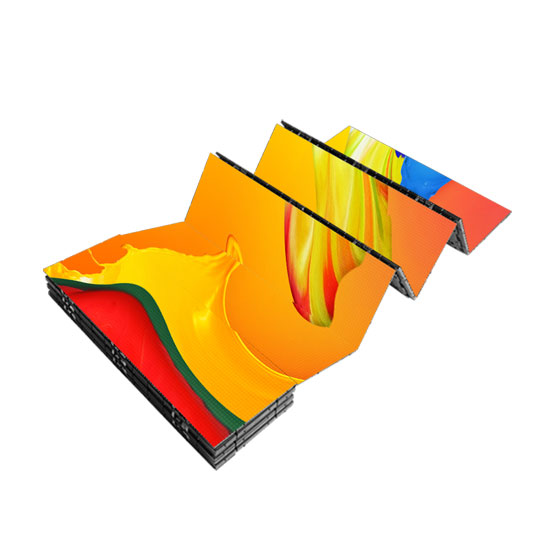

Smart + Automatic System Hanging LED Screen

ONUMEN Smart Series & Automatic System

ONUMEN Smart series & automatic system is a creative solution integrating indoor foldable LED display and automatic lifting and lowering system.

Thin and light, the 360° foldable features remote lifting and lowering, easy storage and hanging installation.

with the electric lifting and lowering device, creative screens can be easily realized for a more desirable viewing experience.

Remote Control Highlights

Module size: 250mm * 250mm.

360° foldable.

for indoor use IP43 rating.

Automatic folding and unfolding through the motor and tray.

Improved space efficiency and quick installation.

Prior service with no need for maintenance access.

Thin and foldable, enabling safety excellence and minimal impact in case of dropping.

Details of Smart + Automatic System Hanging LED Screen

Screen

Application Environment	Indoor
Model	Smart 3	Smart 5	Smart 6	Smart 7
Pixel Pitch (mm)	3.9	5.2	6	7.8
IP Rating	IP43	IP43	IP43	IP43
LED Type	SMD 1010	SMD 2020	SMD 1921	SMD 1921
Pixel Density (pixel/)	65536	36864	27777	16384
Driving Mode	1-16	1-12	1-16	1-16
Gray Scale (bit)	16	16	16	16
Max Brightness (nits)	1400	1500	3000	1800
Max Refresh Rate (Hz)	4000	5000	4000	4000
Module Resolution (pixels)	64 * 64	48 * 48	32 * 32	32 * 32
Module Size (mm)	250 * 250	250 * 250	250 * 250	250 * 250
Screen Thickness (mm)	14	14	16	16
Weight (kg/)	12	12	10	12
Folding Angle	360°	360°	360°	360°
Viewing Angle (H/V)	110° / 110°	120° / 120°	120° / 120°	120° / 120°
Max Power Consumption (w/)	900	670	380	220
Output Voltage (V)	DC24/48	DC24/48	DC24/48	DC24/48
Input Voltage (V)	AC100 ~ AC240	AC100 ~ AC240	AC100 ~ AC240	AC100 ~ AC240
Max Height of a Panel (m)	6	8	9	12
Best Viewing Distance (m)	≥4	≥5	≥6	≥8
Brightness adjustment (levels) (digital)	256	256	256	256
Brightness adjustment (levels) (analog current) (option)	64-256	64-256	64-256	64-256
Contrast	2500:01:00	2500:01:00	2500:01:00	2500:01:00
Connection Type (standard) (spare)	2+14pin Soldering	2+14pin Soldering	2+14pin Soldering	2+14pin Soldering
Connection Type (standard) (spare)	50pin Connector	50pin Connector	50pin Connector	50pin Connector
Short Circuit Protection	Yes	Yes	Yes	Yes
Quick Maintenance	Yes	Yes	Yes	Yes
Controlling Mode	Synchronous	Synchronous	Synchronous	Synchronous
Controlling Mode	Asynchronous	Asynchronous	Asynchronous	Asynchronous
Installation Method	Hanging	Hanging	Hanging	Hanging
Installation Method	Magnet mounting	Magnet mounting	Hanging	Magnet mounting
Operation temperature (℃)	-40 ~ 65	-40 ~ 65	-40 ~ 65	-40 ~ 65
Operation humidity (RH)	0% ~ 90%	0% ~ 90%	0% ~ 90%	0% ~ 90%
Certificate	ROHS FCC TUV CE
