Kaiyue Measurement & Control Co., Ltd.
China Manufacturer with main products: Pressure Transimitter, Flow Meter, Level Gauge, Temperature Products |

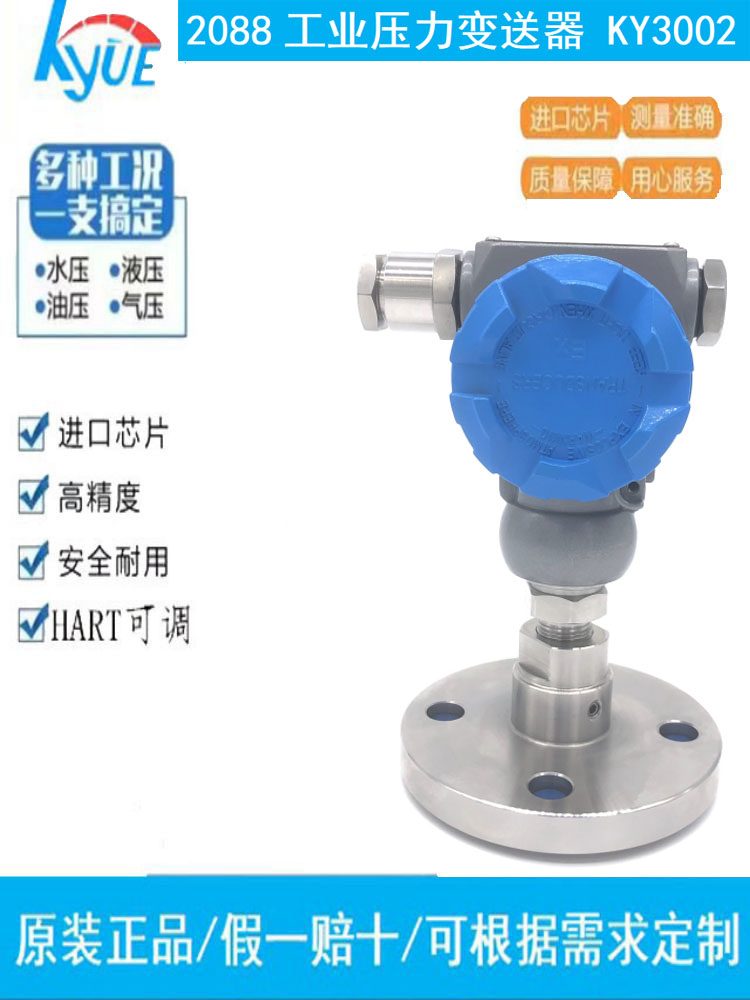

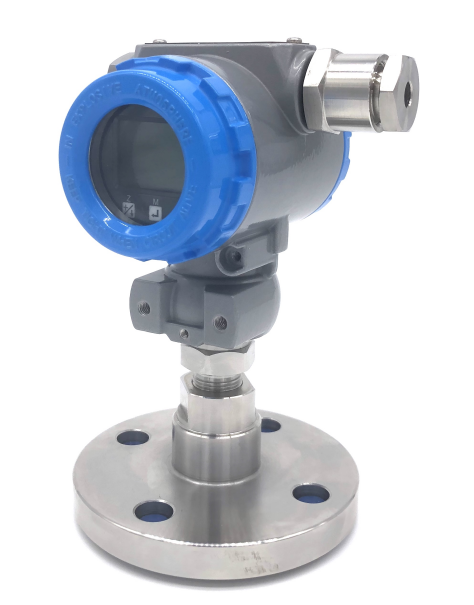

2088 Industrial Pressure OEM China Made Transmitter Pressure Product
| FOB Price: | 30.00 - 200.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece(s) per Month |
| Shipping: | FOB Tianjin |
| Payment Terms: | L/C, D/P, Western Union |
Related products from verified members
| Export Markets: | North America, Eastern Europe, Western Europe |
|---|---|
| Place of Origin: | Tianjin in China |
| Packaging Details: | 30*40*50 |
Quick Details
- Brand Name: Kyue
- Output: 4-20mA
- Accuracy: 0.2%F.S
- Power Supply: 24V DV
- Range: -0.01Mpa-150Mpa
- Model Number: KY3002
- shell material: SS316
- Protect level: IP66
Specifications
the following example is for you reference.
Main Advantages:KY3002 series products provide high performance intelligent configuration pressure measurement solutions.KYUE advantages of silicon technology, capacitance and analog circuits enable excellent performance in sensor stability, low power consumption and high frequency response.Modular design and unique production technology can provide users with flexible choice of products, can meet the application needs of users in various industries.THe series transmitter includes two parts :Pressure transmitter and pressure Signal-transform device.
Technical details:
Power supply voltage: generally use 24V
Output signal: 4~20mADC or RS485 communication
Load resistance: 0~1200 Ω(is generally used at 250 Ω,
See the Load feature diagram)
Accuracy:± 0.5%FS ±0.2%FS ±0.05%FS
Ambient temperature: -20~80℃
Relative humidity <90%
Medium temperature: -40~120℃
Environmental temperature impact: 0.2%FS/10℃
Explosion-proof:ExdIICT4-T6
Test medium: liquid, gas, and steam
Measurement range: -0.01Mpa ~0kPa ~150MPa
Overpressure limit: 2 times the rated pressure value
Strength of the external magnetic field: ≤ 400A/m
Our Factory: Tianjin China
Certificates: CCS certifacates
Our Service: Three years warranty
