China Manufacturer with main products: Current Transformers, Rogowski Coils |
UL; CE; UKCA Flexible Current Transformers Rogowski Coils
| FOB Price: | 1.00 - 90.00 USD/Piece |
|---|---|
| Supply Ability: | 200,000 Piece(s) per Month |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Quick Details
- Coil Number: Autotransformer
- Coil Structure: Toroidal
- Phase: Single
- Usage: Electronic
- Brand Name: Electronic Spark
Specifications

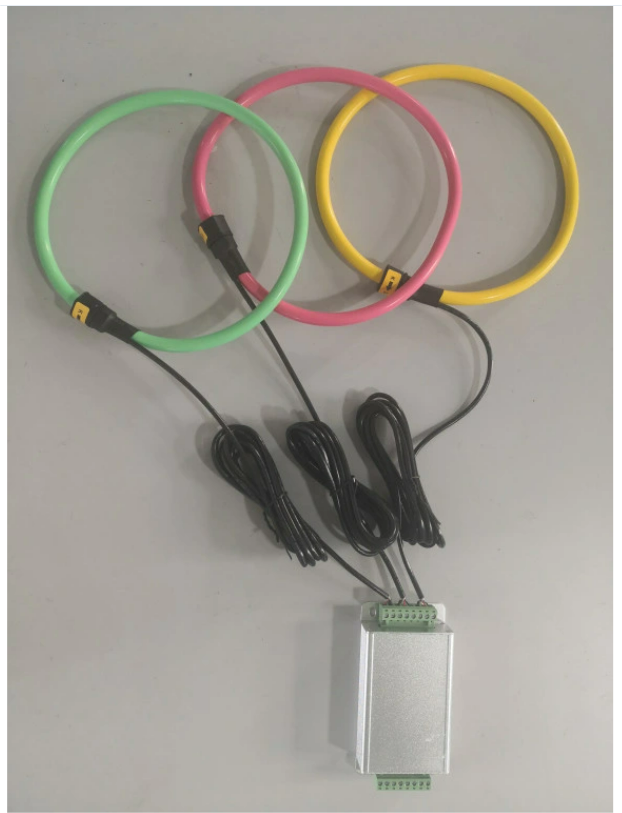

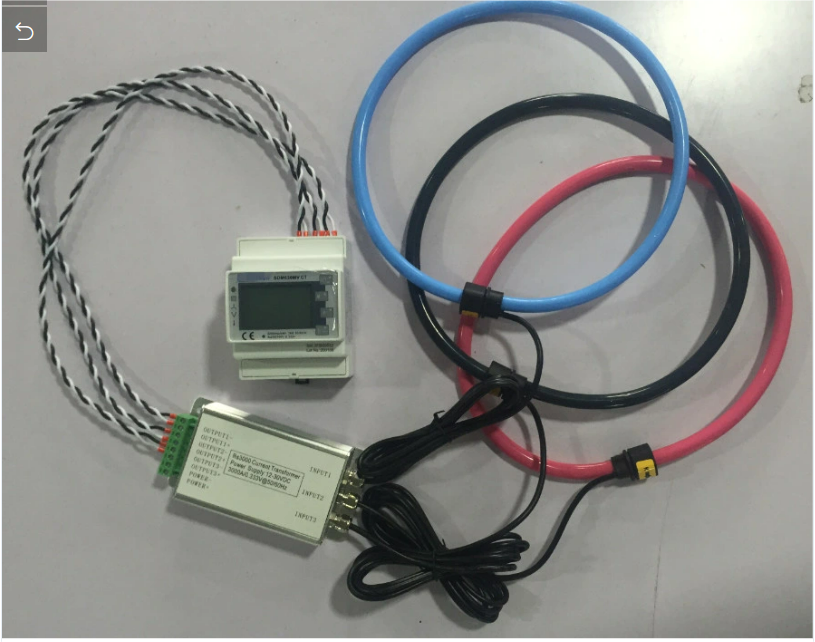

Details of Milivolt Output Flex CTs Rocoils
Capable of accommodating a range of primary conductor sizes.
Characterized by high sensitivity, accuracy, linearity, minimum phase shift.
Suitable for harsh operating environments (temperature, humidity, EMI).
Current Range: 100A to 100kA
Accuracy: < 1%
Phase Shift: < 1 degrees at 50/60Hz (< 0.5 degrees typical) /li>
Linearity: ±0.2% from 10% to 100% of rated primary current
Primary Conductor Position Sensitivity: ± 2% maximum
Influence of External Field: ± 1.5% maximum
Coil Working voltage: 1000VRMS or 1000VDC
Coil Dielectric Surge Withstand: 5kVRMS for 1 minute
Operating temperature: -20C to +60C
Leads: Shielded cable, or as per customer need
