Kaiyue Measurement & Control Co., Ltd.
China Manufacturer with main products: Pressure Transimitter, Flow Meter, Level Gauge, Temperature Products |

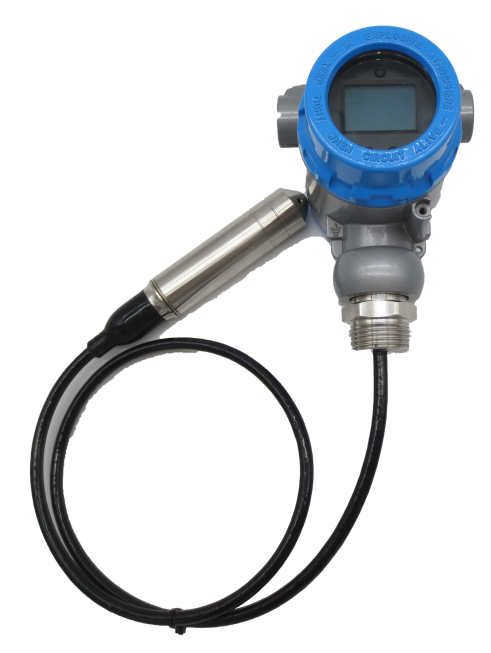

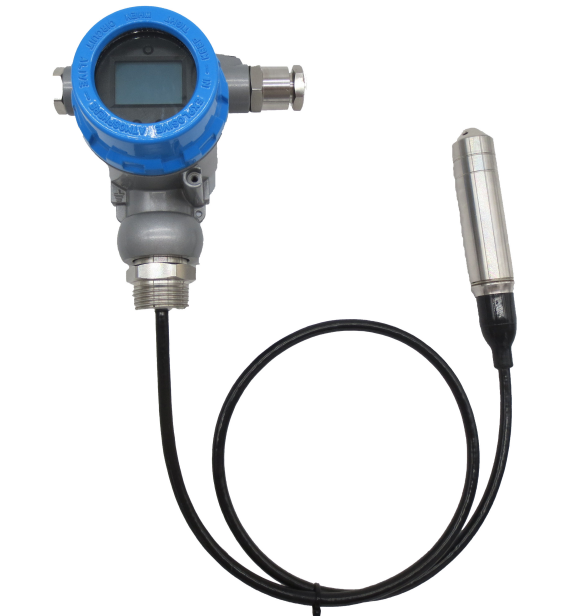

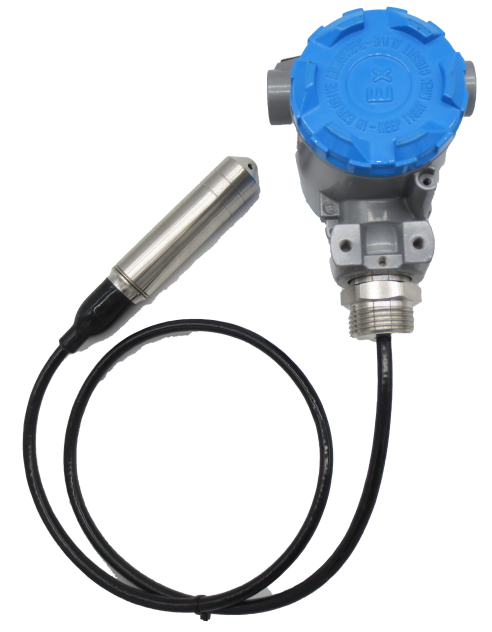

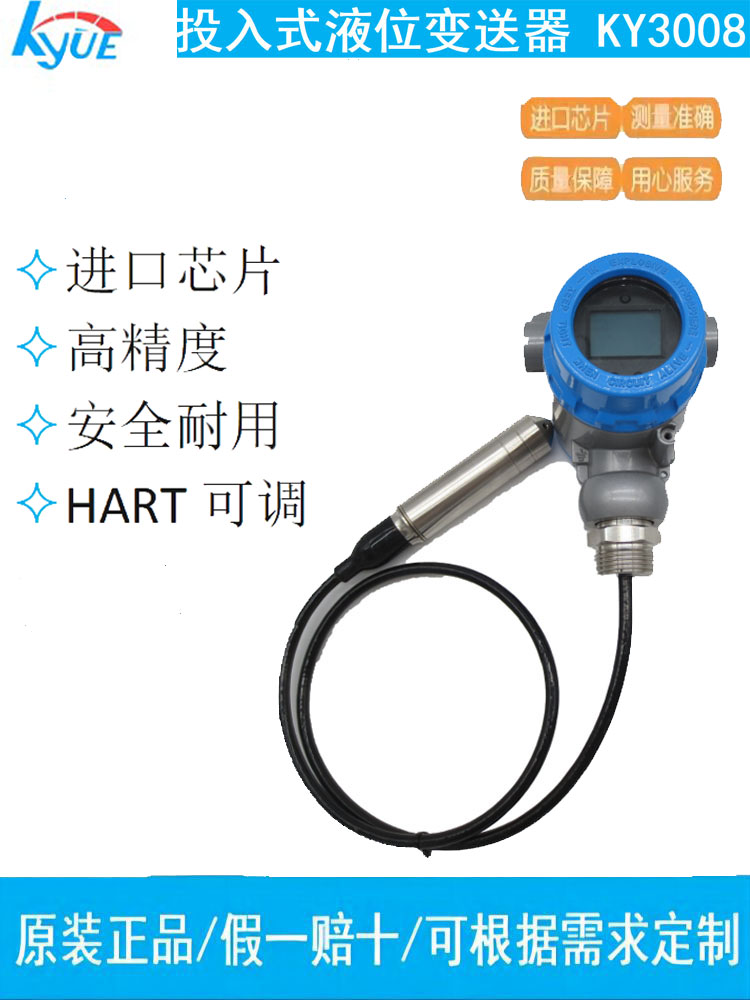

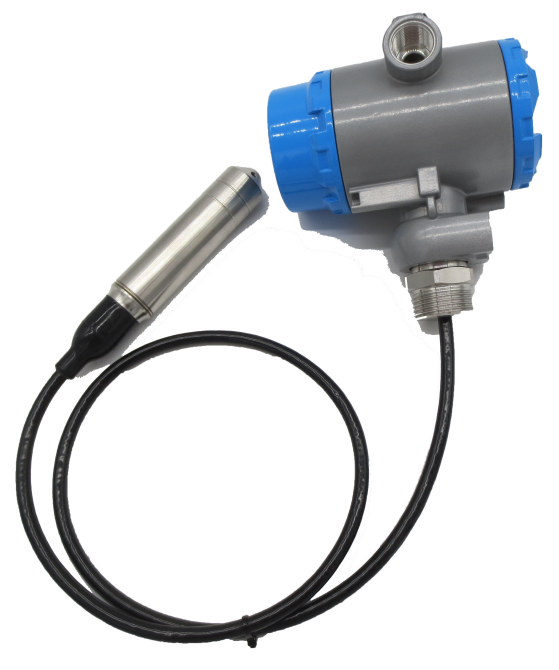

Putting into Type Liquid Level Gauge
| FOB Price: | 30.00 - 200.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece(s) per Month |
| Payment Terms: | L/C, D/P, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Africa, Eastern Asia |
|---|
Quick Details
- Brand Name: Kyue
- Accuracy: 0.2%
- Material: 316
- Measuring range: 0-100m
- display color: white
- Model Number: KY3008
- shell material: 316
- Protect level: IP68
Specifications
Measurement indicators:
Pressure range: optional between 0~0.5m and 0~1000m. Pressure range: optional between 0-0.5m and 0-100m.
Maximum overpressure: 8 * FS (range ≤ 1.5m) 6*FS(1.5m <range ≤ 3.5m)
Blocking pressure: 10 * FS (range ≤ 3.5m) 6 * FS max. 1400m (range ≤ 3.5m)
Long-term stability: ± 0.2%FS/ Annual output impedance: mV output: 1.8K Ω Temperature compensation range: -20~60℃
Split cable length: ambient temperature 80℃ Maximum cable: 30m
Impact: the product can withstand the impact of 30g peak half-sine wave of 15ms in each axial direction
Composite range: Composite pressure range is also available. Please contact the manufacturer for the customers in need.
Application industry:
It is widely used in petroleum, chemical industry, metallurgy, power plants, sewage treatment, water pools, high-speed rail cleaning equipment, water wells, lakes and storage tanks.
