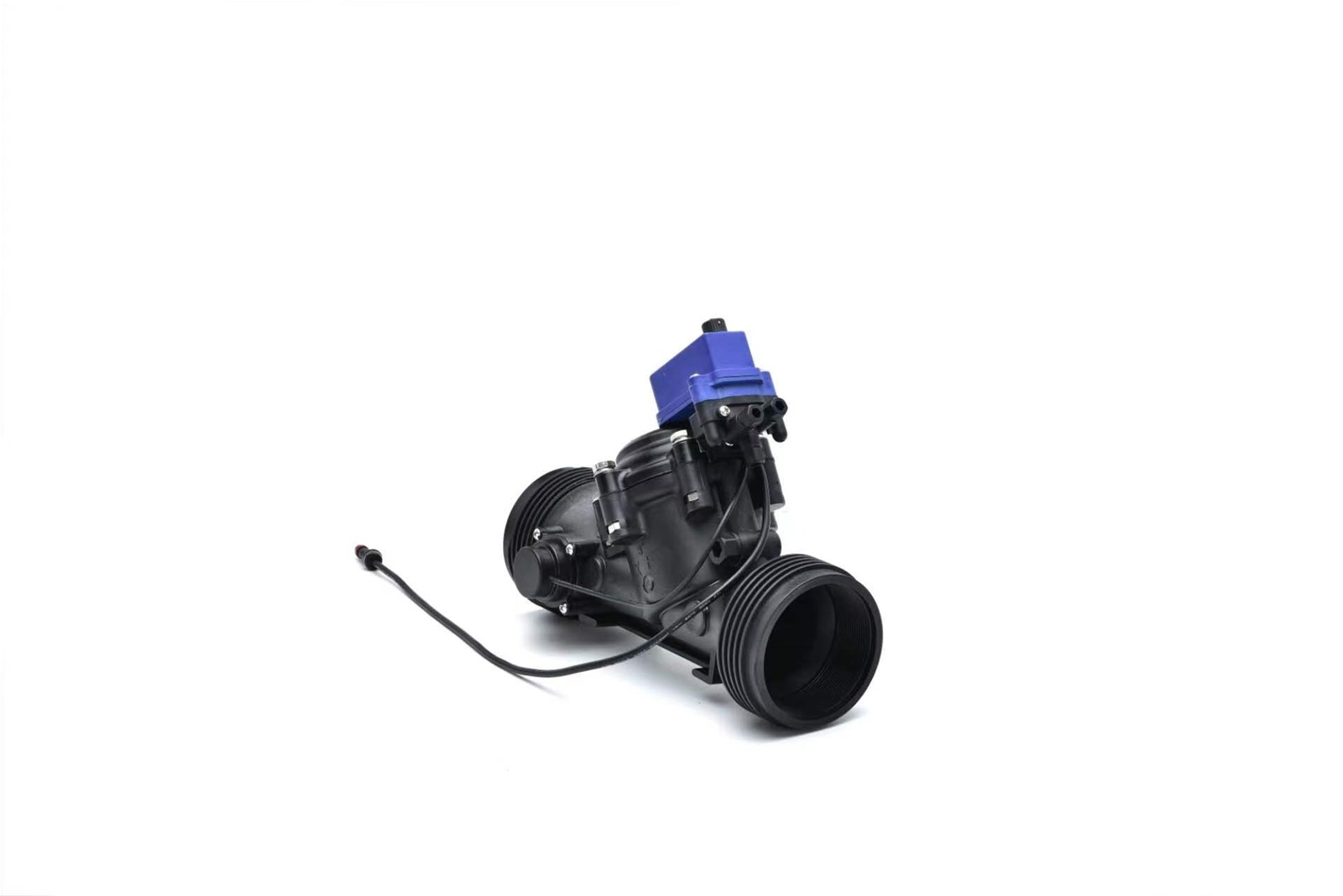

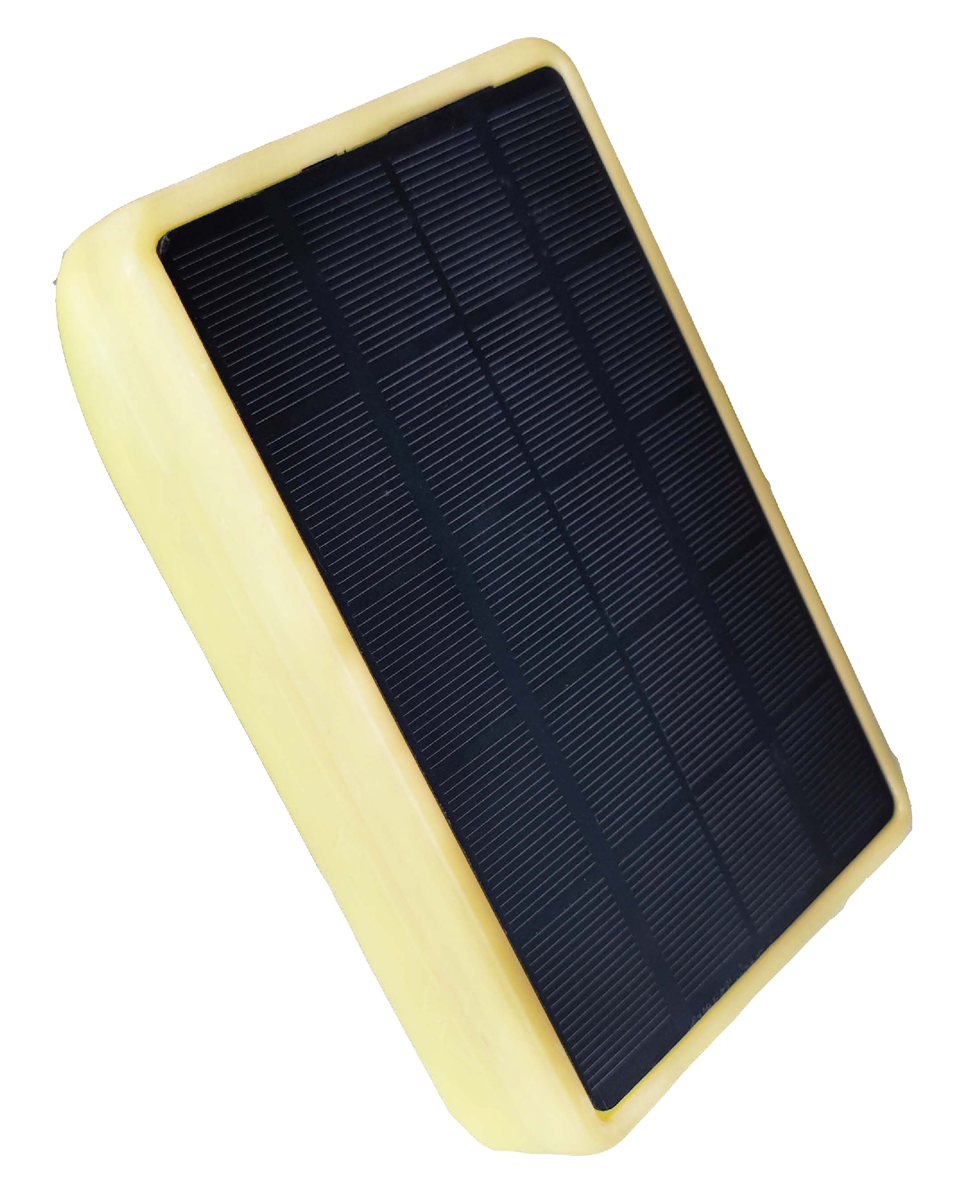

Solar Powered IoT Remote APP Control Irrigation Latching DC 6V Water Solenoid Valve

FOB Price:	24.50 - 115.00 USD/Piece
Supply Ability:	5,000 Piece(s) per Week
Shipping:	Sea / Air / Courier
Payment Terms:	L/C, T/T, Western Union, Paypal

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Standard Export Paper Carton

Quick Details

Brand Name: XFDZ
Temperature of Media: Medium Temperature
Material: Plastic
Pressure: Medium Pressure
Standard or Nonstandard: Standard
Model Number: GGF-CR
Port Size: 3''
Media: Water
Power: Solenoid
Structure: Diaphragm
Name: irrigation solenoid valve
Type: Solenoid Valve
Working Medium: Water
Application: Irrigation
Voltage: 3VDC/6VDC/12VDC/24VDC
Operating Method: Pulse Type / NC
Port Size: DN80 (3inch)
Connector: Thread/ Flange
Protect Class: IP67
Life Span: 100000 cycles

Specifications

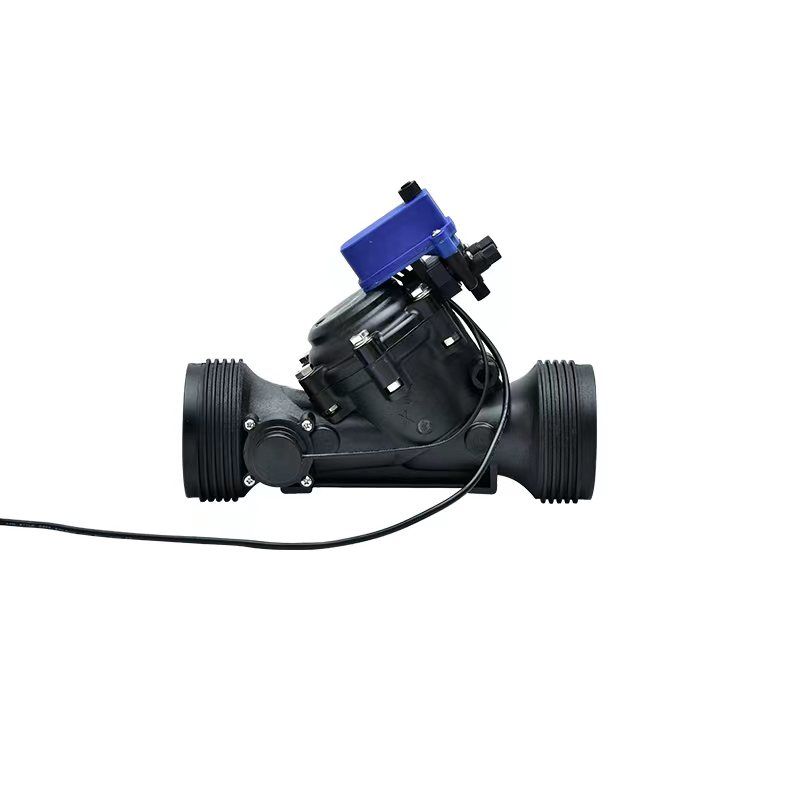

3inch Latching dc6v Garden irrigation water solenoid control valve
Solar Powered IoT Remote APP Control Irrigation Latching DC 6V Water Solenoid Valve

2.Normal Technical Feature & Parameter
Plastic Irrigation Solenoid Valve with Hydraulic Control

> Installed with main hydraulic valve and our Plus Solenoid Valve to be open/close controlling valve, distance operation by electrical signal from controller.
> Y Type Designed, Big Channel and large discharge, small head lose, Response sensitivity.

> Flexible inductive diaphragm and guide of valve core fixed well, corrosion resistance and no deformation.

> Easy to operate as hidraulic controling, save effort to close or open and convenient maintenance.

> Produced by Reinforced plastic material with excellent hydraulic and mechanical function, use for long time.

Operated Voltage	3vdc~24vdc
Pulse Width	200ms~500ms
Port Size	3 inch DN80 (φ90mm)
Flow Rate	0~100mm3/h (Economic Flow: 50~70m3,water flow loss smallest)
Materials	Nylon Plastic Black
Adwantages	Sediment resistance (very little remaining in valve)
Functions	Agricultural /Garden field water irrigation; water pressure/flow/ valve's open/off data record
Life Time	50000 cycles

3.Advantage of our Plus Solenoid Valve:

> Inside Actuator motor designed for converting electric to hydraulic command which is essential part for Hydraulic controlling valve.

> Designed with diaphragmin inside which makes controlling main part separate from water passageways for Long service life.

> Width water passageways designed for short reaction of controlling valve and Anti-clogging.

> Manual controlling Knob for CLOSE-AUTO-OPEN operation.

4.Technical:
Size: 3 inch
Electric Voltage: 3VDC~12VDC Latching
Connection: Threaded / Flange.
Working Pressure: 0-8 bar
Max pressure: 10Bar / 145Psi.
Highest working temperature: 1~75 °C.

5.Material:
Body, Cover and Plug: Glass-Filled Nylon
Diaphragm: EPDM
Seals: EPDM
Spring: Stainless Steel
Bolts: Stainless Steel
Connectors: Glass-Filled Nylon

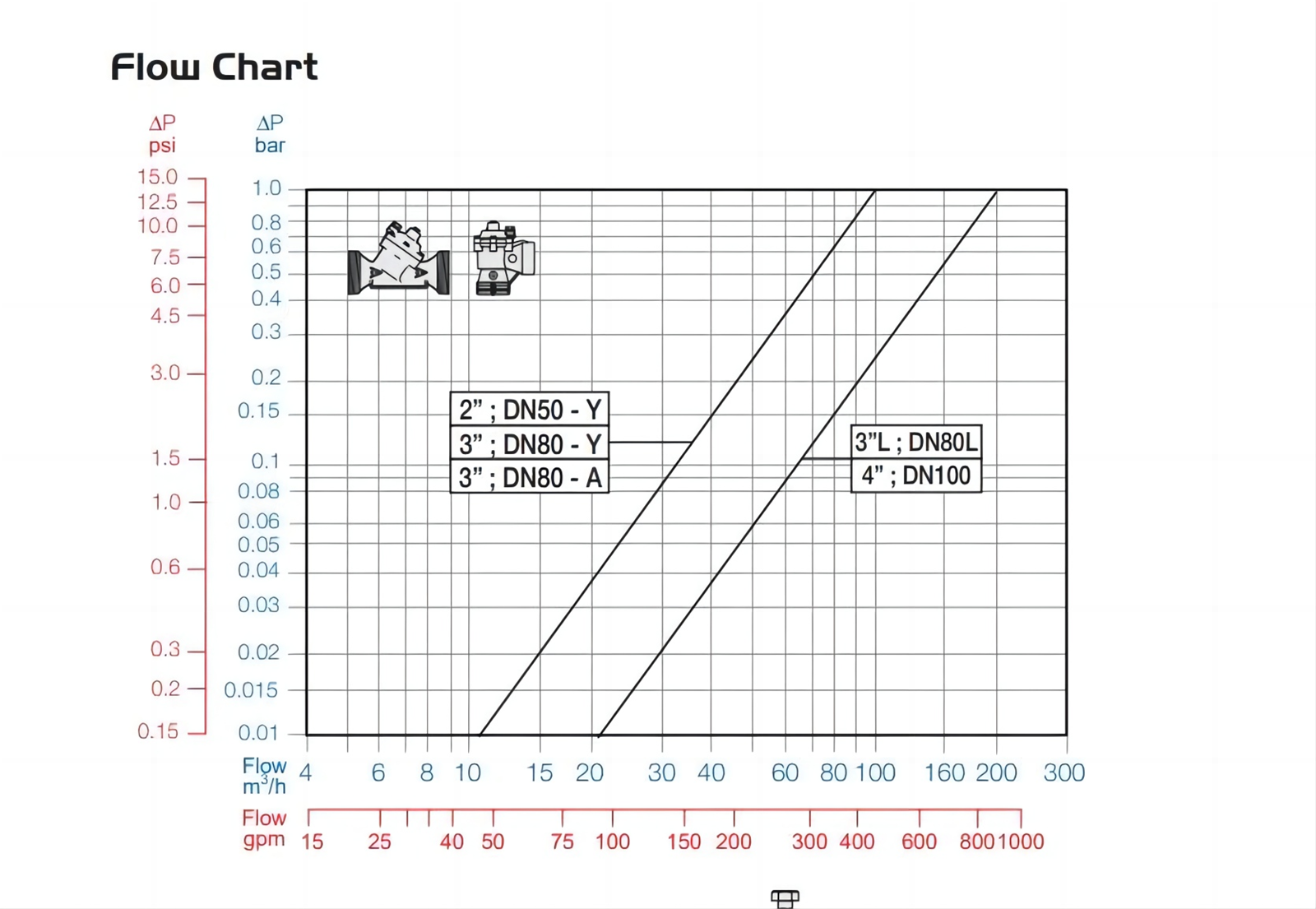

6.Flow Chart:

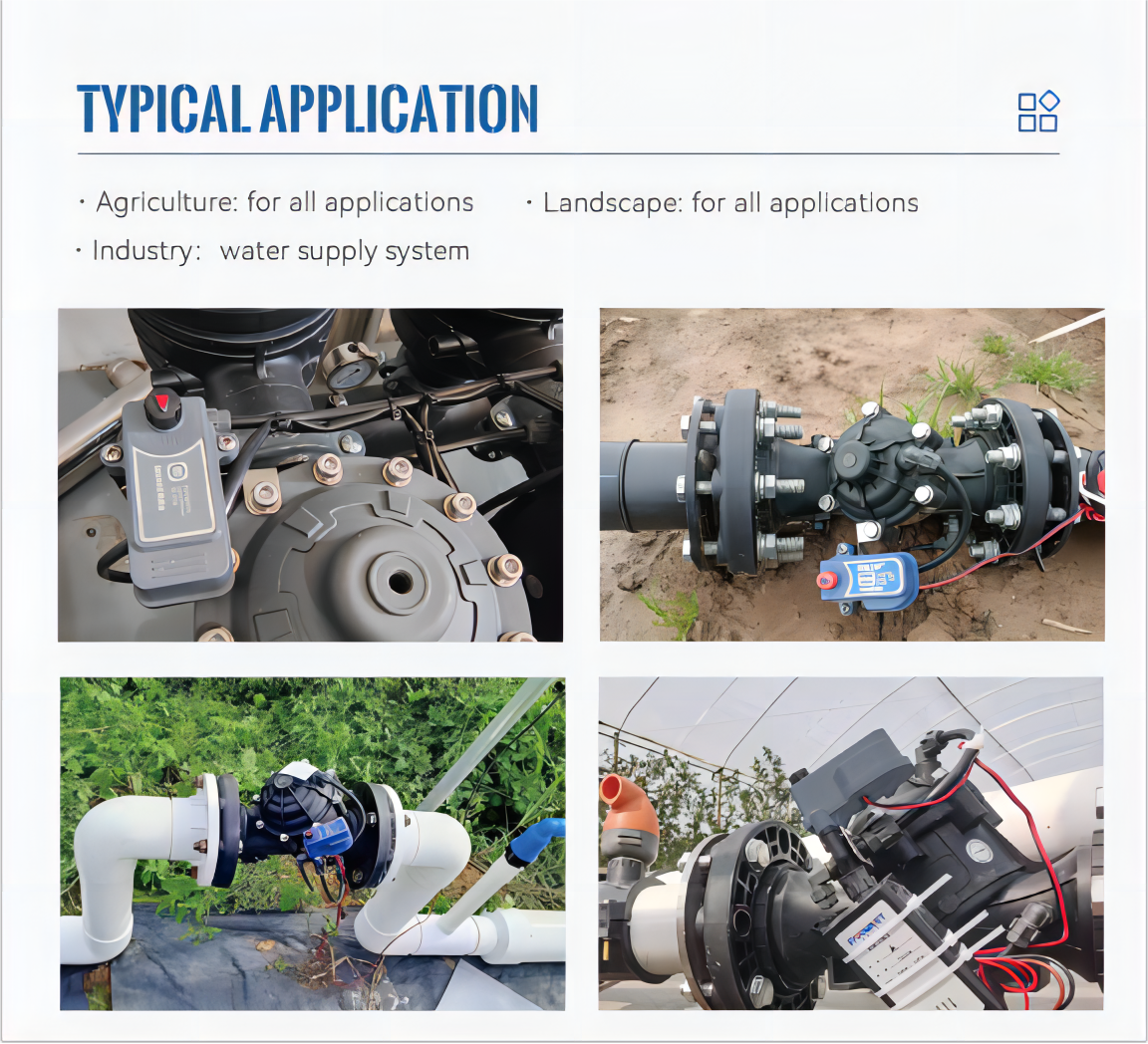

7.Applications

Solar Powered IoT Remote APP Control Irrigation Latching DC 6V Water Solenoid Valve

8..Packing&Shipping Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XingFeng brand packaging are also available

Shipping:
Export port:Ningbo or Shanghai, China
Shipping way:by sea, by air, by courier
Delivery time:3 days to 30 days depends on actual orders.
9.Company Profile
Yue Xingfeng Electronics Factory is a 2002 years intelligent sanitary ware manufacturingelectromagnetic valve of mediumsized enterprises,Professiona sanitary ware forhousehold electrical appliances, induction sanitary ware, intelligence, form a completeset of automatic control industry.Factory is located in yueqing city east industrial zone.with perfect r&d, manufacturing,marketing and logistics management system.Xing feng and insist on techonlogical innovation has been followed, relying on the scaleand professional brand service, constantly bigger and stronger,Products are mainlydicided into:induction series, intelligent toilet series intelligent wei yu of form a completeset of solenoid valve.the material is divided into brass, plastic series.Xing feng electronic through continuous efforts, innovation, and strive to industry leadingenterprises, let each use of establishing product satisfaction, is our never-ending pursuitof goals.
Solar Powered IoT Remote APP Control Irrigation Latching DC 6V Water Solenoid Valve

10.FAQ
1.Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XingFeng brand packaging are also available

2.Shipping
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

3.Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

4.Samples Policy
for regular fittings below 2 pcs, free samples against your courier account or you pick up from us.
for custom items, we will discuss by email or by phone chat.

5.Return Policy
We assure you 3 year policy after shipment. If there is any problem during this period, please contact us for support.
