China WQ Centrifugal Submersible Sewage Water Pump for Waste Drainage

Specifications

Non-Clog Waste Water Centrifugal Sewage Submersible Drainage Pump with Auto Coupling (WQ), Deep Well Pump, Pond Pump, Garden Pump, Submerged Sump Pump, Slurry Pump

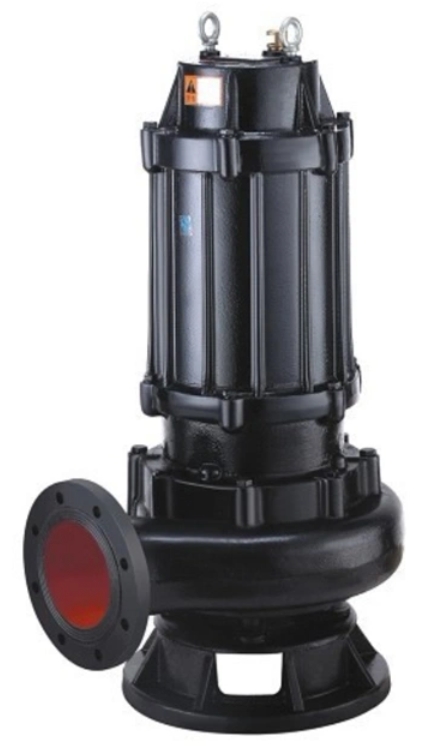

QW(WQ) type Non-Clog Waste Water Centrifugal Submersible Sewage Pump, Pond Pump, Garden Pump is made up of motor and pump, which are separated through oil isolation room and mechanical seal, it is short in length that motor and pump share the same axle (rotor), the structure is compact.

Structure Features
1. Signal line: for motor power above 11kw, we suggest pump equipped with control box, which would protect the pump fully from leakage, phase reversal, short circuit, overheated, overload, etc.
2. Motor stator: Its insulation is B grade or F grade.
3. Water leakage probe. this component is installed in the oil room, if the mechanical seal was damaged, and water enters into the oil room, it will send out the signal to the control system so as to stop the pump.
4. Mechanical seal: Adopting in-series seal, the material is the wear-resisting carbonization tungsten, featuring being reliable, wear-resisting, longer life, etc.
5. Impeller: Have better handling capacity, can reduce the trouble of jamming and twisting of big fiber rubbish, etc.
6. Pump body: Harmonize with impeller, ensure the pump has high efficiency.
7. Seal rings: Installed at the mouth place of pump body, can change the sealed ring after long time operating, so as to ensure the pump runs with the best efficiency.

Advantages
1. Adopt big flow non-clog design, improving the ability to pass dirty things greatly.
2. the design is rational, with high efficiency, and the energy-saving is remarkable.
3. Adopts in series mechanical seal, the material is the wear-resisting carbonization tungsten, featuring being durable, wear-resisting, can running for more than 8000 hours continuously safely.
4. the structure of the pump is compact, small, may move conveniently, installation is simple and convenient, it is submerged into the water, no need to build the pump house, reduce construction cost greatly.
5. There is probe in the oil room of the pump, if the pump side mechanical seal is damaged and water enter into the oil room, it would give off signals so as to protect the pump.
6. Can be equipped with control box according to the needs of user, it will protect the pump from electric leakage, water leakage, overload and overheated, etc. Guarantee the pump operates reliably and safely.

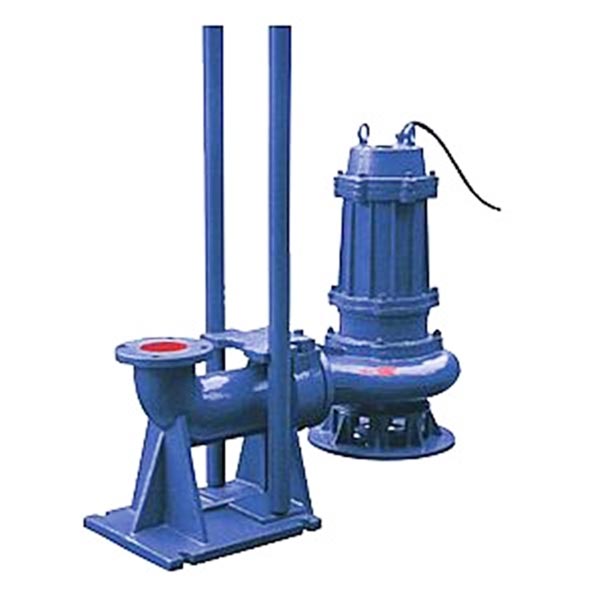

7. the automatic coupling installation system of one pair of guides, it is convenient for the installation and maintenance of the pump, no need to enter into the sewage hole.
8. the float switch, according to the necessary water level changing. Control the start and stop of the pump automatically, no people needed to guard it.
9. According to use situation, the motor can adopt water jacket the-third party circulation cooling system type, which can guarantee the safe operation of the pump under the anhydrous (dry type) state.
10. Installation can be fixed automatic coupling installation or non-fixed portable installation, which can satisfy different occasions.

Working Conditions
1. Temperature 0f medium not exceeding 60C, gravity 1.0~1.3kg/dm3, and pH value between 5~9.
2. for pump without internal gravity flow circulation cooling system, its motor above liquid surface by less than 1/3.
3. Generally, pumps shall be working within the range of head to protect the motor from overloading. To work at the full head. Please specify when placing an order for our convenience in manufacturing.
4. the current of motor during the process of operation shall not exceed the rated current of motor.

Applications

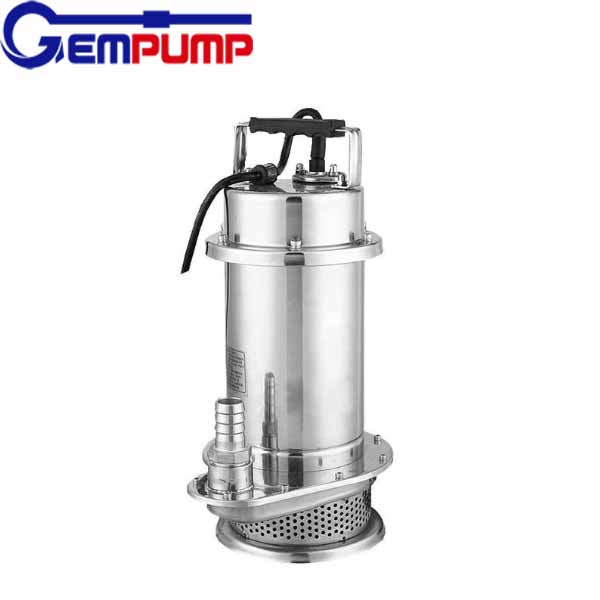

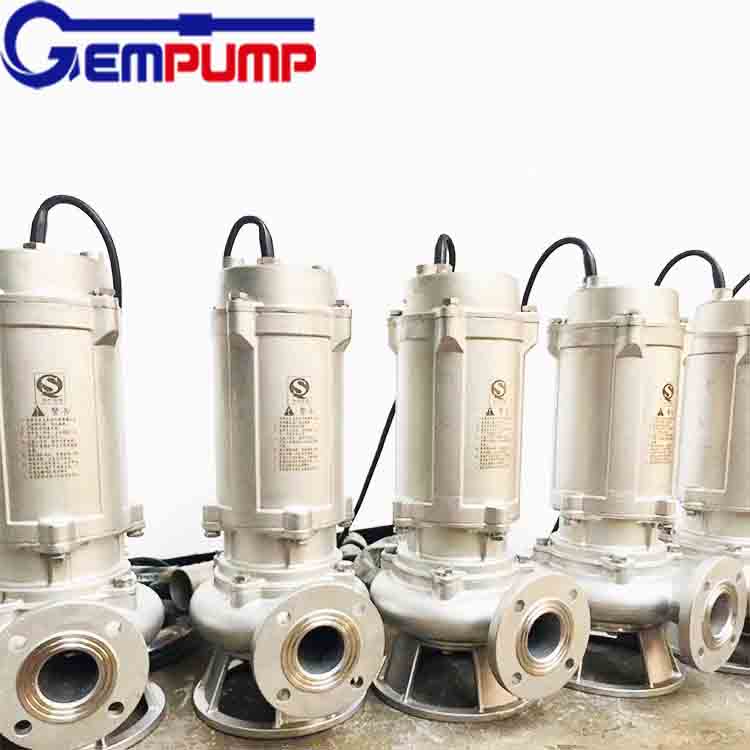

this series of pumps are mainly used in municipal engineering, buildings, industrial sewage discharge, sewage treatment in environmental protection, factories and mines to deliver sewage, wastewater and rainwater etc, containing solid substances and long fibre. Stainless steel may also be used to deliver corrosive medium.

Performance Table

Model	Discharge (mm)	Capacity (m3/h)	Head (m)	Power (kw)	Speed (r/min)	Eff. (%)
QW25-8-22-1.1	25	8	22	1.1	2900	38.5
QW32-12-15-1.1	32	12	15	1.1	2900	40
QW40-15-15-1.5	40	15	15	1.5	2900	45.1
QW40-15-30-2.2	40	15	30	2.2	2900	48
QW50-20-7-0.75	50	20	7	0.75	1450	54
QW50-10-10-0.75	50	10	10	0.75	1450	56
QW50-20-15-1.5	50	20	15	1.5	2900	55
QW50-15-25-2.2	50	15	25	2.2	2900	56
QW50-18-30-3	50	18	30	3	2900	58
QW50-25-32-5.5	50	25	32	5.5	2900	53
QW50-20-40-7.5	50	20	40	7.5	2900	55
QW65-25-15-2.2	65	25	15	2.2	2900	52
QW65-37-13-3	65	37	13	3	2900	55
QW65-25-30-4	65	25	30	4	2900	58
QW65-30-40-7.5	65	30	40	7.5	2900	56
QW65-35-50-11	65	35	50	11	2900	60
QW65-35-60-15	65	35	60	15	2900	63
QW80-40-7-2.2	80	40	7	2.2	1450	52
QW80-43-13-3	80	43	13	3	2900	50
QW80-40-15-4	80	40	15	4	2900	57
QW80-65-25-7.5	80	65	25	7.5	2900	56
QW100-80-10-4	100	80	10	4	1450	62
QW100-110-10-5.5	100	110	10	5.5	1450	66
QW100-100-15-7.5	100	100	15	7.5	1450	67
QW100-85-20-7.5	100	85	20	7.5	1450	68
QW100-100-25-11	100	100	25	11	1450	65
QW100-100-30-15	100	100	30	15	1450	66
QW100-100-35-18.5	100	100	35	18.5	1450	65
QW125-130-15-11	125	130	15	11	1450	62
QW120-130-20-15	125	130	20	15	1450	63
QW150-145-9-7.5	150	145	9	7.5	1450	63
QW150-180-15-15	150	180	15	15	1450	65
QW150-180-20-18.5	150	180	20	18.5	1450	75
QW150-180-25-22	150	180	25	22	1450	76
QW150-130-30-22	150	130	30	22	1450	75
QW150-180-30-30	150	180	30	30	1450	73
QW150-200-30-37	150	200	30	37	1450	70
QW200-300-7-11	200	300	7	11	1450	73
QW200-250-11-15	200	250	11	15	1450	74
QW200-400-10-22	200	400	10	22	1450	76
QW200-400-13-30	200	400	13	30	1450	73
QW200-250-15-18.5	200	250	15	18.5	1450	72
QW200-300-15-22	200	300	15	22	1450	73
QW200-250-22-30	200	250	22	30	1450	71
QW200-350-25-37	200	350	25	37	1450	75
QW200-400-30-55	200	400	30	55	1450	70
QW250-600-9-30	250	600	9	30	1450	74
QW250-600-12-37	250	600	12	37	980	78
QW250-600-15-45	250	600	15	45	1450	75
QW250-600-20-55	250	600	20	55	1450	73
QW250-600-25-75	250	600	25	75	1450	73
QW300-800-12-45	300	800	12	45	980	76
QW300-500-15-45	300	500	15	45	980	70
QW300-800-15-55	300	800	15	55	980	73
QW300-600-20-55	300	600	20	55	980	75
QW300-800-20-75	300	800	20	75	980	78
QW300-950-20-90	300	950	20	90	980	80
QW300-1000-25-110	300	1000	25	110	980	82
QW350-1100-10-55	350	1100	10	55	980	84.5
QW350-1500-15-90	350	1500	15	90	980	82.5
QW350-1200-18-90	350	1200	18	90	980	83.1
QW350-1100-28-132	350	1100	28	132	740	83.2
QW350-1000-36-160	350	1000	36	160	740	78.5
QW400-1500-10-75	400	1500	10	75	980	82.1
QW400-2000-15-132	400	2000	15	132	740	85.5
QW400-1700-22-160	400	1700	22	160	740	82.1
QW400-1500-26-160	400	1500	26	160	740	83.5
QW400-1700-30-200	400	1700	30	200	740	83.5
QW400-1800-32-250	400	1800	32	250	740	82.1
QW500-2500-10-110	500	2500	10	110	740	82
QW500-2600-15-160	500	2600	15	160	740	83
QW500-2400-22-220	500	2400	22	220	740	84
QW500-2600-24-250	500	2600	24	250	740	82
