Aircraft Catering Truck / Civil Aviation Catering Truck

Specifications

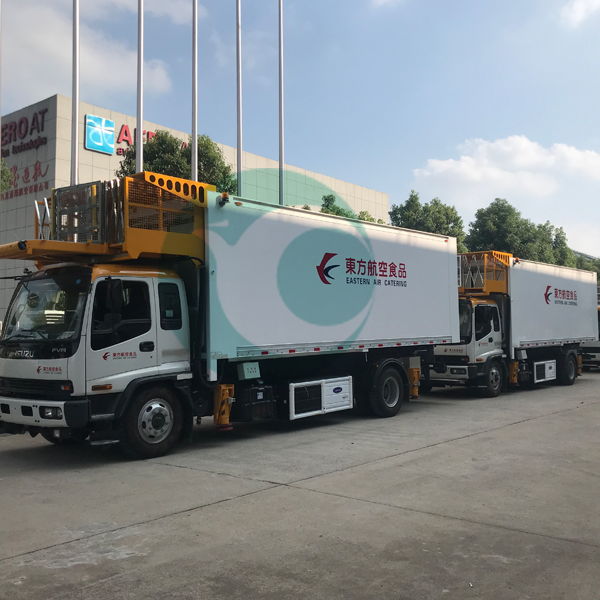

WT J5160JSP Aircraft Catering Truck (Diesel) is for loading food and beverage to aircraft. this vehicle is made up with chassis, supporting mechanism, lifting mechanism, van body, working platform, refrigeration unit, electric system, and hydraulic system. the truck also has optional automatic Gearbox Apply to: A300, A310, A318, A319, A320, A330, A340, B707, B727, B737, B747, B757, B767, B777, C919, DCB, DC9, 1L-18, 1L-62, MD11, MD80, etc and bottom deck of A380. Main Technical Parameter Engine model: 6HK1-TCG61 / 6HK1-TCL Gearbox model: Allison2500 / MLD-6Q Chassis models: QL5190TZZAEQHY / QL1180XQFRY Engine emission:National Ⅵ Emissions / National Ⅴ Emissions Curb weight (kg): 13280 / 12300 Overall dimensions (L W H) (mm): [10400 (long narrow) /10320 (short wide2500[3700 (without awning) /3800 (with awning, [10400 (long narrow) /10320 (short wide25003800 Vanbody rated load kg: 6200 / 5500 Additional Options: Available upon request


WTJ5140JSP small Aircraft Catering Truck (Diesel) using Isuzu second class car chassis modification, advanced technology, the use of safe, reliable, the performance is better than the use of other domestic chassis modification of similar products. The truck also has optional automatic Gearbox Apply to:B737, A320, C919 and other class C models Main Technical Parameter Engine model: 4KH1CN5HS / 4HK1-TC51 Gearbox model: MSB-5SM / MLD-6Q Chassis models: QL1070A5KAY / QL1100A8PAY Engine emission:National Ⅴ Emissions Curb weight (kg): 7200 / 11000 Overall dimensions (L W H) (mm): 716020103300 / 9000 X 2460 X 3830 Vanbody rated load kg: 1500 / 2000 Total front platform load kg: 1050 / 1200 Additional Options: Available upon request


JSTY5180JSPE Aircraft Catering Truck (Electric) mainly Self -made chassis type modified electric chassis, support feet and scissors type hydraulic lifting mechanism, car body, lifting front platform, hydraulic system, electrical system etc Apply to: A300, A310, A318, A319, A320, A330, A340, B707, B727, B737, B747, B757, B767, B777, C919, DC8, 1L18, 1L62, MD11, MD80 Main Technical Parameter Driving motor model: GC-TM1300-01 / TZ380XSM12 Travel motor controller model: GC-CU1300-01 / HC60LTPIC-F12BG Energy storage device model: L228H02 / 228Ah 618.24V 1P192S H Chassis models: QL1180BEVELQHY / JSTY5180JSPE-0100000 Curb weight (kg): 13790 / 14350 Overall dimensions (L W H) (mm): 1050025003700 / 10355/1005525003700 / 1062025003780 Driving range(km): 390 / 435 Total energy stored(kWh): 246.67 / 281.92 Additional Options: Available upon request


JSTY5100JSPE Aircraft Catering Truck (Electric) mainly composed of QL1101BEVEMMAY type electric chassis, scissor type hydraulic lifting mechanism, lifting front platform, carriage, front and rear sliding doors, retractable stabilizing foot assembly and refrigerating unit produced by Isuzu Qingling Automobile Co., LTD. Apply to: ARJ21, A300, A310, A318, A319, A320, A330, A340, B707, B727, B737, B747, B757, B767, B777, C919, DC8, 1L18, 1L62, MD11, MD80 Main Technical Parameter Driving motor model: TZ370XS-LKM0851 Travel motor controller model: KTZ54X35S-LKC0851 Energy storage device model: L173TB2 Chassis models: QL1101BEVEMMAY Curb weight (kg): 10600 Overall dimensions (L W H) (mm): 710023002420 Driving range(km): 170 Total energy stored(kWh): 106.96 Additional Options: Available upon request
