Home >Products Catalog > G1/2 Inch BSPP 6V DC 3.6V Latching Pulse Bistable Plastic Brass Water Solenoid Valve for Sensor Faucet Urinal Toilet

G1/2 Inch BSPP 6V DC 3.6V Latching Pulse Bistable Plastic Brass Water Solenoid Valve for Sensor Faucet Urinal Toilet

FOB Price:	2.10 - 2.70 USD/Piece
Supply Ability:	50,000 Piece(s) per Week
Shipping:	Sea / Air / Courier
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China

Quick Details

Brand Name: XFDZ
Temperature of Media: Medium Temperature
Material: Plastic
Pressure: Low Pressure
Standard or Nonstandard: Standard
Model Number: XCF-K
Port Size: 1/2''
Media: Water
Power: Solenoid
Structure: Diaphragm
Name: Sensor sanitaryware solenoid valve
Operating Voltage: 3.6V/6V/9V/12V/24Vdc
Medium: Water
Type: Impulse
Pulse Width: 30ms
Port Size: G1/2''
Thread: 20mm
Materials: ss; POM
Life Span: 500000-1000000 cycles
Protect Class: IP67

Specifications

XingFeng Bi-Stable Plastic 1/2'' BSPP Thread Latching Solenoid Valve, Pulse Solenoid Valve

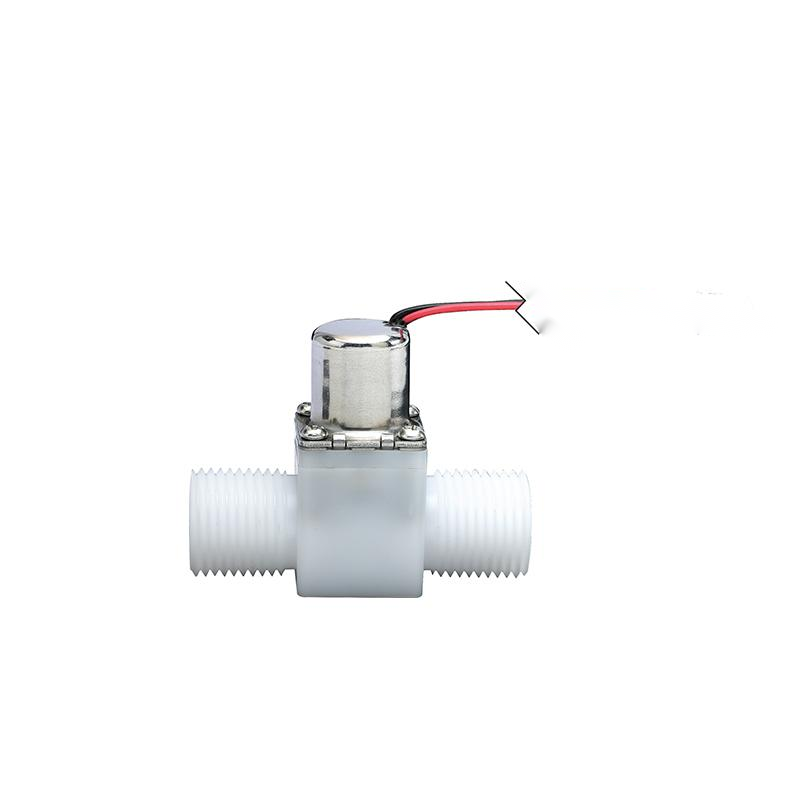

1.Product Exterior View

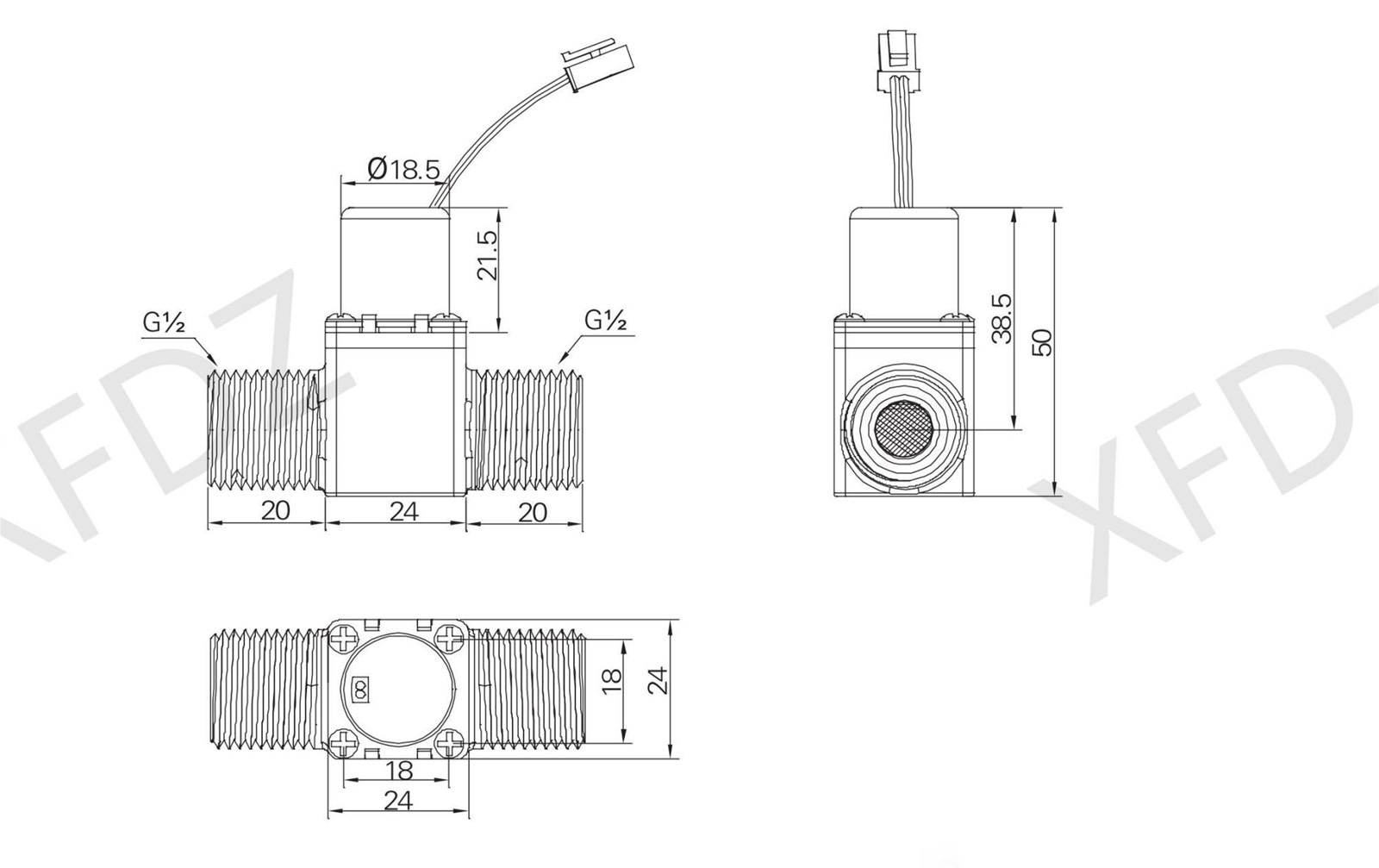

2.Dimensional Drawing

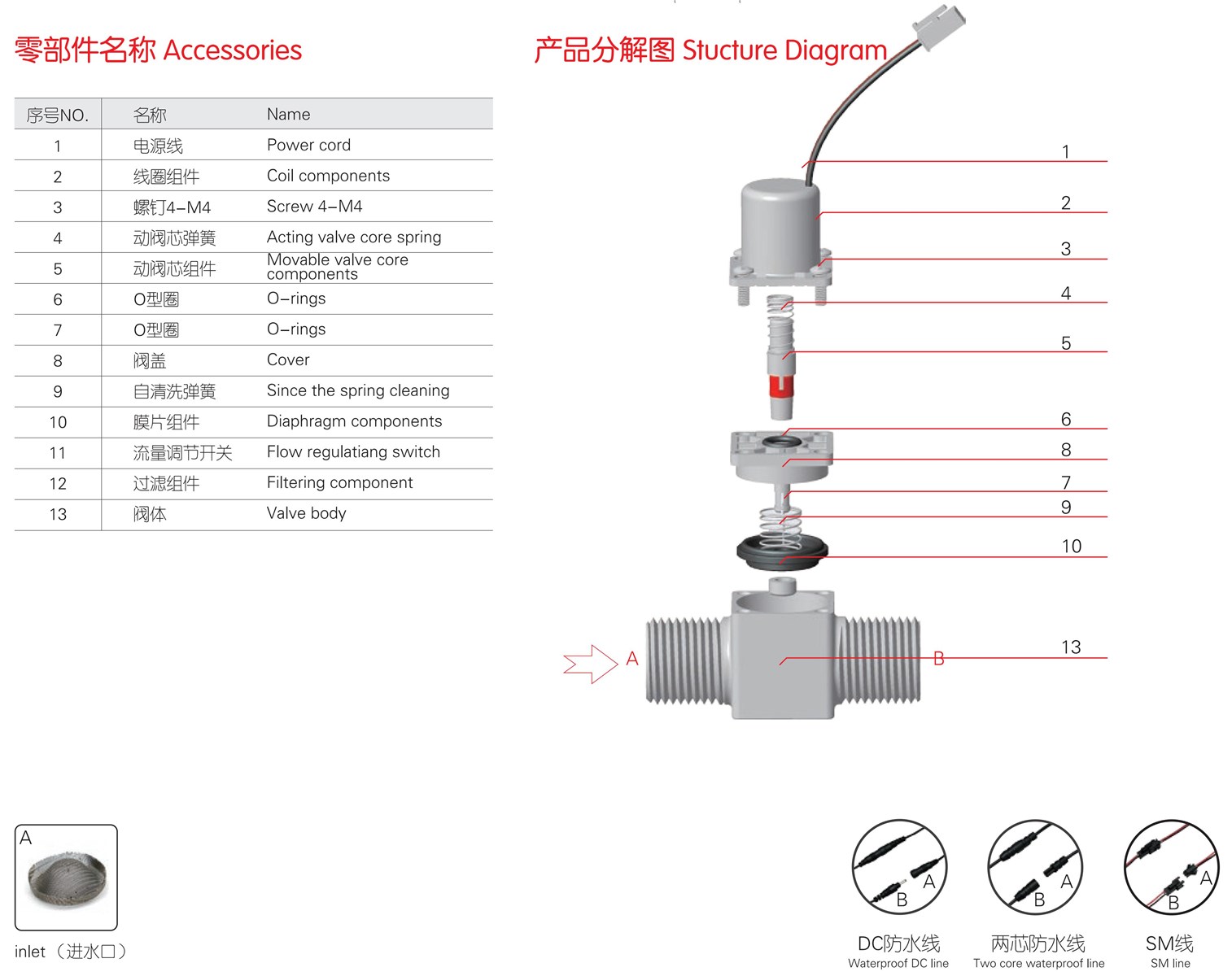

3.Product Exploded View

4.Normal Technical Feature & Parameter

Rate Voltage	DC6V
Coil Resistance	17Ω±0.5Ω(20C)
Min Current	320mA
Pulse Width	30ms~50ms
Operating Pressure	0.02Mpa-0.8Mpa
Medium Temperature	1C~75C
Responding Time	Open≤0.15s Close≤0.5s
Inlet/Outlet diameter	G1/2'' (Male Thread)
Thread Length	20mm*20mm
Working Medium	Water,Air
Life Time	500000~1000000 cycles
Materials	Stainless Steel, POM Plastic,EPDM/NBR/SILICONE Diaphragm

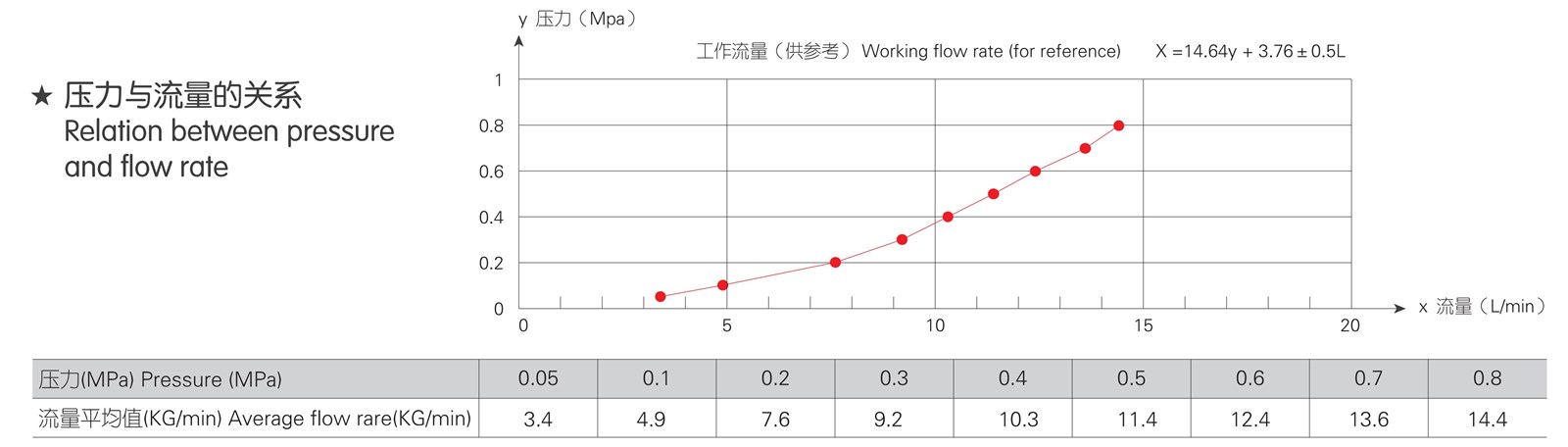

5.Relation between Pressure & Flow Rate

6.Applications
G12 inch BSPP 6V DC 36V latching pulse bistable plastic brass water solenoid valve for sensor faucet urinal toilet

7.Advangtages

1) Raw Material conforms to China industry standard, bought from famous factory.
2) Insulation grade: H class, good resistance to high temperature;
3) Machined by CNC to make sure the tolerance as the drawing
4) 100% leakage testing under low pressure and high pressure.
5) All kinds of valve and seals material to meet custom requirement.
6) 3-5 year quality assurance after shipment.
7) after sales technique support

8.Certificates

9.Packing&Shipping Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XingFeng brand packaging are also available

Shipping:
Export port:Ningbo or Shanghai, China
Shipping way:by sea, by air, by courier
Delivery time:3 days to 30 days depends on actual orders.

10.Company Profile
Yue Xingfeng Electronics Factory is a 2002 years intelligent sanitary ware manufacturingelectromagnetic valve of mediumsized enterprises,Professiona sanitary ware forhousehold electrical appliances, induction sanitary ware, intelligence, form a completeset of automatic control industry.Factory is located in yueqing city east industrial zone.with perfect r&d, manufacturing,marketing and logistics management system.Xing feng and insist on techonlogical innovation has been followed, relying on the scaleand professional brand service, constantly bigger and stronger,Products are mainlydicided into:induction series, intelligent toilet series intelligent wei yu of form a completeset of solenoid valve.the material is divided into brass, plastic series.Xing feng electronic through continuous efforts, innovation, and strive to industry leadingenterprises, let each use of establishing product satisfaction, is our never-ending pursuitof goals.
G12 inch BSPP 6V DC 36V latching pulse bistable plastic brass water solenoid valve for sensor faucet urinal toilet

11.FAQ
1.Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XingFeng brand packaging are also available

2.Shipping
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

3.Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

4.Samples Policy
for regular fittings below 2 pcs, free samples against your courier account or you pick up from us.
for custom items, we will discuss by email or by phone chat.

5.Return Policy
We assure you 3 year policy after shipment. If there is any problem during this period, please contact us for support.
