CameraLink Optical Extender, Industrial Camera Extension

Specifications

the HFL821 Optical Extender is a full-featured CameraLink optical extender that supports Base, Medium, and Full operating modes. It complies with the CameraLink 2.0 standard specifications and can be configured with high-performance digital cameras and image sensors to extend the transmission distance of the CameraLink 2.0 interface. It is suitable for various applications, including industrial monitoring, traffic control, and military high-definition image transmission.

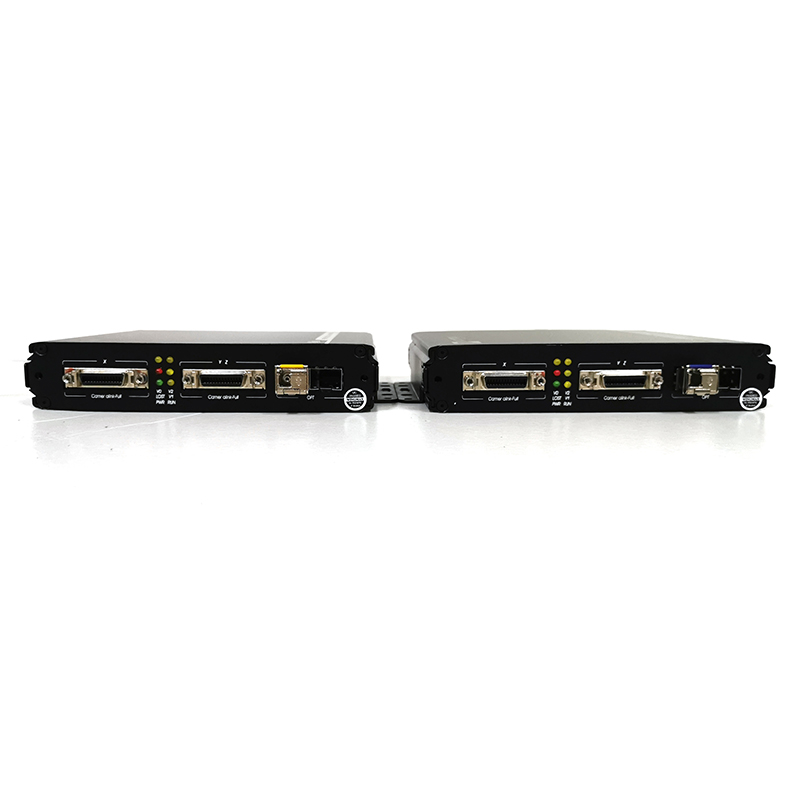

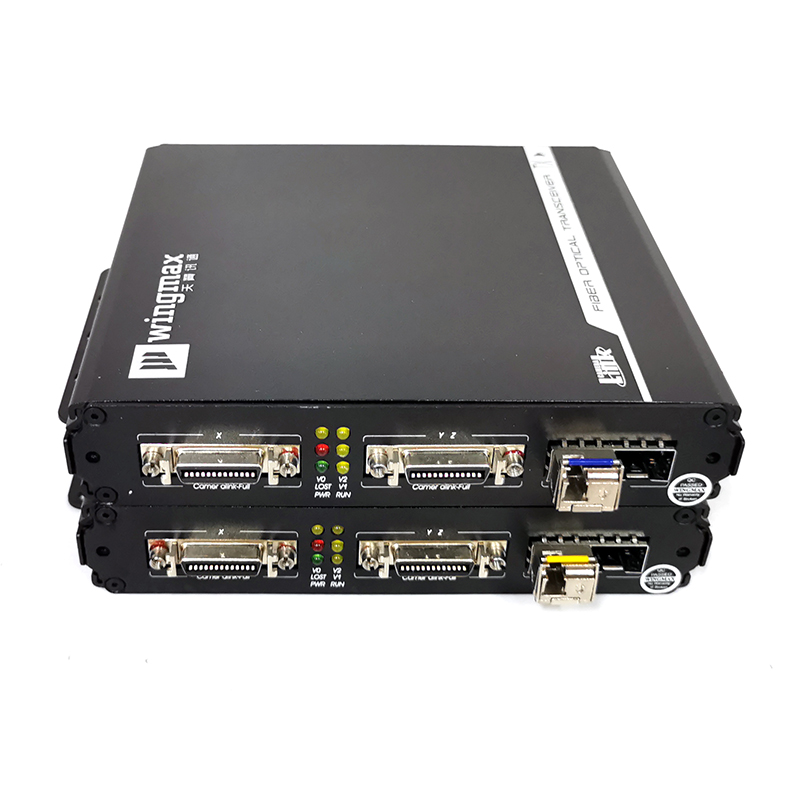

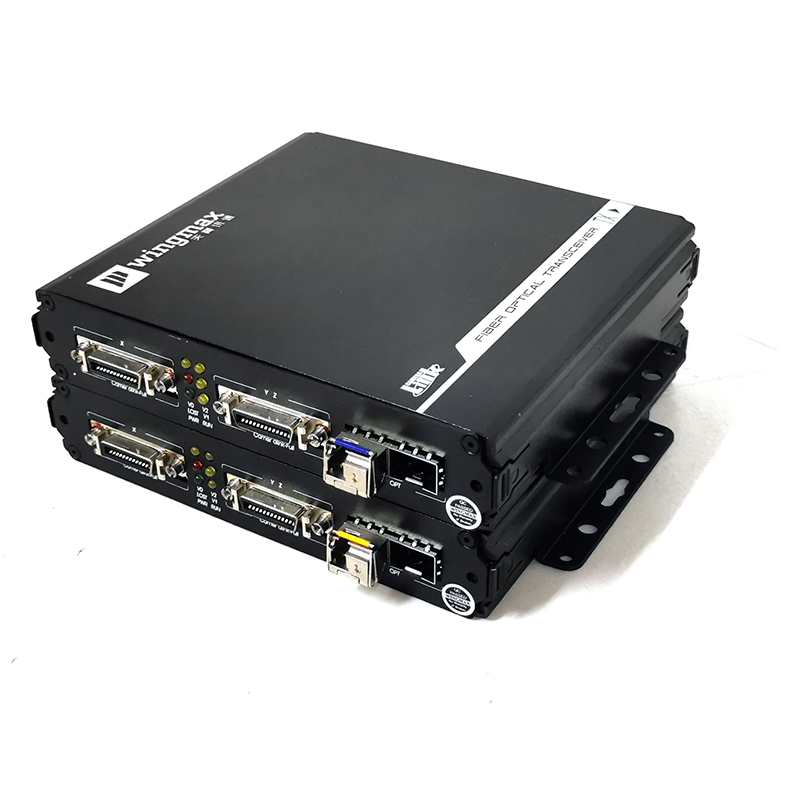

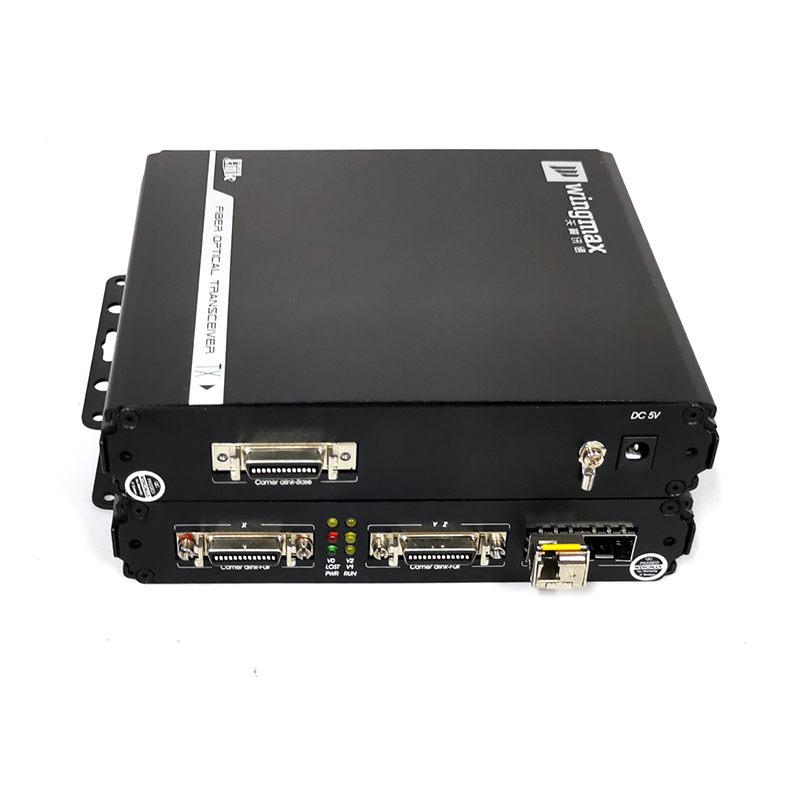

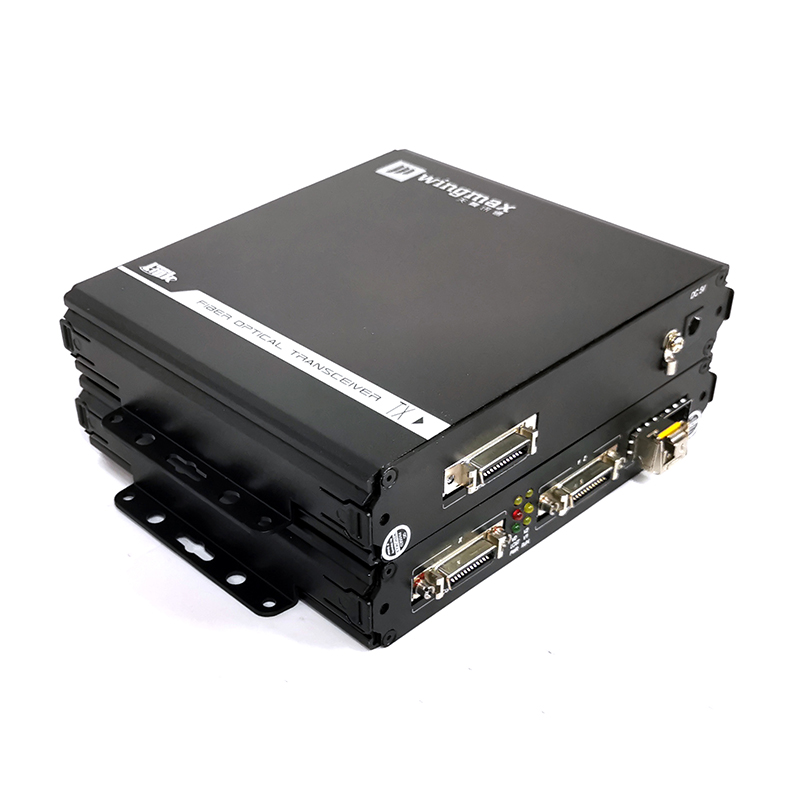

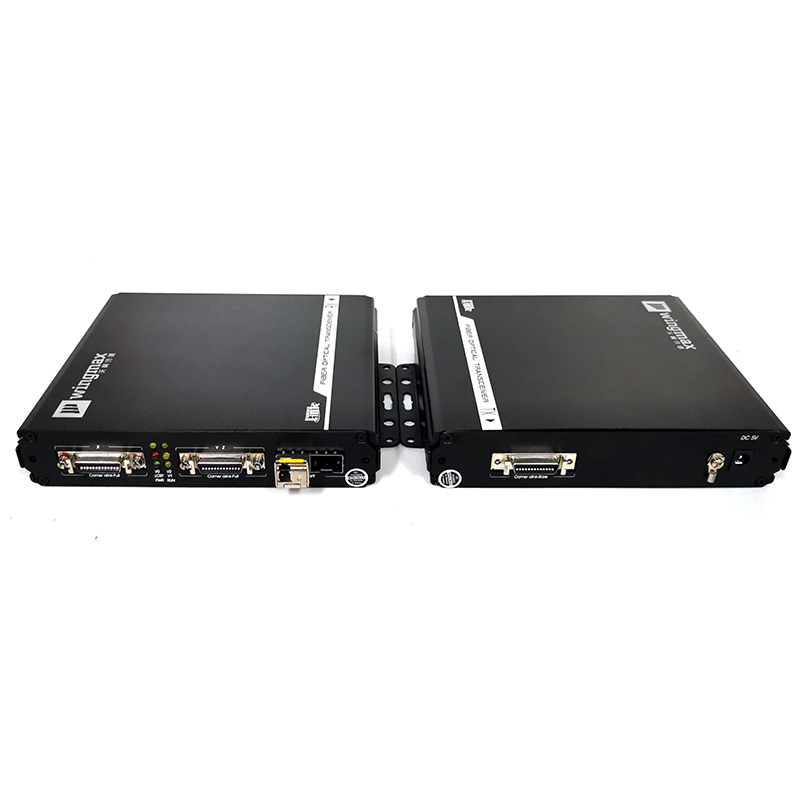

the CameraLink optical extender consists of a transmitting optical extender and a receiving optical extender, requiring the pairing of two units for operation. this product supports Base and Full modes of CameraLink video, enabling real-time, uncompressed fiber optic long-distance transmission of video signals. It features an ultra-compact size, lightweight design, low power consumption, easy installation, simple operation, convenient maintenance, and high reliability.

Here is the translation of the provided information into English:

- Bandwidth: 10G, supports single-fiber bidirectional optical fiber transmission, with a maximum transmission distance of 80KM.

- Protocol Compatibility: Supports both Cameralink 2.0 protocol and is backward compatible with Cameralink 1.0 protocol.

- Video Support: Supports 1 channel of Base mode + 1 channel of Full mode CameraLink video.

- Pixel Clock Range: Supports pixel clocks ranging from 20MHz to 85MHz.

- Zero-Delay, Uncompressed Transmission: Supports pixel-to-pixel transmission with zero delay and uncompressed data.

- Plug-and-Play: Supports plug-and-play functionality, with no need for additional configuration.

- Transmission Support: Supports SertC, strTFG, CC1-CC4 transmissions.
