Custom Design Easy Assemble Steel Structure Workshops & Warehouse
| FOB Price: | 35.00 - 95.00 USD/Square Meter |
|---|---|
| Supply Ability: | 5,000 Ton(s) per Month |
| Shipping: | shippment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Seaworthy Packing |
Quick Details
- Application: Steel Workshop
- Type: Light
- Brand Name: KXD
- Grade: Q235/Q355 H-Section Steel
- Standard: AISI,ASTM,BS,DIN,GB,JIS
- Model Number: KXD-ST1201
- Product Name: Steel Structure
- Brand Name: KXD Steel Structure
- Main Beams&Columns: Q355 or Q235 H-Section Steel(Painted or Galvanized
- Purlin: C.Z Shape Steel Channel
- Size: Customers' Requirements
- Wall: Sandwich Panel or Corrugated Steel Plate
- Door: Client's Request
- Color: Client's Request
Specifications

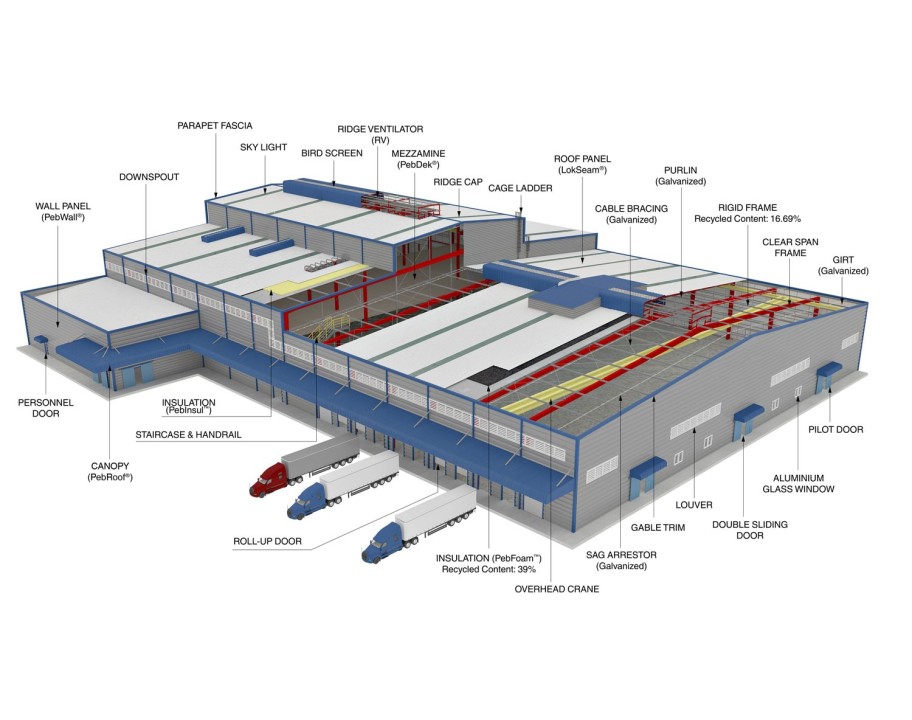

Light steel structure workshopIs a new type of building structure system, which is formed by the main steel framework linking up H section, Z section and U section steel components, roof and walls using a variety of panels and other components such as windows, doors, cranes, etc. Our excellent design team will design the steel structure building for you. We can quote If you give the following information.
the sizes can be customized according to requirement.
Advantages of Workshop
1, Attractive design ----beautiful and elegant looks, use the color steel sandwich panel, the material is
Polystyrene foam.
2, Easy to assemble and dismantle -----can be rebuilt for dozens of time with plugs and screw.
3, Firm structure----steel frame structure and sandwich panels
4, Durable----the steel frame parts are all processed with anti-corrosion coating and can be used for as
Long as 30 years.
5, Reduce cost by integrating &manufacturing &service processes.
6, with reliable quality and efficient service Offer one-stop service from developing, design, manufacturing
to installation
7, Sizes and design are according to requirements
Main Materials for steel structure buildings MAIN PART
ITEM
SPECIFICATION Main Steel Frame
Steel Beam
Q235/Q345B H shape Steel, Alkyd/epoxy Zinc-rich Painting Primary Painting in twice Main Column
Q235/Q345B H shape Steel, Alkyd/epoxy Zinc-rich Painting Primary Painting in twice Wind Column
Q235/Q345B H shape Steel, Alkyd/epoxy Zinc-rich Painting Primary Painting in twice Supporting System
Brace
Q235/Q345B, angle steel or Circular steel tube, Process and Paited Roof Purlin
Q235/Q345B, C or Z shape Steel, alkyd Painting/hot dip Galvanized Wall Purlin
Q235/Q345B, C or Z shape Steel, alkyd Painting/hot dip Galvanized Tie Bar
Q235/Q345B, Φ114x3 round steel tube, Process and Painted Sag Rod
Q235/Q345B, Φ12 round Steel, Process and Painted Roof Cladding
Color Corrugate steel Sheet, EPS Sandwich Panel, rock wool, PU, glass wool Wall Claddding
Color Corrugate steel Sheet, EPS Sandwich Panel, rock wool, PU, glass wool Accessories
Bolts
Ordinary, high Strength, stud Bolts, Anchor bolts Butter
0.5mm Galvanized/prepainted steel Plate, Stainless steel Windows
Aluminum Alloy-glass, Aluminum Alloy-shutter, PVC Doors
Sliding Sandwich Panel/ steel door, Rolling Shutter door Floor Deck
#600, #688, #720, T:0.7-1.2mm thick color Corrugated steel plate Down pipes
VC pipe or steel sheet Material or Aluminum pipe Roof Ridge
Color steel sheet Edge Cover
0.5mm color steel sheet Skylighting
FRP light Transfer belt Ventilator
Exhaust fan, Ventilation Louvers Crane
Crane in 5 tons to 20 tons Design Parmameters
Building Size
Length(m)*Width(m)*Eave Height(m) Local Weather
Wind load, Snow load, Earthquake Magnitude Roof and wall panel
with or without Insulation for roof and wall Bearing
Make the house Resisting heavy wind by 120km/h and 8 grade Earthquake Protection
Color steel Sandwich panel has a good fire proof and heat Insulation Performance Packing
Main steel frame Loaded in 40'OT, roof and wall Panels Loaded in 40'HQ

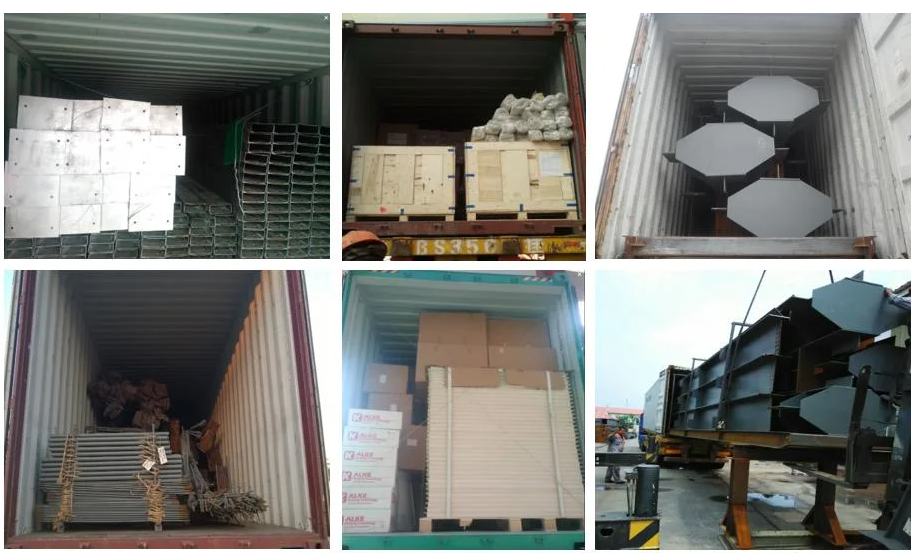

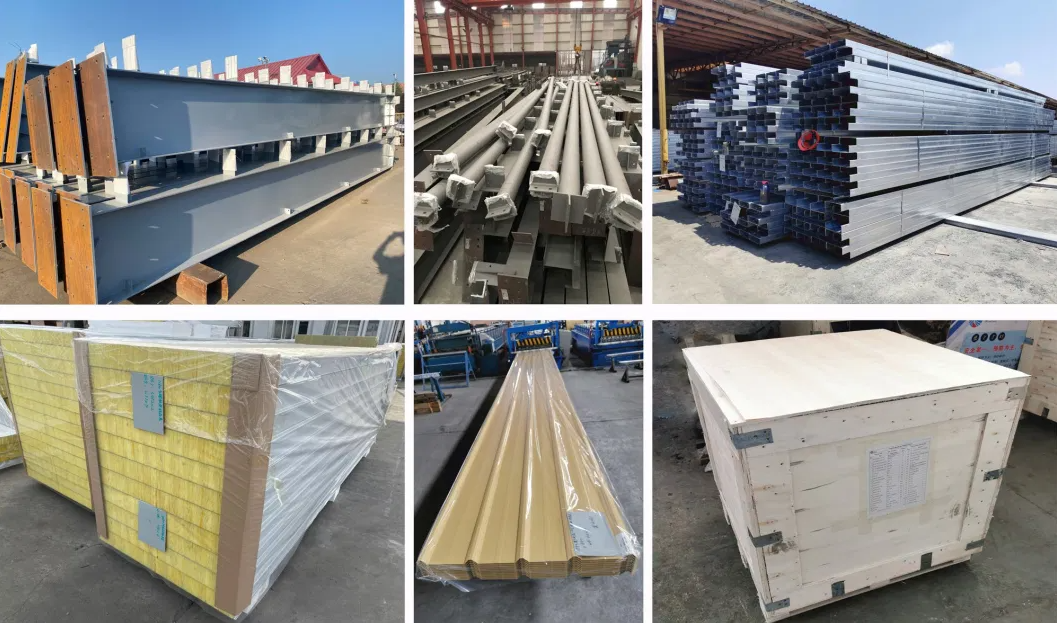

PACKAGING& LOADING
1. All standard components are packed in plywood box.
2. All steel structure weld components are packed with blanket or bubble-wrap to avoid scratch during loading and unloading.
3. All steel structure are packed in steel pallet together into container, much save loading and unloading time, labor cost.
4. All sandwich panel are packed in steel pallet.
5. Material components will be made container load plan, also make regional unloading plan to avoid retransport on site.
1
Location (where will be built? ) _____country, area 2
Size: Length*width*height _____mm*_____mm*_____mm 3
Live load on roof(KN/M2), live load on second floor(KN/M2) if have 4
Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s 5
Snow load (max. Snow height) _____kn/m2, _____mm 6
Anti-earthquake _____level 7
Brickwall needed or not If yes, 1.2m high or 1.5m high 8
Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels, Corrugated steel sheet with fiber glass wool will be suggested; If not, the Corrugated steel sheet will be ok. The cost of the latter will be much lower than that of the former. 9
Door quantity & size _____units, _____(width)mm*_____(height)mm 10
Window quanity & size _____units, _____(width)mm*_____(height)mm 11
Crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m 12
Skylight belt, ventilator and any other accessories if needed.
Q:Are you manufacturer or trading company?

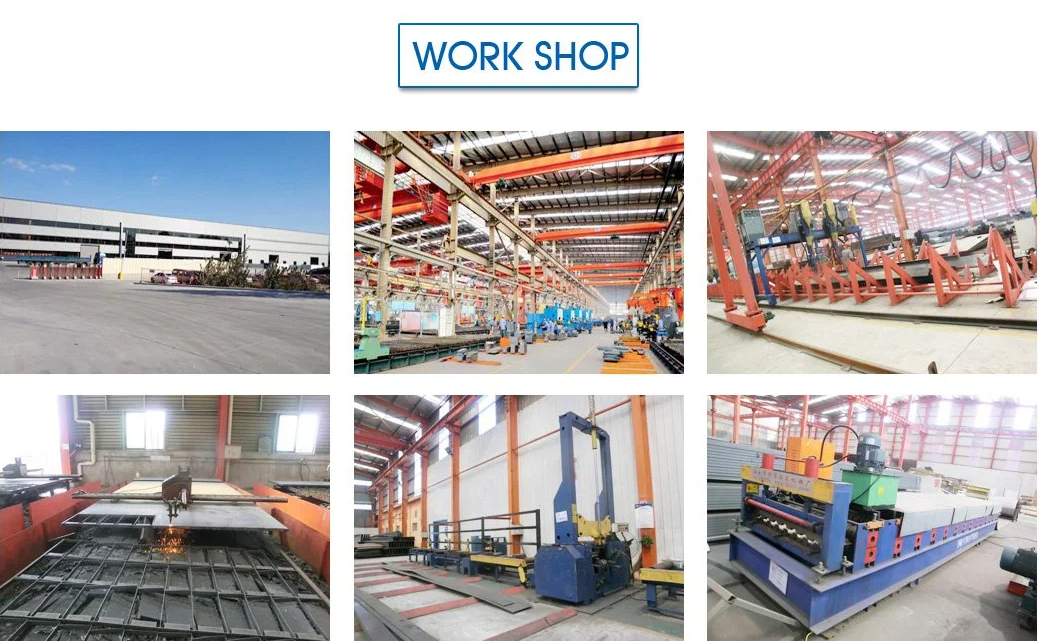

A:We are manufacture factory, located in Qingdao city, near to Qingdao port. and we have total 7 workshops from steel structure to wall and roof sheet.
Q: how about your production capacity?
A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Container house: 800 units monthly. Light steel villa: 10000 sqm monthly.
Q: how about your quality control?
A: We have got certificate ISO & CE. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. Are available, it is according to client requirement.
Q: how about your delivery time?
A: Generally within 20~30 days, it is according to order quantity, partial shipment is allowed for big order.
Q: What about the installation?

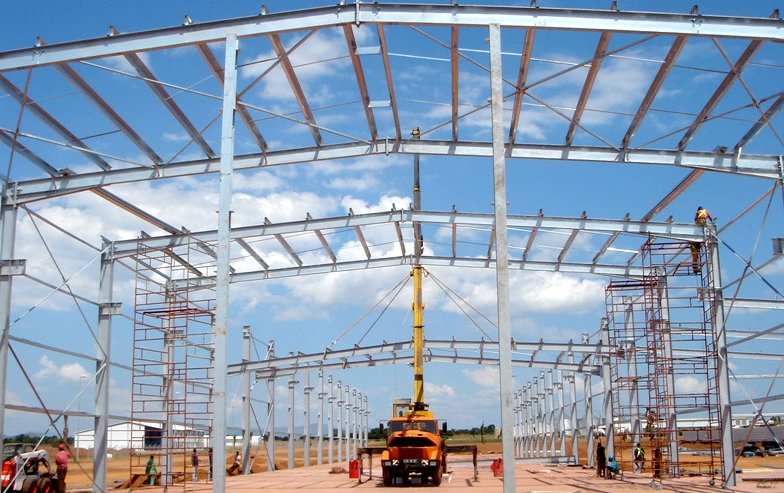

A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.
Q: how to ensure the product you supply is what we want exactly?
A: Sales and engineer team will provide you the suitable solution according to your requirements before placing order. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.
