Baoji Toptech Industrial Co., Ltd.
China Manufacturer with main products: Metal Detector, Needle Detector, Detector Metal, Check Weigher, Needle Detection Machine, X Ray Detector, Titanium, Titanium Tube |
Home
>Products Catalog > Metal detector for foods industrial use > Industrial X Ray Inspection Machine 4080 for Food, Small Product Inspection

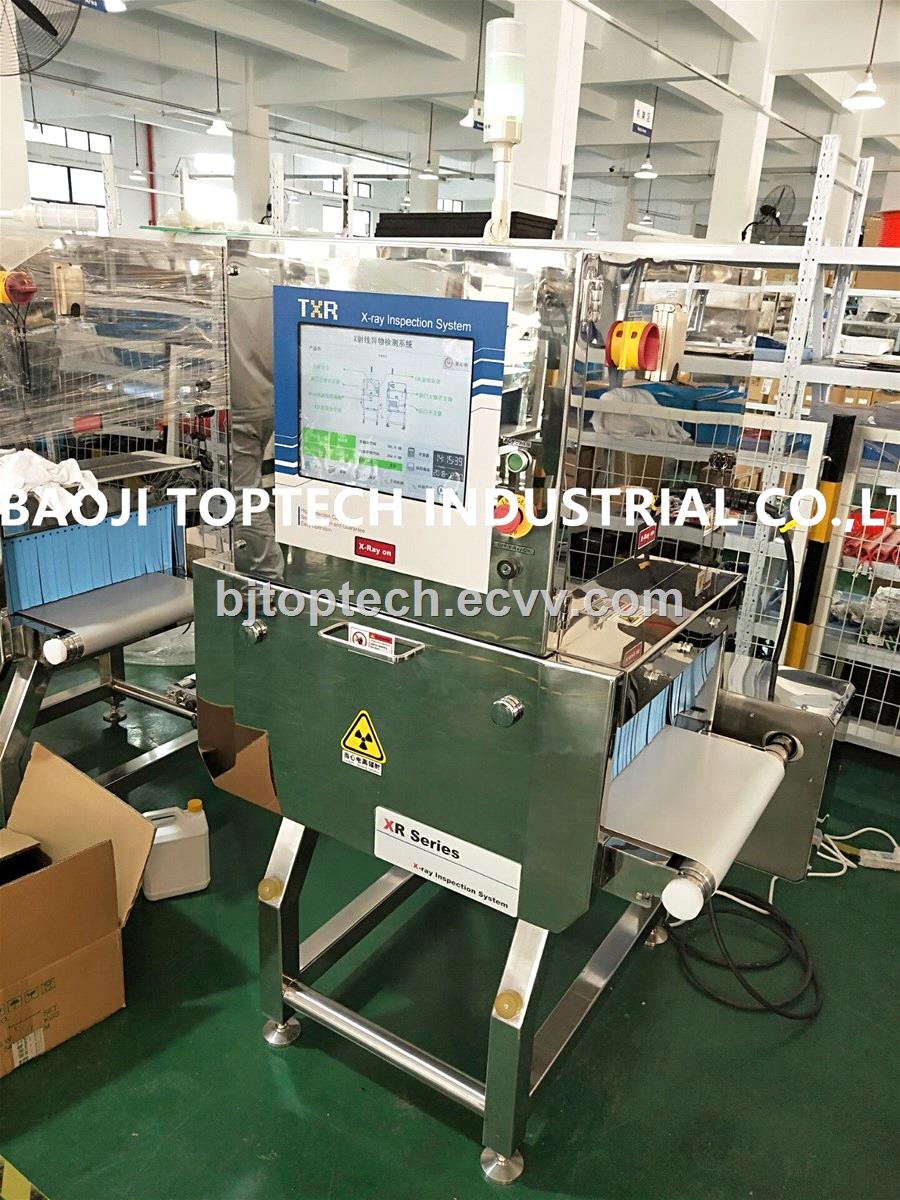

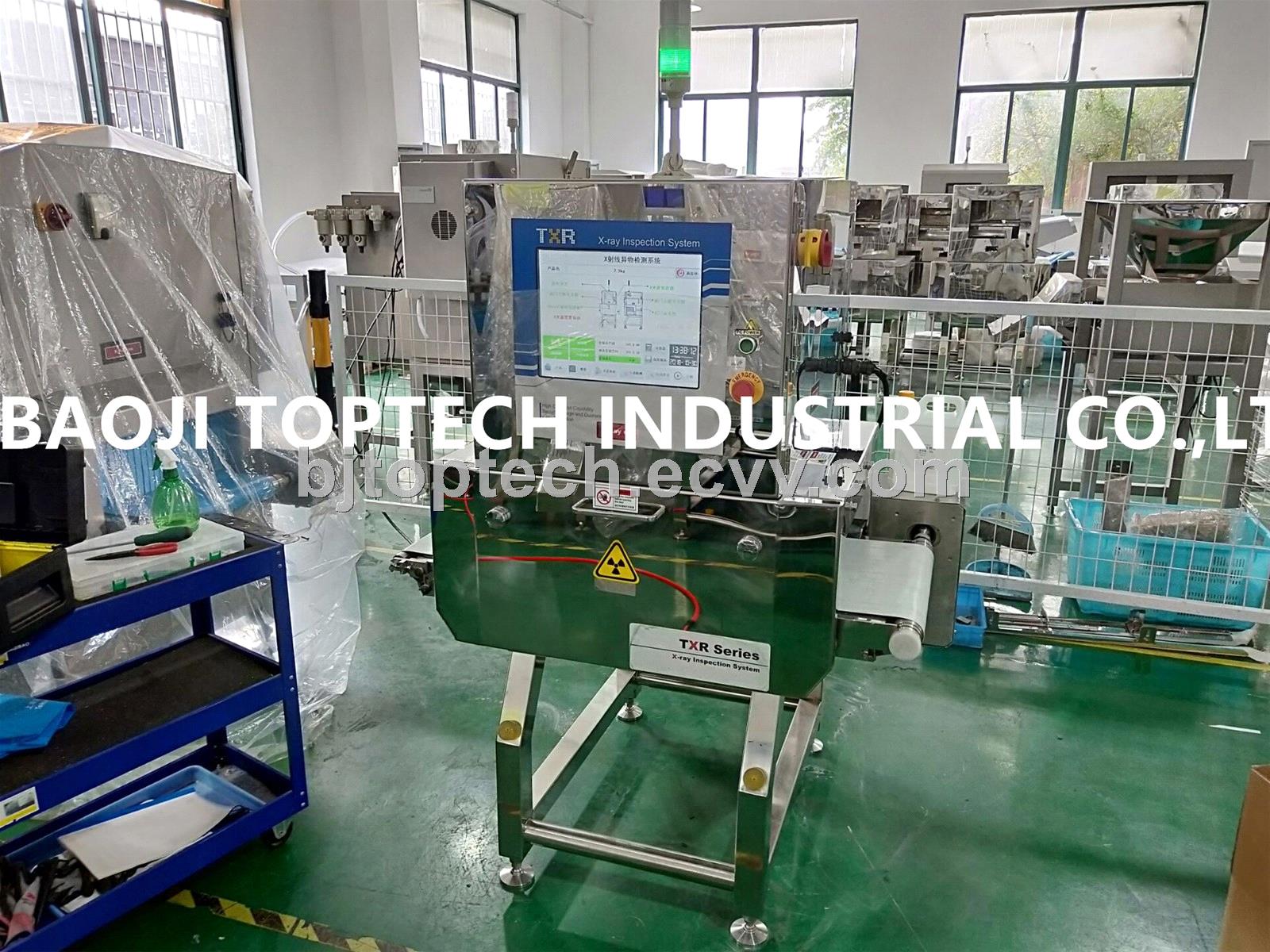

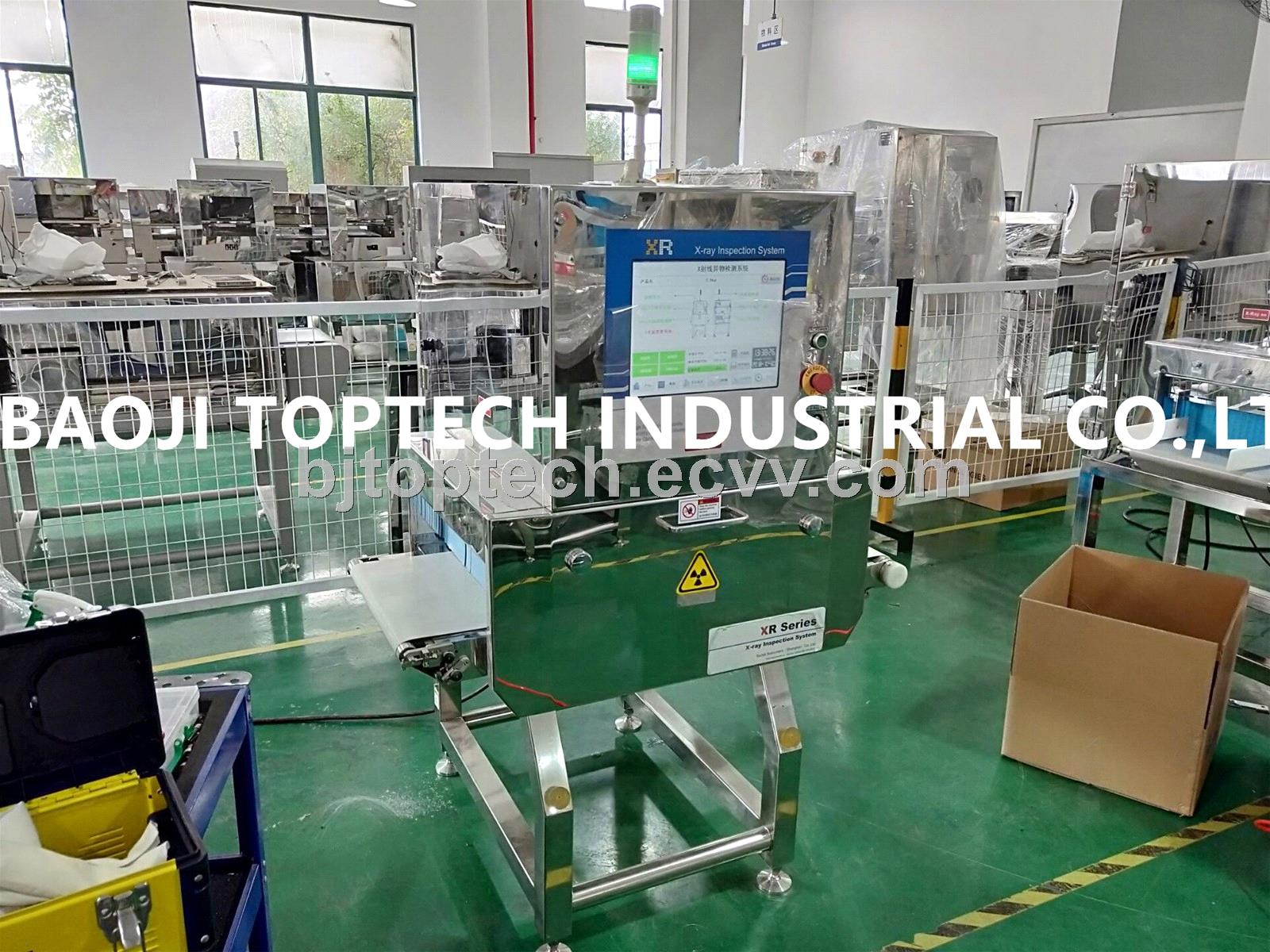

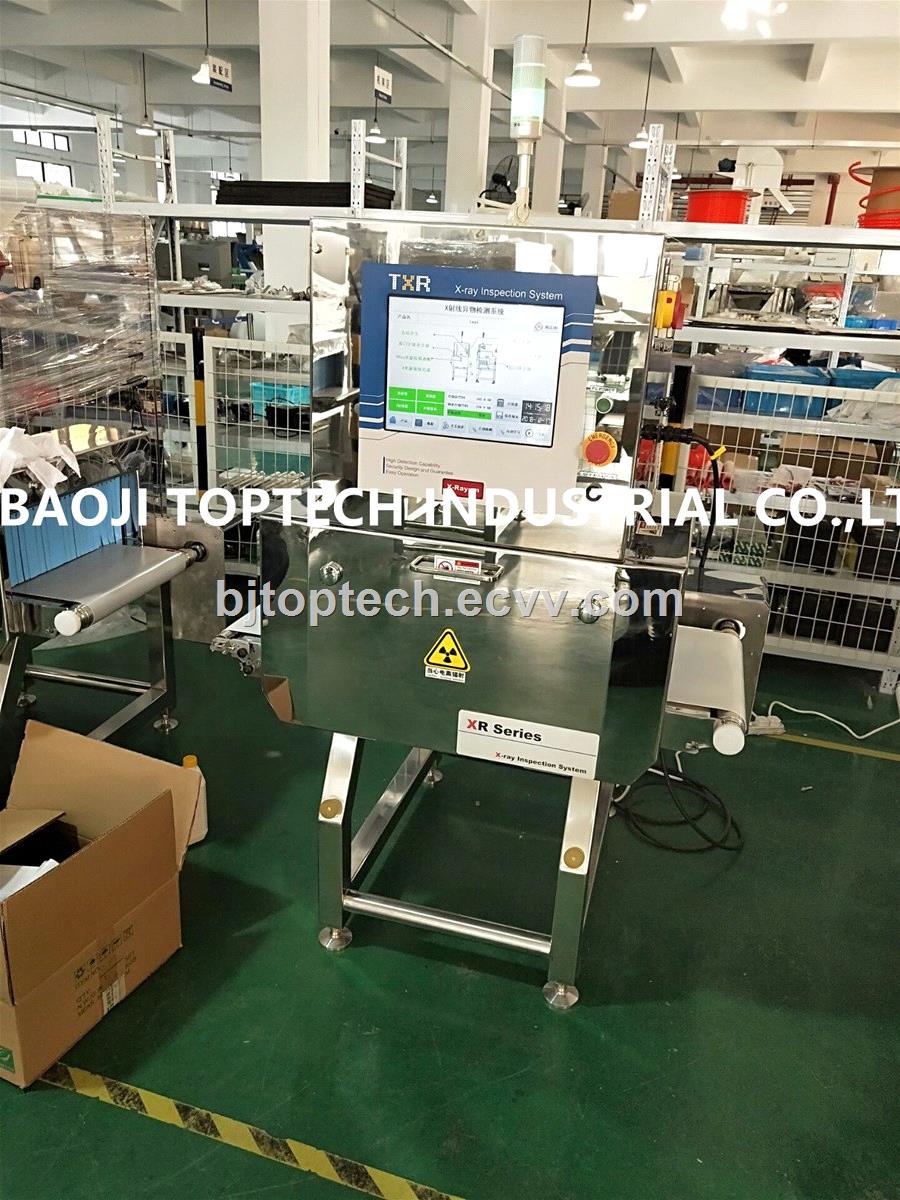

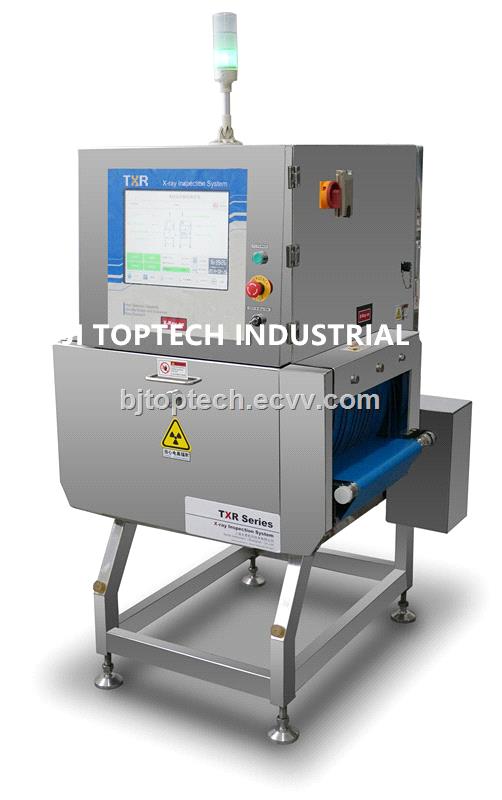

Industrial X Ray Inspection Machine 4080 for Food, Small Product Inspection
| FOB Price: | 25000.00 - 40000.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece(s) per Year |
| Shipping: | FOB Shanghai or CFR term |
| Export Markets: | North America, South America, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | export wood case |
Quick Details
- Brand Name: TOPTECH
- Warranty: 1 year
- Certification: CE
- Power: 220V
- Power supply: 220V
- Model Number: 4080
- model: auto conveyor model x ray food detector
- usage: for different kinds of foods product inspection to check out such metal,stone,ceramic,glass
Specifications
Ray Inspection System
the Independent -Developed and High Performance X-ray Inspection System
Superior Performance
1. the equipment deliver effective product quality inspection for food, pharmaceutical, chemical and other industries, in addition to detecting contaminants such as metal, glass, bone, shell, hard rubber, hard plastic, it also inspects for products defects such as cracks, bubble, content defects etc. to achieve the complete finished product detection.
2. Excellent automatic detection capability, the accuracy of the metal contaminants such as the SUS ball can reach 0.5 mm.
3. It can be used to detect the contaminants in the metal packaging products and it will not be affected by temperature and humidity changes, to achieve the minimum error rate of the rejecting.
Security Design
Professional security design to achieve the innocuous high-accuracy inspection
1. X-ray Light
2. Lead-free protective curtain, which can be contacted with food directly
3. the monitoring of door's opening and closing
4. Emergency Stop Button
Security Guarantee
(1) Safety interlock stops X-ray output when the tunnel's integrity is compromised, such as a portion of operator's body is inserted
(2) X-ray emissions are under 1micro-sievert per hour to ensure the safety
Easy Operation
1. Simple and convenient touch-screen control to achieve efficient operations
2. Perfect data management system to achieve the easy saving of the product and image record.
| Model | XR-4080/XR-6080 |
| X-ray tube voltage | MAX. 80kV, 100W |
| Belt Width | 400 |
| Conveyor Speed | 10~60m/s |
| Screen | Full-color TFT 15" Touch Screen |
| O/S | Window XP Professional |
| Connectivity | LAN port, USB port |
| Product Management | Complete product log |
| Parameter Adjustment | Auto learning/Manual learning |
| Image Management | Auto image save/print/analyse |
| Power Supply | 220V, AC |
| Body Material | SUS304 |
| Purification | Easy to wash |
| Cooling method | Compulsory air cooling/Air conditioned cooling |
| Operation temperature | 0-35& deg; C (none conditioning) |
| Operation humidity | 30-85% |
| X-ray emissions | & lt; 1micro-sievert per hour |
| X-ray protection | Lead/Lead-free protective curtain |
X-ray, X ray detector, food x ray inspection,X ray metal detector, X ray food scanner, X ray foods detector, X ray foods inspection machine,X-detection machine for foods, x ray inspection for foods,metal detector, metal detection machine,detector metal
