Beijing Victory Door Co., Ltd.
China Manufacturer with main products: High Speed Cold Storage Door, High Speed Clean Room Door, High Speed Large Size Door, Industrial Transparent Sectional Door, High Speed PVC... |

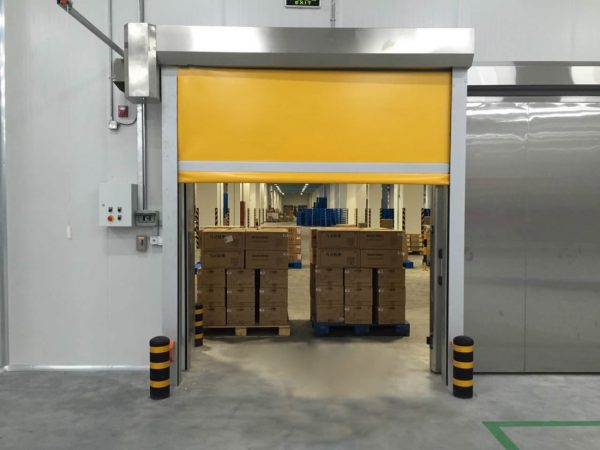

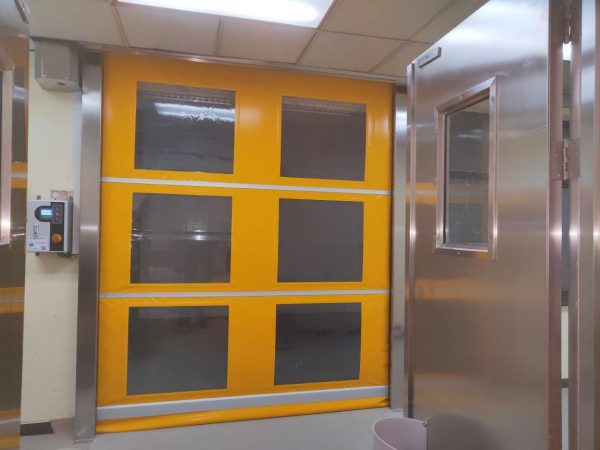

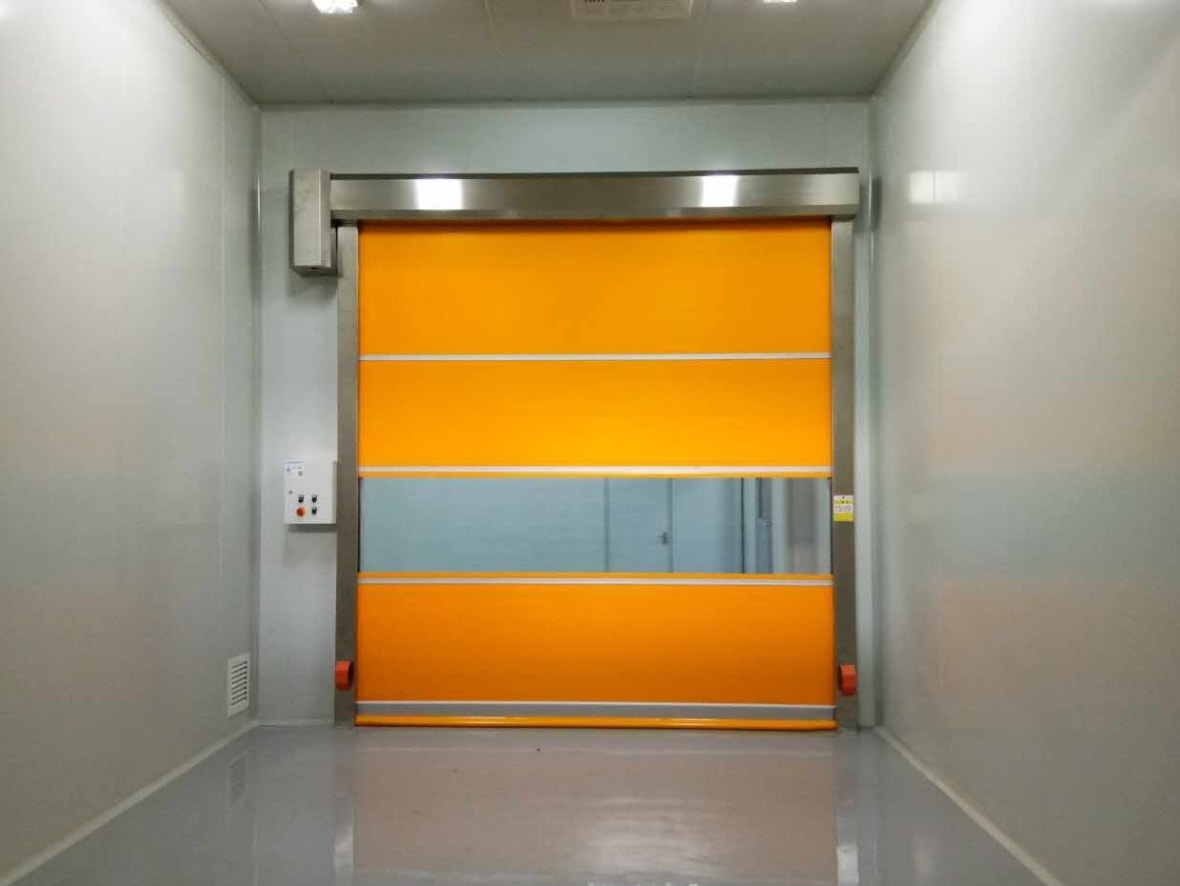

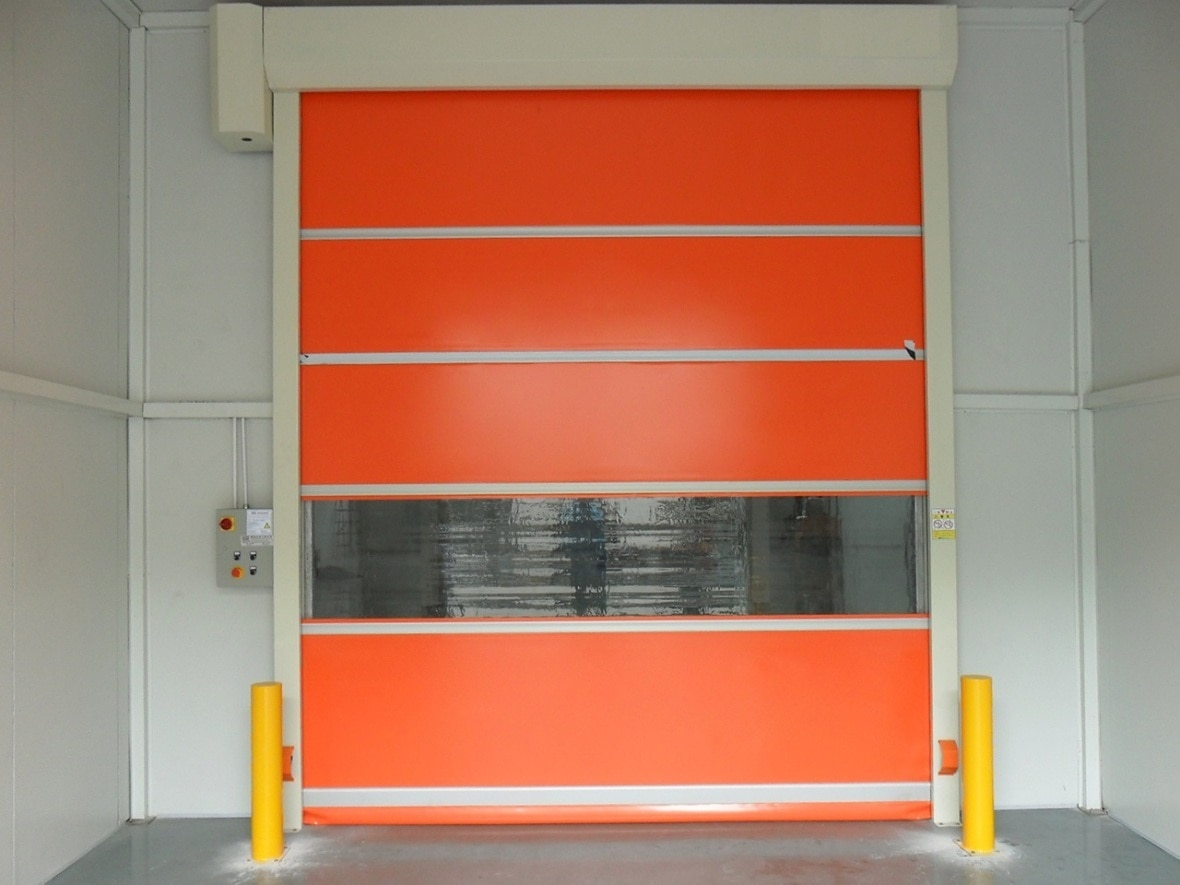

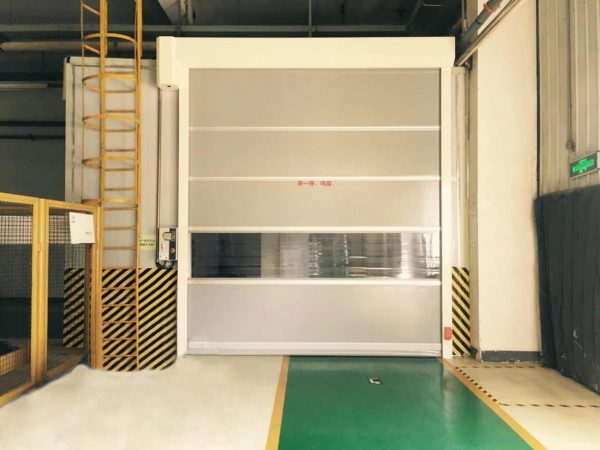

Industrial PVC High Speed Rolling Shutter Doors
| FOB Price: | 5000.00 - 50000.00 USD/Set |
|---|---|
| Shipping: | Port:Tianjin, China |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Beijing in China |
| Packaging Details: | Wooden Package |
Quick Details
- Door Material: Steel
- Surface Finishing: Finished
- Position: Industrial
- Open Style: Rolling
- Brand Name: Broadup
- Type: Security Doors
- Model Number: V108
Specifications
Applicable place:
Electronic manufacturing, agriculture and animal husbandry, food industry, tobacco, medicine/medical appliance, printing/packaging, textile industry, logistics
- High opening and closing speed to allow smooth traffic flows of personnel and material/ equipment
- Short open time and tight seal reduce air flow to save energy. Protect against bad weather and dust-free
- Curtain can be replaced separately with low maintenance costs
- Equipped with safety devices to protect personnel and material/equipment
| Application | Interior doors |
| Maximum size (W*H) | 4,000 mm x 4,000 mm |
| Opening speed | 0.8 m/s- 2.5 m/s |
| Closing speed | 0.5 m/s-0.8 m/s |
| Opening and closing frequency | >60 cycles/hour |
| Frame structure | Galvanized zinc-coated steel (option: stainless steel) |
| Reel material | Galvanized zinc-coated steel (option: stainless steel) |
| Door curtain material | PVDF reinforced industrial base cloth, PVC window |
| Motor | Power: 0.75 KW, IP rating: IP54 |
| Control system | Control box - switch button, emergency stop, power switch, operation information feedback, IP rating: IP54 |
| Safety device | Photoelectric guard on door rail, wireless safety soft bottom guard system (option: safety grating) |
| Voltage Frequency | Single phase/220V- 6.5A frequency:50-60 Hz |
| Curtain colors | RAL 5002 RAL 1003 RAL 7046 RAL 2004 |
| Water permeability | P=0 according to GB/T 7106-2019 |
| Wind load | Normal (± 1.5kPa, pressure stability time>10 seconds) |
