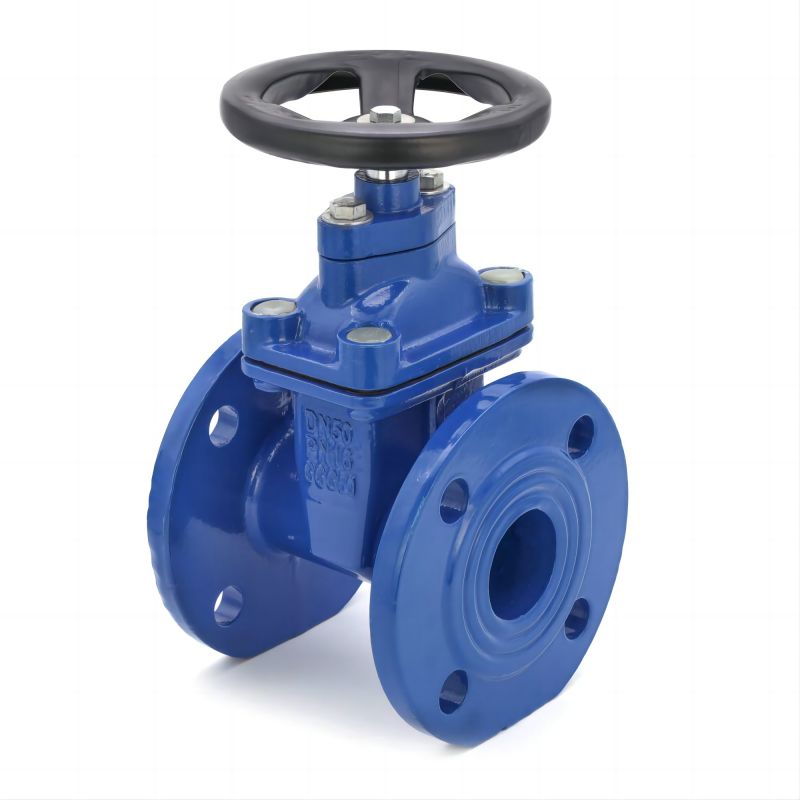

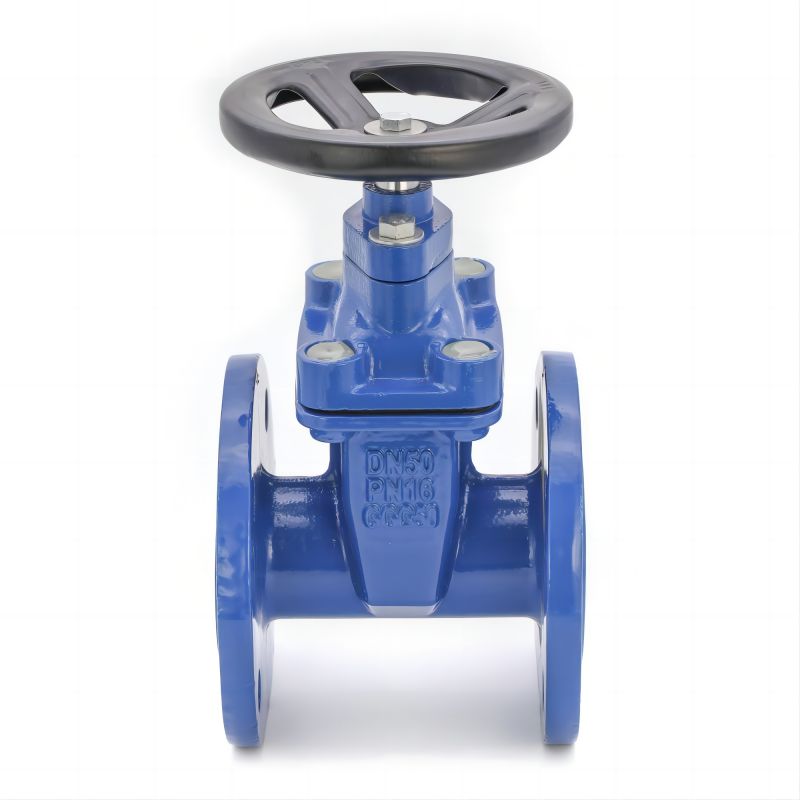

DIN3352 F4 Resilient Seat Flanged Gate Valve

FOB Price:	5.00 - 1000.00 USD/Set

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Western Europe
Place of Origin:	Shandong in China

Quick Details

Material: Cast Iron or Ductile Iron
Brand Name: Qingdao Fluido
valve disc: DI+NBR/EPDM/PTFE
standard: DIN3352
Rexroth: PN10/16
Model Number: QF001

Specifications

DIN3352 F4 Resilient Seat Flanged Gate Valve Product Details

DIN 3352 F4 Resilient Seated Flanged Gate Valve Product Description

DIN 3352 F4 Resilient Seated Flanged Gate Valve is a type of valve widely used in various industries such as water supply, sewage treatment and chemical plants. this valve controls the flow of fluid by opening or closing the gate located inside the valve body. It is favored by many industries because of its simple design and ease of operation and maintenance.

QINGDAO FLUIDO is a well-established supplier of DIN 3352 F4 resilient seated flanged gate valves and supply DIN3352 F4 valves in different sizes and specifications. the valves are manufactured with high quality raw materials and certified by ISO9001 and WRAS, if you are looking for reliable DIN 3352 F4 Resilient Seated Flanged Gate Valve suppliers, please contact Qingdao Fluido. We will offer you high quality valves products with competitive price.

Specification

DN	INCH	L	ΦA	ΦB	ΦC
50	2''	150	165	125	102
65	2 1/2''	170	185	145	122
80	3''	180	200	160	138
100	4''	190	220	180	158
125	5''	200	250	210	188
150	6''	210	285	240	212
200	8''	230	340	295	268
250	10''	250	405	355	320
300	12''	270	460	410	378
350	14''	290	520	470	438
400	16''	310	580	525	490
450	18''	330	640	585	550
500	20''	350	715	650	610
600	24''	390	840	770	725
700	28''	430	910	840	795
800	32''	470	1025	950	900
900	36''	510	1125	1050	1000
1000	40''	550	1255	1170	1115
1200	48''	630	1485	1390	1330

DIN3352 F4 Resilient Seat Flanged Gate Valve
