Paint Filling Machine for 18-25L Plastic Barrel

FOB Price:	6800.00 - 7800.00 USD/Set
Supply Ability:	10 Set(s) per Month
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Type: Filling Machine
Brand Name: RUILE
Packaging Material: Metal,Plastic
Packaging Type: Barrel,Cans
Application: Chemical,Food,Textiles
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE
Weight: 400kg
Dimension(L*W*H): 4000*850*1500mm
Model Number: RL-30-GY
Power: 0.4kw
Voltage: 220V,50Hz
Driven Type: Electric
Automatic Grade: Semi-Automatic

Specifications

Product Description

Specially designed for the need of frequent replacement of packing specifications, Using the latest European weighing technology, Taida programmable microcomputer controller, automatic feeding speed adjustment, automatic feeding accuracy correction, emergency stop/power off/remove triple protection. Set various packing specifications, store over 30 kinds of packaging specification data, super differential automatic alarm, automatic gland system, and equipped with explosion proof equipment. the equipment is applied to the products of coating, ink, resin, emulsion, universal glue and other viscosity less than 50000 CPS.

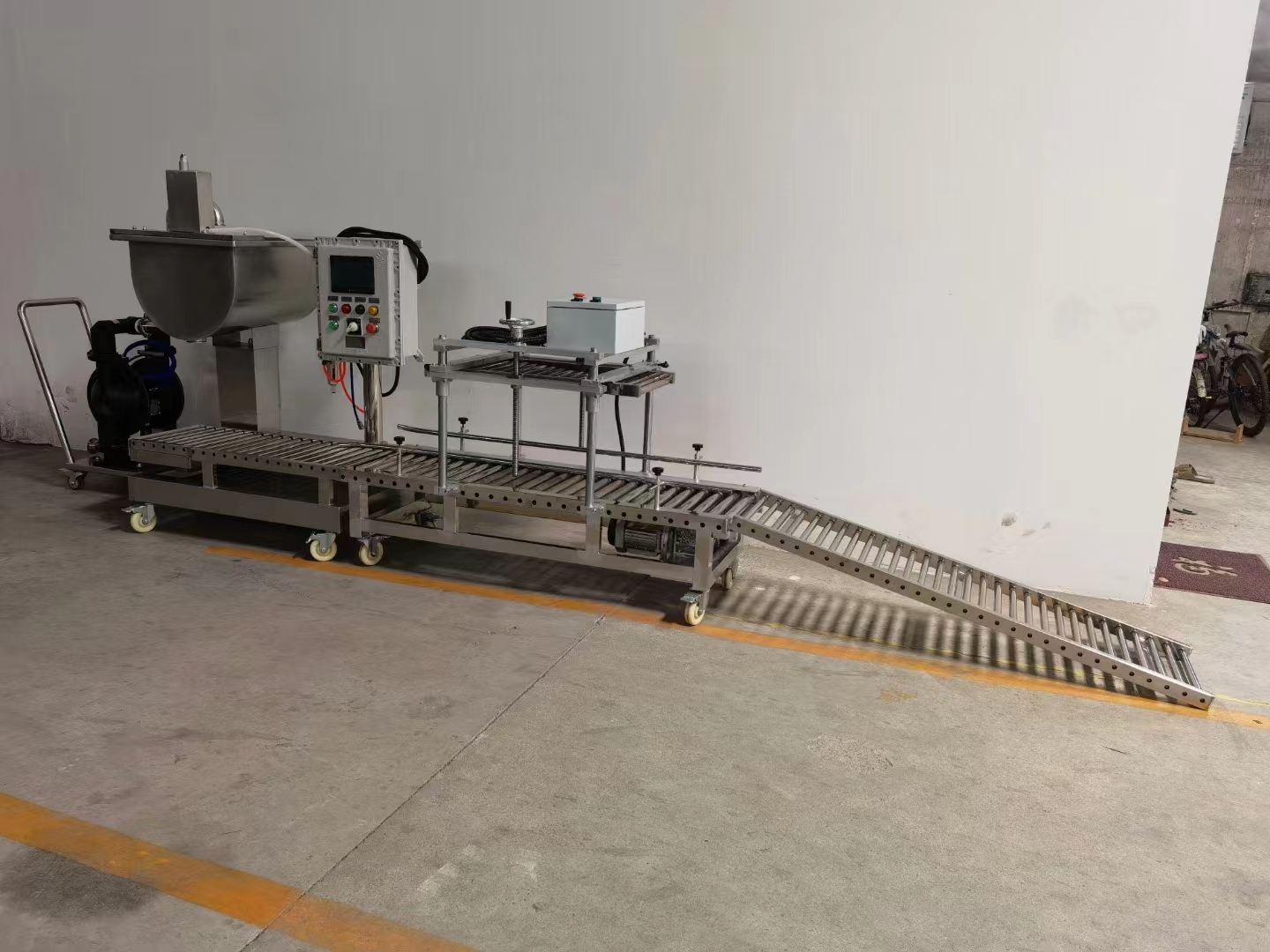

Paint Filling Machine for 1825L plastic barrel

Product Parameters

Motor Type :Explosion proof

Weigh scale :5-30L

Dividing value :1,2,5 g

Filling accuracy :±0.2%

Filling speed(min) :5-8

Color :Standard Green/customize

Voltage/Hertz :Could be customized

Certificate :CE

Application :Paint / Ink / Oil paint / Pigment / Coating / Cosmetics / resin/emulsion/glue/ink

Lead time :15-30

Sea Port :Guangzhou/Shenzhen

Supporting Air :0.6mpa

Advantage:

1. Fully explosion-proof push-button operation
2. Digital input
3. Taiwan Delta PLC
4. Immediate operation status indication
5. Tare test and start all-round bucket filling
6. Filling methods such as gross weight/net weight (automatic peeling of each barrel)
7. Automatic zero tracking
8. Automatic hacks of weight errors
9. Automatic zero clearing and power off protection device
10. Emergency stop protection device
11. Equipped with fault detection function
12. Filling head can be adjusted up or down
13. Tetrafluorin is used in the contact part of the filling gun and the material
14. Filling specification: 4-30L
15. Filling speed: 15-30 bottles per minute
16. Index value: 0.005kg
17. Taiwan imports Full force module

18. Cap all kind of 5L-25L plastic Pails/Buckets.
