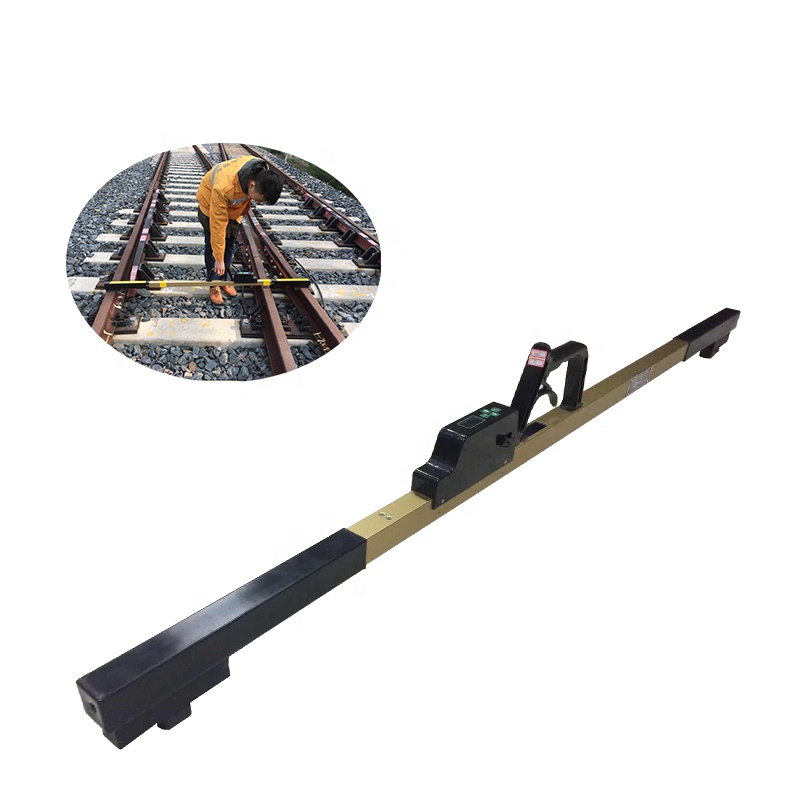

1435mm Digital Track Gauge for Railway Track Measurement

FOB Price:	1.00 - 800.00 USD/Unit
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: linkage rail
Dimensions (L x W x H) (mm): 1600*40*260mm
Material: alumunium
Type: GJC-JG1
SURFACE: alumunium

Specifications

1435mm Digital Track Gauge for railway track measurement
Features

1. Large LED backlit display: especially suitable for day outside and dark night 2. Quick calibration operation: simple measurement process 3. Large capacity battery:long standby time 4. Accurate measurement:keep long-term stability 5. Temperature compensation:working temperature is -30~+55℃ 6. Insulated design 7. Anti-electromagnetic interference 8. Waterproof:could use in rainy day 9. Power saving function: no operation within 15 minutes, the system will automatically shut down. 10. Approval by CRCC, CE certificate.

Specification

Model(1435mm)	GJC-JG1
Track gauge(mm)	1410-1470
Gauge rail check gauge(mm)	1381-1401
Guard rail face gauge(mm)	1338-1358
Superelevation measuring range(mm)	-185~+185
Flangeway Clearance(mm)	30-107
Superelevation division value(mm)	0.01
Track gauge division value(mm)	0.01
Track gauge max indication error(mm)	±0.25
Superelevation error(mm)	±0.45
Application rail line	Railway speed less than 250km/h
