2000L Vacuum Ex Heat Vertical Kneading Machine Kneader Propellant Mixer

Specifications

Kneaders are used to work elasto-Viscous products with a high solid content. Kneaders are designed in both vertical and horizontal configurations and can work in a batch or continuous mode. Considerations for choosing a suitable kneader include the solid content and viscosity of the product to be processed, desired production capacity, and ease of cleaning. Kneaders are used in the food industry to process high viscosity materials such as chewing gum, dough, and toffee, and in the chemical industry for the processing of rubber, silicone, adhesives and resins. Talk to us; our experts will help you to choose the best kneader for your application.

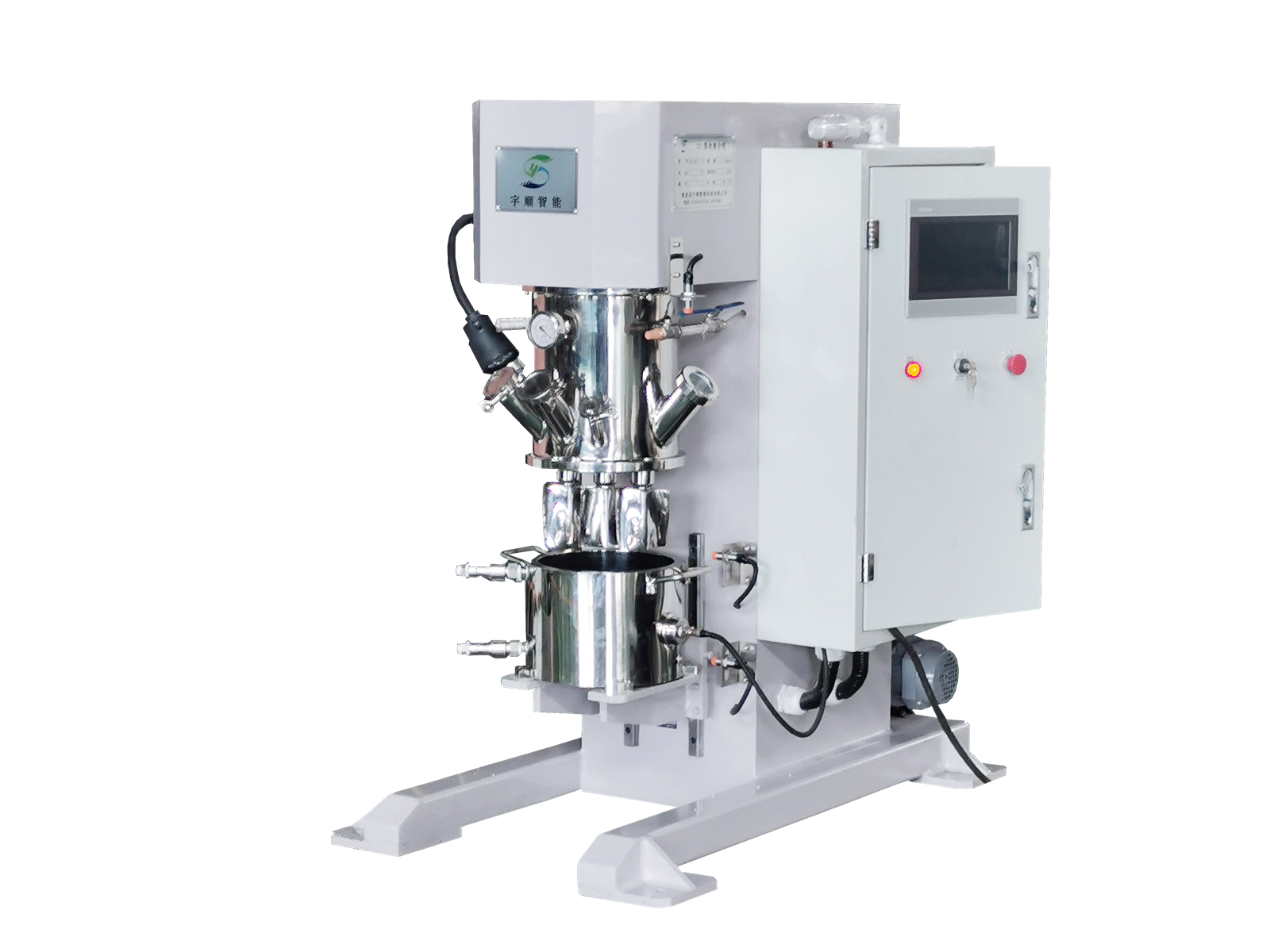

Planetary Kneader Mixer

	30L-650L  PLanetary Kneader Mixer

Have a question?

• Technical Parameter

• Working principle

during the running of double planetary Vacuum power mixer, Two parallel mixing paddles run in accord with the set fixed rotation ratio, high speed rotating on its own axis at the same time of orbital revolution. There is scraper runs together with paddles' orbital revolution in the mixing tank, which moves the material to the paddles from tank wall, To archive the different shearing, The direction of both orbital revolution and rotating on its own axis can be fore ward and reversal; Another two high speed dispersing discs with separate driving device run in the mixing tank together with the orbital revolution, high speed dispersing, emulsification, The speed of high speed dispersing disc is adjusted by frequency inverter, The speed can be set in accord with demand;

the material can be completely well distributed emulsifying under this mixing mode, suitable for the dispersing and mixing of solid-solid, solid-liquid and liquid-liquid material.

• Main Features

1.Clearance between the tank and the blade is 1mm.
2.Previous planetary mixer was impossible to make the particles smaller without damage, but this machine can make the particles smaller with low rotation speed.
3.Shape of the vessel cross-section is a gourd-shaped.
4.Complete mixing and dispersion is possible only rotation.
5.Tough device with a simple structure.
6.Powder raw materials suction is possible from the bottom while driving.
this device is effective as a high viscosity. this function is not in the other mixers
Powder deposition of tank lid inner surface eliminates.

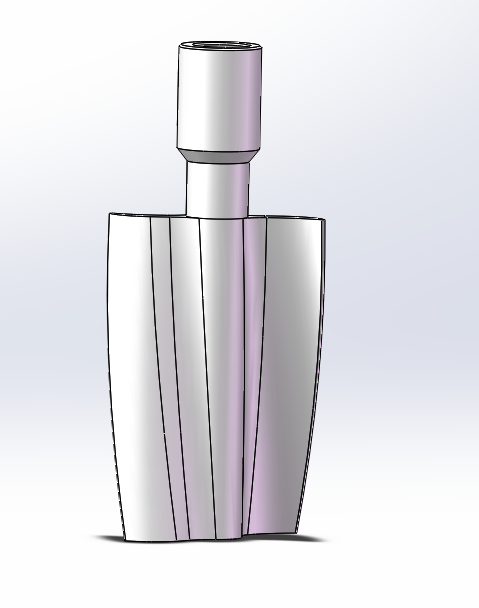

7.the movement of the kneaded product will be increased by large blade.
8. Scraping of the blade is not required. the blade shape eliminates the adhission of materiaks.
9.Contamination from the shaft seal does not occur because of the garbage plate
10. Screw is directly with the top of the blade.
11.by raising the lid, the screw and blades are completely outside of the tank, so washability is improved
12.for a vacuum specification, airtightness is better.
13. Because strong one shaft without joint connection, hard kneading is possible.
14. Liquid can be diluted easily after kneading. at the same time, liquid can be injected while operating the device
15. Jacket can be attached to the blade as optional. this is impossible structure in a planetary mixer.
16.There is no projection in the tank as temperature sensor is integrated.
17.Product releasing method can be chosen in a wide variety styles.
18.the raw material can be inserted from screw on the top of the lid.
