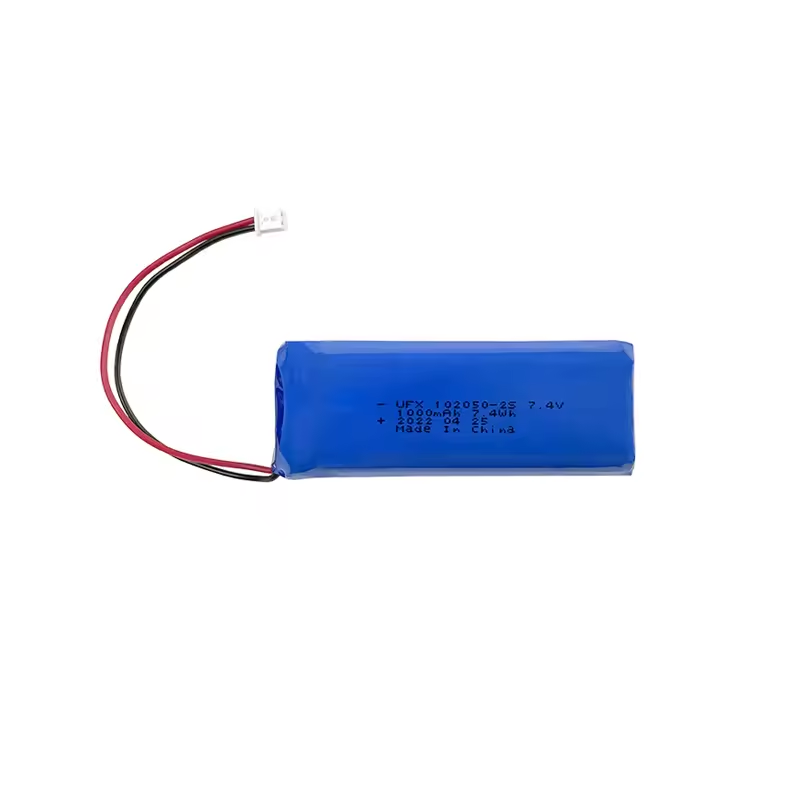

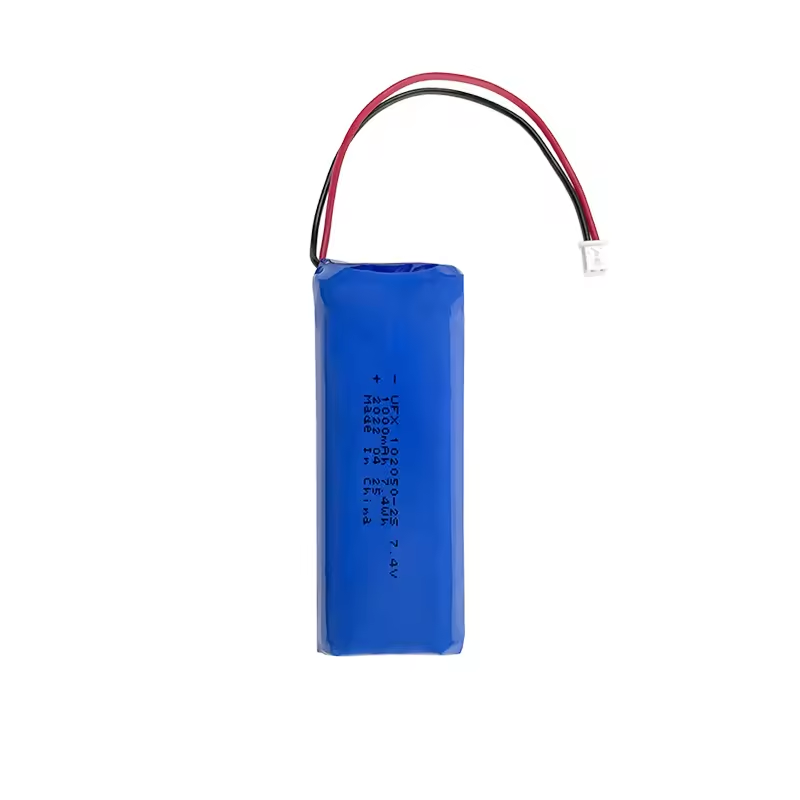

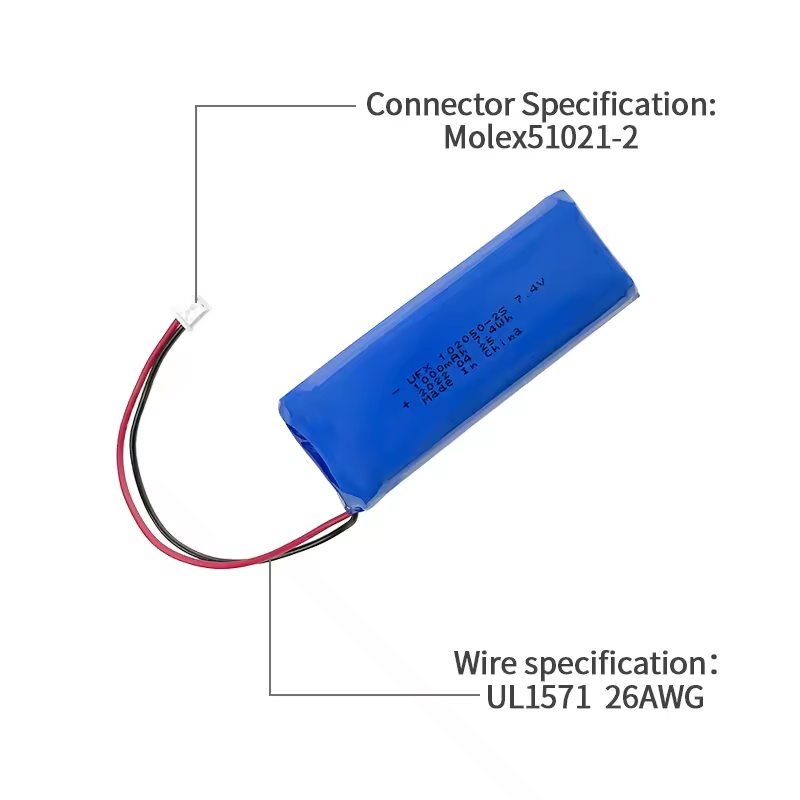

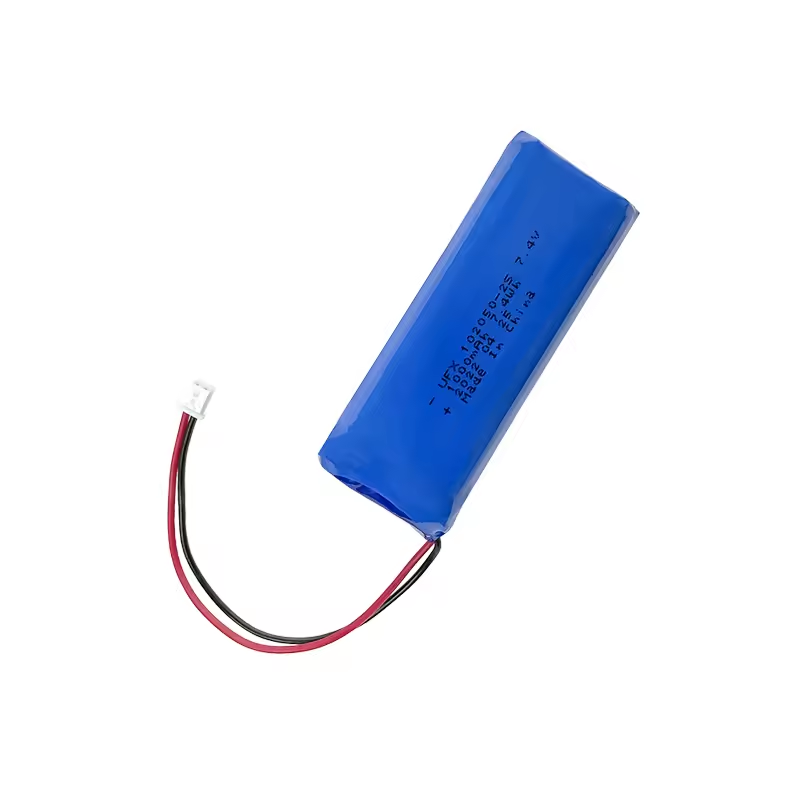

Li-Polymer Cell Factory UFX 102050-2S 1000mAh 7.4V Rechargeable Battery for Air Cleaner

FOB Price:	2.50 - 5.00 USD/Unit
Payment Terms:	T/T, Other, Paypal

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

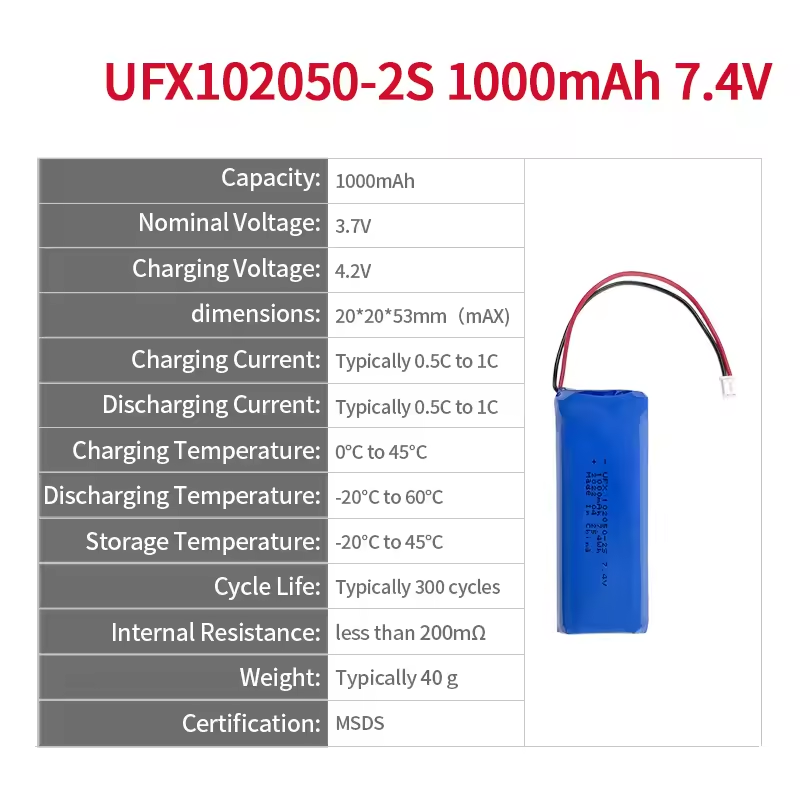

Specification
1. Mechanical Characteristics
Cell	UFX102050	PCM	Yes
NTC	No	Weight	Appr.40g
Configuration:	2S1P
2. Electrical Specification
Capacity	1000mAh	Nominal Voltage	7.4V
Energy	7.4Wh	Nternal lmpedance	Less than 200mΩ
Max.Charge Voltage	8.4V	Discharge Cut off	5.5V
Max.Charge Current	1000mA	Max.Discharge Current	1000mA
Standard Charge Current	200mA	Standard Discharge Current	200mA
Charge Temp.Range	10℃ to 45℃	Discharge Temp.Range	-20℃ to 60℃
Storage Temp.Range	1 year at-20℃ to +30℃	Cycle life	100 cycles ≥92%
	3 moths at-20℃ to +45℃		300 cycles ≥88%
	1 month at-20℃ to+60°℃		500 cycles ≥80%

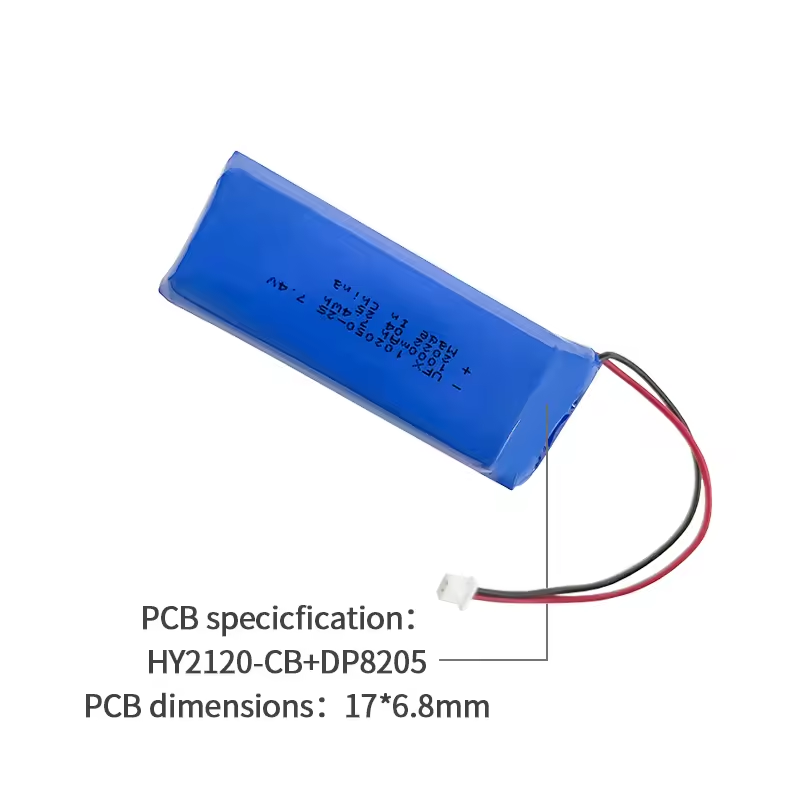

3. Cell protection
Overcharge Detection	4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)	Oyerdischarge Detection	2.5V ±50mV (115 to 175msec. Delay, release 3.0V ±50mV)
Overcurrent Detection	2.5A to 4.0A (9 to 15msec Delay)	Short protection	Yes
