>Products Catalog > Professional Customize UFX 803040 1000mAh 3.7V Small Rechargeable Battery for Eye Massager Wearable Digitals

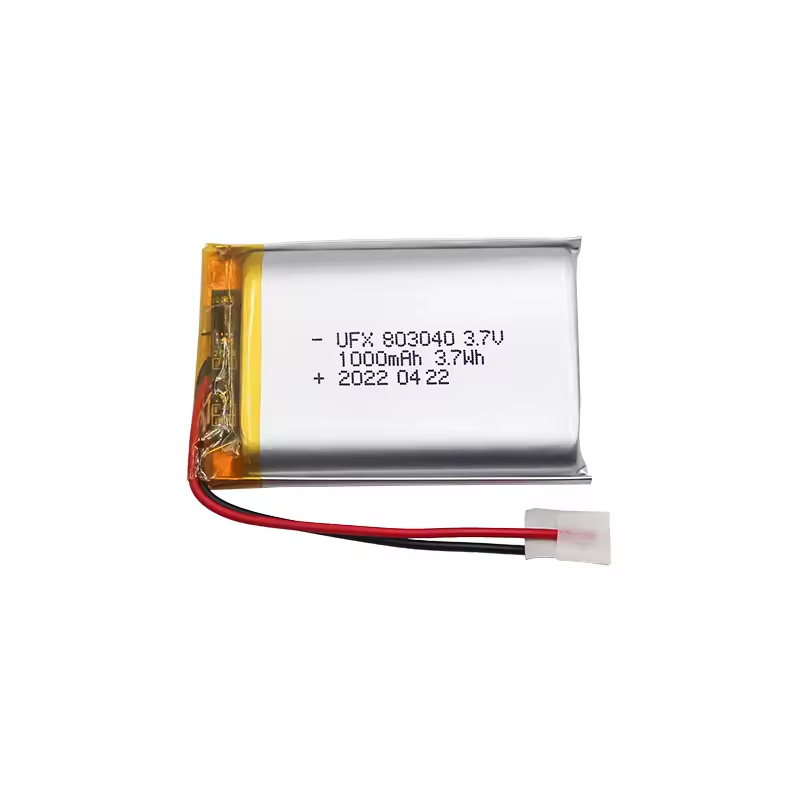

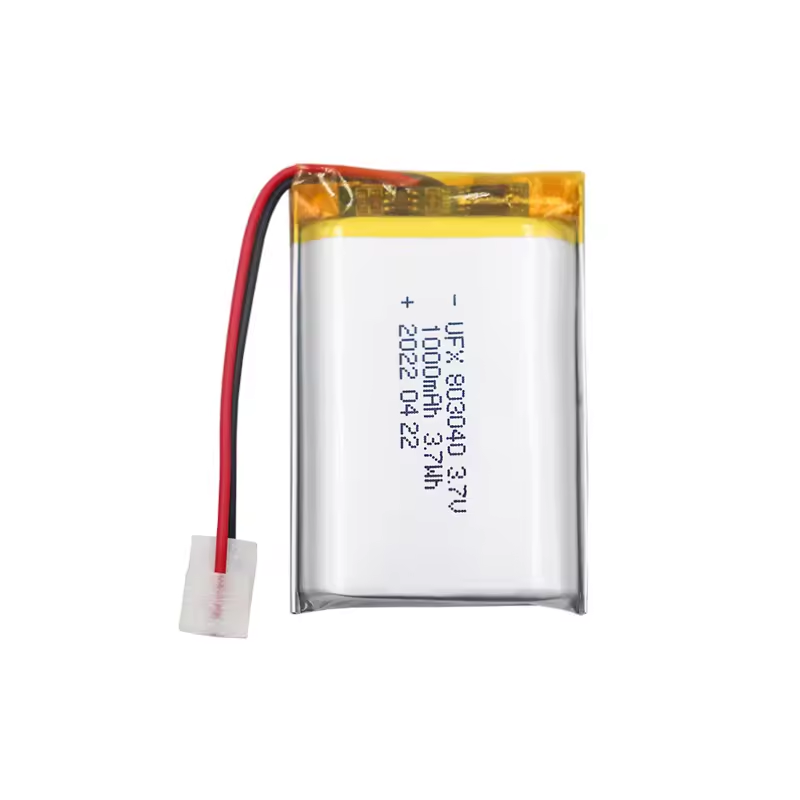

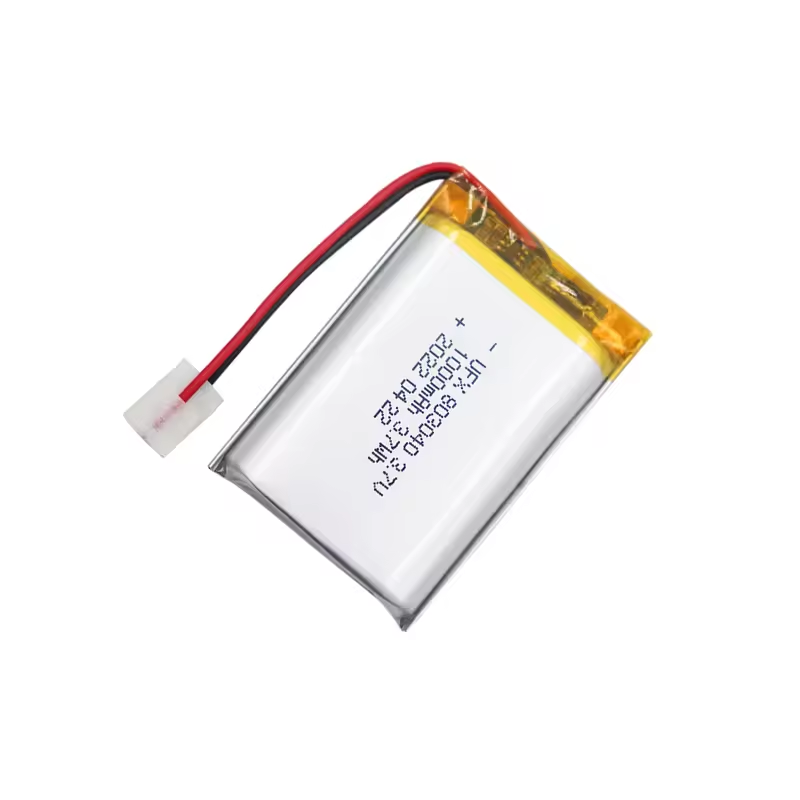

Professional Customize UFX 803040 1000mAh 3.7V Small Rechargeable Battery for Eye Massager Wearable Digitals
| FOB Price: | 1.35 - 1.50 USD/Unit |
|---|---|
| Payment Terms: | T/T, Other, Paypal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|
Quick Details
- Nominal Capacity: 1000mAh
- Size: 8*30*42mm
- Nominal Voltage: 3.7V
- Type: Li-Ion
- Brand Name: UFX
- Model Number: 803040

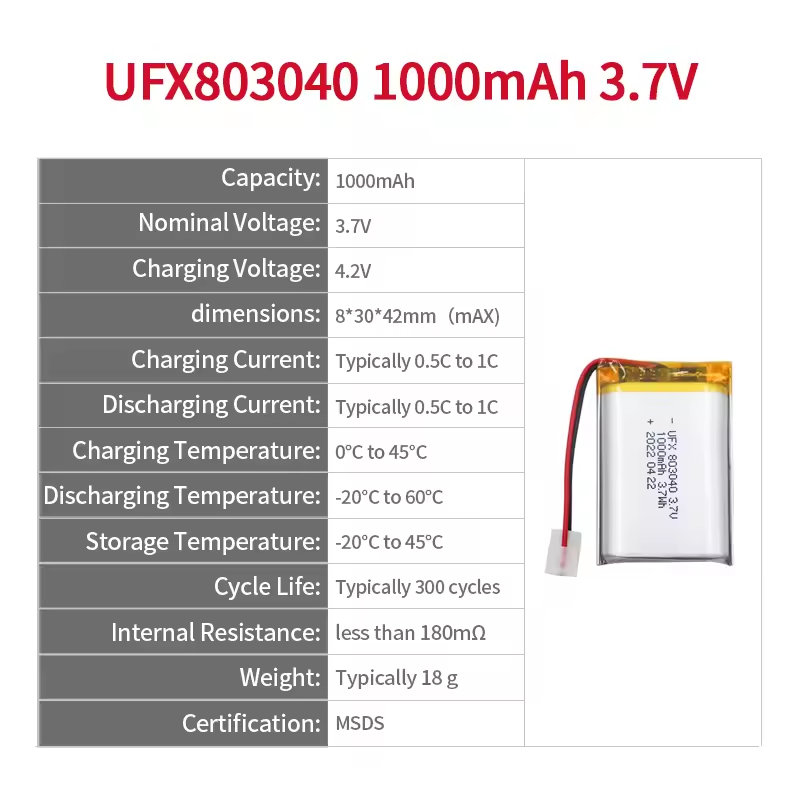

Specifications
| Specification | |||
| 1. Mechanical Characteristics | |||
| Cell | UFX803040 | PCM | Yes |
| NTC | No | Weight | Appr.18g |
| Configuration | 1S1P | ||
| 2. Electrical Specification | |||
| Capacity | 1000mAh | Nominal Voltage | 3.7V |
| Energy | 3.7Wh | Internal Impedance | Less than 180mΩ |
| Max.Charge Voltage | 4.2V | Discharge Cut off | 2.75V |
| Max.Charge Current | 1000mA | Max.Discharge Current | 1000mA |
| Standard Charge Current | 500mA | Standard Discharge Current |
500mA |
| Charge Temp.Range | 10℃ to 45℃ | Discharge Temp.Range | -20℃ to 60℃ |
| Storage Temp.Range | 1 year at -20℃ to+30℃ | Cycle life | 100 cycles ≥92% |
| 3 months at -20℃ to+45℃ | 300 cycles ≥88% | ||
| 1 month at -20℃ to +60℃ | 500 cycles ≥80% | ||

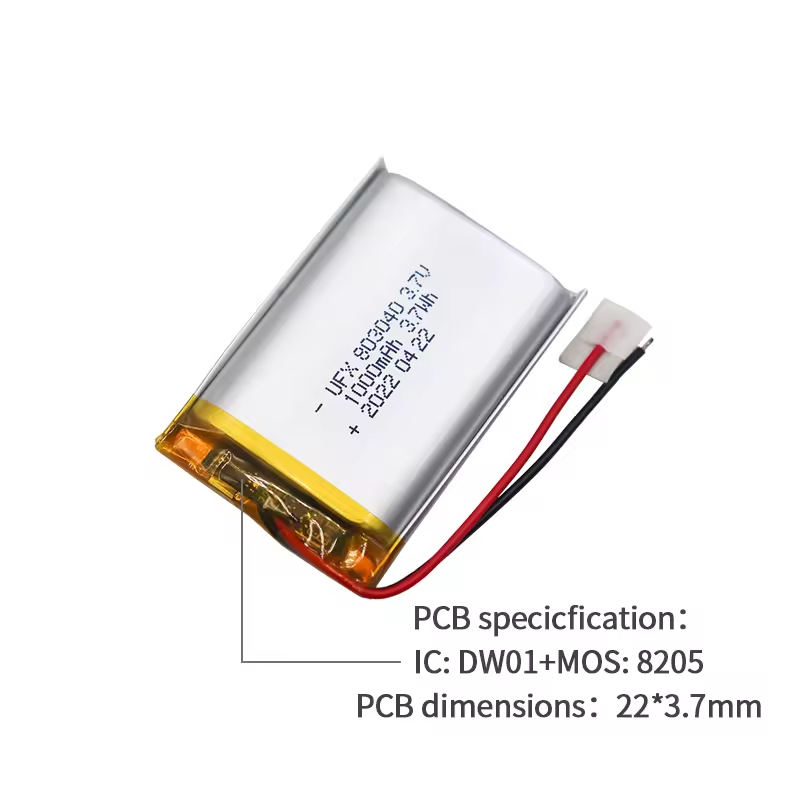

| 3. Cell protection | |||
| Overcharge Detection | 4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV) | Overdischarge Detection |
2.5V ±50mV (115 to 175msec. Delay, release 3.0V ±50mV) |
| Overcurrent Detection | 2.5A to 4.0A (9 to 15msec. Delay) | Short protection | Yes |
