RHJ Multi-Angle Fitting Elbow Welding Machine
| FOB Price: | 1500.00 - 100000.00 USD/Set |
|---|---|
| Payment Terms: | T/T |
Related products from verified members
Quick Details
- Season: Autumn
- Outsole Material: /
- Upper Material: /
- Gender: Boys
- Brand Name: /
Specifications
the RHJ Multi-Angle is a specialized machine used in the welding of multi-angle elbow fittings for pipes. It is designed to provide accurate, efficient, and reliable welding of elbow fittings in a range of angles. the machine uses advanced technology and features precise control of welding parameters to ensure high-quality welds that meet the requirements of various industries.
RHJ series angle fusion machine Application feature.
Workshop machine used to weld PEPP same diameter elbow90tee and cross4560Y-shape tee elbow and straight pipe, etc.
Integrated structure design just changes the clamp during the process.
Technical Specification of RHJ Multi-Angle Fitting
Model |
RHJ 315 |
RHJ 450 |
RHJ 630 |
Welding range(mm) |
110, 125, 140, 160, 180, 200, 225, 250, 280, 315 |
250, 280, 315, 355, 400, 450 |
355, 400, 450, 500, 560, 630 |
Welding Type |
0~90° EIbow, tee, cross. 45° and 60 °Y shape (optional parts should be used) | ||
Heating Plate Max. Temp |
270°C |
270°C |
270°C |
Temp. Deviation in surface |
<±7° |
<±7° |
<±7° |
Working voltage |
380V, 50Hz |
380V, 50Hz |
380V, 50Hz |
Heating Plate Power |
5.25 KW |
12 KW |
22 KW |
Planing Tool Power |
1.5 KW |
2.2 KW |
2.2 KW |
Hydraulic unit Power |
0.75 KW |
4 KW |
4 KW |
Hydraulic unit Power |
7.5 KW |
18.2 KW |
28.2 KW |
Total Weight(Exclude optional parts) |
848 KGS |
2900 KGS |
4470 KGS |
Model |
RHJ 800 |
RHJ 1000 |
RHJ 1200 |
Welding range(mm) |
500, 560, 630, 710, 800 |
710, 800, 900, 1000 |
800, 900, 1000, 1200 |
Welding Type |
0-90° Elbow, tee, cross. 45°and 60 Y shape (optional parts should be used) | ||
Heating Plate Max. Temp |
270°C |
270°C |
270°C |
Temp. Deviation in surface |
<±7° |
<±7° |
<±7° |
Working voltage |
380V, 50Hz |
380V, 50Hz |
380V, 50Hz |
Heating Plate Power |
40 KW |
60 KW |
62 KW |
Planing Tool Power |
3 KW |
4 KW |
5.5 KW |
Hydraulic unit Power |
4 KW |
5.5 KW |
7.5 KW |
Hydraulic unit Power |
47 KW |
69.5 KW |
75 KW |
Total WeighteExclude oplional parts) |
4900 KGS |
15000 KGS |
18000 KGS |
Advantages of Using RHJ Multi-angle Fitting Elbow Welding Machine
the RHJ Multi-Angle Fitting Elbow Welding Machine offers several advantages in the welding of multi-angle elbow fittings for pipes. It provides accurate welding in a range of angles, making it versatile for various applications. the machine is designed to handle high production volumes due to its efficient and reliable performance. It uses advanced technology and precise control of welding parameters that ensure the highest quality welds, meeting industry standards. the machine is user-friendly, easy to operate, and requires minimal maintenance. It is built with durable materials and a sturdy construction, making it a long-lasting investment for businesses in the industrial and piping industries.
Application of RHJ Multi-Angle Fitting Elbow Welding Machine

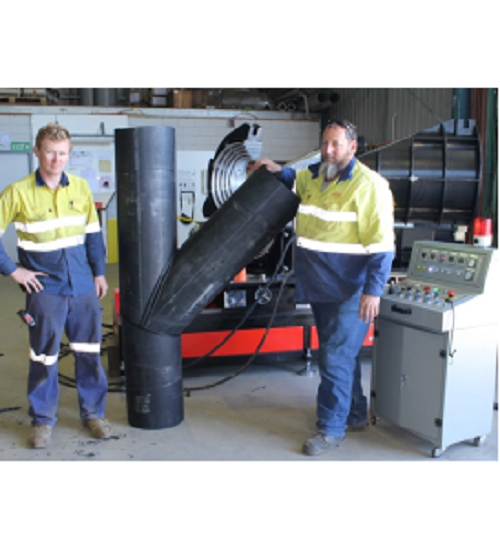

Workshop machine used to weld PE, PP same diameter elbow,90°tee and cross,45°,60°Y-shape tee, elbow and straight pipe, etc.
Integrated structure design, just change clamp while process different diameter fittings.
RHJ315-450Heating mirror and milling plate adopt rotary structure, RHJ630-1600 Heating mirror and milling plate movement adopt structure.
Milling plate movement adopts safety switch control to avoid unexpected start, with single face milling function, double sharpen blade can be shift using.
Heating mirror coated PTFE layer, electrical thermometer, display digital directly.
Electrical timer alert, easy operation.
Reliable performance, easy control.
Option Accessory of RHJ Multi-Angle Fitting Elbow Welding Machine
Special clamp for flange.
Special clamp for fitting.
45°, 60°Y Tee clamp.
