Weilang New Energy Electric Vehicle Co., Ltd.
China Manufacturer with main products: Golf Buggy, Sightseeing Bus, Golf Cart, Retro Style Electric Car, Vintage-Inspired Electric Car |

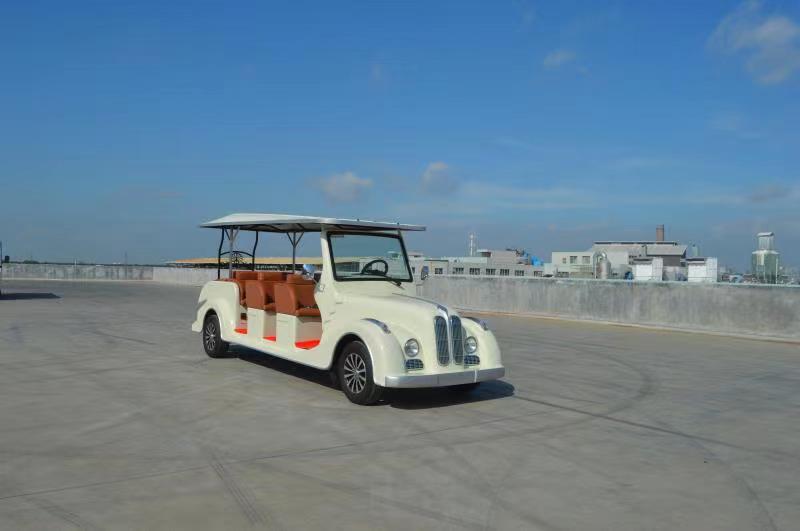

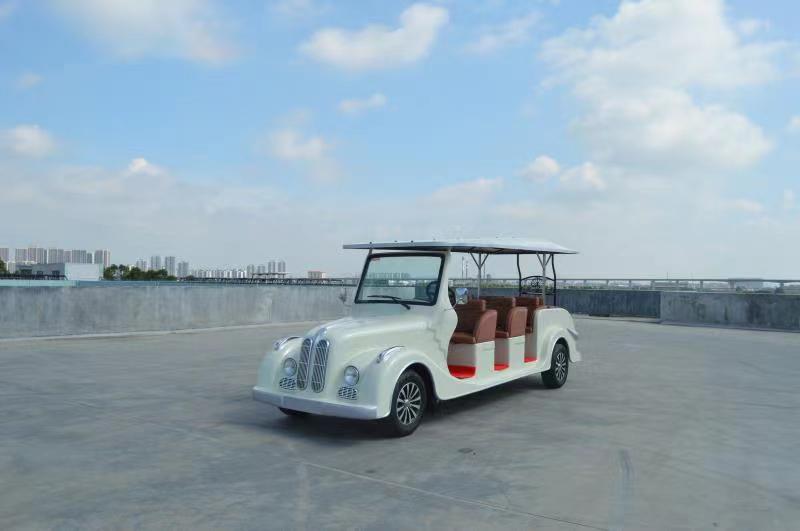

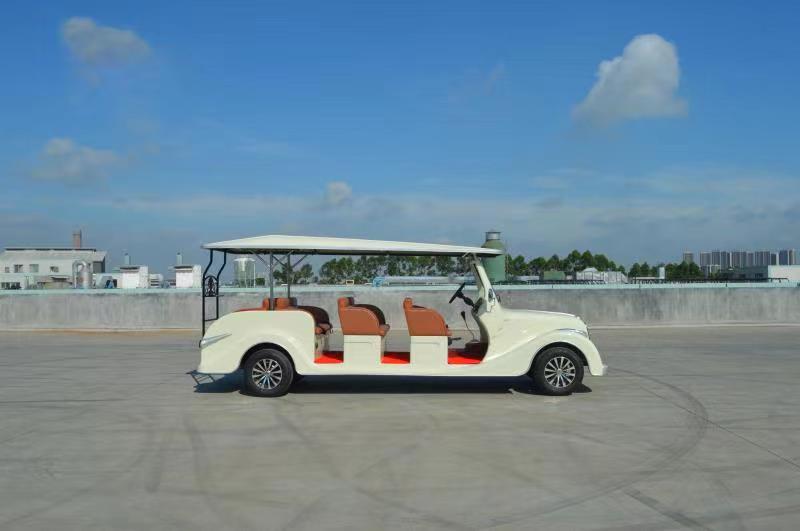

8 Passenger Vintage-Inspired Electric Car/Sightseeing Bus
| FOB Price: | 6800.00 - 7000.00 USD/Unit |
|---|---|
| Supply Ability: | 2,000 Unit(s) per Month |
| Shipping: | sea transport,air transport |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | Southeast Asia, Mid East, Western Europe |
|---|---|
| Place of Origin: | Sichuan in China |
| Packaging Details: | container |
Quick Details
- Brand Name: WeiLang
- Power: Electric
- sda: WL-GD8.FB
- Model Number: WL-GD8.FB
Specifications
Seating Capacity 8
Overall Weight 940kg(with battery)
Overall Dimensions 5050*1530*1980mm
Wheel Base 3466mm
Wheel Track front1208/rear1318mm
Min Turning Radius 6.7m
MAX Range 80-100km(flat road)
MAX Speed 30km/h(adjustable)
Ground Clearance 147mm
Min Braking Distance ≤6m
Climbing Ability 15%
Slope Holding Ability 20%
Motor: AC asynchronous motor 48V/5KW
Battery: WEILANG dedicated 6*8V/150AH Large capacity deep cycle traction power maintenance-free battery
Battery Charger: automatic high-frequency and high-efficiency pulse car charger, 48V/25A Charging Time8h
Controller: WEILANG dedicated AC Controller JH48M380-450A with anti-skid function,
Downhill speed limit, personalized program design
DC converter: high power non-isolated DC converter 48V/12V-300W
Chassis:High-strength rectangular steel tube welded chassis frame, frame beam integrated bending molding, electric coating and electrophoresis anti-rust dual treatment
Floor: Rubber anti-slip floor
Wind Shield:Laminated+wiper
Canopy:Automobile engineering plastic, ABS blister molding

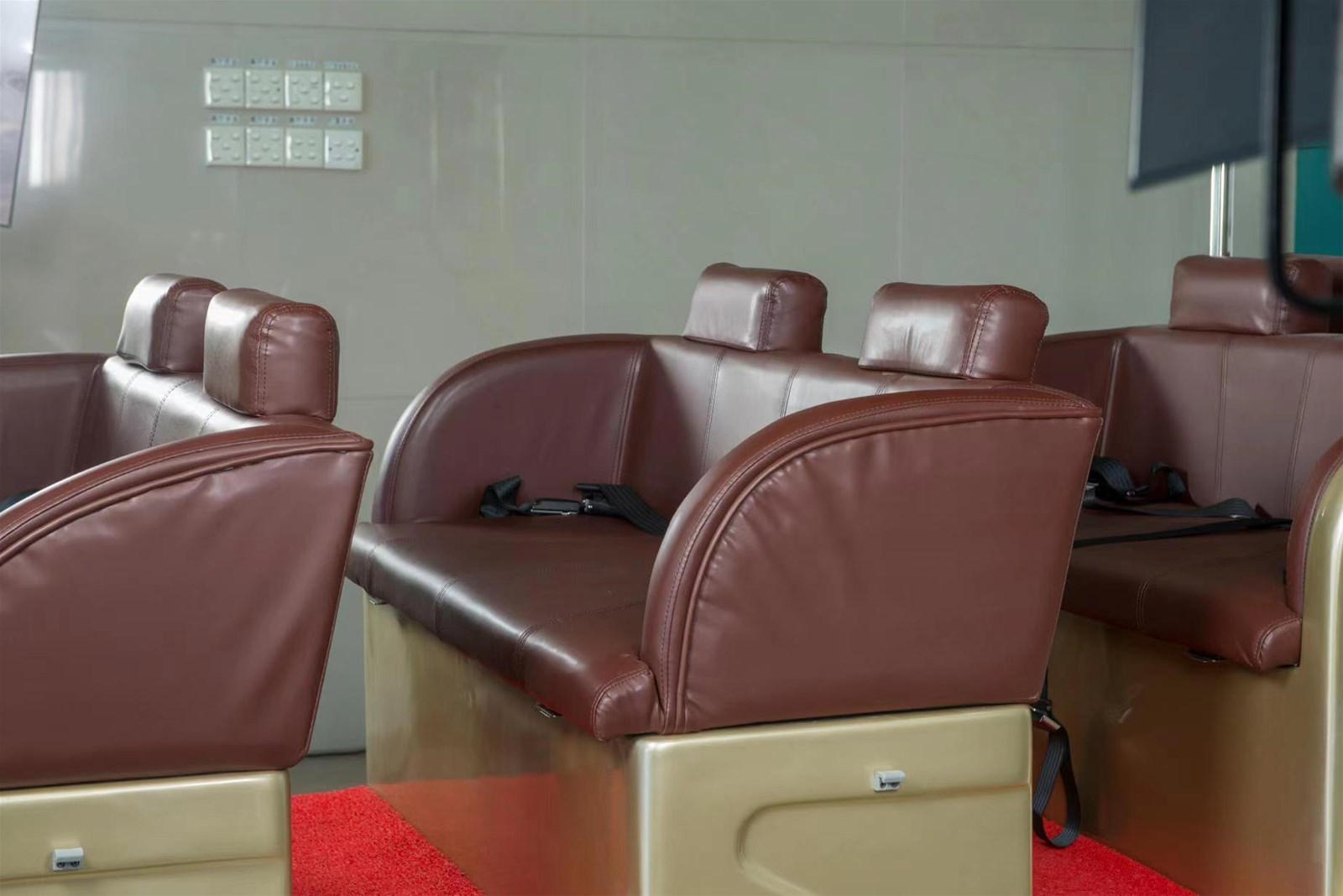

Seats:Ergonomic and comfortable to ride; made of highly simulated leather
Body: Fiberglass hand lay-up molding shell, high strength steel frame
Side-view Mirror:manually adjustable exterior rear-view mirror on the left and right
Lights and Signals:Front light,turn signal,rear tail light,horn,reversing buzzer

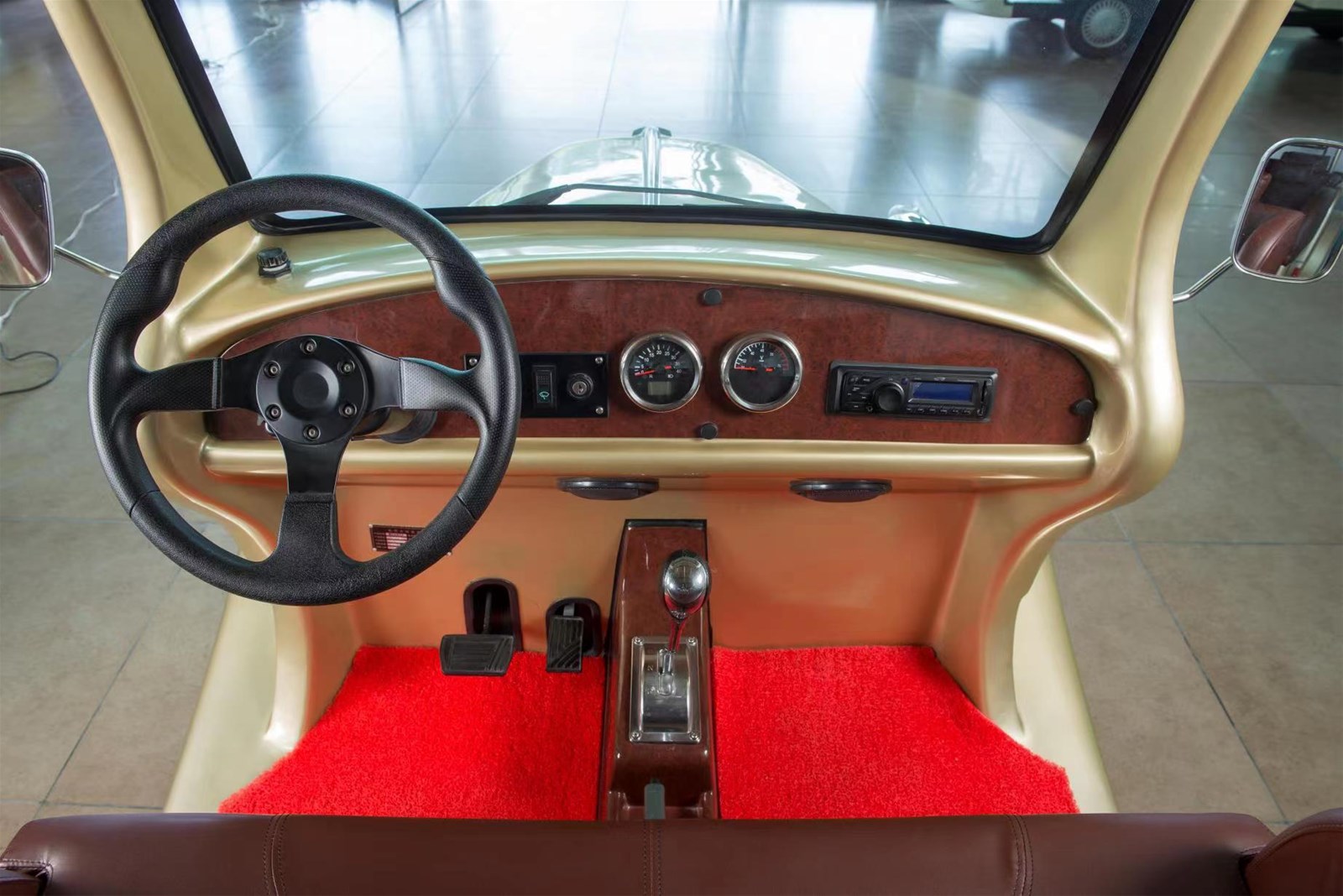

Dash Board: Fiberglass instrument panel, voltmeter, electric lock switch, single-arm combination switch, speedometer, electricity meter, wiper switch
Steering System:Two-way rack and pinion steering system, automatic gap compensation function
Braking System:Front disc, rear drum, four-wheel hydraulic brake + handbrake parking
Front Suspension:Double swing arm independent front suspension + coil spring + cylinder hydraulic shock absorber
Rear Suspension:Integrated rear axle, 16:1 speed ratio,leaf spring,cylindrical hydraulic shock absorber

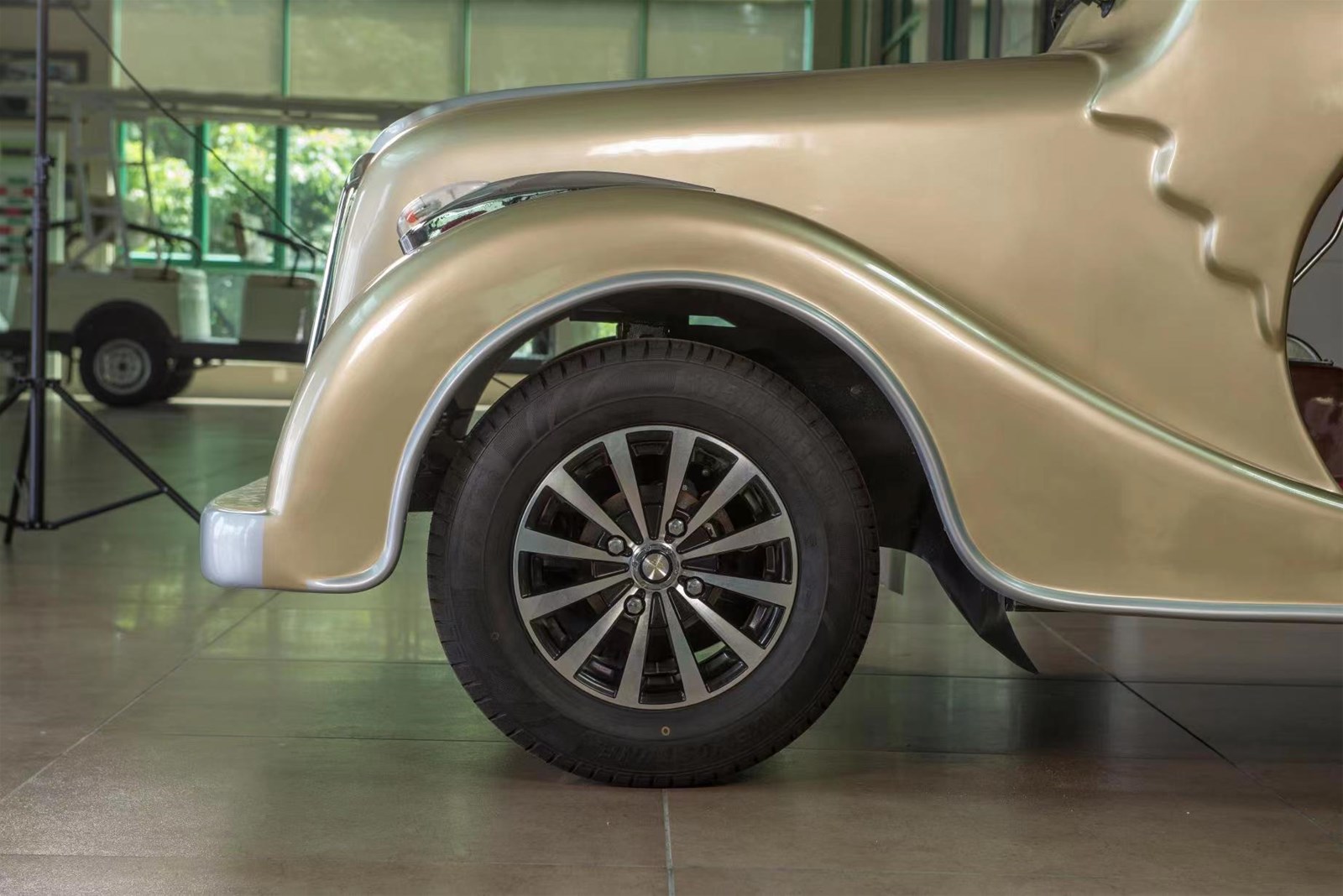

Tire:185/70R13 tubeless tire(diameter580mm); 13inch aluminium
Optional
Warranty:the warranty period for the entire vehicle and equipment is 24 months after passing the acceptance inspection (except for tires, light bulbs, fuses, glass products, connectors, appearance parts, brake pads and other wearing parts)
