Cone Rolling Machine-Vertebral Body Forming Machine-Cone Forming Machine

FOB Price:	3600.00 - 50000.00 USD/Unit
Supply Ability:	100 Unit(s) per Month
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Anhui in China

Quick Details

After-sales Service Provided: No overseas service provided
Warranty: 1
Certification: yes
Brand Name: JUDE
Condition: New

Specifications

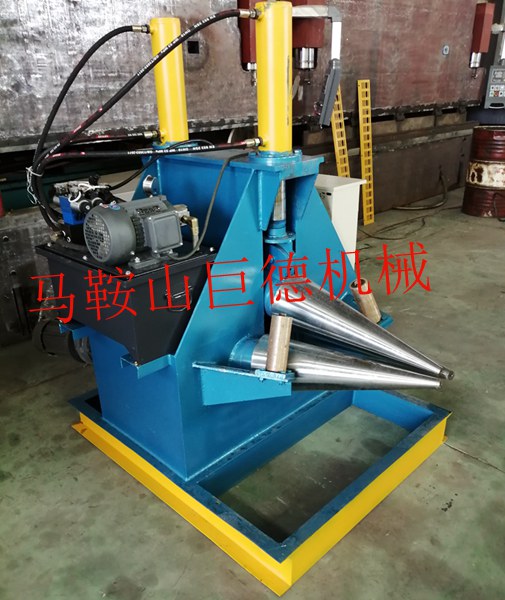

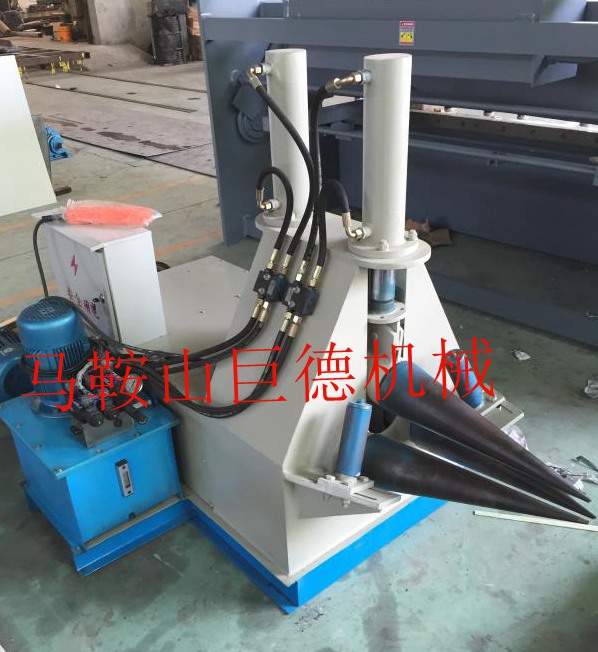

Jude brand cone winding machine is a hydraulic cone three roll cone winding machine. the upper roller moves up and down in a symmetrical position at the center of the two lower rollers, and is powered by a hydraulic oil cylinder for adjustment. the front and rear parts can be freely adjusted to ensure the size of the cone curling model, which is characterized by safety and stability. the root cone rollers are respectively driven by the gearbox of the reducer, and rotate through the universal joint shaft to provide power for the walking of the sheet metal and mechanical transmission. Integrated structure, simple foundation, convenient movement. Electric winding, hydraulic pressing.

Basic equipment configuration:

1. Work roller: Three solid rollers with taper, hardness HRC35-40 degrees, tapered roller shaft after quenching and polishing treatment.

2. Rack: the bracket boring machine ensures assembly accuracy, concentricity, and parallelism. the base and bracket are precisely processed to improve assembly accuracy, equipment usage accuracy, and service life. the rack is the main load-bearing component of machine equipment, which must have sufficient strength and stiffness. It adopts a steel plate welded structure, and the welds undergo strict inspection and vibration aging treatment to eliminate internal stress. the left and right pillars are fixed to the base with screws, and connected by connecting rods in the middle to ensure that the frame is in an accurate position.

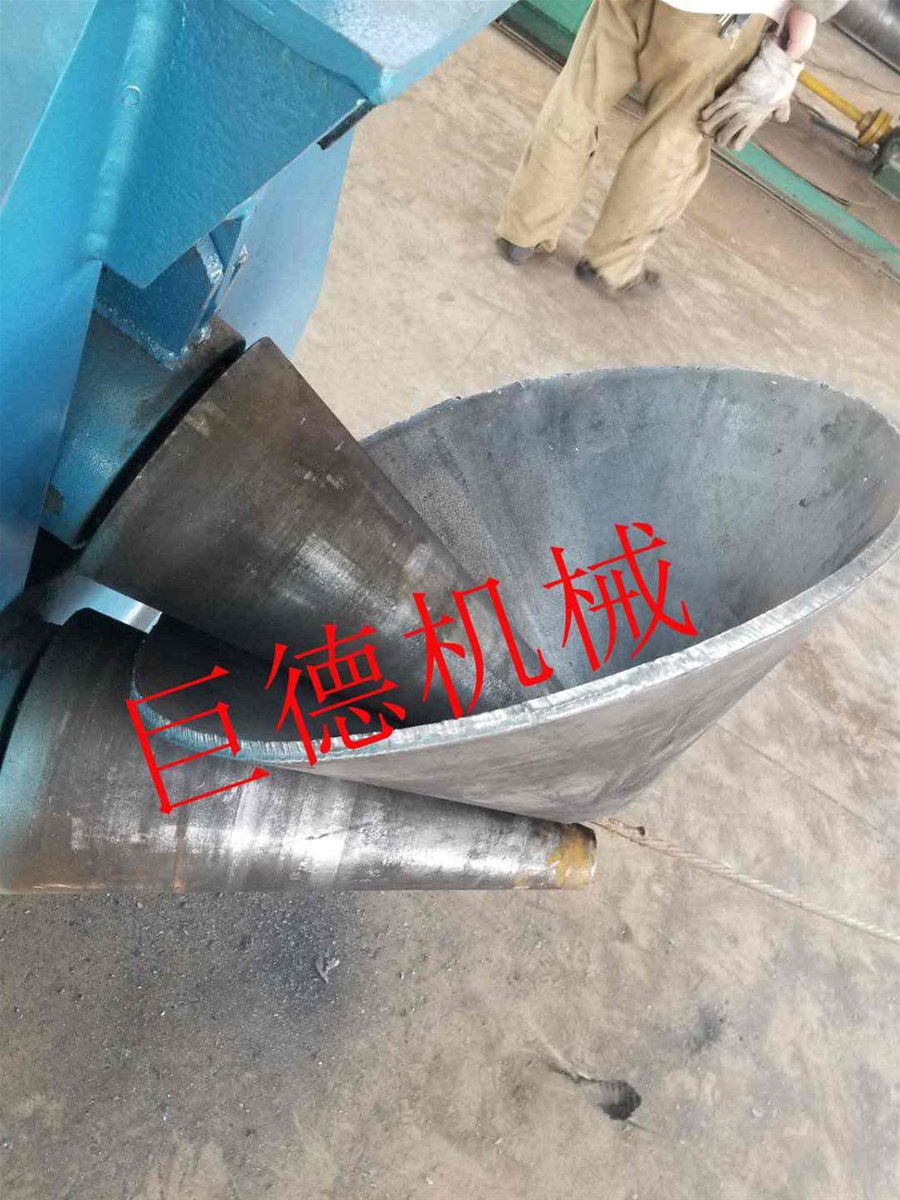

the upper roller of the Jude brand cone-shaped drum plate rolling machine can be hydraulically adjusted, which can be used for specialized rolling of cone-shaped products, making stainless steel cone-shaped drums, steel plate large and small head rolling, small diameter cone-shaped drums, simple, convenient, and fast. Product models can be customized according to the available models. this machine is widely used in industries with high precision requirements, such as aviation, nuclear power, and other metal structural component manufacturing industries, as well as chemical machinery, offshore oil platforms, oil, gas, and water pipelines.
