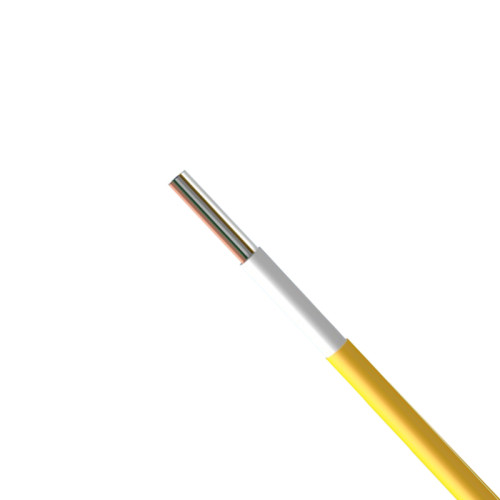

Air-Blown Fiber Optic Cable 3.0mm GCYFXTY
| FOB Price: | 42.00 - 114.00 USD/Kilometer |
|---|---|
| Supply Ability: | 1,000 Kilometer(s) per Day |
| Shipping: | FOB Shenzhen |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
Quick Details
- Type: Cat 1
- Brand Name: tw-scie
- Application: FTTH networks
- Color: Black
Specifications
Product introduction

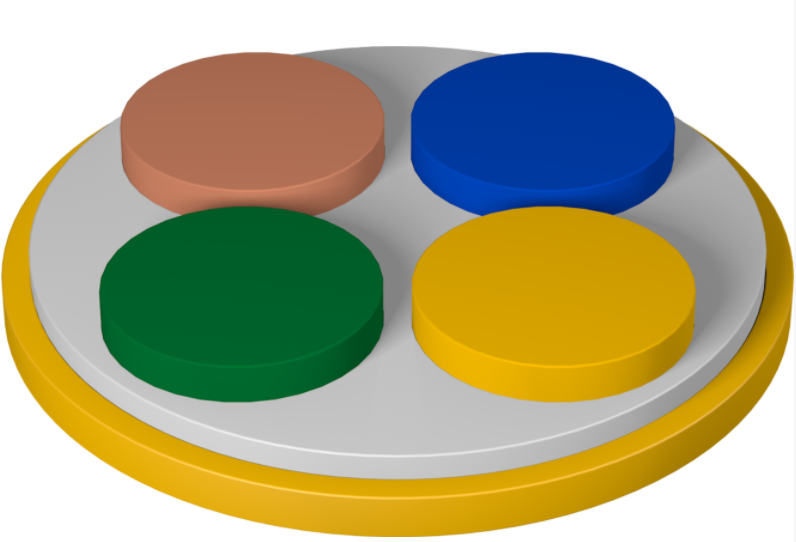

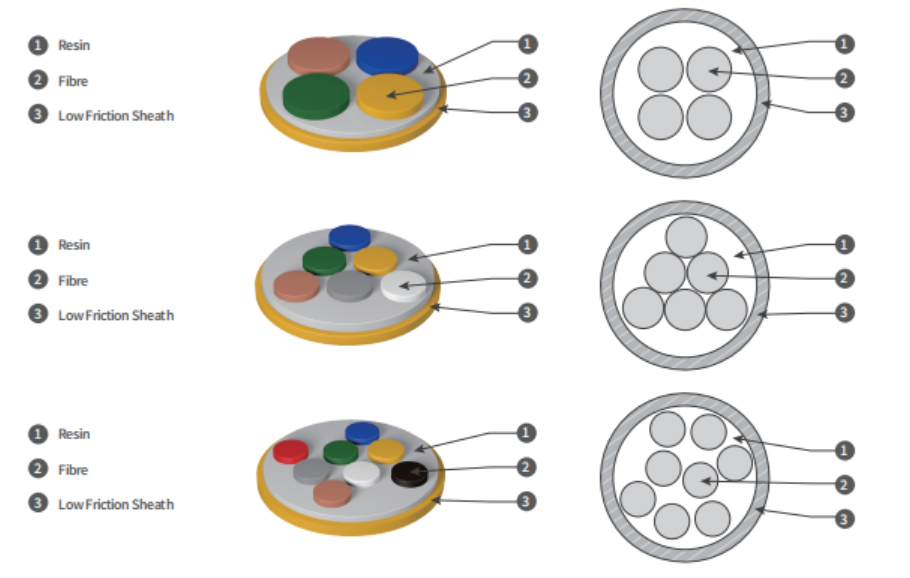

Optical fibres and filler elements are arranged in curing photosensitive resins to form a cable core. A low friction sheath is extruded outside the core.
Product Model:EPFU
Technical Features
Using G.657.A2 bending insensitive fibres with a small bending radius, applicable to indoor laying
Small size and light weight
Unique design of sheath ensuring good air blowing performance
Application
the cable can be used as the indoor drop cable in FTTH networks and can be laid by air blowing with a handheld device, to connect the family multimedia information boxes with the access point for subscribers
Technical Parameters:
Type |
Fibre count |
O.D. (mm) |
Weight (Kg/km) |
Tensile strength |
Crush resistance short term |
Long/short term (N) |
(N/100mm) | ||||
EPFU-02B6a2 |
2 |
1.1 |
1.1 |
0.15G/0.5G |
100 |
EPFU-04B6a2 |
4 |
1.1 |
1.1 |
0.15G/0.5G |
100 |
EPFU-06B6a2 |
6 |
1.3 |
1.3 |
0.15G/0.5G |
100 |
EPFU-08B6a2 |
8 |
1.5 |
1.8 |
0.15G/0.5G |
100 |
EPFU-12B6a2 |
12 |
1.6 |
2.2 |
0.15G/0.5G |
100 |
Note: G is the weight of optical cable per km.
Blowing Characteristics
Fibre count |
2 |
4 |
6 |
8 |
12 |
Duct diameter |
5.0/3.5 mm |
5.0/3.5 mm |
5.0/3.5 mm |
5.0/3.5 mm |
5.0/3.5 mm |
Blowing pressure |
8bar / 10bar |
8bar / 10bar |
8bar / 10bar |
8bar / 10bar |
8bar / 10bar |
Blowing distance |
500m/1000 m |
500m/1000 m |
500m/1000 m |
500m/1000 m |
500m/800 m |
Blowing time |
15min/30min |
15min/30min |
15min/30min |
15min/30min |
15min/30min |
Environmental Characteristics
Transport/storage temperature: -40℃ to +70℃
Delivery Length
Standard length: 2,000m; other lengths are also available.
