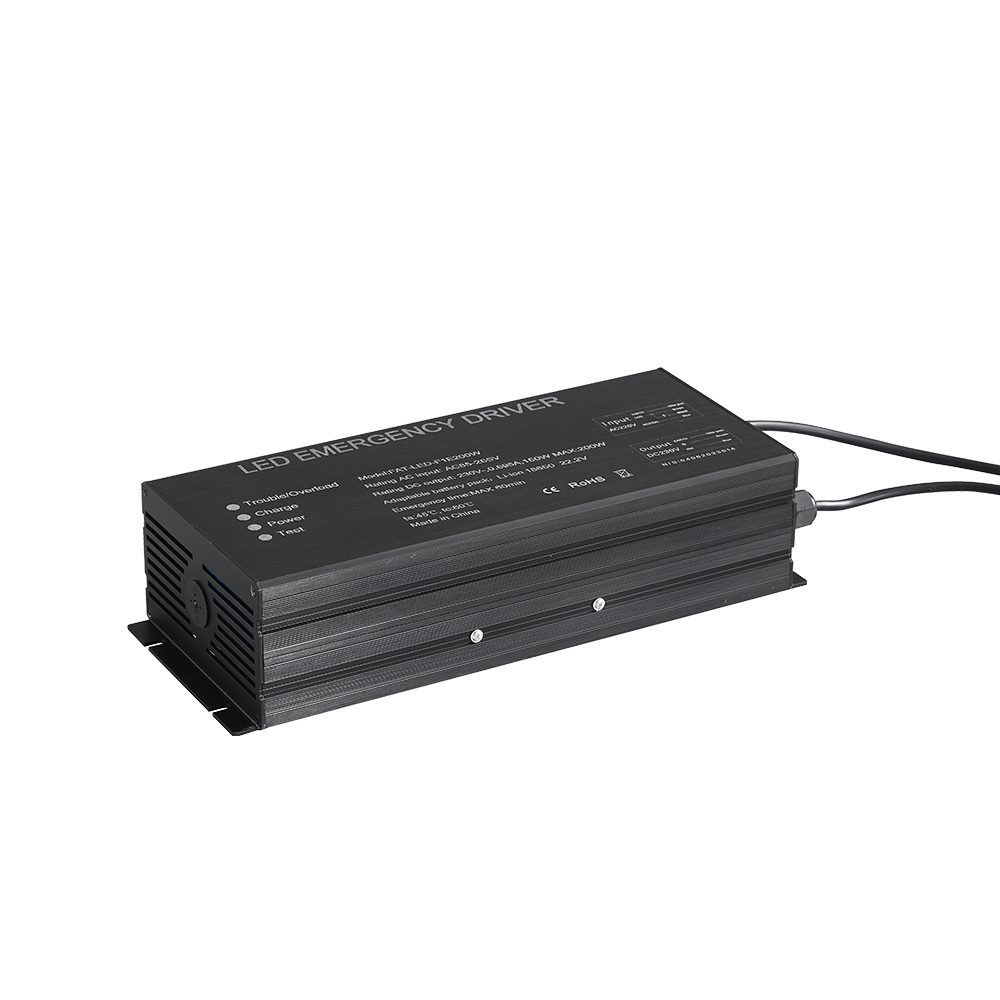

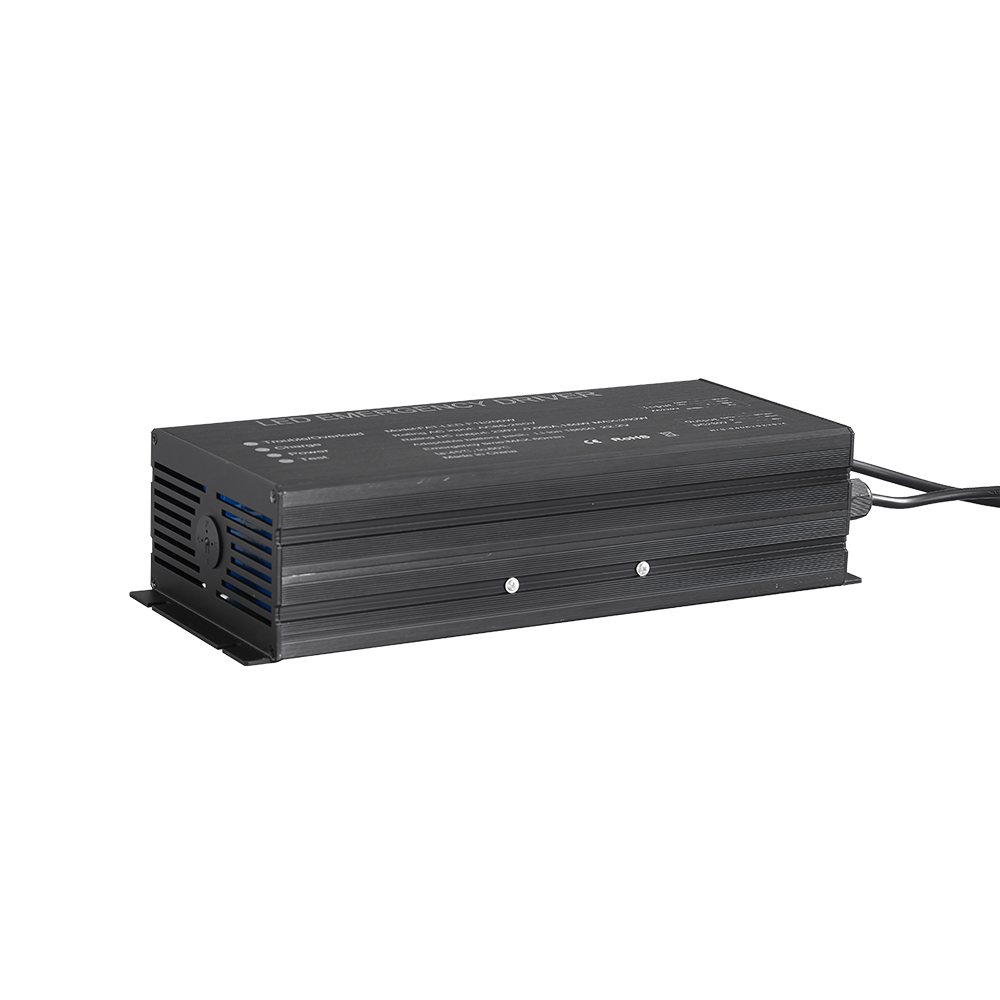

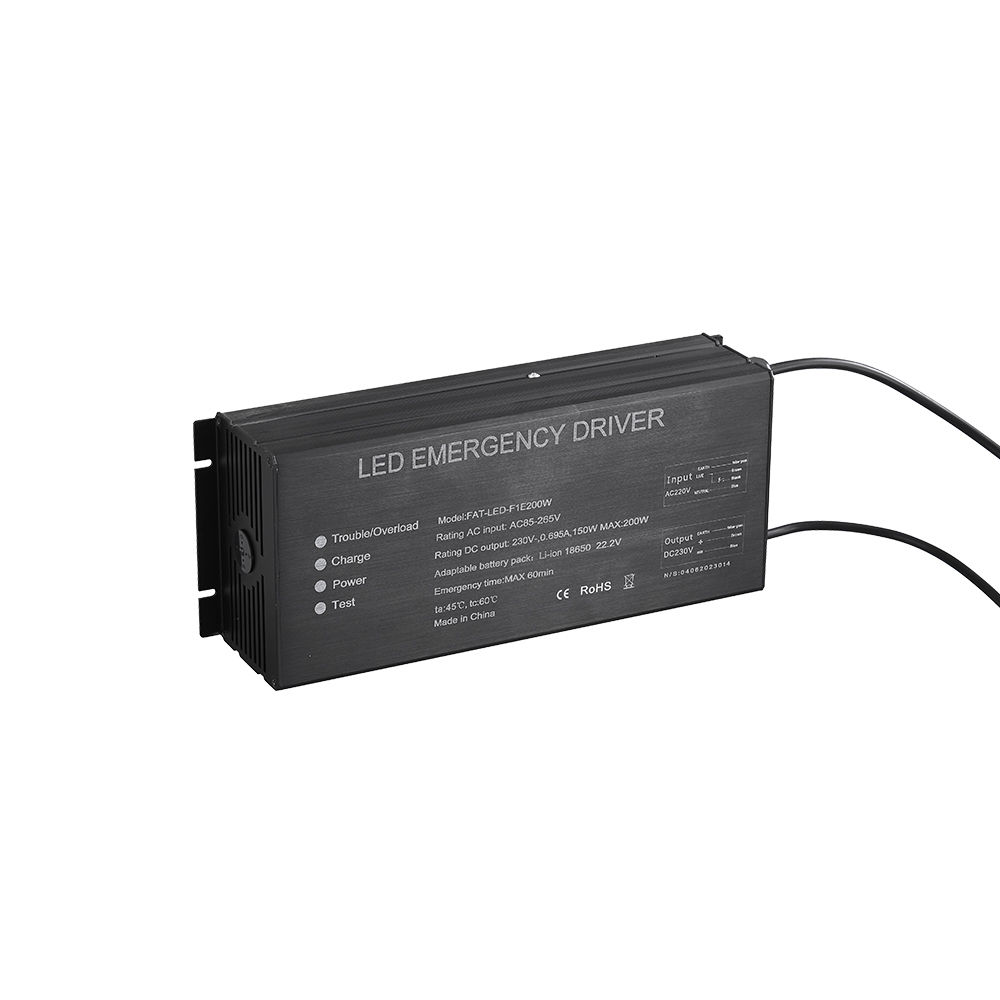

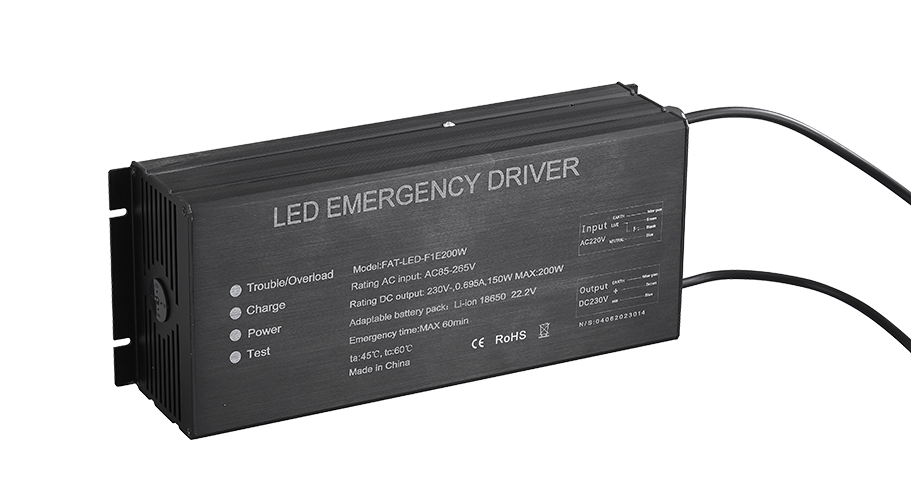

200W LED Emergency Driver External Test Button & Three-Color LED Indicator

Specifications

200W LED emergency driver.

IP42 protection level.

Applicable to LED tunnel lamp, high bay light, flat lamp and other LED lamps.

Voltage protection: wide voltage input AC85V-265V

Safe Voltage Output

Overload protection: power over rated power 20% delay protection.

Overload protection: timely protection when power exceeds 50% of rated power.

Short circuit protection and no loading protection

High efficiency and low temperature extend lifespan ( > 30000 Hours).

External test button and three-color LED indicator

Battery: High capacity lithium ion battery with overcharge and over discharge protection.

the battery adopts BYD balanced charging scheme ensuring the parameters of each cell are balanced.

the patented control circuit is used in emergency driver, which makes it faster in conversion and a high efficiency of inversion.

the SMT technology ensures consistency of excellent performance of each product.

the emergency driver is small at size, compact in structure, convenient in installation and maintenance.

Battery Pack

High temperature resistant batteries

18650 22.2V Lithium-ion battery pack

Battery capacity is optional according to emergency time

Emergency power supply Specification

Model:FAT-LED-F1E100W

Material:ABS+Aluminum

Inputpower: 100-200W

Dimension:360*130*80CM

Emergency power for full power output

Charging Time: 24hours

Battery:li-ion 18650 22.2 V Group

Input voltage:85-265V

Output voltage:220-240V

Emergency time:60-180mins

Certificate: CE Rohs

Emergency power supply feature:

1. Input/output reverse wiring protection;

2. Overloading protection;

3. Load short circuit protection;

5. over charged and over discharged battery protection;

6. over-temperature protection;
