Dongguan Ziitek Electronical Material & Technology Ltd
China Manufacturer with main products: Thermal Conductive Pad, Graphite Sheet, Thermal Sil Pad, Silicon Potting Glue, PCM Phase Change Material, Thermal Grease, Thermal Tape,... |

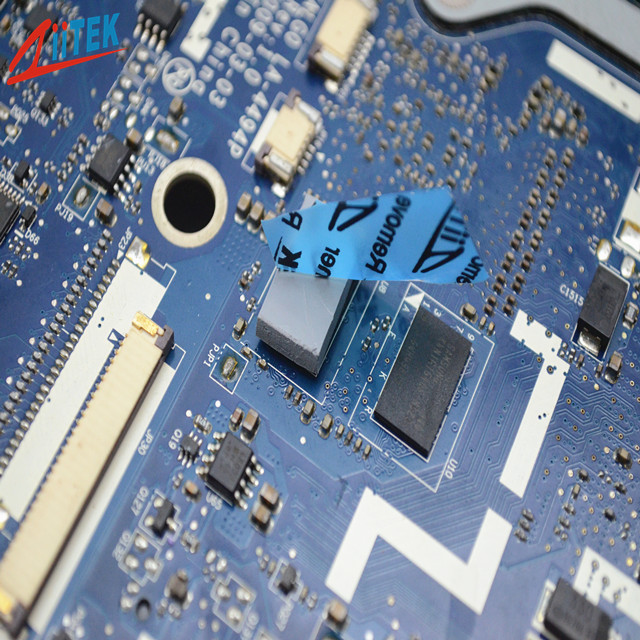

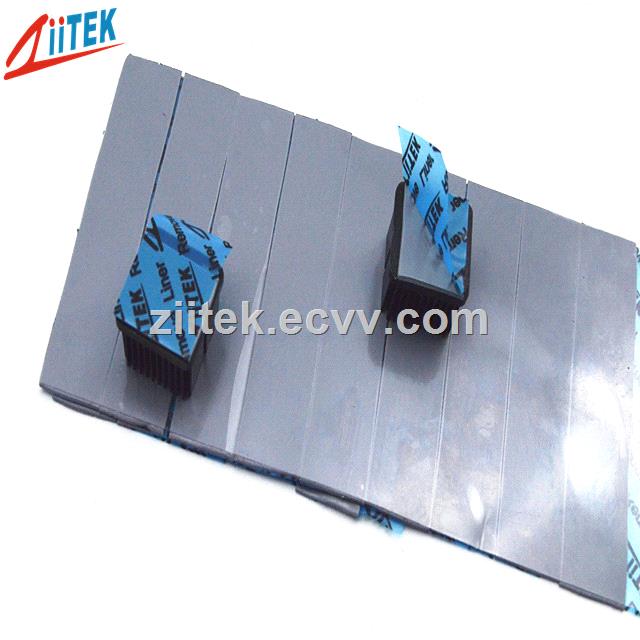

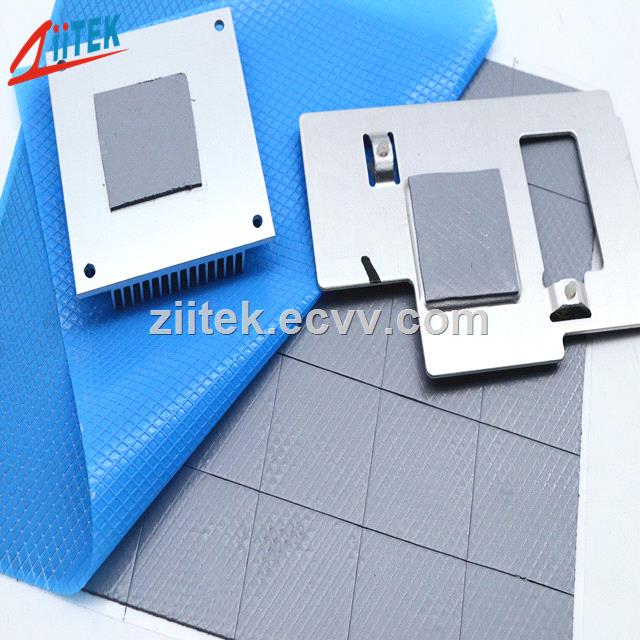

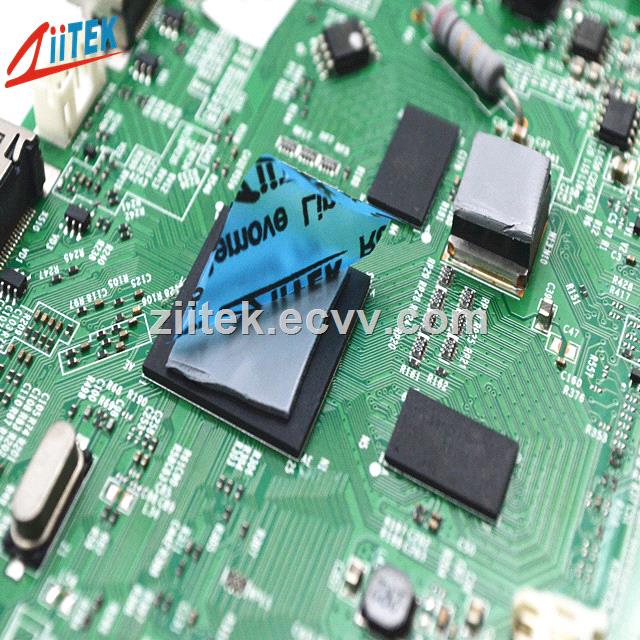

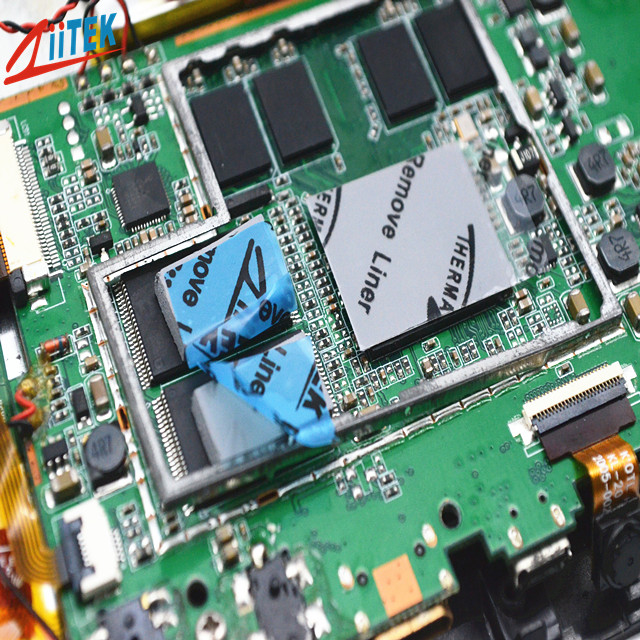

Wholesale Thermal Conductive Pad for CPU GPU
| FOB Price: | 1.00 - 18.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece(s) per Week |
| Shipping: | Dongguan |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | export carton |
Quick Details
- Rated Voltage: 94
- Application: High Temperature
- Material: Ceramic filled silicone elastomer
- Type: Insulation Sheet
- Brand Name: Ziitek
- Model Number: TIF840HP
- Thermal Conductivity: 12 W/mK
- Color: Gray
- Construction & Compostion: Ceramic filled silicone elastomer
- Thickness Range: 0.75mm~5.0mm
Specifications
Wholesale Thermal Conductive Pad for CPU GPU Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force. Featrues the TIF840HP Series Is recommended for applications that require a minimum amount of pressure on components. the viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF840HP Series is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices. Applications 94 V0 Standard Thicknesses: Reinforcement: TIF? Series sheets type can add with fiberglass reinforced. Certifications: ISO9001:2015 ISO14001: 2004 IATF16949:2016 IECQ QC 080000:2017 UL Questions: Q: Do you offer free samples? A: Yes, we are willing to offer free sample. Q: What is your terms of payment? A: Payment<=2000USD, T/T in advance. Paying in time and faithful for several months, we can apply other payment term for you, pay together in every month or 30 days. Q: how do I request customized samples? A: to request samples, you can leave us message on website, or just contact us by send email or call us. Our services Online-service: 12 hours, Inquiry reply within fastest. Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8). Well-trained & experienced staff are to answer all your inquiries in English of course. Standard Export Carton Or Marked with Customer's Information Or Customized. Provide free samples after-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof. We will help you to deal with it and give you satisfactory solution.
Company
Available in varies thicknesses Broad range of hardnesses available Moldability for complex parts Outstanding thermal performance High tack surface reduces contact resistance RoHS compliant UL recognized Fiberglass reinforced for puncture, shear and tear resistance Easy release construction Set top boxes Audio and video components IT infrastructure GPS navigation and other portable devices CD-ROM, DVD-ROM cooling LED Power Supply LED Controller LED Ceilinglamp Monitoring the Power Box AD-DC Power Adapters Rainproof LED Power Waterproof LED Power
Typical Properties of TIF840HP SeriesColor
Gray
Visual
Composite Thickness
Thermal Impedance @10psi
(℃-in2/W)Construction &
CompostionCeramic filled silicone elastomer
***
10mils / 0.254 mm
0.16 20mils / 0.508 mm
0.20 Thickness Range
0.75mm~5.0mm
ASTM D297
30mils / 0.762 mm
0.31 40mils / 1.016 mm
0.36 Hardness (Shore 00 ≥0.75mm)
40
ASTM D374
50mils / 1.270 mm
0.42 60mils / 1.524 mm
0.48 Hardness (Shore 00 0.75mm)
65
ASTM D297
70mils / 1.778 mm
0.53 80mils / 2.032 mm
0.63 Continuos Use Temp
40 to 160℃
***
90mils / 2.286 mm
0.73 100mils / 2.540 mm
0.81 Dielectric Breakdown Voltage
≥5500 VAC
ASTM D149
110mils / 2.794 mm
0.86 120mils / 3.048 mm
0.93 Dielectric Constant
4.5 MHz
ASTM D150
130mils / 3.302mm
1.00 140mils /3.556 mm
1.08 Volume Resistivity
1.0X1012
Ohm-meterASTM D257
150mils / 3.810 mm
1.13 160mils / 4.064 mm
1.20 Fire rating
E331100
170mils / 4.318 mm
1.24 180mils / 4.572 mm
1.32 Thermal conductivity
12.0 W/m-K
ISO22007.2.2
190mils / 4.826 mm
1.41 200mils / 5.080 mm
1.52
12.0 W/m-KASTM D5470
0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF? Series Individual die cut shapes can be supplied.
