Customizable Four-Axis Non Stop Turret Slitting Rewinding Machine for High Volume Production

Specifications

Product Description: the automatic slitting and 4 axis no stop turret rewinding machine is equipped with various advanced functions such as automatic threading, automatic gluing (optional glue-free), and automatic sealing or labeling. It has the capability to perform non-stop rewinding online and can be seamlessly connected to other equipment such as die cutting machines, slitting machines, and flexographic printing presses.

the rewinder is designed with interchangeable inflatable air shafts in sizes of 1 inch, 1.5 inches, 40mm, and 3 inches, providing a versatile and efficient solution for reducing labor and improving productivity.

Our cutting-edge machine is specifically designed for high-efficiency cutting and rewinding of small label rolls.

the production of adhesive paper sticker labels is made possible with various methods, including vertical and horizontal flexographic printing machinery. with our state-of-the-art machine, precision and consistency are guaranteed in the production process.

Our machine is capable of accommodating different label sizes and shapes through the use of intermittent semi and fully rotary die cutting machinery, as well as flatbed die cutting machinery.

to ensure efficient production, our high-speed slitting machinery is also available for creating adhesive sticker labels on paper. this guarantees the neat and accurate cutting of labels, making them ready for use.

this machine is suitable for various materials, including blank labels and adhesive paper.

• Glueless technology for eco-friendly and cost-saving production
• Automatic tail sticking for label tail closure
• Automatic paper core loading
• Automatic roll eject (gluing type turret rewinding machine for labels)
• Servo-driven with accurate loop consent tension control
• Precisely cut in the gap between labels

• Increase in production capacity by 20% compared to other brands
• Improved finished product quality
• Reduced material waste
• Competitive prices
• No creases on labels
• Zero waste
• Cost-saving on glue
• Reduced electricity consumption

Brand Name: Supreme

Model Number: SZ-330

Place of Origin: Wenzhou

Certification: CE

Minimum Order Quantity: 1

Price: negotitaon

Packaging Details: fumigation wooden box

Delivery Time: 60 working days

Payment Terms: TT

Supply Ability: 30set/mont

Color: Customized(standard Grey White)

Label: Paper Adhesive Sticker

Speed: up to 120 M/min

Voltage: 220V/380V

Number of Spindles: 4 Four

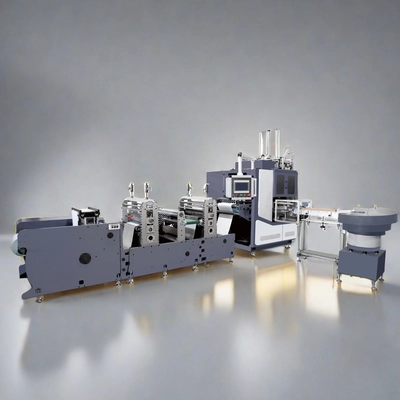

this is the Supreme SZ-330 Label Turret Slitting Rewinding Machinery, the latest innovation for small label rolls automatic cutting and rewinding with high-efficiency. It is an intelligent narrow web label sticker automatic production converting equipment that does not require any glue or stoppage during operation. with its four spindles and two shafts, making it a versatile and efficient machine for label production.

Our non stop no glue free glue-less 4 four spindle 2 shaft Label turret slitting rewinding machinery is carefully packaged and shipped with the utmost care to ensure safe delivery to our customers.

• the machinery is first wrapped in protective materials to prevent any scratches or damage during transportation.
• It is then placed in a sturdy wooden crate to provide additional protection.
• the crate is sealed and labeled with the necessary shipping and handling information.

• We offer worldwide shipping options to meet the needs of our customers.
• the machinery is shipped via air or sea, depending on the destination and customer preference.
• Our team works closely with trusted shipping partners to ensure timely and secure delivery.
• Customers will receive a tracking number to monitor the progress of their shipment.

for any additional packaging or shipping requests, please contact our customer service team for assistance.

Standard with the machine:
1. Rewinding machine: SZ-330/SZ-450/SZ-570: 1 piece
2. Tube delivery rack: 1 piece

3. Vibration plate:1 piece
4. Air shaft:SZ-330/SZ-450/SZ-570:12 pieces

5. Tool box: 1 box

6. Internal hexagonal wrench:1 set

7: open spanner:10-17:1 group

8: Slotted screwdriver and cross screwdriver: 1piece/each

9: Level adjuster screw: 4 piece

10: circlip plier: 6#: 2 pieces

11:Oil gun: 1 piece

12:magnetic valve:DC24V:2 pieces

13:Relay:DC24V:2pieces

14:encoder:DBS36E-S3AK02000: Germany Sick: 1 piece

15:330/450/570 knife:1 pieces

16:Auto labeling device:1 set
