Jinan Cikor Machinery Co., Ltd.

China Manufacturer with main products: Industrial Chiller, Water Chiller, Air Cooled Chiller, Water Cooled Chiller, Chiller, Gear Pump, Chiller for Plastic Industry, Chiller for...

Home >Products Catalog > Industrial Chiller for Chemical&Pharmacetical Industry Cooling

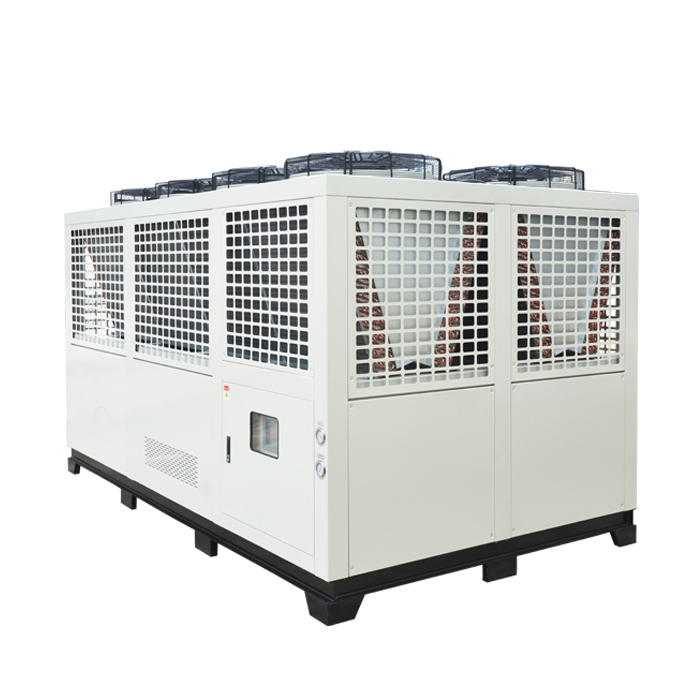

Industrial Chiller for Chemical&Pharmacetical Industry Cooling

FOB Price:	12000.00 - 35000.00 USD/Piece
Supply Ability:	500 Piece(s) per Month
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	Plywoode case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE
Voltage: 380/415/440V
Cooling Capability(kw): 150kw
Brand Name: CIKOR
Warranty: 1 YEAR
Type: Air-Cooled
Condition: New

Specifications

Air cooled screw chiller features

Cooling capacity:78~600kw

New generation screw compressor with high operation efficiency

most efficient full load and part load operation

Variable speed drives option

Easy to install,operation and maintenance

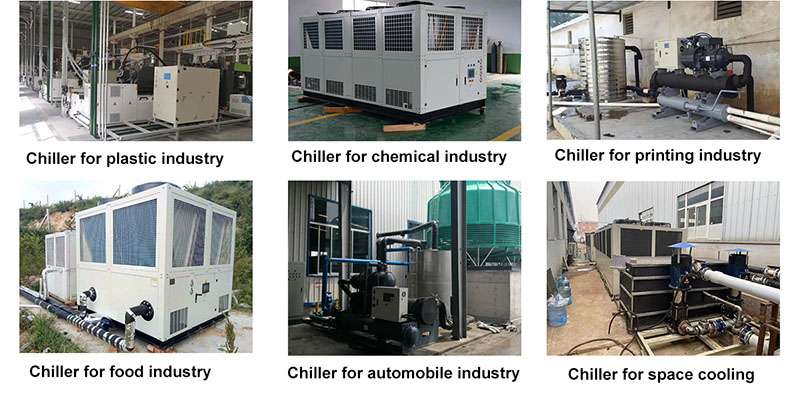

Customer user site of water chiller
Industrial chiller for chemicalpharmacetical industry cooling

Air cooled screw chiller specifications

Model		CK-80C	CK-110C	CK-140C	CK-155C	CK-200C	CK-260C	CK-300C	CK-420C	CK-520C	CK-600C
Cooling Capacity	USRT	22.5	31.0	40.7	43.5	58.6	72.8	87.3	120.6	149.8	174.6
	Kcal/h	67940	93740	122980	131580	177160	220160	264020	364640	453220	528040
	(KW)	79	109	143	153	206	256	307	424	527	614
P ow e r		3PH-380/415/440/460V-50/60Hz
Refrigerant	Type	R22/R407C/R410a
Refrigerant	Control	Thermostatic expansion valve
Compressor	Type	Semi-closed screw type
	Power(kw)	28	37	46	51	66	79	94	127	160	182
	Start	Y-
	Capacity Adjust	33%-66%-100%			25%-50%-75%~100%
Evaporator	Type	High efficiency copper tube shell and tube type
	Water flow (m3/h	14	19	25	26	35	44	53	73	90	105
	Inlet/outlet	DN65	DN65	DN80	DN80	DN80	DN80	DN80	DN100	DN125	DN150
Condenser	Type	High Efficiency hydrophilic Aluminum Foll finned type
Condenser	Flow(m2/h)	30000	40000	50000	60000	80000	10000(	120000	160000	200000	240000
Protection System			CompresSor overheat protection,high/low pressure protection,phase missing/sequence protection,flow rate protection,anti-frozen Protection
Dimension	L(mm)	2720	2450	2380	3250	4050	4050	4950	4680	5780	6680
	W(mm	1120	1400	1900	1950	1950	1950	195C	2250	2250	2250
	H(mm)	1800	2110	1950	2000	2000	2100	2100	2460	2460	2460
Weight (kg)		1800	1900	2300	2480	3000	3100	3600	5000	6000	6800

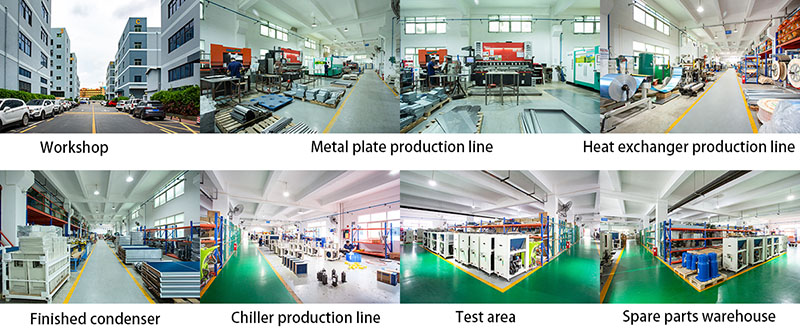

Industrial chiller factory
with 16 years of experience,our workers have superb assembly skills. and our factory equipped with advanced evaporator and condenser production line,we take pride good quality with in competitive price.Industrial chiller cooling capacity ranges from 1.5~1160kw.
Industrial chiller for chemicalpharmacetical industry cooling
