Home >Products Catalog > Compact Design 6 Colors Letterpress Label Printing Press Intermittent /Rotary with Web Guider, UV Varnish Function,

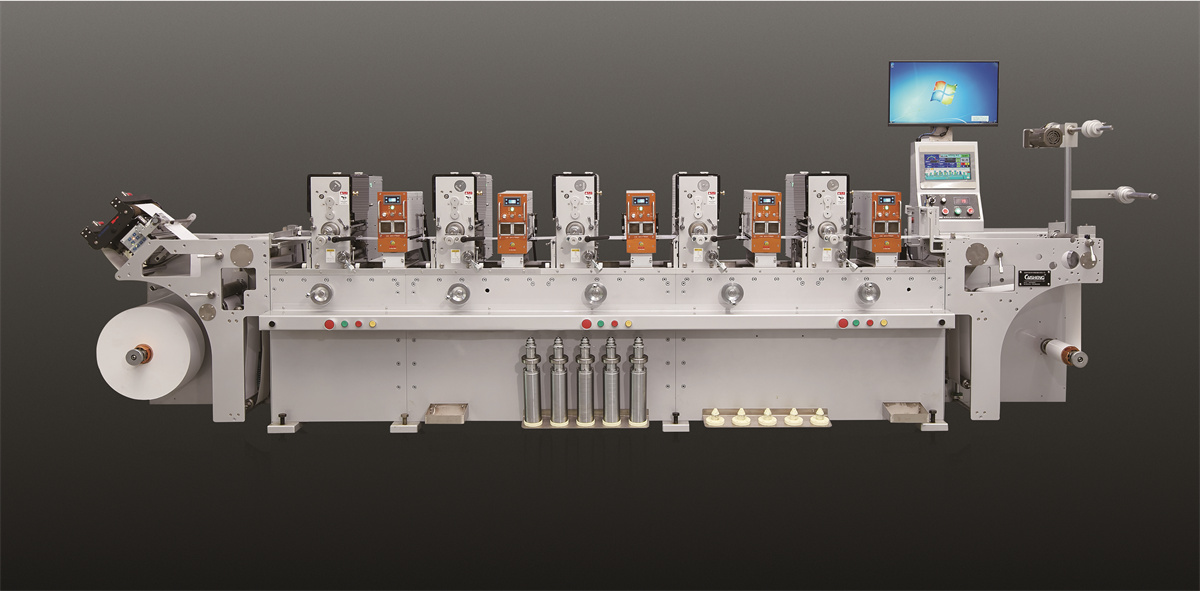

Compact Design 6 Colors Letterpress Label Printing Press Intermittent /Rotary with Web Guider, UV Varnish Function,

FOB Price:	85000.00 - 120000.00 USD/Set
Supply Ability:	20 Set(s) per Month
Shipping:	FCL shipment ,FOB Shenzhen
Payment Terms:	T/T

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, Eastern Europe, Southeast Asia, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	each set in a wooden case

Quick Details

Type: Flexographic Printer
After-sales Service Provided: Engineers available to service machinery overseas
Color & Page: Multicolor
Usage: Label Printer
Brand Name: CAISHENG
Condition: New
Weight: 4000KG
Dimensions(L*W*H): 460*90*225cm
Gross Power: 13KW
Voltage: 380V,there phrase
Automatic Grade: Semi-Automatic
Model Number: CS-220-5C
Plate Type: Letterpress

Specifications

1.Brief Introduction:

5 colors Letterpress Label Printing Press with Web Guider, UV Varnish Function
3 modes: intermittent,full rotary,2nd pass printing

Compact design 5Colors Letterpress Label Printing Press Intermittent Rotary with Web Guider UV Varnish Function

2.Techincal parameters:

item	CS-220-5C
Paper Width	50-240mm
Full Rotary	245220mm
Intermitten Printing distance	30mm-200mm
Printing Speed	200r/min
Max Print Width	220mm
UV Dryer	Water-cooled LED
with Web Guiding System	Yes
Machine Weight	4000kg
Main Power	13KW

3.Performance features:
A). Adopt imported servo system and flexible motion control.

B). Computer-controlled ink supply system ensures stable and accurate ink transfer.

C). the maximum printing area at full sizes (full rotary mode ): 245mm*220mm.

D). High-speed and precise positioning, accelerate and decelerate without moving, with good stability.

E). Adopt high-precision gears, smooth high-speed operation and low noise.

F). the LED water-cooled UV dryers to achieve the effect of low temperature paper not deforming and ink completely drying.

G). High-speed color mark electric eye alignment ensures high-quality secondary overprinting and reduces material waste.

H). Easy to operate,save time and labour cost.

I). the printing tension can be adjusted freely according to the needs of different printing materials.

J). Compact size for less space occupation.

K). It can be equipped with varnish seat, magnetic circular knife die-cutting seat, etc. It is widely used in food, daily chemicals, medicine, electrical appliances, electronics, mobile phone films, hardware, gifts and toys and other industries.
