Home >Products Catalog > High-Quality 7-Roll Ss Copper Aluminum Pipe Bending Machine for Boiler Components

High-Quality 7-Roll Ss Copper Aluminum Pipe Bending Machine for Boiler Components

Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China

Quick Details

After-sales Service Provided: Overseas service center available
Automation: Automatic
Power: Cnc
Brand Name: CFBP
Condition: New
Material / Metal Processed: Stainless Steel
Raw Material: Pipe
Machine Type: Pipe and Tube Bending Machine
Model Number: WFY7-75
Main Power(Kw): 7.5

Specifications

Product Description

----------------------------------------WFY7-------------------------------------------
Basic parameters

item	Value
Material / Metal Processed	ALLOY, Brass / Copper, Carbon steel, Stainless steel, Aluminum
Condition	New
Max. Bending Angle (Deg)	360
Bending Precision (Deg)	±0.1mm
Place of Origin	China
	Henan
Brand Name	Changfenglengwan
Automation	Automatic
Extra Services	Machining
Year	2024
Power (kW)	7.5
Weight (KG)	2900
Warranty	1 Year
Applicable Industries	Other
Key Selling Points	High Productivity
Showroom Location	None
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Motor, Pump, Gear

Processing capability

model Technical Parameter			WFY7 series
model Technical Parameter			WFY7-30	WFY7-50	WFY7-75	WFY7-108
Maximum bending section modulus of the profile cm 3			5	12	21	50
Bending speed m/min			0-6	0-8	0-8	0-8
Yield limit of profile MPa			355	355	355	355
Main motor power KW			3	5.5	7.5	15
Bending coil ability	Round pipe	Maximum cross-sectional model	283	515	765	1088
	Round pipe	Maximum bending radius mm	70	135	200	400
	Round pipe	Maximum cross-sectional model	61	181.5	201.5	382
	Round pipe	Minimum bending radius mm	30	60	80	150

Product Introduction

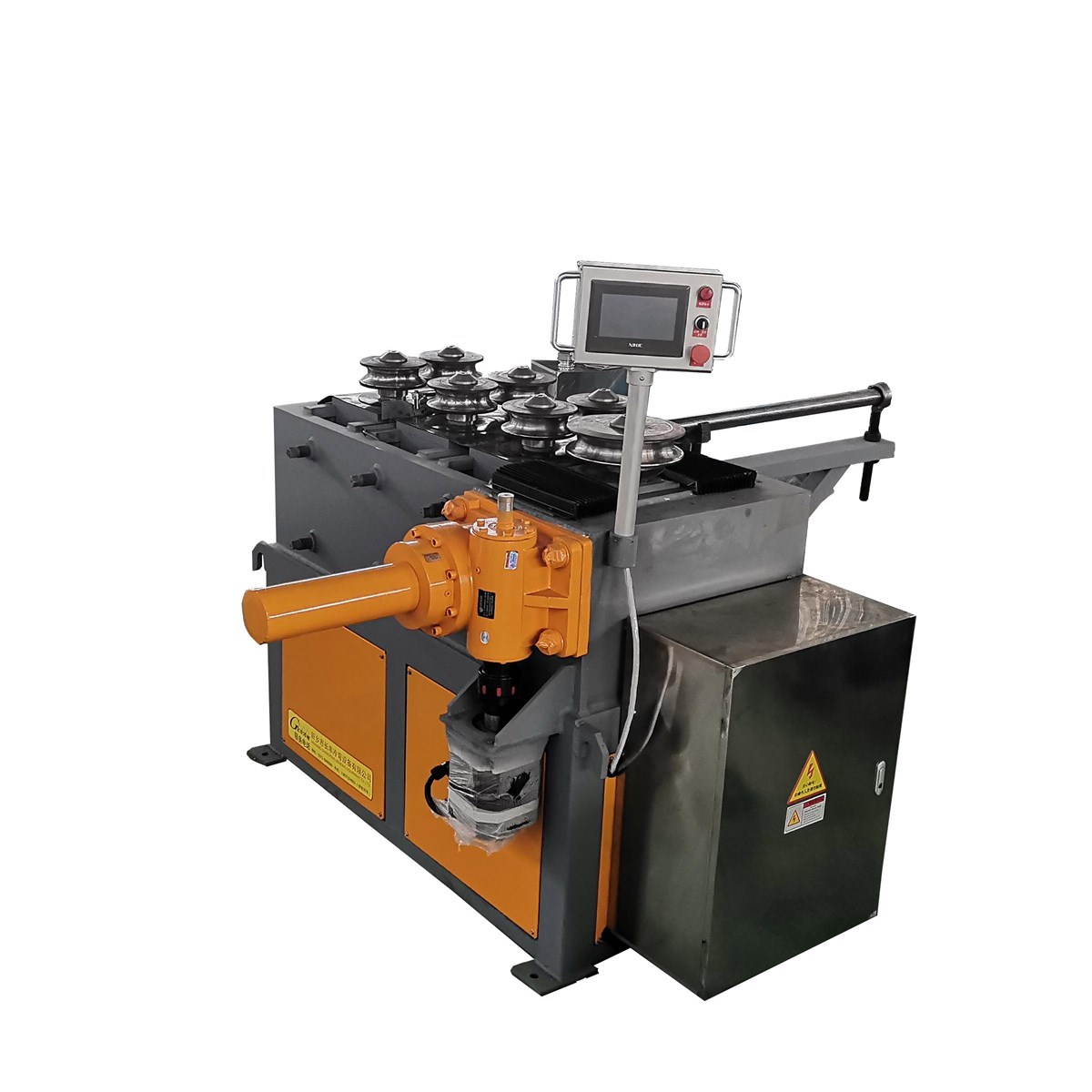

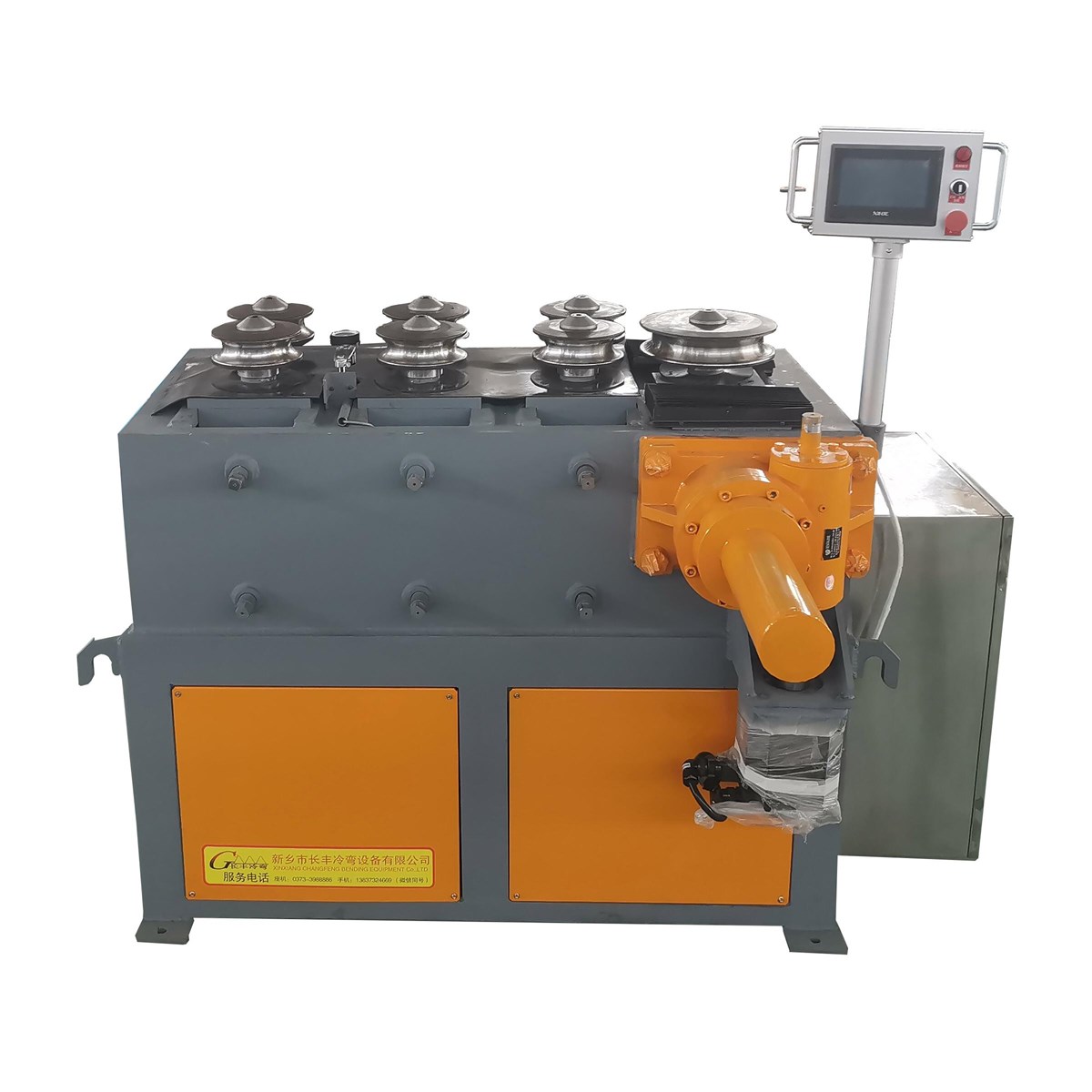

WFY7 series metal profile bending forming machine

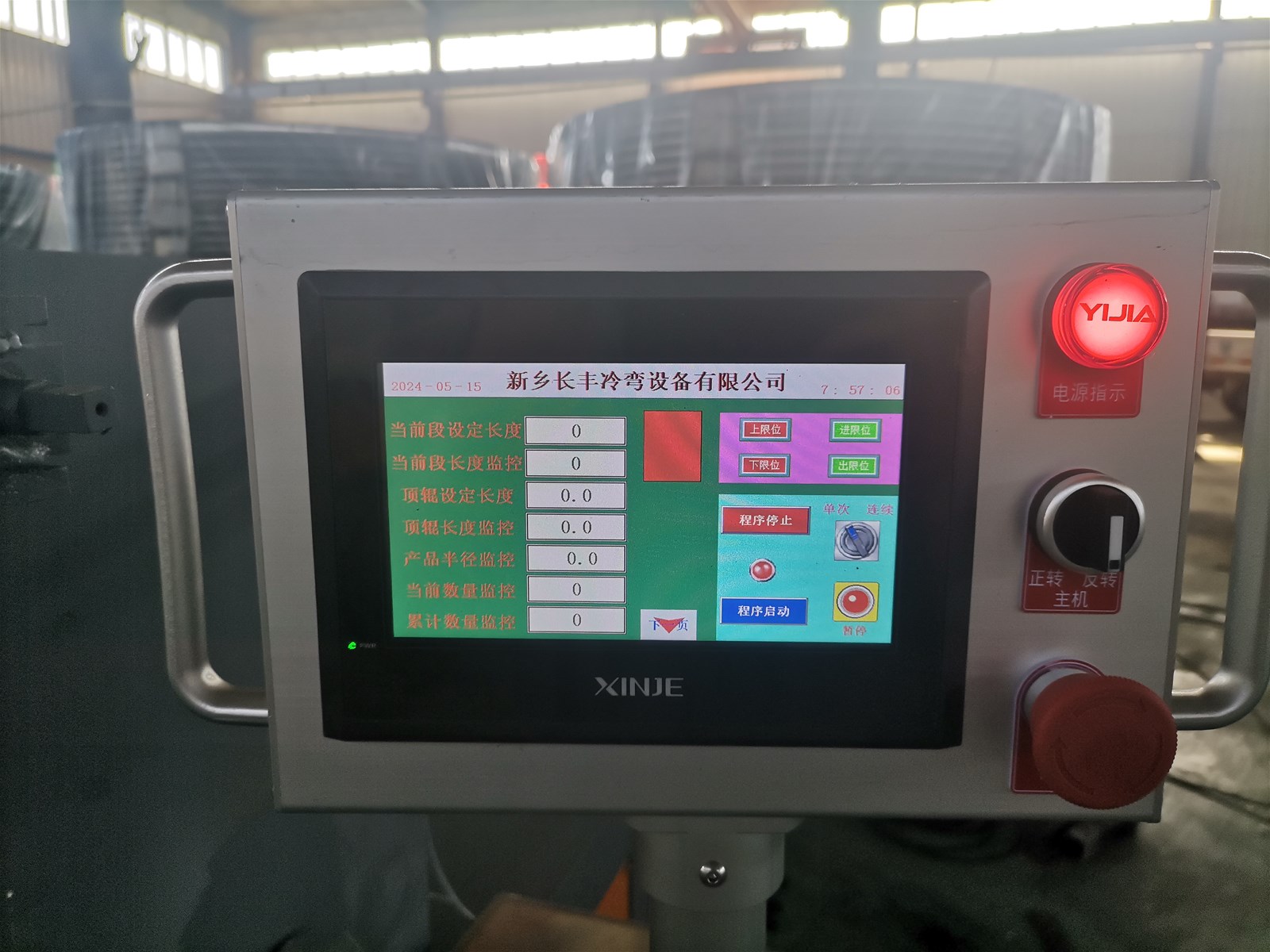

the WFY7 series metal profile bending forming machine is mainly composed of a host, control system, auxiliary equipment, and other parts. The host is the core part of production, responsible for the cold bending forming of profiles. The control system is responsible for controlling the operation of the production line, including adjusting parameters such as speed and pressure. Auxiliary equipment includes feeding racks, cutting equipment, etc., responsible for the auxiliary actions of material feeding and discharging. The production line has the characteristics of precise molding and labor-saving, We can customize CNC control systems according to customer needs to meet higher customer requirements.

the purpose and scope of application

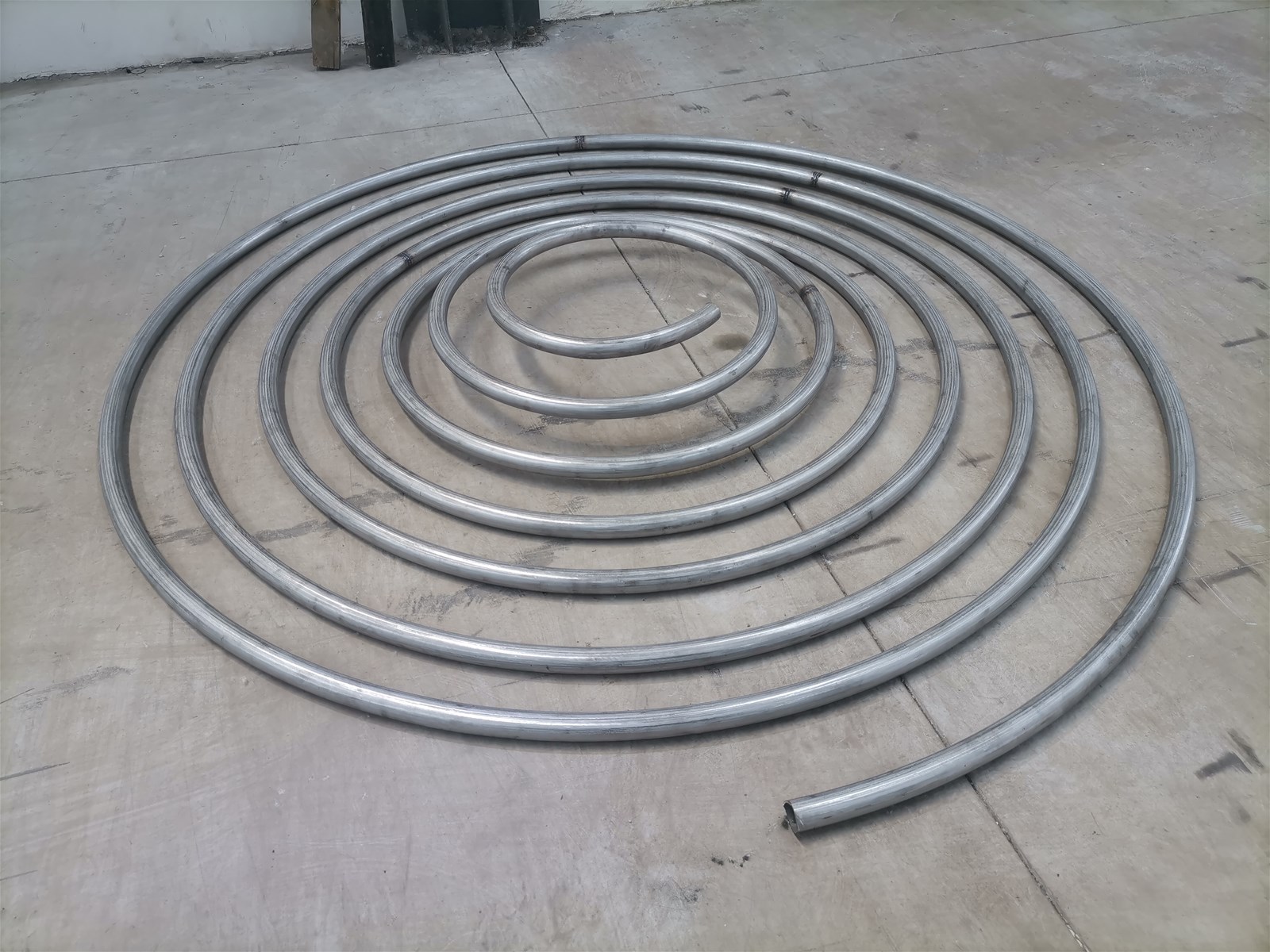

the WFY7 series metal profile cold bending forming machine is a specialized equipment for bending and forming profiles such as evaporators and heat exchangers. It can bend metal profiles into small diameter cylindrical, curved, or spiral workpieces without changing the cross-sectional characteristics. It is widely used in industries such as evaporators, heat exchangers, petroleum, chemical, hydropower, metal structures, and mechanical manufacturing.

It has a reasonable structure, small size, convenient operation and maintenance, and reliable use.

Advantages
at present, the commonly used seven roll metal profile bending forming equipment box structure on the market mostly consists of a fixed plate slide and a power device connected above, forming a fixed "ten" shape. Our box forming roller shaft adopts a double sliding "H" type fixed shaft, with an overall load-bearing box structure. Processing profiles can better ensure that the level of the processing roller shaft is consistent. More precise molding.

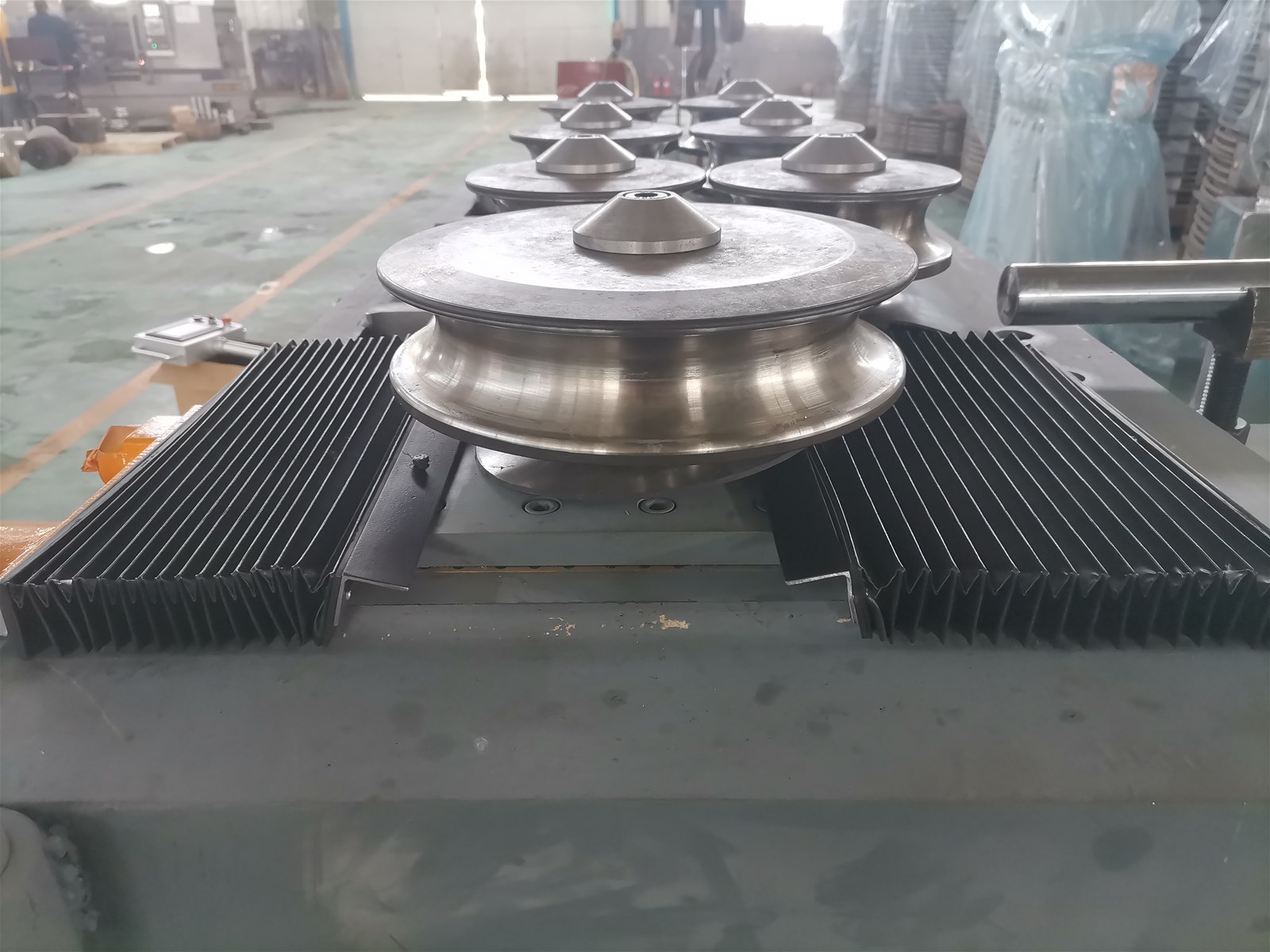

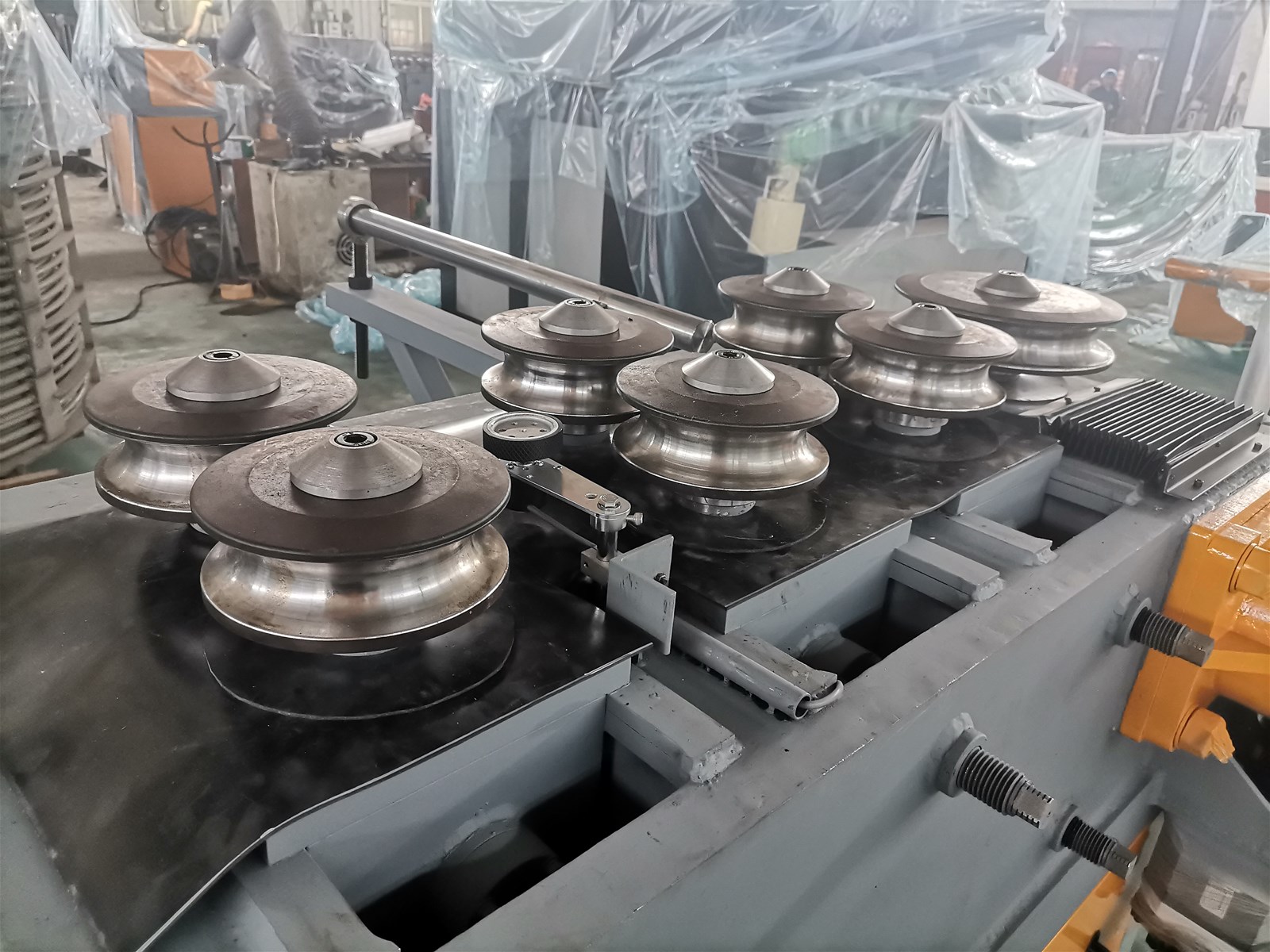

at present, the commonly used seven roll metal profile bending forming equipment on the market is a row of parallel "one" shaped feeding rollers for active feeding. the opposite roller is a passive roller shaft, and no feeding force is applied to the feeding. Our system is equipped with 5 active feeding rollers for material feeding, and double roller wheels for material support and auxiliary forming. Accurate and efficient, meeting the bending limit of materials, even the smallest diameter of larger materials can be formed in one go, making it the preferred forming and rolling equipment for configuring production lines.
According to customer requirements, the WFY 7 series metal profile cold bending forming machine can be equipped with a cutting device, and can be upgraded to stroke CNC or profiling CNC on the basis of the original hydraulic system. It can improve the service life of the machine while saving more manpower.
Equipment Usage
1.Cost performance
the ultimate goal of purchasing equipment is to pursue profit, efficiency is the guarantee of profit, and pursuing efficiency is to pursue cost-effectiveness.Considering equipment and personnel allocation comprehensively, saving and reducing manpower is an important component of increasing cost-effectiveness.
2.Stability
at the same time, stable equipment operation and stable personnel operation are required; Stable output of finished products and personnel turnover without affecting startup.
Fully consider the service life of the equipment.
3.Echnology
Choose a partner who has the ability to undergo technological changes and upgrades. the path forward includes both length and width.
Choose partners with technical capabilities and promising development prospects to ensure after-sales service.

Company Profile

Xinxiang Changfeng Bending Equipment Co., Ltd. Is a certified high-tech enterprise with independent intellectual property rights and research and development manufacturing capabilities. It independently manufactures, sells, and serves bending forming equipment.

FQA

1. how to safely use coil machine equipment?
the coil machine equipment may encounter safety issues during use, so the staff of Changfeng Cold Bending Equipment will teach everyone how to use the coil machine equipment correctly and safely. Firstly, during the use of coil machine equipment, attention should be paid to the changes in the distance between the adjustment rollers, and the rotation status during equipment operation should also be noted. If the equipment reaches the limit value, the operation of the equipment should be stopped to avoid accidents. Secondly, the coil machine equipment needs to be regularly maintained and repaired during use, especially the various transmission mechanisms and connecting components of the equipment. Regularly check for any damage or looseness in each component of the equipment. At the same time, during the operation of the equipment, it is also necessary to pay attention to checking that there is no slipping between the plate and the roller surface. In addition, during the operation of coil machine equipment, if there is oil leakage, vibration, or abnormal noise, the equipment should be stopped and inspected in a timely manner to avoid serious damage to the equipment. At the same time, personnel should not approach the equipment during operation, otherwise accidents may occur. The above is the safe usage method for coil machine equipment. We hope everyone can refer to the above content more when using this equipment in the future.
2. What is the impact of uneven heating during the use of coil machines?
in the process of using coil machine equipment, it is necessary to choose the appropriate equipment model based on the size of the processing material, so that the equipment can fully play its role. In addition, uneven heating may occur during the use of coil machine equipment. below, the staff of Changfeng Cold Bending Equipment will introduce the impact of uneven heating during the use of the equipment. Firstly, if uneven heating occurs during the use of coil machine equipment, it will cause thermal stress in the equipment. At the same time, as the processing speed increases, the thermal stress will also increase, which may cause deformation of the equipment and also affect the degree of deformation of the processed parts. In addition, if the heating of the coil machine equipment is not uniform during use, it may generate layout stress during the processing, which will affect the machining accuracy of the equipment and thus affect the accuracy of the processed parts. In short, the uneven heating of coil machine equipment has a significant impact in the later stage. Therefore, in the future, it is necessary to maintain a stable temperature of the equipment when using it, which can effectively reduce the deformation of the processed parts. In addition, if there are any unreasonable problems during the use of the equipment, please visit the official website of Changfeng Cold Bending Equipment for consultation and understanding.
3.Reasons and solutions for oil leakage in coil machine oil cylinders
Some customers may experience oil leakage in the oil cylinder of the coil machine equipment due to incorrect usage. What are the specific reasons for this phenomenon? Let's take a look together. The reason for oil leakage in the oil cylinder during the use of coil machine equipment may be due to sealing ring issues. Generally, sealing ring components have corresponding usage time, and after long-term use of the equipment, it may cause damage to the sealing ring components, leading to oil leakage in the oil cylinder of the equipment. Therefore, when using the equipment in the future, it is necessary to regularly inspect the sealing ring of the oil cylinder components of the equipment, If there is any damage, it should be replaced promptly. In addition, coil unit equipment is mainly composed of heat exchange coils, fans, and casing components. Its appearance and structure are beautiful, and it is also relatively convenient to use, while also meeting the needs of different customers. In short, if you encounter any problems during the use of the coil machine, you can directly enter the official website of Changfeng Cold Bending for consultation and understanding. At the same time, our company has many years of experience in producing and selling this product. Therefore, friends who want to purchase this product can also directly enter our official website for consultation and selection.
4. Tips for purchasing coil machines
the application range of coil machine equipment is relatively wide, and since there are many manufacturers producing this equipment on the market, how to purchase equipment has become a problem. below, the staff of Changfeng Cold Bending Equipment will analyze the purchasing skills of coil machine equipment. Firstly, when purchasing coil machine equipment, attention should be paid to whether the equipment has the function of saving materials. There are many types of equipment on the market, and some equipment may waste a lot of materials during use, which will increase production costs. Therefore, it is recommended to try to choose equipment that saves materials during the purchase of the equipment. Secondly, when purchasing coil machine equipment, it is also important to pay attention to the operational performance of the equipment. Due to differences in the functions and operating methods of different equipment, it is recommended to choose the type of equipment based on actual usage needs. In addition, during the purchase of coil machine equipment, attention should be paid to the size of the workpiece processed by the equipment, that is, the size of the workpiece that can be processed by different equipment is different. Therefore, it is recommended that everyone first understand and master the size of the later processed workpiece before purchasing the equipment, so as to select the equipment based on the actual size of the processed workpiece.
5. What services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: null;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
