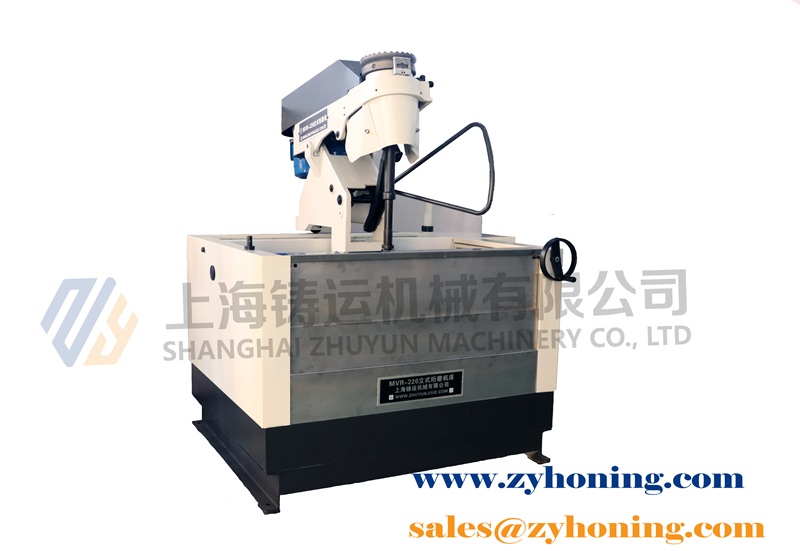

Vertical Honing Machine_MVR-220
| FOB Price: | 10000.00 - 20000.00 USD/Piece |
|---|---|
| Payment Terms: | T/T |
Related products from verified members
Quick Details
- Warranty: 102
- Power(W): 380V 50Hz 3 phase
- Weight: 1150Kg
- Voltage: 0.75KW
- Condition: New
- Dimension(L*W*H): L2000*W2000*H2200mm
- CNC or Not: Normal
Specifications
the following example is for you reference.
1.Brief Introduction:
MVR-220 machine tool is designed for large and medium-sized production of large parts: including various automotive engine block trial workshop processing, automotive engine refurbishment maintenance, various automotive cylinder repair and maintenance industries, large diesel engine connecting rod processing, large compressor cylinder Body processing, compressor cylinders for train air conditioning, oilfield components, porous natural gas/diesel cylinders, various cylinder liners, brake drums, large hydraulic components, and other similar applications.
2.Techincal parameters:
Honing range: 19-203mm
Workpiece weight: 680Kg (maximum load)
Spindle power: 2.2KW
Spindle speed: 90-350RPM stepless adjustable
Stroke power: 0.75KW
Stroke speed: 40-100 times / min Stepless adjustable
Stroke length: 0-225mm
Processing length: 470mm (maximum hole depth)
Cooling motor: 0.75KW
Power: 380V 50Hz 3 phase
Machine weight: 1150Kg
Fuel tank capacity: 208L
Machine size: L2000*W2000*H2200mm
3.Performance features:

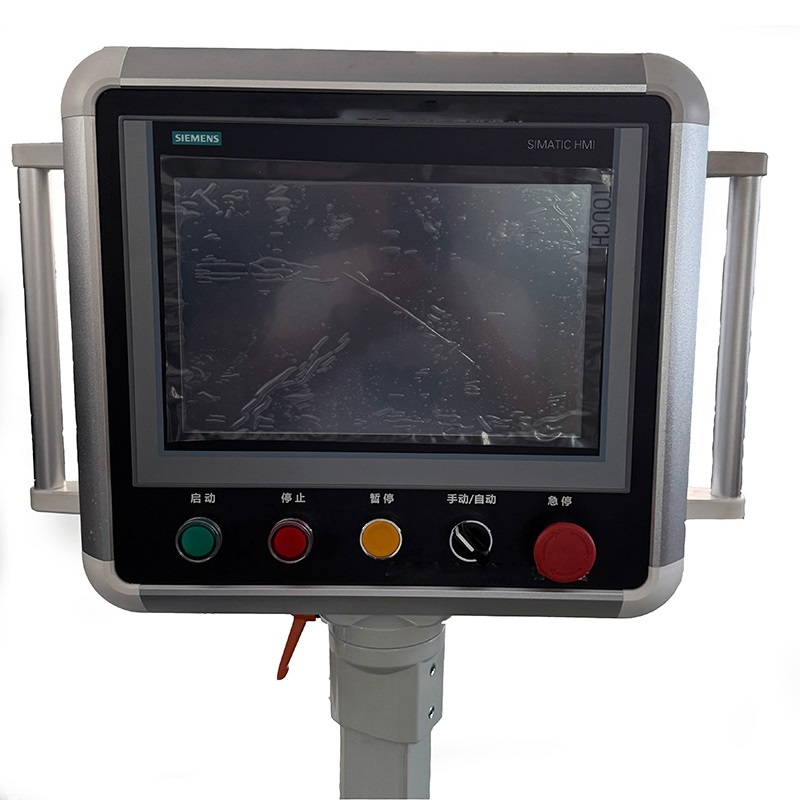

Equipped with a PLC computer to control the color operation screen for easy operation. Using Delta's the PLC processor displays the touch screen. the display shows the torque of the upper, middle and lower three different positions of each hole, from the consistency of the aperture can be judged. the stroke servo control ensures that the internal mesh is consistent, the angle of the mesh can be precisely controlled, and short strokes and short pauses can be realized at any position of the hole, and the end of the hole can also achieve high precision honing. the workbench is extremely simple. Regardless of the shape of the workpiece, the clamping is very convenient and reliable. When changing different workpieces, the tooling cost is extremely cheap
