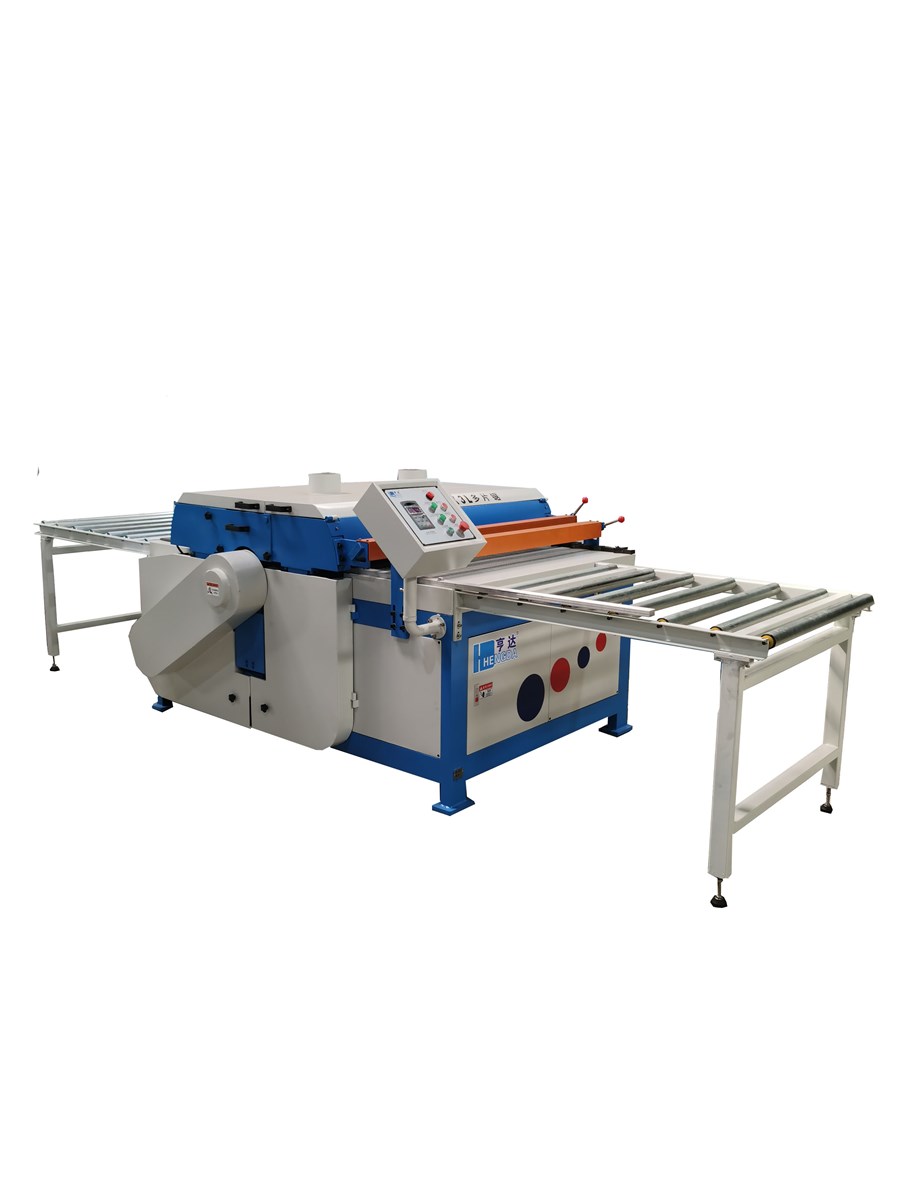

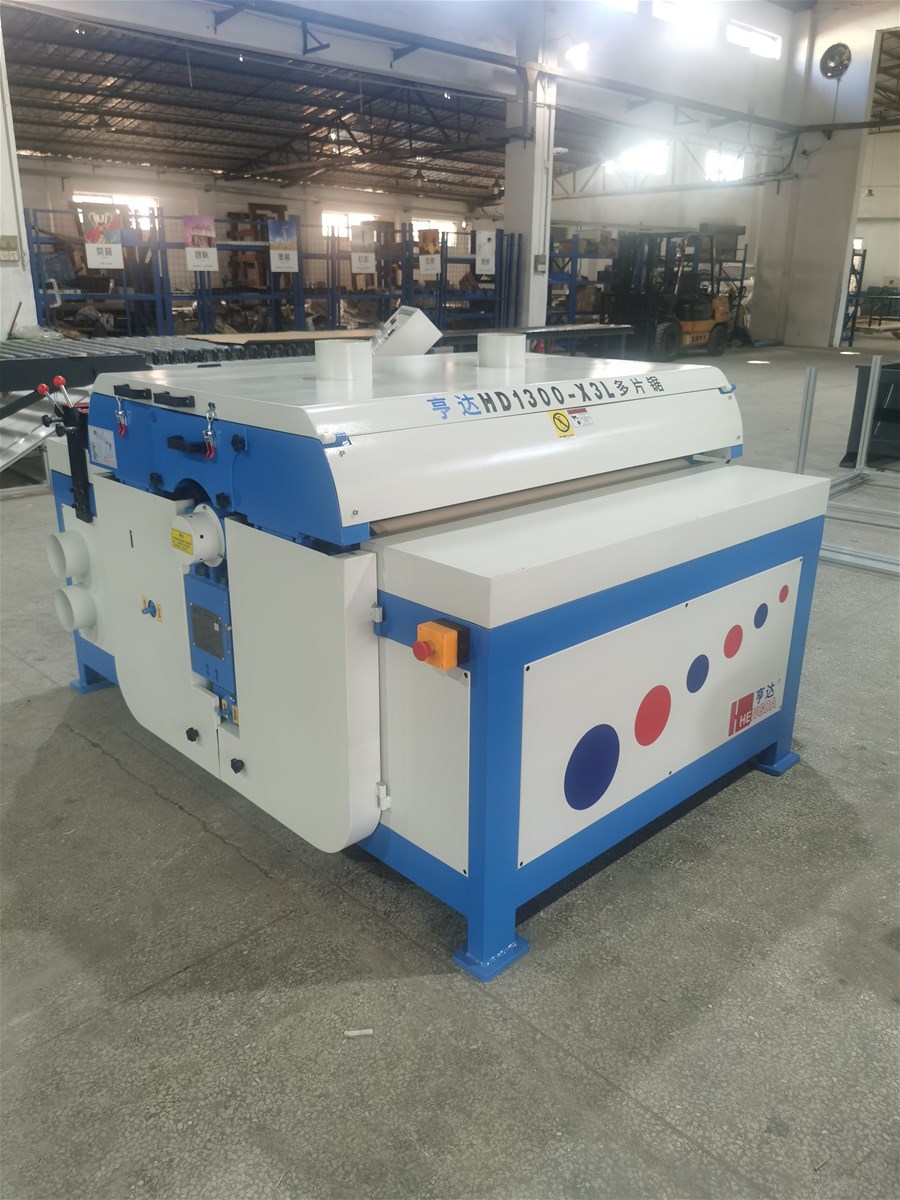

Wood Plank Multi Blade Rip Saw Machine Panel Multi Cutting Machine Wood Board Slitting Slotting Grooving
| FOB Price: | 5000.00 - 9000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set(s) per Month |
| Shipping: | Export plywood carton |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Brand Name: Misunda
- Style: Vertical
- Type: Rip Saw
- Condition: New
- Warranty: 2 yeras
- Certification: CE
- Weight: 2200KG
- Dimension(L*W*H): 2200*1800*1450mm
- Power(W): 23500
- Voltage: 220
- Usage: automatic
- Model Number: HD1300-X3L
- Use: Woodworking
Specifications
1.Brief Introduction:
APplication:CUtting of solid wood composite flooring, laminate flooring, panel furniture, sound-absorbing panels, wooden packaging boxes, laminated lumber, photo frames, bed frames, and other types of boards into multiple pieces of equal or varying specificationsat one time; processing grooves on the surface of the boards.
2.Techincal parameters:

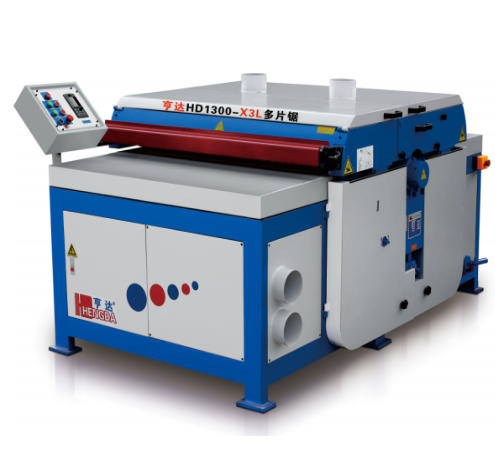

Model HD1300-X3L Cutting Width Capacity 1220mm, Max: 1260mm Workpiece Thickness Max: 30mm; Min: 5mm; Minimum processing length 550mm Spindle diameter 74mm Spindle speed 2600r/min Saw blade size 205*74*2.2*60T Spindle motor power 22kw Feeding motor power 1.5KW Total power 23.5KW Feeding speed 0-17m/min (adjustable by frequency conversion) Num. of feeding rollers 6/12 (first 3 groups and last 3 groups) Precision Opening width tolerance±0.2mm; Slat length 2.4 meters Straightness±0.5mm Dia. of chip extRactionduct 150mm*4pcs Dimension 2200*1800*1450mm Weight 2200kg
3.Performance features:
the frameadoptS standardized profiles, which undergo aging vibration and annealing post-welding, followed by integral processing. the frame's reference surface is precisely flattened, ensuring superior stability of the machine.
theSpindle bearing seat is crafted from high-grade ductile iron casting and annealed, guaranteeing stability and reliability during high-speed operation. theSpindleUndergoes hardening and tempering, coupled with dynamic balancing, resulting in minimal vibration and robust durability.

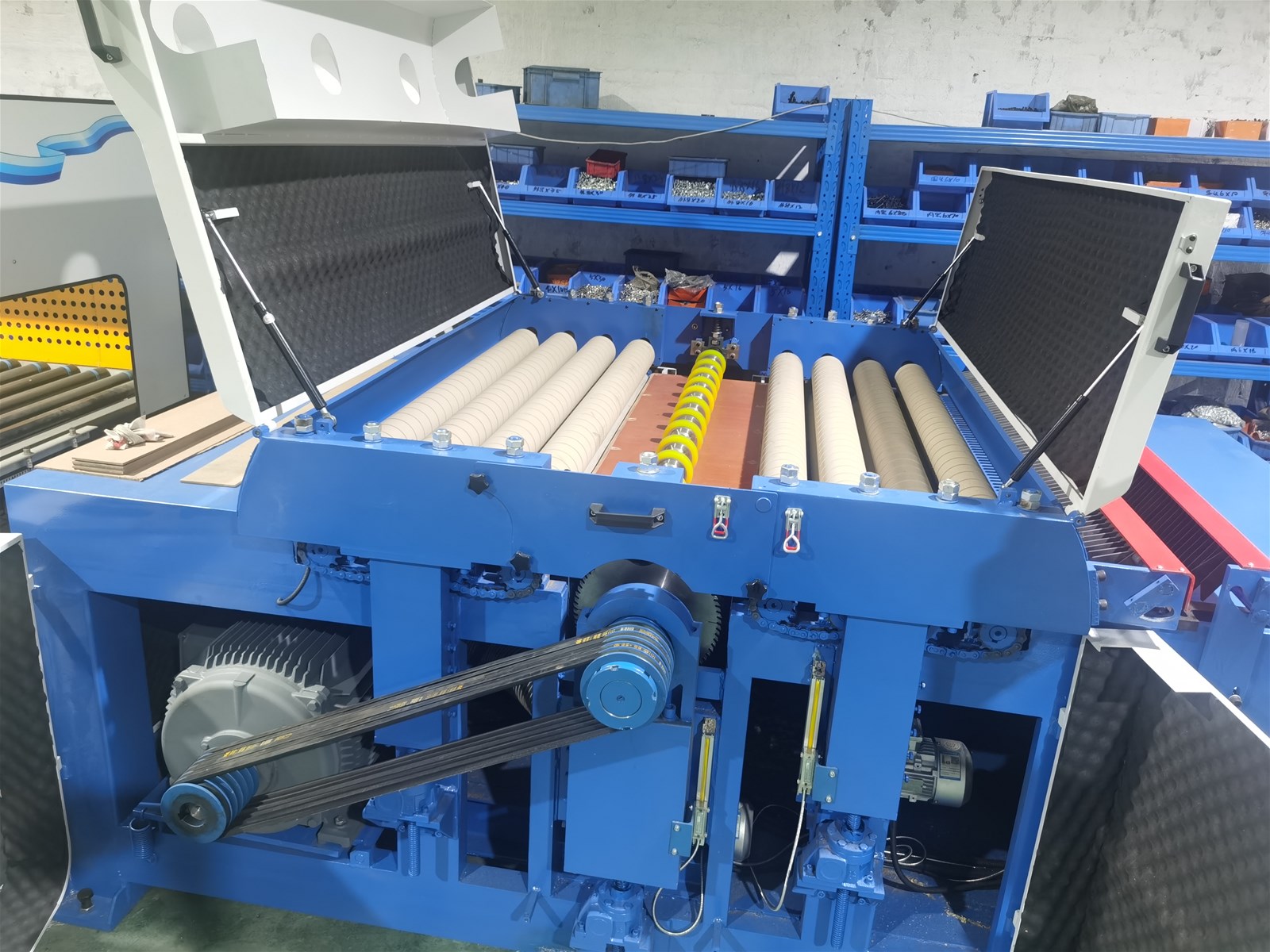

The machine features a closed safety cover and an automatic power cutoff protection device upon opening, ensuring safety and reliability in operation.
the material pressing mechanism of this machine utilizes manual synchronous lifting and lowering. the eight sets of pressing rollersadopt a stable spring clamping method, ensuring synchronized pressing and quick, convenient adjustments.
Equipped with a variable frequency motor for feeding,Saving power, flexible, and precise, resulting in smooth sawing edges and reduced wear on the saw blade.

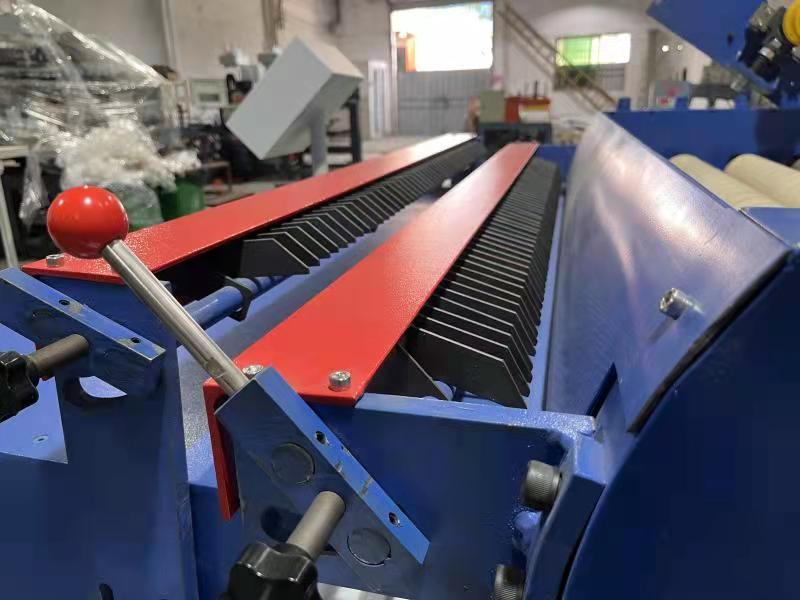

Enhanced safety. A dual anti-rebound protection system is implemented: a set of anti-rebound protection devices that adjust with the plate thickness, coupled with a fixed anti-rebound protection device.

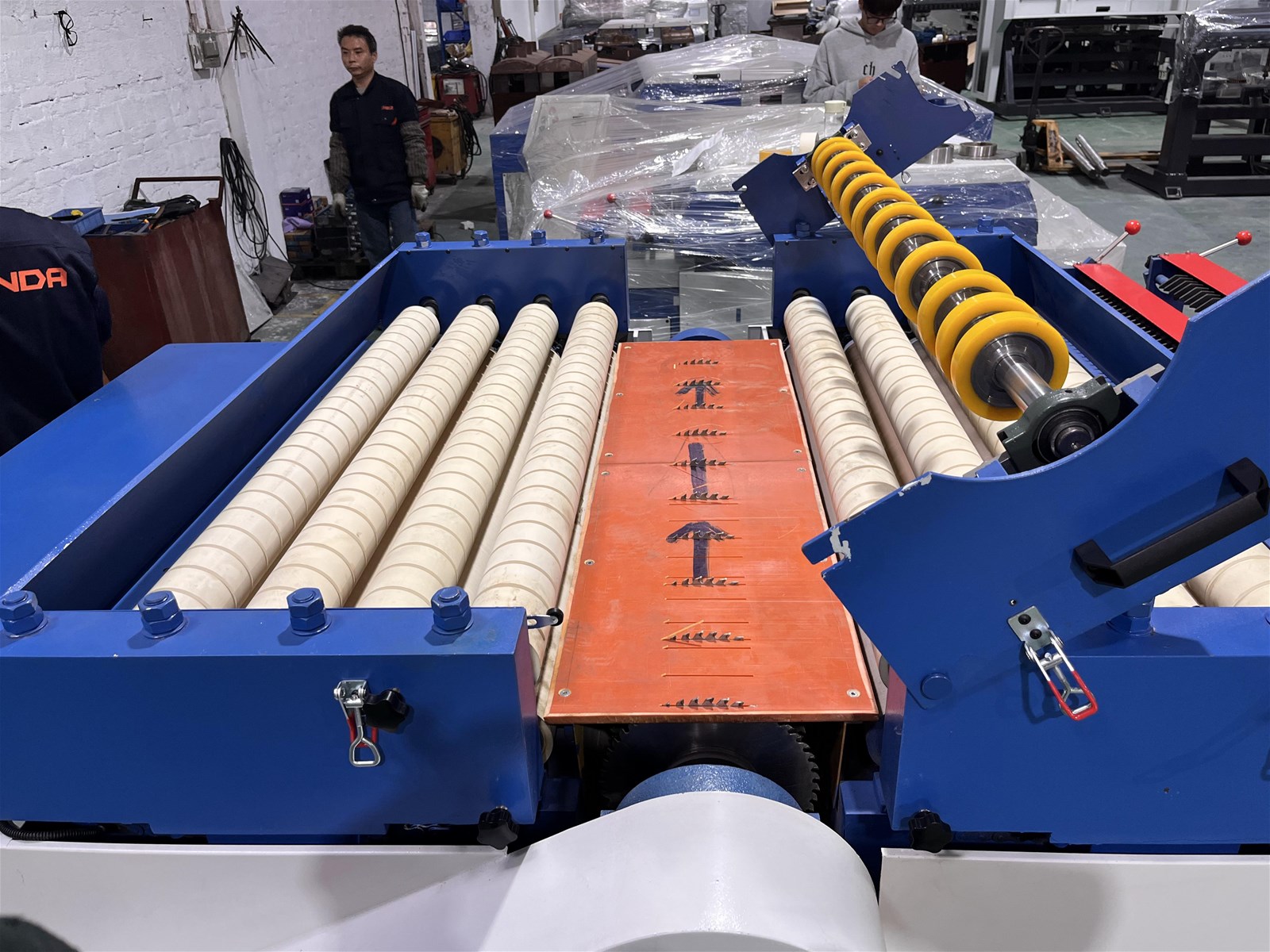

EQuipped with three sets of wear-resistantnItinol rubber feeding rollers, totaling 12 rollers, at the front and rear. these rollers offer superior anti-slip properties, enhancing smooth feeding and ensuring consistent power output. A set of pressure wheels above theSpindlePrevents board jumping during sawing, maintaining sawing smoothness. the front and rear surfaces feature power rollers, facilitating board feeding.
the variable frequency adjustable feeding mechanism enables the feeding speed according to the thickness and hardness of various sheets, promoting smoother and more stable material feeding.
