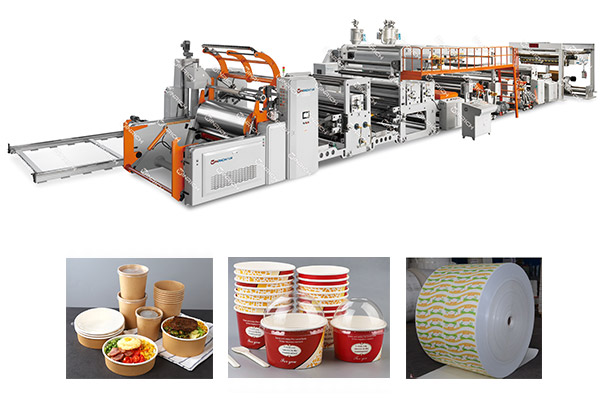

WSFM Shaftless Automatic Extrusion Coating Machine

FOB Price:	250000.00 - 4000000.00 USD/Unit
Payment Terms:	T/T

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China

Quick Details

WSFM Shaftless Automatic Extrusion Coating Machine
WSFM1100-2000B full automatic Double sides high speed Extrusion laminating machine

Application:

Double side extrusion coating and lamination, Paper PLA coating, Paper PBS coating, Paper PE coating, etc.

Main features:

1.PLC man-machine interface control, the design of mechanical electrical integration.

2.Shaftless unwinder, Auto splicing system.

3.Hydraulic compounding system, coating evenly

4.High precision and imported die head

5.High speed and efficient mixing equipment (Italy technology).

6.Automatic hydraulic filter screen exchange

7.Auto height-adjusting extruder

7.Heavy Friction rewinding system, rewinding roll more tight and beautiful

8.and can be matched with a single extruder, Twin Extruder, extruder, multilayer co-extrusion

It is widely used in paper cup, Paper trays, paper bag, fast food paper containers, etc.

Main technical parameters:

Machinery specification	1100/90mm, 1300/100mm , 1500/105mm, 1800/110mm
Speed of coating film	300m/min
Suitable coating resin film	PLA, PBS , LDPE, PP, EVA , EAA,
Suitable base material	PAPER, AL, BOPP, BOPET, BOPA, CPP, CPE,
Width of coating film	1000mm, 1200mm, 1400mm, 1700mm
Thickness of coating film	0.012~0.1mm
Inaccuracy thickness of coating film	≦±5%
Complex cooling roller	Φ800mm
Screw specification	(L/D)Φ90: 33, Φ100: 33, Φ105:33; Φ110:33
Main unwinding diameter	Φ1600mm
Diameter of auxiliary unwinding	Φ600mm
Diameter of rewinding	Φ1700mm
