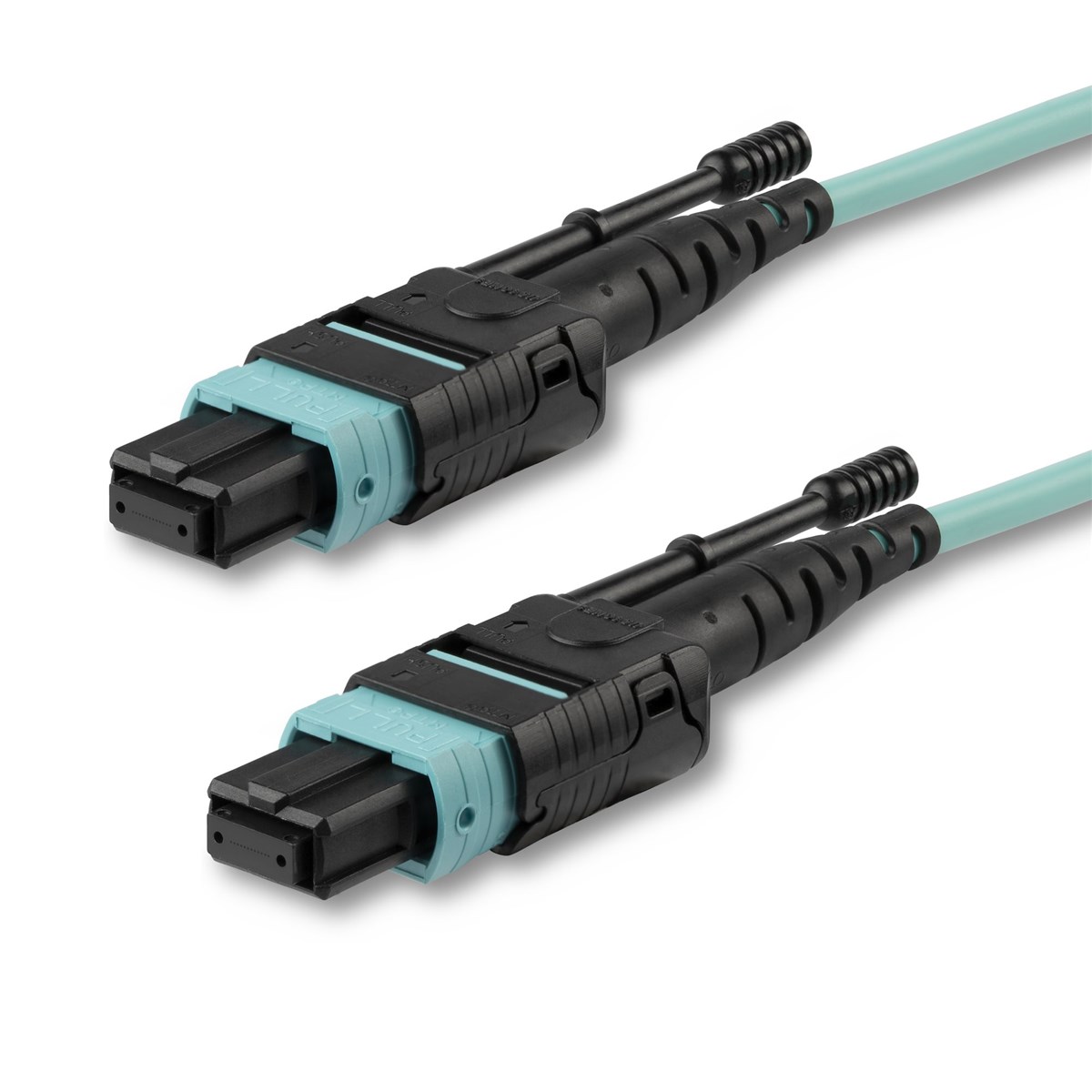

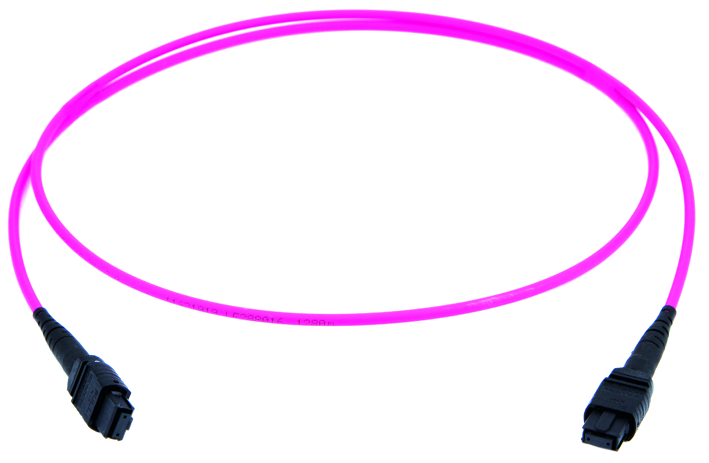

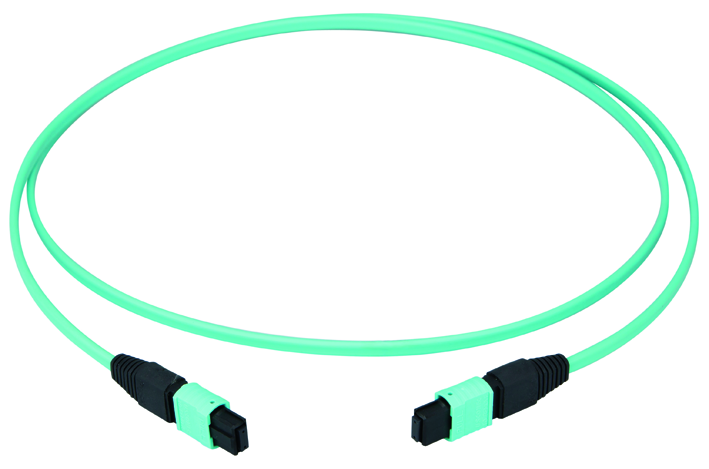

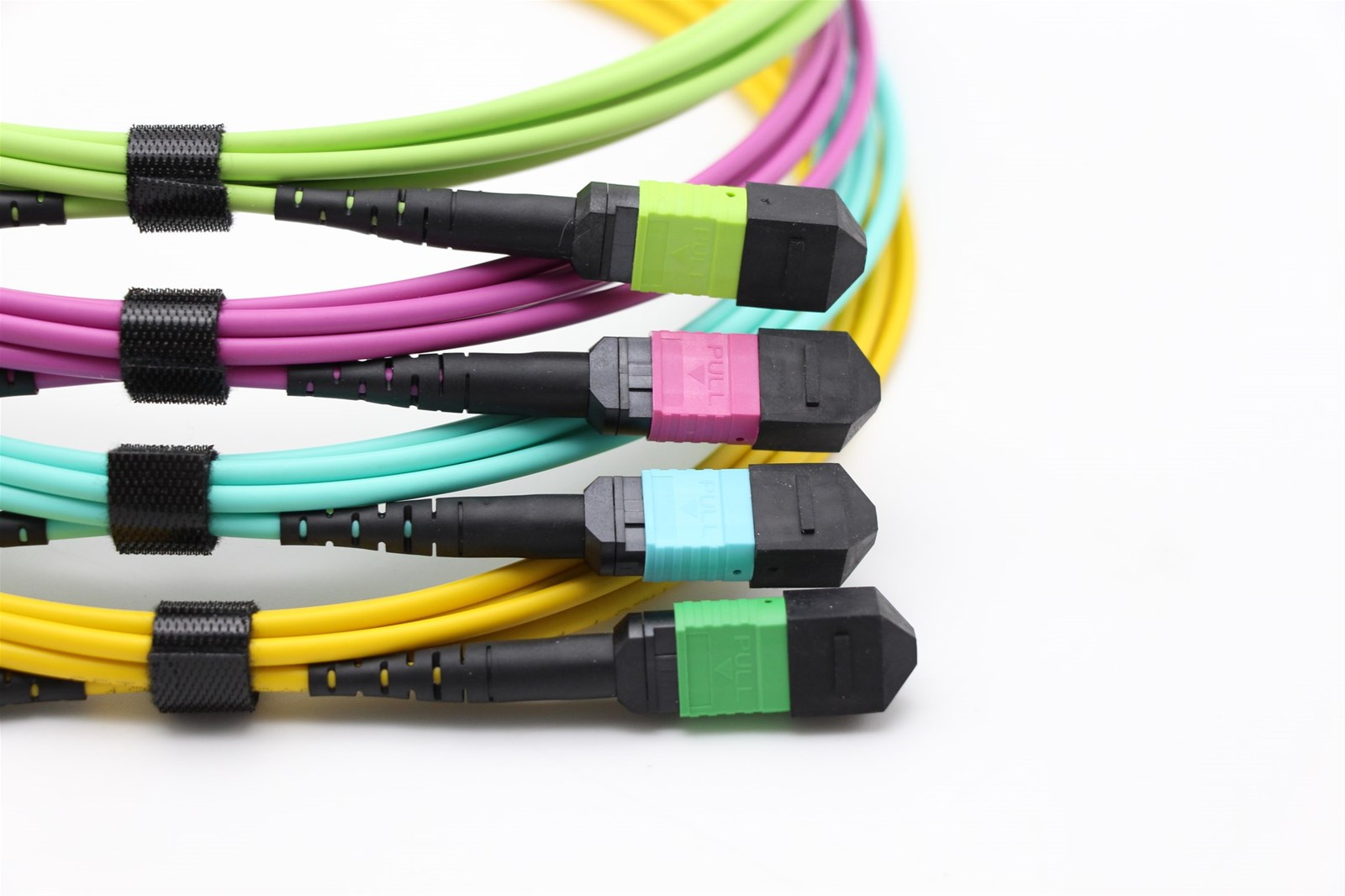

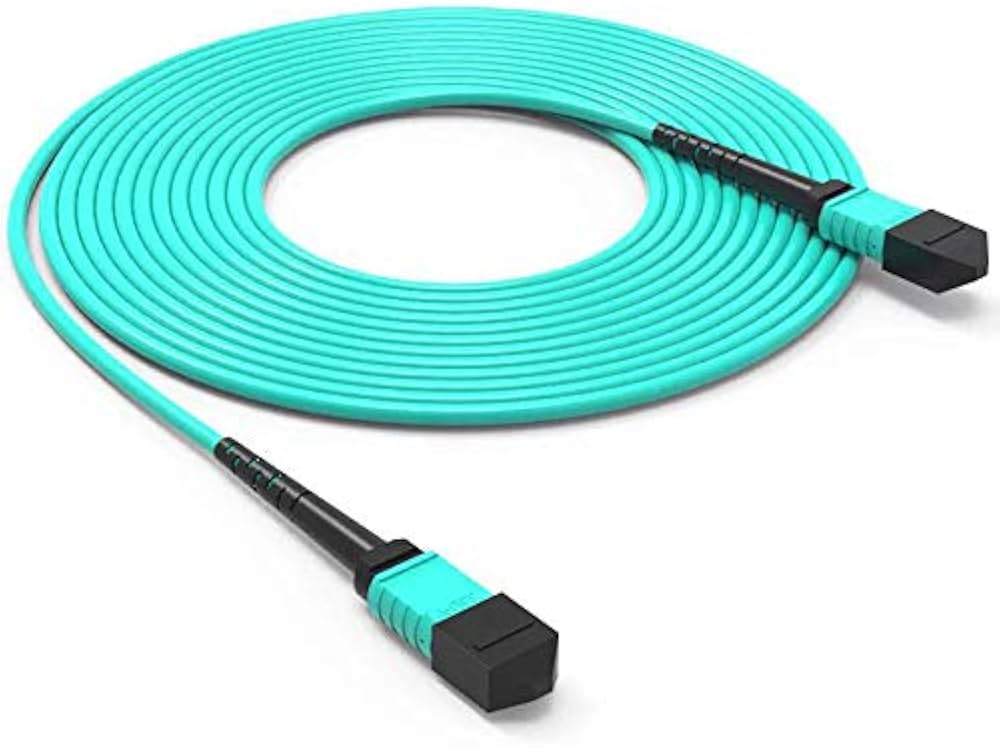

3m Mpo/PC(f)-Mpo/PC(f) Om3 3.0mm 12cord Fiber Optic Patch Cord, Jumper, Connector

FOB Price:	6.20 - 6.50 USD/Piece
Supply Ability:	100,000 Piece(s) per Month
Shipping:	fob Shenzhen,China
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	151515cm 0.03KG/pc

Quick Details

Type: Cat 5
Brand Name: szcnte
Application: telecom
Color: yellow,blue

Specifications

1.Product Background Introduction

as data transmission demand Grows, especially for high-speed Internet access in data centers,

with the Demand for large-scale data storage, traditional single-fiber optical fiber connectors Are no longer able to

to meet the needs of the market. MPO fiber optic connectors provide up to 12, 24 or even

to Multi-core parallel transmission solution. this product transmits multiple Optical fibers in parallel

Signal, MPO fiber optic connector with its excellent optical performance improves data Transmission

the Design of MPO connector simplifies the wiring of optical fiber network, thus Reducing

Reduces Space usage and improves system scalability

Product application areas

Telecommunications Network: in the telecommunications industry, MPO Fiber optic connectors are used for optical fiber connections in base stations, Switching centers, and data centers, supporting high-speed broadband access and Data transmission in mobile communication networks.

Devices, and network Switches. They support the high-density cabling requirements of data centers and optimize space utilization.

Enterprise network: in enterprise local area networks (LAN) and wide Area networks (WAN), MPO fiber connectors are used to connect network devices Within the enterprise, such as routers, switches, and servers, to provide High-speed and stable data transmission.

Broadcasting: MPO fiber optic connectors are used in the field of Broadcasting to transmit high-definition video and audio signals, especially in Live broadcasts and large-scale event productions.

Military and Aerospace: Used in military communications and avionics Systems that require extremely high data transmission rates and reliability

3. Product technical indicators

*Product Parameters

Project		Parameter
Fiber core number		12&Multi-core
Fiber Type		Single-mode G652D (G657A Optional)	Multimode OM1/OM2/OM3/OM4/OM5 optional
Working wavelength		1310,1550nm	850,1300nm
Insertion loss (dB)		MPO:≤0.5 (0.35 low insertion loss optional) Conventional End:≤0.25
Return loss (dB)	APC	≥60	/
	PC	≥50	≥30
Jumper Cable	Skin shape	Round cable (flat cable Optional)
	Jacket material	PVC (LSZH optional)
	Outer diameter (mm)	3.0
Number of plug-in and plug-out times		>1000
Tensile strength		≥50N
Operating temperature		-40℃~+85℃
Standards compliant		IEC 61753-1, IEC 61755-3-1, IEC 61755-3-2, IEC 61755-3-31 IEC 61755-3-32, YD/T 1272.5 GR-326-CORE, GR-1435-CORE

*3D end face parameters

Project			Minimum		Maximum
Curvature radius (mm)	Long axis (X ROC)		2000mm
	Short axis (Y ROC)		50mm
angle	Long axis (X)		-0.20	0.20
	Short axis (Y)	APC	7.8	8.2
		PC	-0.20	0.20
Fiber height (nm)			1000nm	3000nm
Maximum fiber height difference (nm)			NA	400nm
Height difference between adjacent optical fibers (nm)			NA	200nm
Fiber sag (multimode) (nm)			NA	150nm

We supply all type fiber optic patch cord/cable/jumper/connector
