Liquid LNG Gas Petroleum Cryogenic Marine Loading Arm

FOB Price:	200000.00 - 1500000.00 USD/Set
Supply Ability:	150 Set(s) per Year
Shipping:	Sea/Land/Railway
Payment Terms:	L/C, D/P, T/T

In Stock

Inquiry Now Start Order

Related products from verified members

Quartz Processed Tube

Price:

Min. Order:
Rupture Disks

Price:

Min. Order:20 Pieces
Acceleration Mechanical Shock Tester

Price:1,000.00-10,000.00 USD/Set

Min. Order:1 Set
Slewing Drive

Price:200.00-2500.00 USD/Set

Min. Order:1 Set
Centrifuger

Price:

Min. Order:
Uncoiler

Price:16000.00-37000.00 USD/Set

Min. Order:1 Set
Delivery Valve for Fuel Pump

Price:

Min. Order:
bleaching clay treatment systems

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Condition: New
Brand Name: COSCO
Weight: Depends
color: Customized
Meida: Liquid/Gas
Balance: Rotation counterweight / Full balance
Diameter: DN100-DN600
Design Pressure: -0.06MPa ~ +10 MPa
Desigh Temperature: -196 ~ +250
Pipe Material: CS/SS/Low-temp steel/Line with PTFE
Operation: Hand/Electro-Hydraulic
Parts: QCDC / ERS
Function: Loading / Unloading
Patent: Yes

Specifications

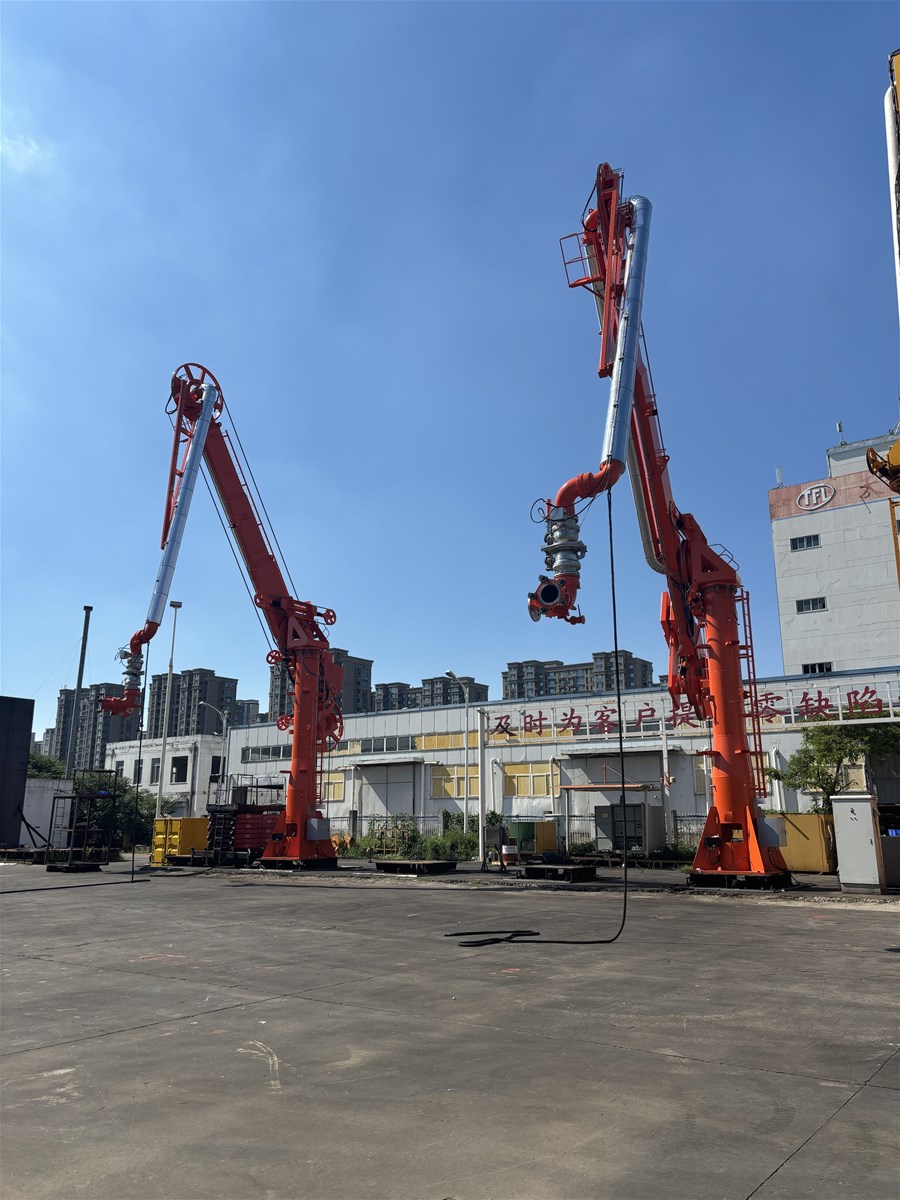

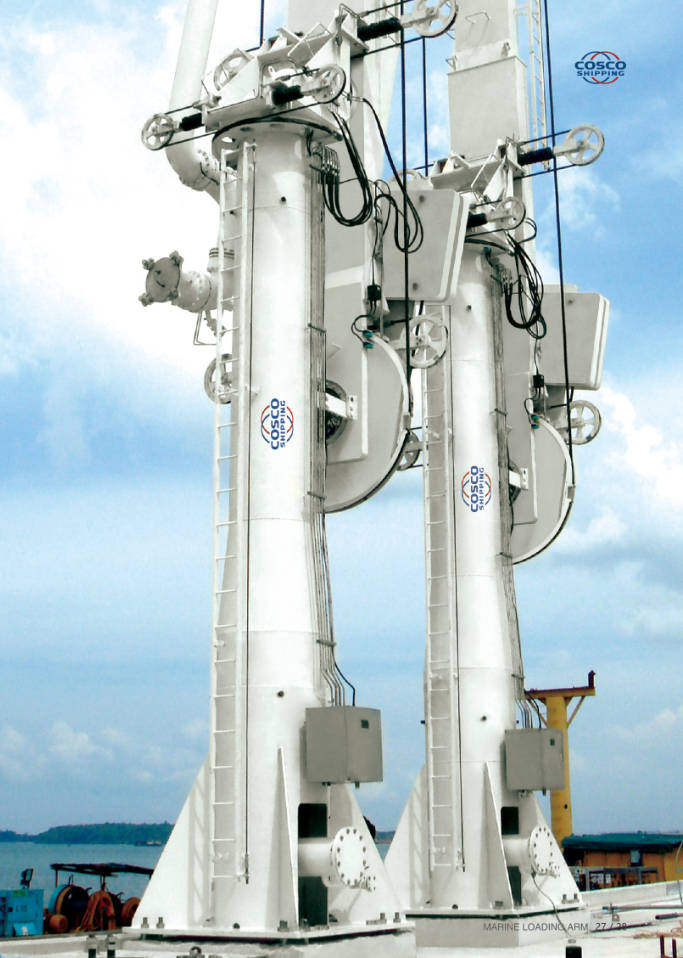

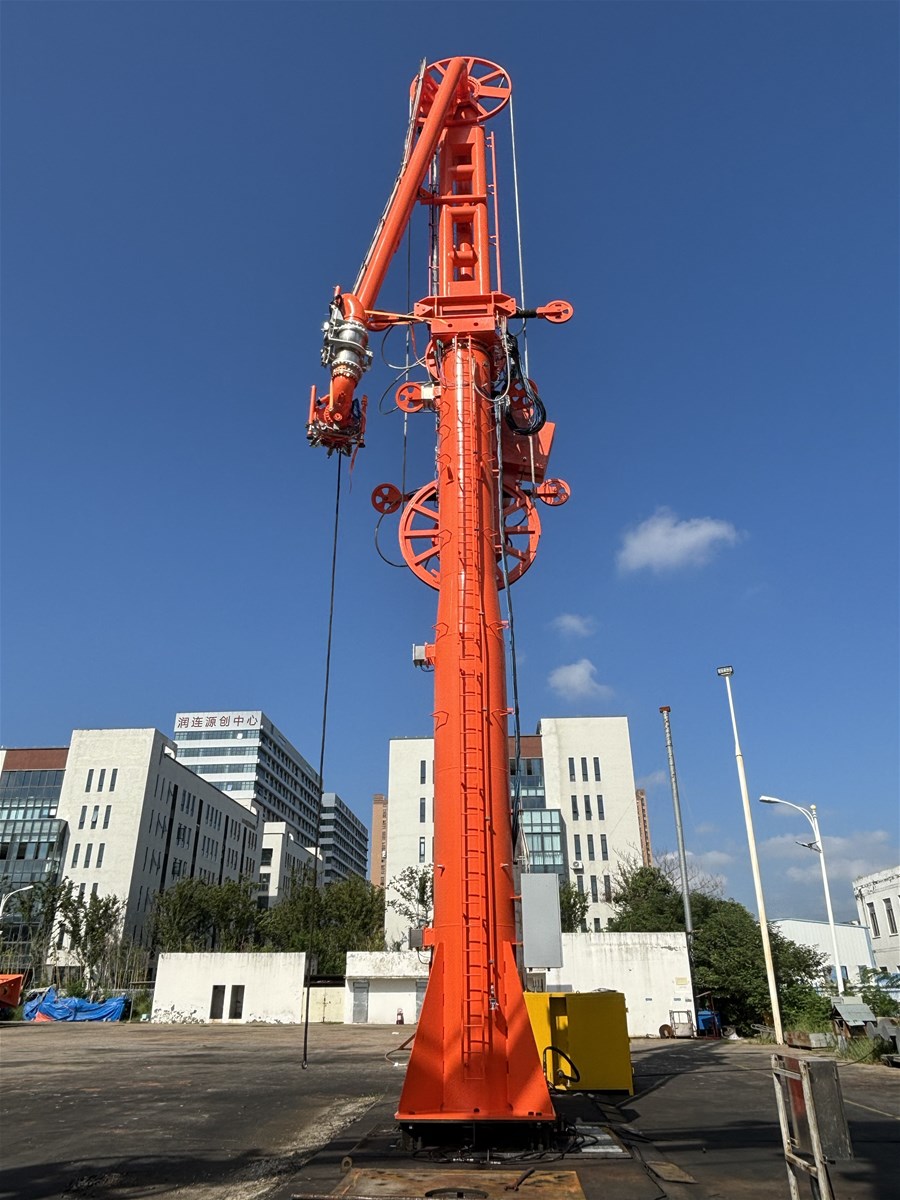

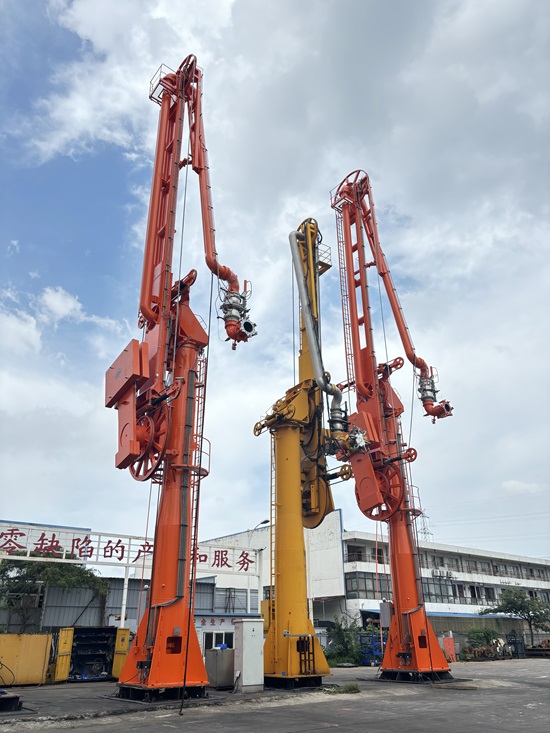

Marine Loading Arm is designed for connecting piping systemson a ship and terminal so that the fluid or gas can be transferred safely, efficiently and without harm to the environment. during loading and unloading, the MLA can move along with the ship within the defined envelop and the counterweight balance system makes it balance at all position. With electro-hydraulic control system, MLA can be used to transfer fluids such as crude oil, refined and chemical products, LNG etc. MLA is a critical part of a terminal's ability to import and export products and COSCO is always the reliable supplier to support our customer.

PARAMETER

Nominal Diameter: DN100 DN400
Design Temperature: -196℃ ~ +250℃
Design Pressure: -0.06MPa ~ +10MPa
Pipe Material: Carbon Steel,
Low temperature Carbon Steel,
Stainless Steel 304/ 304L/ 316L.
Optional: Vapour return line, Electric heat tracing, PMS etc.

CRITICAL PARTS
1. Swivel Joint
Normally each MLA has six swivel joints to
Assure different directions of movement.
It's easy to change seals and lubricate for
Them without dismantling.

2.Emergency Relase System
to prevent equipment loss and to protect
the safety of terminal and operators, ERS
Can release MLA from connection with
Ship in emergency without leakage.

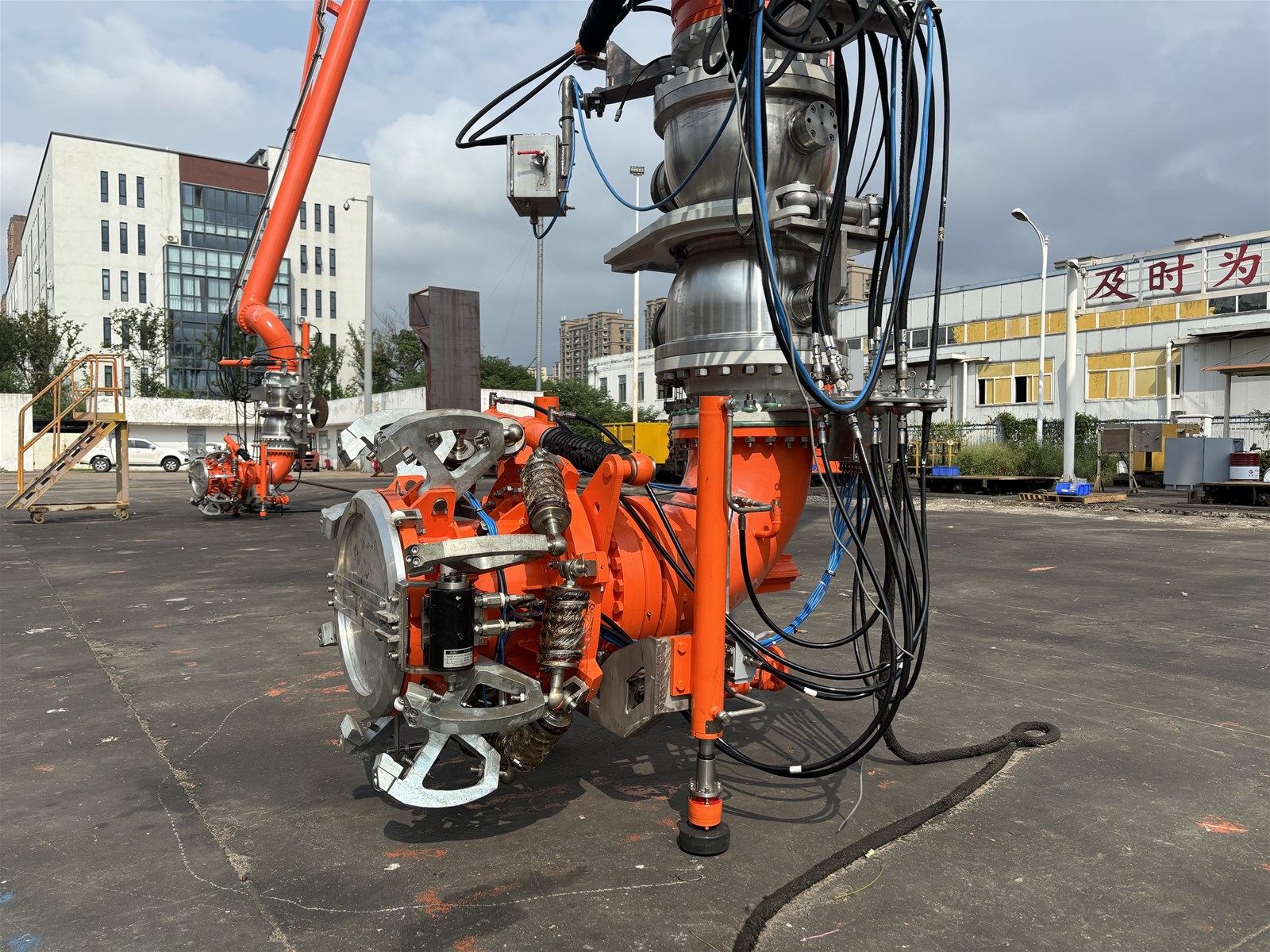

3.Hydraulic QC/DC
Hydraulic QC/DC has advantages in the
Speed and ease of connection to manifold
Flange, especially for safer operation while
Handling hazardous fluids.
