LFP Lithium Ion Battery Cell 12Ah 20Ah 24Ah 27Ah 30Ah 32Ah

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe
Place of Origin:	Anhui in China
Packaging Details:	Carton

Quick Details

the following example is for you reference.

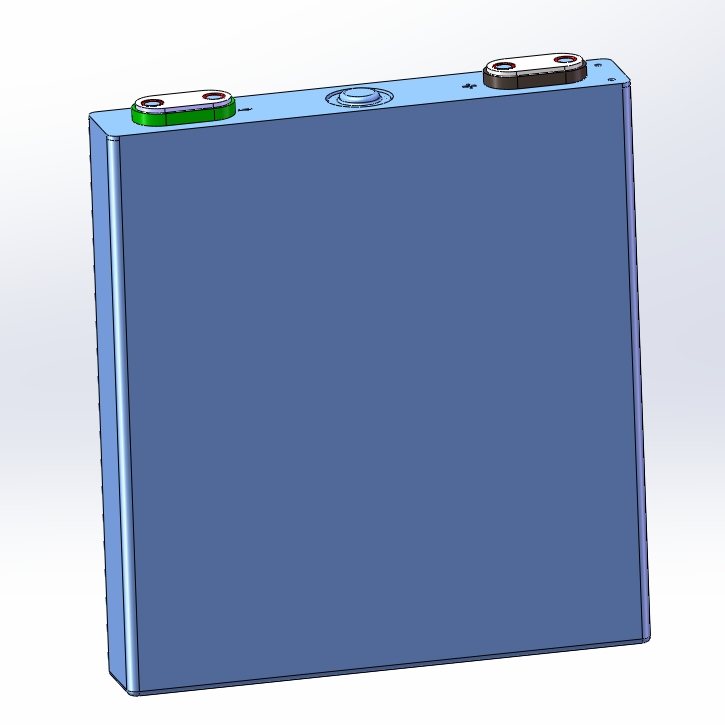

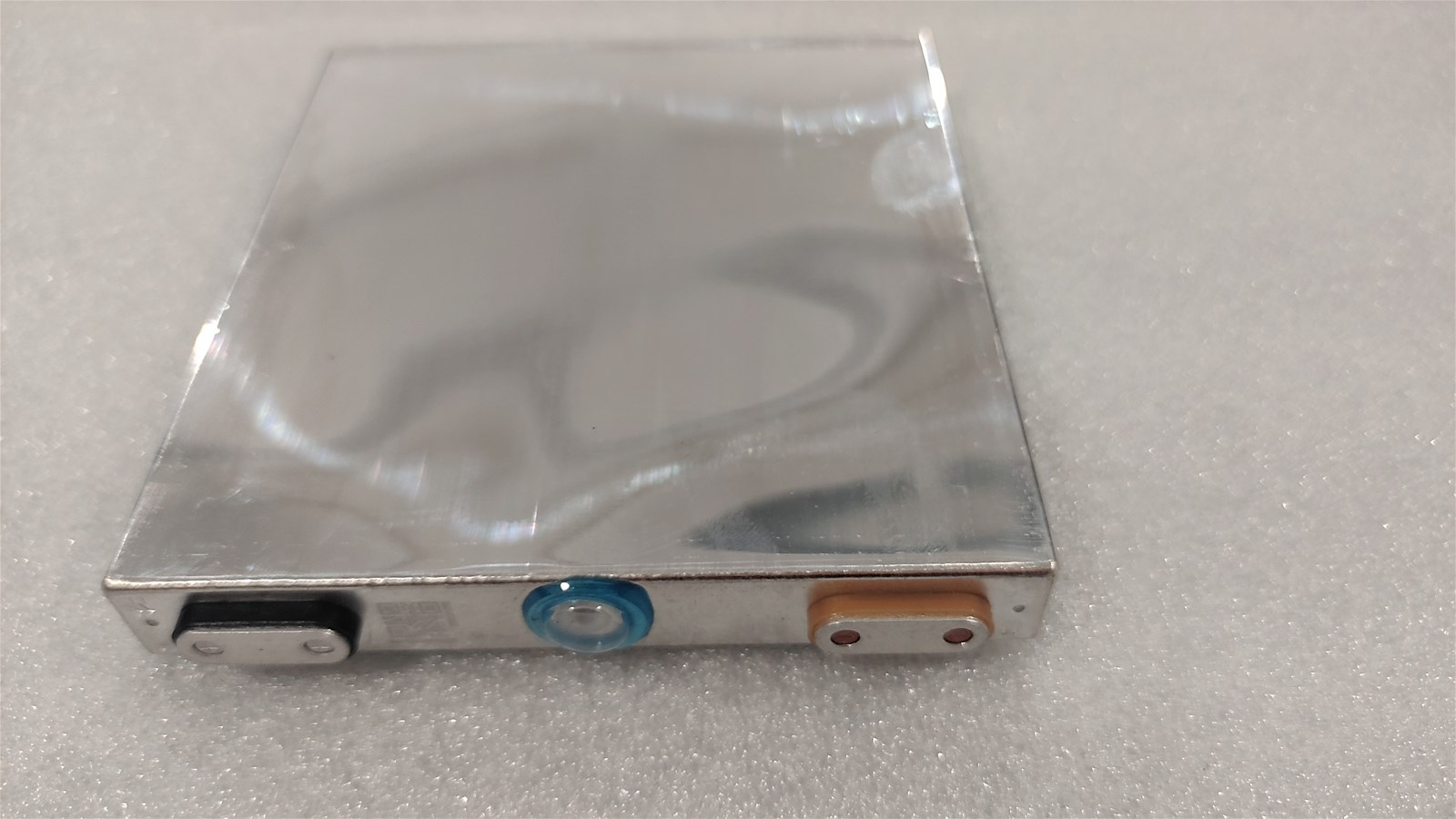

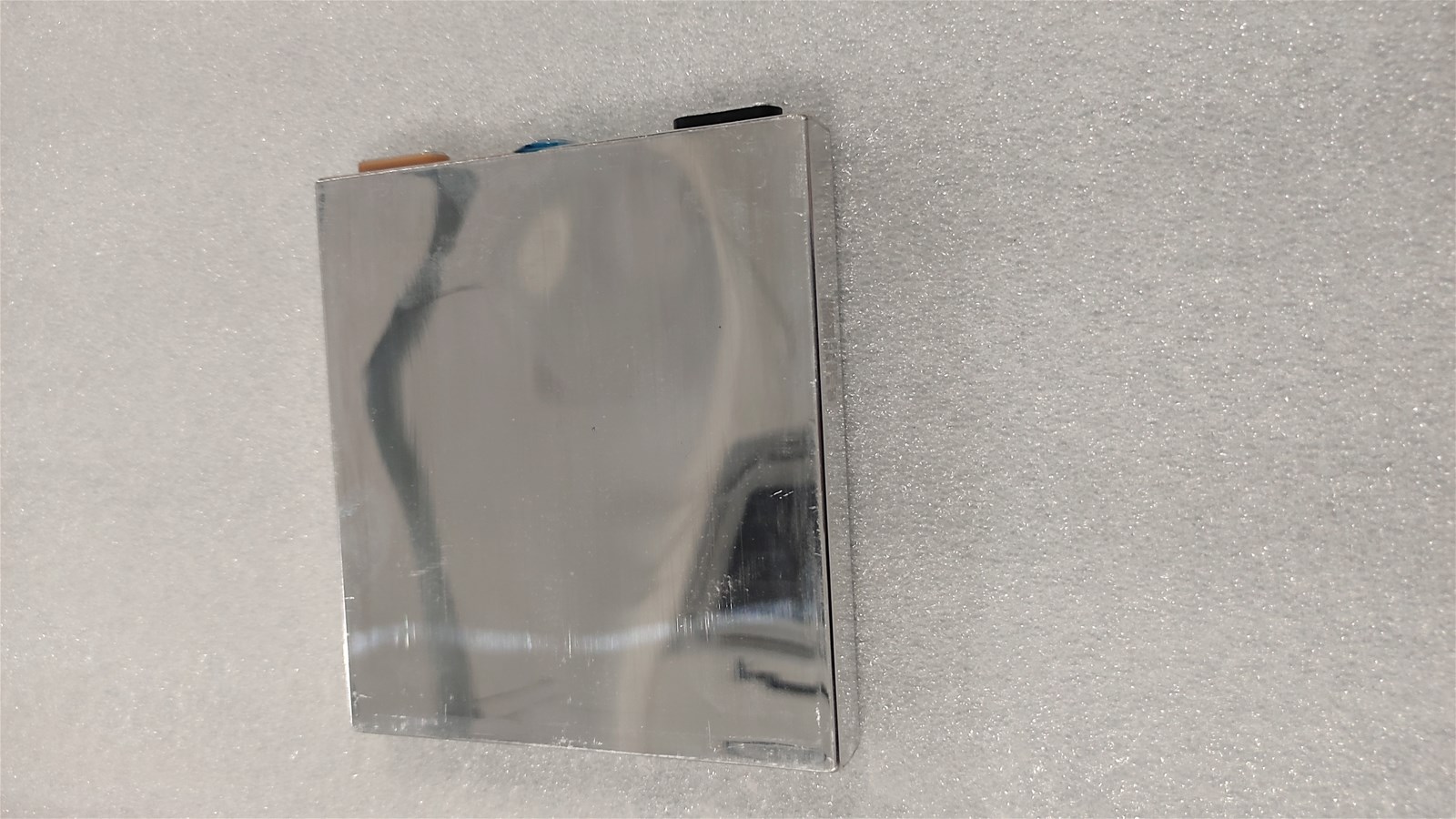

Features: prismatic LFP cell

Technical details: 3C discharge, 4000 times cycle life

Operation method of useage: laser welding or screw/nut connection

Package: carton

Main technical parameters

Item		Value	Remarks
3.1 NominalCapacity		27Ah	1C A (27A)dIscharge
3.2		3.2V
3.3 Internal Resistance		≤1.5mΩ	50%S0C@25℃
3.4 Charge voltage range		3.65V-2.5V	25℃(≤0℃@ 2.0V)
3.5 Max Charge Current		40.5A	Cut off current 0.05C
3.6 MaxContinuousDischarge Current		54A	2C A
3.7 PEak discharge current		81A	3.0C A(60s)
3.8 Weight		560±15g
3.9 Operating temperature	Charging	0~+55℃
	Discharging	-20~+70℃
3.10 Storage tempErature	<1 month	-10~+40℃	27%SOC forStorage; reCharge every 3 months.
	>1 month	-10~+35℃
